Танилцуулга
This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your De'Longhi ESAM6700 Gran Dama Avant Super-Automatic Espresso Machine. Please read all instructions carefully before using the appliance and retain this manual for future reference.
Зураг: Урд view of the De'Longhi ESAM6700 espresso machine, showcasing its sleek design and touch-screen interface, with a prepared latte macchiato in a glass.
Бүтээгдэхүүн дууссанview
The De'Longhi ESAM6700 is designed to deliver a variety of coffee beverages with ease. Key features include:
- "Single Touch" Hot Milk System: Easily prepares latte, cappuccino, and Italian macchiato.
- Digital Touch Screen Control Panel: Offers programmable menu settings for start time, auto-off, clock, water temperature, coffee strength (5 settings), and cup size (4 settings).
- "Direct-to-Brew" System: Grinds beans instantly for fresh espresso. The brewing system is compact and removable for cleaning.
- Accommodates Latte Cups: Features a unique flip-up drip tray.
- Long Coffee Function: Replicates the taste of drip coffee by elongating the brewing process.
- Нэгдсэн конус хэлбэрийн бутлуур: Adjustable fineness settings for whole coffee beans.
- 60-ounce Removable Water Tank: For convenient refilling.
- Double Boiler System: Ensures optimal temperature for brewing and steaming.
- Аяга халаагч: Located on top of the machine to pre-heat cups.
Хяналтын самбар
Image: Close-up of the digital touch-screen control panel displaying menu options and settings for coffee preparation.
The touch-screen interface allows for intuitive control over various functions, including beverage selection, strength adjustment, and system settings.
Кофены буурцагны бункер ба нунтаглагч

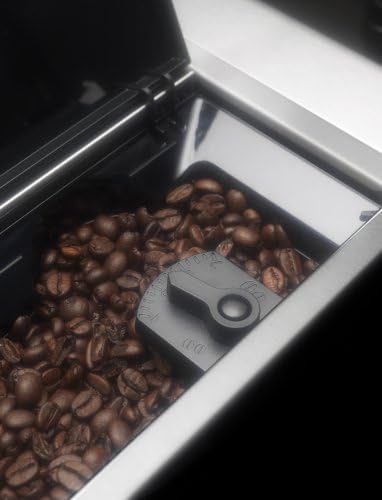

Зураг: View into the coffee bean hopper of the De'Longhi ESAM6700, showing whole coffee beans and the fineness adjustment dial for the integrated burr grinder.
The integrated conical burr grinder ensures fresh coffee by grinding beans just before brewing. The fineness of the grind can be adjusted to suit your preference.
Milk Container and Frothing System
Image: The removable milk container attached to the De'Longhi ESAM6700, showing the frothing nozzle and milk level. Steam is visible, indicating active frothing.
The removable milk container integrates with the machine to automatically froth or steam milk for lattes, cappuccinos, and macchiatos. It features a clean button for easy maintenance.
Аяга дулаан
Image: Two ceramic cups inverted on the cup warming tray located on top of the De'Longhi ESAM6700 espresso machine.
The cup warmer on top of the machine helps to keep your espresso cups at an ideal temperature, ensuring your coffee stays hot longer.
Тохиргоо
- Савлах: Бүх сав баглаа боодлын материалыг болгоомжтой авч хая. Бүх эд анги байгаа эсэхийг шалгаарай.
- Анхны цэвэрлэгээ: Before first use, wash the water tank, milk container, drip tray, and grounds container with warm water and mild detergent. Rinse thoroughly.
- Усны сав: Fill the 60-ounce removable water tank with fresh, cold water. Insert it securely into the machine.
- Coffee Beans/Ground Coffee: Open the coffee bean hopper lid and fill with whole coffee beans. If using ground coffee, use the dedicated pre-ground coffee funnel.
- Асаах: Plug the machine into a suitable power outlet. The machine will perform an initial heating cycle and rinse.
Ашиглалтын заавар
Эспрессо хийх
- Усны сав дүүрсэн, кофены үр бункерт байгаа эсэхийг шалгаарай.
- Кофены хошууны доор нэг эсвэл хоёр аяга тавь.
- Select your desired coffee strength and cup size using the touch screen.
- Press the single or double espresso button. The machine will grind the beans and brew the coffee.
Preparing Milk-Based Beverages (Latte, Cappuccino, Macchiato)
Image: A glass of latte macchiato being prepared by the De'Longhi ESAM6700, showing distinct layers of milk, espresso, and foam.
- Сүүний савыг шинэхэн, хүйтэн сүүгээр дүүргэ.
- Сүүний савыг машины урд талд товших чимээ гартал гулсуулна уу.
- Place a suitable cup under the milk and coffee spouts.
- Select your desired beverage (Latte, Cappuccino, Macchiato) from the touch screen. The machine will automatically froth the milk and brew the coffee.
- After use, press the "Clean" button on the milk container to rinse the system.
Халуун усны функц
To dispense hot water for tea or instant beverages:
- Халуун усны хоолойн доор аяга тавина.
- Select the hot water function from the touch screen.
- Press the start button to dispense hot water.
Засвар үйлчилгээ
Тогтмол цэвэрлэгээ, засвар үйлчилгээ нь таны эспрессо машиныг оновчтой, удаан эдэлгээтэй болгоно.
Өдөр тутмын цэвэрлэгээ
- Дуслын тавиур ба хөрсний сав: Empty and clean daily. The machine will prompt you when the grounds container needs emptying.
- Сүүний сав: After each use, press the "Clean" button on the milk container. Periodically disassemble and wash all parts with warm water and mild detergent.
- Шар айраг исгэх хэсэг: The brewing unit is removable. Rinse it under running water at least once a week. Ensure it is completely dry before reinserting.
Хог хаях
The machine features an automatic decalcification system. The display will indicate when descaling is required. Follow the on-screen instructions and use a suitable descaling solution recommended by De'Longhi. Regular descaling prevents mineral buildup and maintains machine efficiency.
Алдааг олж засварлах
Хэрэв та машиндаа асуудалтай тулгарвал дараах нийтлэг асуудал, шийдлүүдийг үзнэ үү.
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| "Fill Tank!" message persists after refilling. | Float in water tank is stuck or dirty. | Remove water tank, locate the float mechanism, and rinse it thoroughly to ensure free movement. |
| Coffee is lukewarm. | Temperature setting is too low; cups are cold. | Adjust water temperature setting to high via the menu. Use the cup warmer to pre-heat cups. |
| Сүү зөв хөөсөрч чадахгүй байна. | Milk container or frothing nozzle is dirty; milk is not cold enough. | Clean the milk container and frothing nozzle thoroughly. Ensure milk is fresh and cold. |
| Шар айраг исгэх хэсэг гацсан байна. | Incorrect reinsertion or coffee grounds buildup. | Remove the brewing unit, clean it, and reinsert gently but firmly until it clicks into place. Refer to the manual for correct reinsertion. |
| Машин шош нунтаглахгүй байна. | Bean hopper empty; grinder clogged. | Check bean level. If beans are present, ensure no foreign objects are in the grinder. Contact customer support if the issue persists. |
For issues not listed here, please consult the full user manual or contact De'Longhi customer support.
Үзүүлэлтүүд
- Брэнд: Де Лонги
- Загварын нэр: ESAM6700
- Кофе чанагч төрөл: Super-Automatic Espresso Machine
- Үйлдлийн горим: Бүрэн автомат
- Хүний интерфэйсийн оролт: Товчлуур, мэдрэгчтэй дэлгэц
- Кофены оролтын төрөл: Ground coffee, Whole coffee beans
- Усны савны багтаамж: 1.8 литр (ойролцоогоор 60 унц)
- Оруулсан бүрэлдэхүүн хэсгүүд: Milk Frother (removable milk container)
- Бүтээгдэхүүний хэмжээ: 16.81 x 11.06 x 14.81 инч (Өндөр x Өргөн x Гүн)
- Барааны жин: 30 фунт
- Өнгө: Мөнгө
- Онцлог шинж чанар: Програмчлагдах тохиргоо
- GTIN/UPC: 044387167000, 759284150375
Баталгаат болон дэмжлэг
The De'Longhi ESAM6700 Gran Dama Avant Super-Automatic Espresso Machine comes with a хоёр жилийн хязгаарлагдмал баталгаат хугацаа. For warranty claims, technical support, or service inquiries, please refer to the contact information provided in your product packaging or visit the official De'Longhi webсайт.
