Belden 9501 24AWG Paired Instrumentation/Computer Cable

1. Бүтээгдэхүүн дууссанview

The Belden 9501 cable is a 24 AWG (American Wire Gauge) paired cable designed for instrumentation and computer applications. It features a stranded (7x32) copper conductor, PVC insulation, and a grey PVC jacket, providing reliable signal transmission and durability. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your Belden 9501 cable.

2. Тохиргоо ба суурилуулалт

Proper installation is crucial for optimal performance and safety. Always ensure power is disconnected from equipment before handling or installing cables.

2.1 Аюулгүй байдлын урьдчилан сэргийлэх арга хэмжээ

• Суулгахын өмнө бүх тэжээлийн эх үүсвэрийг салгасан эсэхийг шалгаарай.
• Бээлий, нүдний хамгаалалт гэх мэт зохих хувийн хамгаалалтын хэрэгслийг (PPE) өмс.
• Avoid sharp bends or excessive pulling force on the cable to prevent damage to conductors or insulation.
• Consult local electrical codes and standards for specific installation requirements.

2.2 Кабелийн бэлтгэл

To prepare the cable for termination, carefully strip the outer PVC jacket to expose the insulated conductors. Use a wire stripper appropriate for 24 AWG wire to remove insulation from the individual conductors without damaging the copper strands.

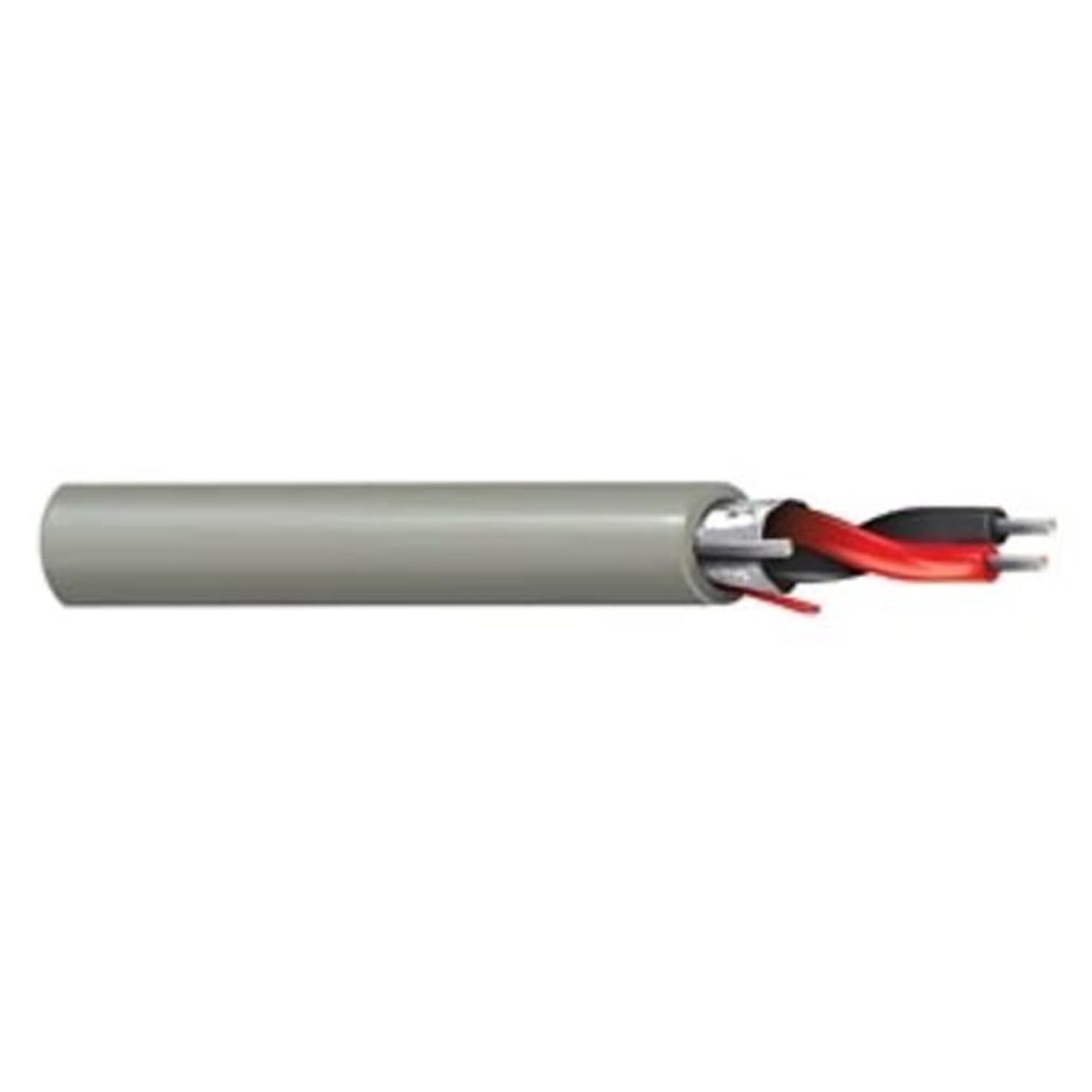

Figure 1: Belden 9501 paired cable. The outer grey PVC jacket is partially stripped, revealing two internal conductors: one red and one black, both individually insulated. This construction indicates a paired cable design suitable for signal transmission.

2.3 Холболт

Connect the prepared conductors to the appropriate terminals of your instrumentation or computer equipment. Ensure secure connections to prevent signal loss or intermittent operation. Follow the wiring diagrams provided by your equipment manufacturer.

3. Үйл ажиллагааны удирдамж

The Belden 9501 cable is designed for reliable data and signal transmission in various environments. Once installed, ensure the cable is not subjected to physical stress, extreme temperatures beyond its specified operating range, or chemical exposure that could degrade the PVC jacket or insulation.

• Verify all connections are secure before powering on equipment.
• Avoid routing cables near sources of electromagnetic interference (EMI) if possible, to maintain signal integrity.
• Regularly inspect the cable for any signs of physical damage, especially in areas prone to movement or abrasion.

4. Засвар үйлчилгээ

The Belden 9501 cable requires minimal maintenance. Regular visual inspections are recommended to ensure its longevity and performance.

4.1 Цэвэрлэгээ

If cleaning is necessary, gently wipe the outer jacket with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the PVC material.

4.2 Хадгалалт

Store unused cable in a cool, dry place away from direct sunlight and extreme temperatures. Keep it coiled neatly to prevent kinks or damage.

5. Алдаа засах

If you experience issues with your cable, consider the following common troubleshooting steps:

• Дохио байхгүй/Завсарлагатай дохио: Check all connections at both ends of the cable to ensure they are secure and properly terminated. Inspect the cable for visible damage such as cuts, kinks, or crushed sections.
• Дохионы чанар муу: Ensure the cable is not routed too close to power lines or other sources of electromagnetic interference. Verify that the cable length is within the recommended limits for your application.
• Биеийн гэмтэл: If the cable jacket or insulation is compromised, the cable should be replaced to prevent short circuits or signal degradation.

6. Техникийн үзүүлэлтүүд

Key technical specifications for the Belden 9501 cable:

7. Баталгаат хугацааны мэдээлэл

Belden products are manufactured to high-quality standards. For specific warranty details, please refer to the official Belden webсайт эсвэл харилцагчийн үйлчилгээтэй холбогдоно уу. Худалдан авалтын баримтаа худалдан авалтын баталгаа болгон хадгалаарай.

8. Дэмжлэг

For technical assistance, product inquiries, or further support, please visit the official Belden website or contact their authorized distributors. Contact information can typically be found on the Belden corporate webсайт.
