Dawson 3/4" (19mm) Strut Channel Unistrut Socket 1/2" Drive (CSM12E) Instruction Manual

1. Танилцуулга

This manual provides essential information for the safe and effective use of your Dawson 3/4" (19mm) Strut Channel Unistrut Socket, model CSM12E. This specialized socket is designed to facilitate the tightening and loosening of 1/2" bolts with 3/4" heads within various strut channels, particularly in areas inaccessible to standard sockets. Please read this manual thoroughly before operation.

Image 1.1: The Dawson 3/4" (19mm) Strut Channel Unistrut Socket (CSM12E).

2. Аюулгүй байдлын мэдээлэл

Энэ хэрэгслийг ашиглахдаа дараах аюулгүй байдлын урьдчилан сэргийлэх арга хэмжээг үргэлж дагаж мөрдөөрэй.

• Нүд хамгаалах: Always wear appropriate eye protection (safety glasses or goggles) to prevent injury from flying debris.
• Гар хамгаалах: Wear work gloves to protect hands from pinches, cuts, and abrasions.
• Хэрэгслийн нөхцөл: Inspect the socket for any signs of damage, cracks, or wear before each use. Do not use a damaged tool.
• Зөв тохирох: Ensure the socket is correctly seated on the fastener and the drive tool before applying torque.
• Torque Limits: This socket is impact rated and tested to destruction at 390 Nm. However, always adhere to the recommended torque specifications for the bolts and strut nuts being used, typically between 30 Nm and 95 Nm. Exceeding these limits can damage fasteners or the strut system.
• Stable Workpiece: Ensure the workpiece is stable and secured to prevent movement during tightening or loosening.
• Цэвэрлэгээ: Be aware of your surroundings and ensure adequate clearance for the tool and your hands to prevent injury.

3. Бүтээгдэхүүн дууссанview болон Үзүүлэлтүүд

3.1 Онцлогууд

• 4-1/4" Overall Length
• Compatible with all 1-5/8", 2-7/16", and 3-1/4" deep strut channels
• Designed for 1/2" bolts with 3/4" (19mm) heads
• Zinc Plated Finish
• Impact Rated

3.2 Үзүүлэлтүүд

4. Тохиргоо ба суурилуулалт

The Dawson Strut Channel Unistrut Socket is designed for straightforward attachment and use.

1. Драйв хэрэгсэлд хавсаргах: Insert the 1/2" square drive end of the Dawson socket onto a compatible 1/2" drive ratchet, breaker bar, or impact wrench. Ensure it is securely seated.
2. Position in Channel: Guide the open end of the socket over the 3/4" (19mm) bolt head located within the strut channel. The unique design allows the socket to reach bolts in deep channels (1-5/8", 2-7/16", and 3-1/4" tall channels).

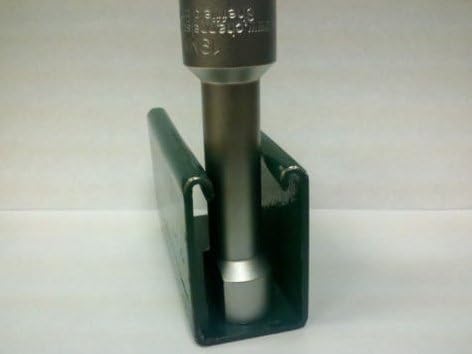

Image 4.1: The Dawson socket positioned within a strut channel, ready for operation.

5. Ашиглалтын заавар

Once the socket is properly attached to your drive tool and positioned on the bolt head:

1. чангалах: Rotate the drive tool clockwise to tighten the bolt. Apply steady, controlled force. For critical applications, use a torque wrench to achieve the manufacturer's specified torque.
2. Суллах: Rotate the drive tool counter-clockwise to loosen the bolt. Initial loosening may require more force.
3. Impact Tool Use: This socket is impact rated. When using with an impact wrench, ensure the impact wrench's torque output does not exceed the recommended torque for the fasteners or the strut system. Excessive torque can damage components.
4. Устгах: After tightening or loosening, carefully withdraw the socket from the strut channel and off the bolt head.

Зураг 5.1: Нарийвчилсан view of the socket's working end, designed to engage bolts within strut channels.

6. Засвар үйлчилгээ

Proper maintenance will extend the life of your Dawson socket:

• Цэвэрлэгээ: After each use, wipe the socket clean with a dry cloth to remove dirt, grease, or debris. For stubborn grime, use a mild solvent and ensure it is thoroughly dried afterward.
• Хадгалах: Store the socket in a dry environment to prevent corrosion. Keep it away from excessive moisture and corrosive chemicals.
• Шалгалт: Regularly inspect the socket for any signs of wear, such as rounding of the drive square or the bolt-engaging surfaces, or any cracks in the material. Replace the socket if significant wear or damage is observed.

7. Алдаа засах

If you encounter issues while using your Dawson Strut Channel Unistrut Socket, consider the following:

• Socket does not fit over bolt head: Ensure the bolt head is indeed 3/4" (19mm). Verify there are no obstructions within the strut channel preventing the socket from seating fully.
• Socket gets stuck in channel: Ensure the socket is aligned correctly with the bolt and channel. Sometimes, slight misalignment can cause it to bind. Gently wiggle and pull to release. Avoid excessive force that could damage the channel or socket.
• Bolt not tightening/loosening effectively: Confirm the socket is fully engaged with the bolt head. If the bolt head is stripped or rounded, the socket may not grip properly. In such cases, alternative methods for fastener removal may be required.
• Socket appears damaged after use: This socket is designed for durability. If damage occurs, review your usage practices to ensure you are not exceeding recommended torque limits or using the tool improperly (e.g., as a pry bar). Replace damaged tools immediately.

8. Баталгаат хугацаа ба дэмжлэг

The Dawson Strut Channel Unistrut Socket is manufactured in Sheffield, England, to high quality and specification standards. For specific warranty information or technical support, please refer to the official Dawson product documentation or contact Dawson customer service directly. Keep your purchase receipt for any warranty claims.
