Танилцуулга
The QUMOX CF Adapter Reader (Model B665U) is designed to enable the use of various SD memory card formats (SD, SDHC, SDXC) in devices equipped with a Compact Flash (CF) Type I slot. This adapter provides a convenient solution for expanding storage or utilizing readily available SD cards in compatible CF devices, supporting capacities up to 128GB.
Image: The QUMOX CF Adapter Reader, showcasing its design for converting SD cards to Compact Flash Type I format.
Тохируулах заавар
Inserting an SD Card into the Adapter
1. Carefully align your SD, SDHC, or SDXC card with the slot on the QUMOX CF Adapter Reader.
2. Gently push the SD card into the adapter until it clicks into place and is fully seated. Do not force the card.

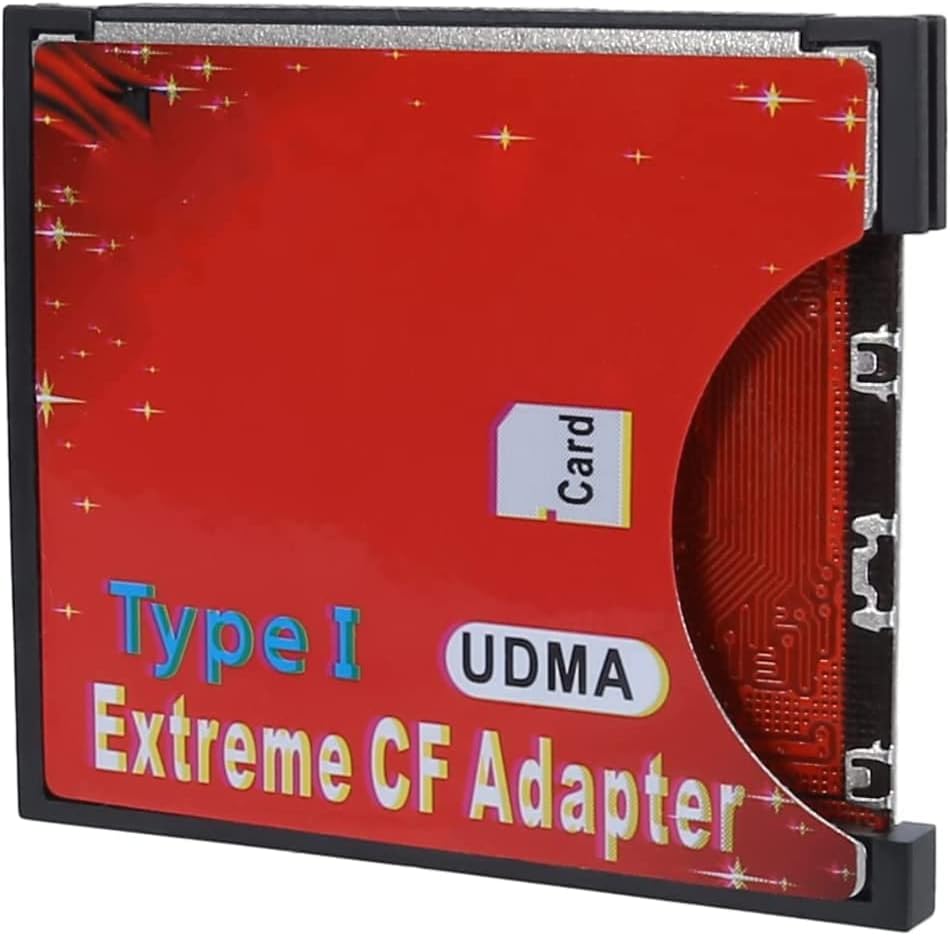

Зураг: хажуу тал view of the adapter, illustrating the correct orientation for SD card insertion.
Inserting the Adapter into a CF Device
1. With the SD card securely inserted, align the QUMOX CF Adapter Reader with the Compact Flash Type I slot of your device (e.g., camera, media player).
2. Gently push the adapter into the CF slot until it is fully seated. Ensure proper orientation to avoid bending pins.

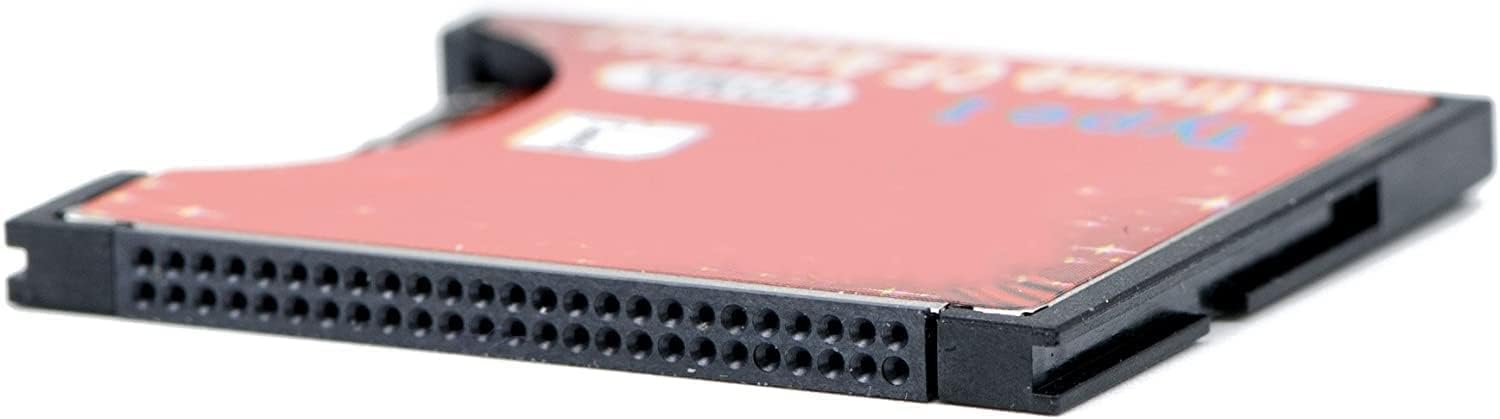

Зураг: Доод талд view of the adapter, showing the Compact Flash pins for connection to a host device.
Removing the SD Card from the Adapter
To remove the SD card from the adapter, simply pull the card directly out. Note that it may require a firm but gentle pull as there is no spring-loaded ejection mechanism. Using a fingernail to get a grip on the edge of the SD card can assist in removal.
Removing the Adapter from a CF Device
To remove the QUMOX CF Adapter Reader from your device, gently pull it straight out from the CF slot.
Operating the CF Adapter Reader
Once the QUMOX CF Adapter Reader with an inserted SD card is installed in your compatible device, the device should recognize it as a Compact Flash card.
Өгөгдөл дамжуулах
Data transfer operations (e.g., saving photos, recording video, transferring files) will function as they would with a standard Compact Flash card. Refer to your device's instruction manual for specific data management procedures.
Форматлаж байна
It is recommended to format the SD card using your host device's formatting function after initial insertion or if you encounter any issues. This ensures optimal compatibility and performance.
Wi-Fi SD Card Usage
When using a Wi-Fi enabled SD card with this adapter in a CF-supported camera, adjust the camera's "Auto power off" setting. Ensure the setting allows sufficient time for the Wi-Fi SD card to complete its data transfer operations before the camera powers down.
Image: A diagram showing the versatility of the CF adapter with various SD card types and compatible devices.
Арчилгаа, засвар үйлчилгээ
- Адаптерийг цэвэр, тоос шороо, хог хаягдлаас цэвэр байлга. Цэвэрлэхэд зөөлөн, хуурай даавуу ашиглаарай.
- Адаптерийг хэт өндөр температур, чийгшил, нарны шууд тусгалд оруулахаас зайлсхий.
- Do not bend or apply excessive force to the adapter or its pins.
- Store the adapter in a protective case when not in use to prevent physical damage.
- Always handle memory cards and the adapter by their edges to avoid touching electrical contacts.
Алдааг олж засварлах
Device Not Recognizing the Card
- Ensure the SD card is fully and correctly inserted into the QUMOX CF Adapter Reader.
- Ensure the QUMOX CF Adapter Reader is fully and correctly inserted into the host device's CF slot.
- Try using a different SD card to rule out an issue with the card itself.
- Verify that your host device supports Compact Flash Type I cards and the capacity of your SD card.
- Some older devices or BIOS versions may have compatibility limitations (e.g., 8-bit PIO mode, specific drive size queries). Consult your device's manual or manufacturer for compatibility.
Slow Read/Write Speeds
- The adapter has a maximum write speed buffer of approximately 90MB/s. If your SD card is rated for faster speeds, the adapter may throttle performance to this limit.
- Ensure your host device's CF slot supports high-speed data transfer modes (e.g., UDMA).
- Try formatting the SD card within the host device.
Difficulty Removing SD Card
- The SD card slot in the adapter does not feature a spring-loaded ejection. Gently pull the SD card directly out. A fingernail can be used to gain purchase on the edge of the card for easier removal.
Wi-Fi SD Card Disconnects
- If using a Wi-Fi SD card, ensure your camera's "Auto power off" setting is adjusted to allow sufficient time for Wi-Fi transfers to complete.
Бүтээгдэхүүний техникийн үзүүлэлтүүд
| Онцлог | Дэлгэрэнгүй |
|---|---|
| Брэнд | QUMOX |
| Загварын дугаар | B665U |
| Бүтээгдэхүүний хэмжээс | 7.28 x 4.72 x 0.39 инч |
| Зүйлийн жин | 0.32 унц |
| Үйлдлийн системийн нийцтэй байдал | Mac OS, Windows |
| Дэмжигдсэн Медиа Төрлүүд | SD, SDHC, SDXC |
| Интерфэйс | Compact Flash Type I |
| Maximum Supported Capacity | 128 ГБ |
| Ботьtage | 5 вольт |
| Онцлог шинж чанар | Компакт дизайн |
| Тохиромжтой төхөөрөмжүүд | Cameras and other devices with CF Type I slot |
Image: A table detailing specific camera models compatible with the CF Adapter Reader.
Баталгаат хугацааны мэдээлэл
No specific warranty information is provided with this product. Please refer to the retailer's return policy or contact QUMOX directly for details regarding product warranty.
Хэрэглэгчийн дэмжлэг
For further assistance or inquiries, please contact your product retailer or visit the official QUMOX website. Specific contact details are not provided in this manual.
