FTVOGUE SVP912 Single-Phase 63A Automatic Reconnection Overvoltage Хамгаалагчийн гарын авлага

1. Танилцуулга

This manual provides essential information for the safe and effective installation, operation, and maintenance of your FTVOGUE SVP912 Single-Phase Two-Wire 63A Adjustable Automatic Reconnection Overvoltage Protector. This device is designed to safeguard electrical equipment from damage caused by voltage fluctuations and overcurrents in single-phase AC systems.

The SVP series fully automatic overvoltage ба undervoltage protector is suitable for users or loads with single-phase AC voltage of 230V, 50/60Hz and a rated working current of 63A or less. Its primary functions include protection against overvoltage, undervoltage, and overcurrent. The product can instantly cut off the power supply to protect electrical equipment from damage. When the line voltage returns to normal, the protector automatically resumes normal operation.

2. Аюулгүй байдлын мэдээлэл

АНХААРУУЛГА: Electrical installation and maintenance should only be performed by qualified personnel. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Төхөөрөмжийг суулгах эсвэл засварлахын өмнө үргэлж цахилгааныг салга.
• Ensure that line conductors comply with relevant standard current values. The load current must not exceed the protector's maximum protective current value (63A).
• The neutral line (N) must be connected correctly and securely. The live line (L) of the protector is directly connected and does not have a disconnection function.
• After the product is energized, do not touch live parts to avoid electric shock.
• The protector is not isolated or short-circuit protected. Always use a small circuit breaker or miniature circuit breaker upstream to prevent isolation and short circuits. When repairing the circuit, disconnect the front circuit breaker switch. If miniature circuit breaker protection is not used, short-circuit current cannot be interrupted if a short-circuit fault occurs at the input or output of the protector.
• Because the protector has an auto-reclosing function, remove the load element immediately after overcurrent protection activation and protector disconnection to prevent unexpected re-energization.
• Төхөөрөмжийг нойтон газар ажиллуулж болохгүй damp нөхцөл.
• Төхөөрөмжийг өөрчлөх эсвэл засах гэж бүү оролд. Мэргэшсэн үйлчилгээний ажилтантай холбогдоно уу.

3. Бүтээгдэхүүний онцлог

• Автомат дахин холболт: Automatically restores power once voltage хэвийн байдалдаа эргэж орно.
• Хэт ихtage Хамгаалалт: Adjustable overvoltage protection value and recovery value.
• Undervoltage Хамгаалалт: Protects against low voltage нөхцөл.
• Хэт гүйдлийн хамгаалалт: Adjustable overcurrent protection and action time.
• Тохируулах параметрүүд: Customizable protection values and response times.
• Ботьtage Дэлгэц: Integrated display for real-time voltage хяналт.
• DIN төмөр замын бэхэлгээ: Standard DIN rail mounting for easy installation in electrical panels.

Figure 1: FTVOGUE SVP912 Adjustable Voltage Protector showing its display, adjustment buttons, and standard DIN rail mounting clip.

4. Суурилуулалт ба утас

Before installation, ensure the main power supply is disconnected. This device is designed for DIN rail mounting within an electrical enclosure.

4.1 Холболтын схем

Connect the protector according to the following diagram. Ensure all connections are tight and secure.

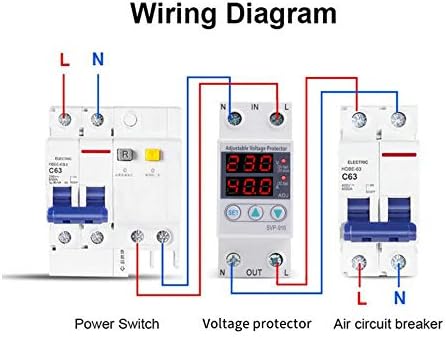

Figure 2: Wiring diagram for the voltage protector. Note the connections for Line (L) and Neutral (N) at both input (IN) and output (OUT) terminals. A power switch and an air circuit breaker are shown in series with the protector.

Суурилуулалтын чухал тэмдэглэл:

• Line conductors must comply with relevant standard current values, and the load current must not exceed the protector's maximum protective current value.
• The neutral line (N) cannot be connected incorrectly and must be secured. The live line (L) of the protector is directly connected and does not have a disconnection function.
• After the product is energized, do not touch live parts to avoid electric shock.
• The protector is not isolated or short-circuit protected. Use a small circuit breaker or miniature circuit breaker upstream to prevent isolation and short circuits. When repairing the circuit, disconnect the front circuit breaker switch. If miniature circuit breaker protection is not used, short-circuit current cannot be interrupted if a short-circuit fault occurs at the input or output of the protector.
• Because the protector has an auto-reclosing function, remove the load element immediately after overcurrent protection activation and protector disconnection.

Зураг 3: Нарийвчилсан view of the protector's terminals.

5. Ашиглалтын заавар

The FTVOGUE SVP912 features a digital display and adjustment buttons for setting protection parameters.

5.1 Дэлгэц ба товчлуурууд

Figure 4: Front panel of the protector with display and control buttons.

• Дижитал дэлгэц: Бодит цагийн боть харуулж байнаtage (V) and current (A) readings. Indicators for overvoltage (OV), undervoltage (UV), and overcurrent (OC) are also present.
• SET товчлуур: Used to enter the parameter setting mode. Press and hold to access adjustable settings.
• UP (▲) Button: Used to increase parameter values during setting.
• ДООШ (▼) товч: Used to decrease parameter values during setting.

5.2 Параметрүүдийг тохируулах

1. -г удаан дар SET Тохиргооны горимд орсныг илтгэх дэлгэц анивчиж эхлэх хүртэл товчийг ойролцоогоор 3-5 секундын турш дарна уу.
2. -г ашиглана уу ДЭЭШ (▲) болон Доош (▼) buttons to adjust the desired parameter (e.g., overvoltage protection threshold, undervoltage threshold, overcurrent limit).
3. дээр дарна уу SET button briefly to cycle through different adjustable parameters.
4. Once all parameters are set, wait for a few seconds without pressing any buttons. The device will automatically save the settings and exit the setting mode.

Refer to the specific parameter codes and ranges provided in the full technical specifications for detailed adjustment options.

6. Засвар үйлчилгээ

The FTVOGUE SVP912 is designed for minimal maintenance. However, periodic checks are recommended to ensure optimal performance and safety.

• Харааны үзлэг: Төхөөрөмжийг үе үе шалгаж, биет гэмтэл, өнгөө алдсан, холболт суларсан эсэхийг шалгаарай.
• Цэвэрлэгээ: Ensure the device and its surroundings are free from dust and debris. Use a dry, soft cloth for cleaning. Do not use liquid cleaners.
• Холболтын шалгалт: Verify that all wiring connections remain tight and secure. Loose connections can lead to overheating or intermittent operation.
• Үйл ажиллагааны тест: If possible and safe to do so, periodically test the protection functions by simulating an overvoltage эсвэл undervoltage condition (e.g., using a variable power supply, if applicable and safe).

Ямар нэгэн засвар үйлчилгээ, шалгалт хийхээс өмнө цахилгааныг үргэлж салга.

7. Алдаа засах

This section addresses common issues you might encounter with the FTVOGUE SVP912 protector.

For issues not listed here, or if troubleshooting steps do not resolve the problem, please contact FTVOGUE customer support.

8. Техникийн үзүүлэлтүүд

Зураг 5: Бүтээгдэхүүний хэмжээ.

9. Бүтээгдэхүүн дууссанview Видео

10. Баталгаат хугацаа ба дэмжлэг

FTVOGUE products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase or visit the official FTVOGUE webсайт.

Баталгаат заргад зориулж худалдан авалтаа нотлох баримтаа үлдээнэ үү.
