Танилцуулга
The TDG K07 is a versatile 3-in-1 device designed to function as a selfie stick, a tripod, and a monopod, complete with a wireless Bluetooth remote control. This compact and lightweight accessory is compatible with a wide range of smartphones, offering flexibility for capturing photos and videos. This manual provides detailed instructions for its proper use and maintenance.
Багцын агуулга:
- 1 x Selfie Stick
- 1 x Bluetooth алсын удирдлага
Тохируулах заавар
- Төхөөрөмжийг задлах: Carefully remove the selfie stick and Bluetooth remote control from its packaging.
- Extend the Selfie Stick: Gently pull the top section of the stick upwards to extend it to the desired length. The stick can extend up to 6 stages.
- Утсаа хавсаргана уу: Open the phone mount holder and securely place your smartphone. The mount holder supports devices between 2.6 to 4.0 inches in width. Ensure your phone is firmly gripped.
- Convert to Tripod (Optional): If using as a tripod, unfold the legs located at the base of the stick. Place the tripod on a stable, flat surface.
- Алсын удирдлага асаалттай: Long press the remote button until the LED indicator begins to blink.
- Bluetooth-тэй хослуулах:
- On your mobile phone, navigate to the Bluetooth settings.
- хайх available devices and select "SelfieCom" from the list.
- Once successfully connected, the LED indicator on the remote will stop flashing.
- The remote is compatible with Android 4.2.2 and above, and iPhone iOS 5.0 and above.
Зураг: The TDG K07 selfie stick in tripod mode, with a smartphone mounted and the detached Bluetooth remote control. This illustrates the product's 3-in-1 functionality.
Ашиглалтын заавар
Using the Selfie Stick / Tripod:
- Уртыг тохируулах: Extend or retract the stick to achieve your desired distance for photos or videos. The maximum extended length is 27.6 inches.
- Камерын өнцгийг тохируулах: The phone mount can be adjusted up to 245 degrees, allowing for various shooting angles.
- Баримтлал: Position your phone vertically or horizontally within the mount to capture different perspectives.

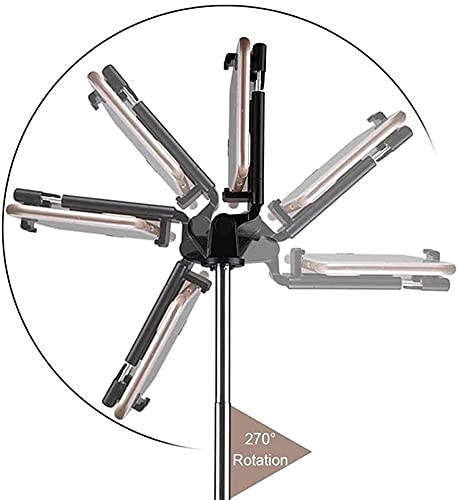

Зураг: An illustration demonstrating the 270-degree rotation capability of the phone mount on the TDG K07 selfie stick, allowing for flexible camera angles.
Зураг: A visual guide showing how to position a smartphone vertically or horizontally on the TDG K07 selfie stick for different photo and video compositions.
Using the Bluetooth Remote Control:
- Зураг/видео авах: Once paired, press the remote button to remotely trigger your phone's camera shutter. The LED will flash once with each capture.
- Автомат унтрах: The remote control will automatically shut down after 5 minutes if it is not paired with a device.
- Унтах горим: If no operation is performed for 10 minutes after pairing, the remote will enter sleep mode. It will automatically shut down after another 10 minutes if not awakened.
- Унтраах: To manually power off the remote, long press the remote button until the LED indicator flashes 3 times and then turns off.
Зураг: The TDG K07 selfie stick in tripod mode with a phone mounted, highlighting the "One Touch At A Time Instant Capture" feature of the Bluetooth remote.
Засвар үйлчилгээ
- Цэвэрлэгээ: Wipe the selfie stick and remote control with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in water.
- Хадгалах: Төхөөрөмжийг ашиглаагүй үед нарны шууд тусгал, хэт температураас хол, сэрүүн, хуурай газар хадгална.
- Зай солих: The Bluetooth remote uses a replaceable CR1632 battery. To replace, open the battery compartment on the remote, remove the old battery, and insert a new CR1632 battery with the correct polarity.
Алдааг олж засварлах
| Асуудал | Шийдэл |
|---|---|
| Алсын удирдлага асахгүй байна. | Ensure the remote button is long-pressed. Check if the CR1632 battery needs replacement. |
| Remote control does not pair with phone. |
|
| Phone does not fit in the mount. | The mount holder supports phones between 2.6 to 4.0 inches in width. Verify your phone's dimensions. Remove any bulky phone cases if necessary. |
| Selfie stick feels unstable. | Ensure all sections of the stick are fully extended and locked. If using as a tripod, ensure the legs are fully spread on a flat, stable surface. |
Үзүүлэлтүүд
| Загварын нэр | K07 Bluetooth Tripod & Selfie |
| Загварын дугаар | K07 (Manufacturer Part Number: GA976Q) |
| Материал | Акрилонитрил Бутадиен Стирол (ABS), Зэвэрдэггүй ган |
| Тоног төхөөрөмжийн жин | 131g (Product), 150 Grams (Item) |
| Bluetooth хувилбар | Bluetooth 4.0 |
| Bluetooth дамжуулах зай | 10м |
| Mount Holder Width | 2.6-4.0 инч |
| Урт татагдсан | 7.64 инч |
| Өргөтгөсөн урт | 27.6 инч |
| Хөлийн хэсгийн тоо | 6 |
| Камерын өнцгийн тохируулга | 245 ° хүртэл |
| Алсын удирдлагатай батерей | CR1632 (солих боломжтой) |
| Тохиромжтой үйлдлийн систем | Android 4.2.2 and above, iPhone iOS 5.0 and above |
| Өнгө | Хар |
Зураг: An image displaying various smartphone models from brands like Apple, Samsung, Sony, Xiaomi, and Huawei, indicating the broad compatibility of the TDG K07 selfie stick.
Баталгаат хугацааны мэдээлэл
Specific warranty details for the TDG K07 are not provided in the product information. Please refer to your purchase receipt or contact the retailer for information regarding warranty coverage and terms.
Хэрэглэгчийн дэмжлэг
For further assistance, technical support, or inquiries regarding the TDG K07, please contact the seller or retailer from whom the product was purchased. Keep your purchase details readily available when contacting support.
