Generic VFD037E43A-BA VFD-E Inverter AC Motor Drive User Manual

1. Танилцуулга

This manual provides essential information for the safe and efficient operation of the Generic VFD037E43A-BA VFD-E Inverter AC Motor Drive. Please read this manual thoroughly before installation, operation, or maintenance to ensure proper usage and prevent potential hazards. Keep this manual in a safe place for future reference.

The VFD037E43A-BA is a high-performance Variable Frequency Drive designed for controlling the speed and torque of AC induction motors. It operates at 380V, with a power output of 3.7Kw (5HP), and an output current of 8.2A, supporting frequencies up to 600Hz.

2. Аюулгүй байдлын мэдээлэл

АНХААРУУЛГА: Improper installation or operation can lead to serious injury or death. Only qualified personnel should install, operate, and maintain this equipment.

• Always disconnect power before performing any wiring or maintenance.
• Цахилгаан цочролоос сэргийлэхийн тулд зөв газардуулга хийх.
• Do not touch electrical components while power is applied.
• Protect the drive from moisture, dust, and corrosive gases.
• Цахилгаан хангамжийг холбохоос өмнө бүх холболтууд найдвартай, зөв ​​​​байгаа эсэхийг шалгаарай.
• Гэмтсэн бүрэлдэхүүн хэсгүүдтэй хөтөчийг ажиллуулж болохгүй.

3. Бүтээгдэхүүн дууссанview

3.1 Гол онцлогууд

• Оролтын хэмжээtagд: 380В
• Power Output: 3.7Kw (5HP)
• Гаралтын гүйдэл: 8.2А
• Max Output Frequency: 600Hz
• Advanced motor control algorithms
• Built-in protection functions (overcurrent, overvoltage, undervoltage, overheat)

3.2 Бүрэлдэхүүн хэсэг

The VFD-E series inverter typically includes the main drive unit, a control panel (often detachable), and terminal blocks for power and control wiring.

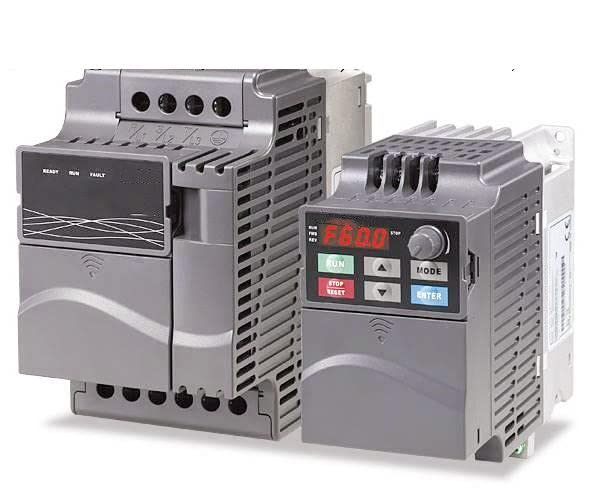

Зураг 1: Урд view of the VFD037E43A-BA VFD-E Inverter AC Motor Drive, showing the display panel and control buttons.

4. Тохиргоо ба суурилуулалт

4.1 Суурилуулалт

Mount the VFD vertically on a flat, non-flammable surface in an area with adequate ventilation. Ensure sufficient clearance around the unit for heat dissipation (e.g., 10cm above and below, 5cm on sides).

4.2 Утас

All wiring must comply with local electrical codes and regulations. Use appropriate wire gauges for the input power, motor connections, and control signals.

• Эрчим хүчний оролт (R, S, T): 380V хувьсах гүйдлийн тэжээлийн эх үүсвэрийг R, S, T терминалуудтай холбоно уу.
• Моторын гаралт (U, V, W): Connect the motor phases to the U, V, W terminals.
• Газар (PE): Connect the protective earth ground to the PE terminal.
• Хяналтын терминалууд: Refer to the wiring diagram inside the drive's terminal cover for specific control signal connections (e.g., run/stop, speed reference, fault relays).

Жич: Double-check all connections before applying power. Incorrect wiring can damage the drive or motor.

5. Ашиглалтын заавар

5.1 Анхдагч асаалт

1. After verifying all wiring, apply power to the VFD.
2. The display panel should illuminate, showing the default frequency or status.
3. Check for any error codes. If an error is present, refer to the Troubleshooting section.

5.2 Үндсэн үйл ажиллагаа

The VFD can be operated via its local control panel or external control signals.

• Эхлэх/ зогсоох: дээр дарна уу ГҮЙЦЭ button to start the motor and ЗОГС to halt it.
• Давтамжийн тохируулга: -г ашиглана уу ДЭЭШ/ДООШ arrow keys to adjust the output frequency (motor speed).
• Параметрийн тохиргоо: дээр дарна уу PROG button to enter the parameter menu. Navigate using arrow keys and confirm with ENTER.

5.3 параметрийн тохиргоо

Key parameters to configure include:

• Motor Rated Frequency (F0.01): Set to the motor's nominal frequency (e.g., 50Hz or 60Hz).
• Мотор үнэлгээтэй ботьtage (F0.02): Set to the motor's nominal voltage (жишээ нь, 380V).
• Motor Rated Current (F0.03): Set to the motor's nominal current (e.g., 8.2A).
• Acceleration/Deceleration Time (F2.00/F2.01): Adjust these to control the motor's ramp-дээш ба ramp- уналтын үе.

Refer to the detailed parameter list in the full technical manual for advanced configurations.

6. Засвар үйлчилгээ

Regular maintenance ensures the longevity and reliable operation of the VFD.

• Өдөр тутмын шалгалт: Observe the VFD's operating status, display, and listen for unusual noises.
• Долоо хоног тутмын шалгалт: Inspect the cooling fan for obstructions and ensure proper airflow. Clean dust from the heatsink fins if necessary (with power off).
• Monthly Check: Verify all terminal connections are tight. Check for any signs of overheating or discoloration on wiring.
• Жилийн шалгалт: Inspect capacitors for bulging or leakage. Replace if necessary (by qualified personnel only).

Always disconnect power and wait for the discharge indicator to extinguish before performing any internal maintenance.

7. Алдаа засах

This section provides solutions to common issues. For complex problems, contact technical support.

8. Техникийн үзүүлэлтүүд

9. Баталгаат хугацаа ба дэмжлэг

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact the seller.

For technical support, troubleshooting assistance, or spare parts, please contact your authorized distributor or the manufacturer's customer service. When contacting support, please have your model number (VFD037E43A-BA) and serial number ready.

Та нэмэлт эх сурвалж болон холбоо барих мэдээллийг дараах хаягаар авах боломжтой бүтээгдэхүүний Amazon хуудас эсвэл үйлдвэрлэгчийн албан тушаалтан webсайт.
