Keuco IXMO Flat Single Lever Basin Холигч цорго 210 хэрэглэгчийн гарын авлага

Бүтээгдэхүүн дууссанview

This manual provides essential information for the installation, operation, and maintenance of your Keuco IXMO Flat Single Lever Basin Mixer Tap 210. Designed for single-hole installation, this mixer tap features a modern flat design and precise water control.

Зураг: Бүрэн бүтээгдэхүүн view of the Keuco IXMO Flat Single Lever Basin Mixer Tap 210, showcasing its chrome finish and flat design.

Гол онцлогууд:

• Single-lever operation for easy temperature and flow control.
• Durable mixed water cartridge with ceramic sealing washers.
• Adjustable aerator (M 24x1) with +/- 6° jet alignment.
• Quick installation system for single-hole mounting.
• Chrome-plated finish for a sleek appearance.
• Агшин зуурын ус халаахад тохиромжтой.

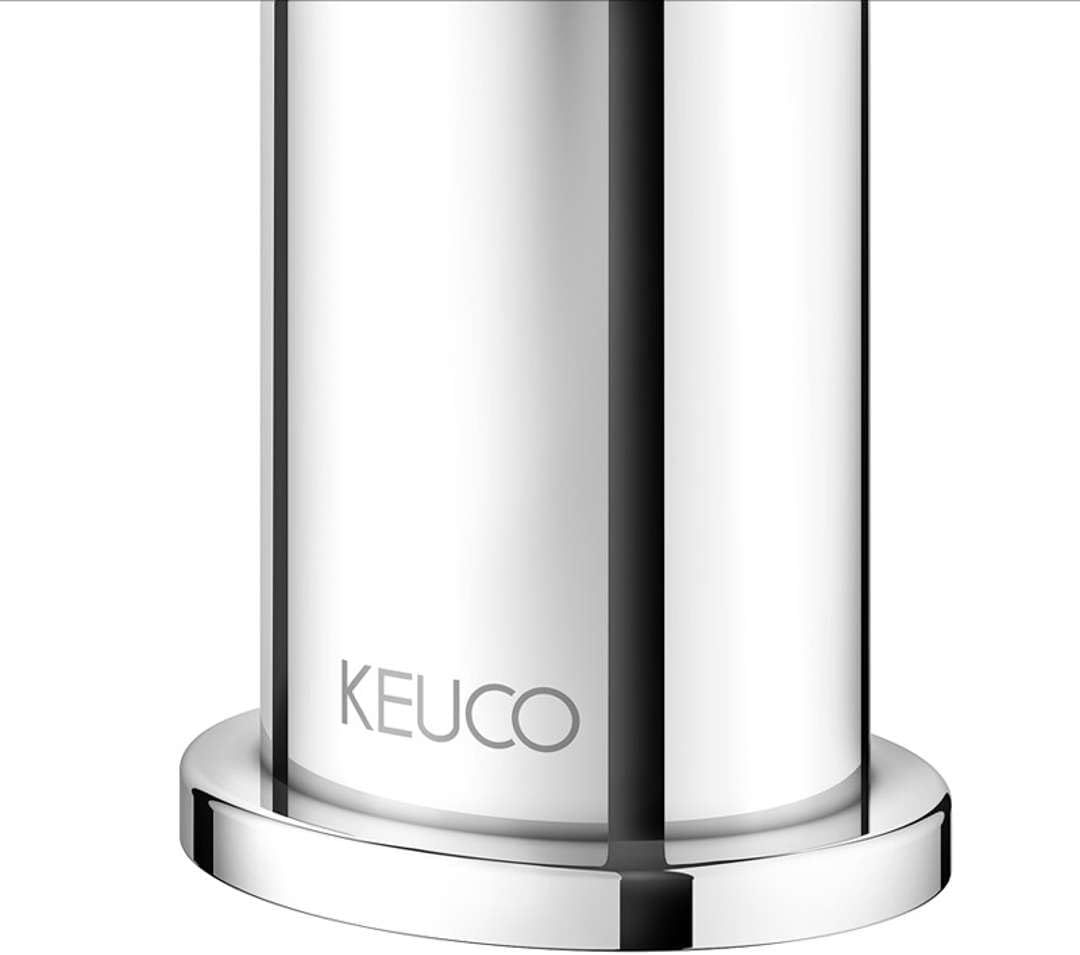

Зураг: Ойролцоогоор view of the tap's base, featuring the 'KEUCO' brand logo.

Суулгах гарын авлага

The Keuco IXMO Flat Single Lever Basin Mixer Tap 210 is designed for single-hole installation. It includes a quick installation system for efficient setup. Please ensure you have the necessary tools and follow all local plumbing codes.

Суурилуулалтын өмнөх шалгалтууд:

• Verify that your basin has a suitable single-hole opening (typically Ø35mm).
• Confirm that the water supply lines (G 3/8 Inch, 570 mm pressure hoses) can reach the connection points.
• Note that this model does үгүй include a pop-up waste set.

Хэмжээ:

Refer to the diagram below for detailed product dimensions to ensure proper fit and planning.

Зураг: Dimensional drawing showing the height (289mm), projection (159mm), spout height (194mm), and connection details (G3/8, Ø35mm mounting hole).

For detailed step-by-step installation instructions, please consult the separate installation guide provided with your product or contact Keuco customer support.

Үйл ажиллагаа

Your Keuco IXMO Flat Single Lever Basin Mixer Tap 210 is designed for intuitive and efficient water control.

Усны урсгал ба температурын хяналт:

• Хөшүүргийн байрлал: Move the single lever handle up to increase water flow and down to decrease or stop it.
• Температурын тохируулга: Move the lever to the left for hot water and to the right for cold water. The mixed water cartridge ensures smooth and precise temperature blending.

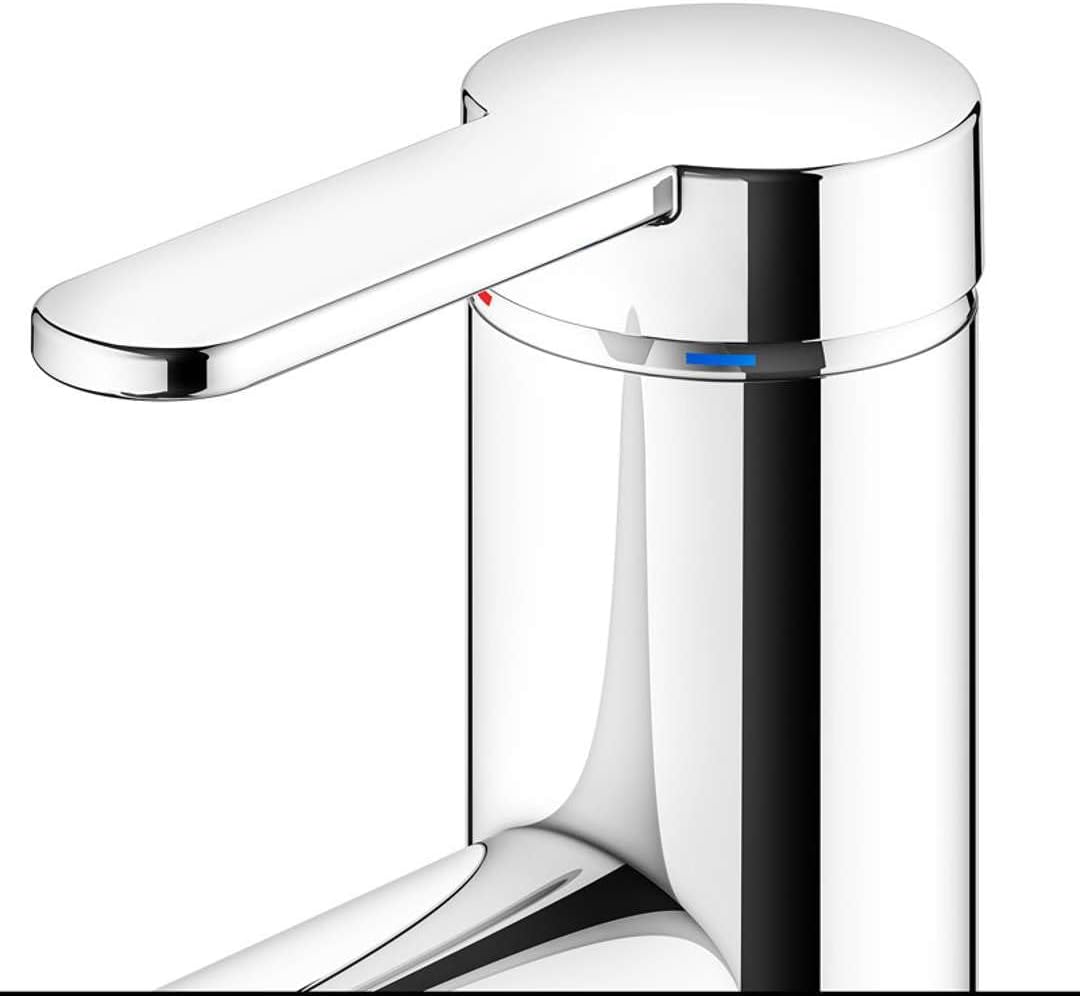

Зураг: Ойролцоогоор view of the single lever handle, showing the red (hot) and blue (cold) indicators for temperature control.

Aerator Adjustment:

The integrated M 24x1 aerator can be adjusted by +/- 6° to direct the water jet as needed. This allows for optimal water delivery into your basin.

Зураг: Нарийвчилсан view of the aerator located at the end of the spout, which can be adjusted for jet alignment.

The tap's flow rate is limited to 7.6 L/min at 3 bar pressure, contributing to water conservation.

Арчилгаа, засвар үйлчилгээ

Proper care will ensure the longevity and pristine appearance of your Keuco IXMO Flat Single Lever Basin Mixer Tap 210.

Chrome өнгөлгөөг цэвэрлэх:

• Use only mild soap and water with a soft cloth.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals (e.g., ammonia, bleach, acid-based cleaners) as these can damage the chrome finish.
• Цэвэрлэсний дараа цэвэр усаар сайтар зайлж, усны толбо үүсэхээс сэргийлж зөөлөн даавуугаар хатаана.

Агааржуулагч цэвэрлэх:

Over time, mineral deposits can accumulate in the aerator, affecting water flow. Periodically unscrew the aerator (if removable) and clean it by rinsing under water or soaking in a vinegar solution to remove deposits. Reinstall securely.

Алдааг олж засварлах

Хэрэв та b-тэй холбоотой асуудалтай тулгарвалasin mixer tap, consider the following common solutions:

• Усны урсгал бага: Check if the aerator is clogged with debris or mineral deposits. Clean the aerator as described in the Maintenance section. Ensure water supply valves are fully open.
• Нэвчилт: Check all connections for tightness. If leaks persist from the handle or spout, the internal cartridge may need inspection or replacement. Contact a qualified plumber.
• Температурын асуудал: If water temperature is inconsistent or not reaching desired levels, verify that both hot and cold water supply lines are connected correctly and that your water heater is functioning properly.
• Хатуу бариул: If the lever becomes stiff, it may indicate mineral buildup around the cartridge. Professional servicing might be required.

For problems not resolved by these steps, please contact Keuco customer support or a certified plumbing professional.

Техникийн үзүүлэлтүүд

Баталгаат болон дэмжлэг

For information regarding the warranty of your Keuco IXMO Flat Single Lever Basin Mixer Tap 210, please refer to the warranty documentation included with your purchase or visit the official Keuco webсайт.

For technical support, spare parts, or further assistance, please contact Keuco customer service directly. Contact details can typically be found on the manufacturer's webсайт эсвэл таны бүтээгдэхүүний савлагаанд.
