JACKYLED Solar Street Light 300W User Manual

1. Бүтээгдэхүүн дууссанview

The JACKYLED 300W Solar Street Light is an advanced outdoor lighting solution designed for various applications such as yards, driveways, and pathways. This solar-powered security light features a high lumen output, motion sensing capabilities, and robust IP65 waterproofing, ensuring reliable performance in diverse weather conditions. It operates independently of the electrical grid, offering an energy-efficient and cost-effective lighting solution.

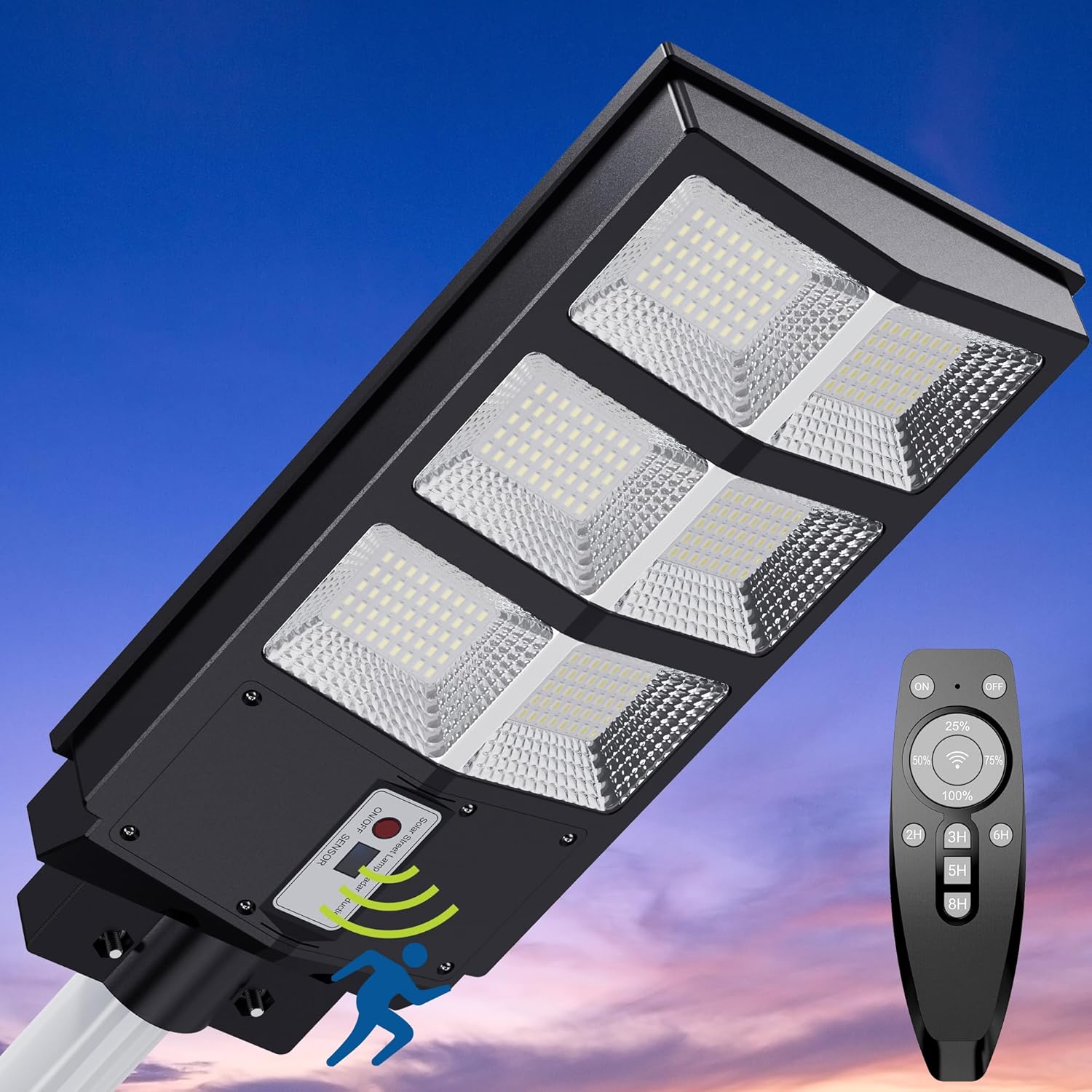

Figure 1: JACKYLED 300W Solar Street Light and its remote control. This image illustrates the main components of the lighting system, including the solar panel, LED array, and the infrared remote for controlling various functions.

2. Аюулгүй байдлын мэдээлэл

Суурилуулах болон ажиллуулахын өмнө бүх аюулгүй байдлын зааврыг анхааралтай уншина уу. Эдгээр зааврыг дагаж мөрдөөгүй тохиолдолд эд хөрөнгийн хохирол, гэмтэл бэртэл, үхэлд хүргэж болзошгүй.

• Суурилуулалтын гадаргуу нь тогтвортой, гэрлийн жинг тэсвэрлэх чадвартай эсэхийг шалгаарай.
• Do not look directly into the LED light source when it is illuminated, as it may cause eye strain or damage.
• Цэнэглэх оновчтой үр ашгийг хангахын тулд нарны хавтанг цэвэр байлга.
• Do not attempt to disassemble or modify the light. Refer all servicing to qualified personnel.
• Орон нутгийн дүрмийн дагуу батерейг хаях.
• This product is designed for outdoor use and is IP65 waterproof; however, avoid submerging it in water.

3. Багцын агуулга

Багцыг нээхдээ бүх бүрэлдэхүүн хэсгүүд байгаа бөгөөд гэмтэлгүй эсэхийг шалгана уу.

• 1 x JACKYLED Solar Street Light (LED Reflector, Shade)
• 1 x Алсын удирдлага
• Mounting Hardware (Mounting bracket, hose clamp, screws, bolts)
• 1 х хэрэглэгчийн гарын авлага (энэ баримт бичиг)

4. Бүтээгдэхүүний онцлог

• 0 Cost and Super Bright: Solar-powered, eliminating electricity bills. Delivers 30,000 lumens with 300W power, illuminating up to 980 square feet.
• Over 8 Years of Battery Life: Equipped with EV-grade battery technology for extended lifespan, reducing maintenance.
• Light at Anytime: Advanced solar energy solutions ensure performance even on continuous rainy days.
• 3 гэрэлтүүлгийн горим: Adjustable brightness, motion sensing mode, and Dusk to Dawn mode for versatile lighting needs.
• Worry-free Installation: Includes all necessary mounting hardware for wall, tree, or pole installation.
• Усны хамгаалалт: IP65 rated for outdoor durability.

Figure 2: Illustration of the light's brightness, highlighting 270 super bright LEDs and 30,000 lumens output. This demonstrates the powerful illumination capability of the street light.

Figure 3: Visual representation of the EV-grade battery, emphasizing its long service life of over 8 years or 50,000 hours. This highlights the durability and efficiency of the battery technology.

Figure 4: Image depicting the solar panel's ability to charge even on gloomy days, ensuring continuous operation. This illustrates the light's resilience in less-than-ideal weather conditions.

Figure 5: Infographic showing the rapid charging time of 4 hours and extended lighting duration of up to 15 hours, supported by a 10,000 mAh battery. This highlights the efficiency of the charging and discharge cycle.

Figure 6: Image demonstrating the wide lighting angle of 220 degrees, covering an area of 960 square feet. This illustrates the broad coverage provided by a single unit.

5. Тохиргоо ба суурилуулалт

The JACKYLED Solar Street Light offers flexible installation options for various outdoor environments. It can be mounted on a wall, tree, or pole using the provided hardware.

5.1 Суурилуулалтын байршлыг сонгох

Select a location that receives direct sunlight for at least 6-8 hours daily to ensure optimal charging of the solar panel. Avoid areas shaded by trees, buildings, or other obstructions.

5.2 Суурилуулалтын үе шатууд

1. Assemble Mounting Bracket: Attach the mounting bracket to the back of the solar street light using the provided screws and bolts. Ensure it is securely fastened.
2. Өрөмдлөгийн цэгүүдийг тэмдэглэх: Hold the assembled light with the bracket against the desired installation surface (wall, tree, or pole). Use a pencil or marker to mark the drilling points for the bracket.
3. Өрөмдлөгийн цооног: Drill appropriate holes at the marked points. For masonry or concrete, use a hammer drill and suitable anchors. For wood, drill pilot holes.
4. Гэрлийг хамгаалах: Align the mounting bracket with the drilled holes and secure the light using the provided screws and bolts. If mounting to a pole, use the hose clamp to firmly attach the bracket to the pole.
5. Өнцөг тохируулах: Once secured, adjust the angle of the light to ensure the solar panel faces the sun for maximum exposure and the light illuminates the desired area.

6. Ашиглалтын заавар

The JACKYLED Solar Street Light is designed for automatic operation but can be controlled and customized using the included remote control.

6.1 Анхны идэвхжүүлэлт

Upon first use, ensure the solar panel is exposed to direct sunlight for at least 6-8 hours to fully charge the internal battery before initial operation.

6.2 Алсын удирдлагын функцууд

The remote control allows you to select different lighting modes and adjust settings:

• ON/OFF: Гэрлийг гараар асаах эсвэл унтраах.
• Үүр бүрхээс үүр цайх горим: Activates automatic lighting from dusk till dawn. The light will turn on at night and turn off at sunrise.
• Хөдөлгөөн мэдрэгч горим: The light will remain dim and brighten to full brightness when motion is detected, then return to dim after a set period of no motion. This mode conserves energy.
• Гэрэлтүүлгийн тохируулга: хувийг ашиглаtage buttons (e.g., 25%, 50%, 75%, 100%) to set the desired brightness level.
• Цаг хэмжигчийн тохиргоо: Set the light to operate for a specific duration (e.g., 3H, 5H, 8H) after activation.

Note: The light features an intelligent solar energy solution that allows it to operate effectively even after several consecutive gloomy days, especially in motion sensing mode.

7. Засвар үйлчилгээ

Тогтмол засвар үйлчилгээ нь таны нарны гудамжны гэрлийн урт наслалт, оновчтой ажиллагааг хангана.

• Цэвэр нарны хавтан: Нарны хавтангийн гадаргууг үе үе зөөлөн арчиж, damp тоос, шороо, навч, цасыг арилгах даавуу. Цэвэр хавтан нь нарны гэрлийг дээд зэргээр шингээж, цэнэглэх үр ашгийг баталгаажуулдаг.
• Тоног төхөөрөмжийг шалгах: Annually inspect the light fixture, mounting hardware, and wiring for any signs of wear, corrosion, or damage. Tighten any loose screws or bolts.
• Зай: The EV-grade battery is designed for over 8 years of service life (50,000 hours) and does not require user replacement under normal conditions. If you suspect a battery issue, contact customer support.

8. Алдаа засах

If you encounter issues with your JACKYLED Solar Street Light, refer to the following common troubleshooting steps:

9. Техникийн үзүүлэлтүүд

10. Баталгаат хугацаа ба дэмжлэг

10.1 Баталгаат хугацааны мэдээлэл

JACKYLED provides a Бүтээгдэхүүний 5 жилийн баталгаат хугацаа for this solar street light. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

10.2 Хэрэглэгчийн дэмжлэг

For any questions, concerns, or technical assistance regarding your JACKYLED solar parking lot light, please do not hesitate to contact our customer support team. We are dedicated to providing premium products and service.

Please visit the official JACKYLED store on Amazon for more information or to contact support:

JACKYLED Official Store
