Generic 48V 12.8Ah Lithium-ion E-bike Battery User Manual

1. Аюулгүй байдлын чухал анхааруулга

Read all safety instructions carefully before using the battery. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Use a Special Charger: Always use the dedicated charger provided or specified for this battery. Using an incompatible charger can cause damage or fire.
• Зөв туйлшрал: Do not reverse the positive and negative poles of the battery. Ensure correct connection during installation and charging.
• Бүү задалж болохгүй: The battery pack contains internal safety devices. Do not dissect, open, or alter the battery structure. Tampering with the battery can lead to hazards.
• Богино холболтоос зайлсхийх: Do not use metal objects to directly connect the positive and negative terminals of the battery, as this can cause a short circuit.
• Усанд дүрэх: It is strictly forbidden to immerse the battery in water. While the battery is designed to be water and sand resistant for outdoor use, prolonged immersion can cause damage.
• Хадгалах нөхцөл: When not in use, store the battery in a cool, dry environment. Avoid extreme temperatures and direct sunlight.
• Урт хугацааны хадгалалт: If the battery will not be used for two months or more, ensure it is fully charged before storage. Recharge the battery before its next use to maintain optimal performance.
• Нэгдсэн хамгаалалт: The battery features built-in protection against overcharge, over-discharge, overload, and short circuits to enhance safety.

2. Бүтээгдэхүүн дууссанview болон бүрэлдэхүүн хэсгүүд

Энэ хэсэг нь хэтрүүлэн өгдөгview of the battery and its key components.

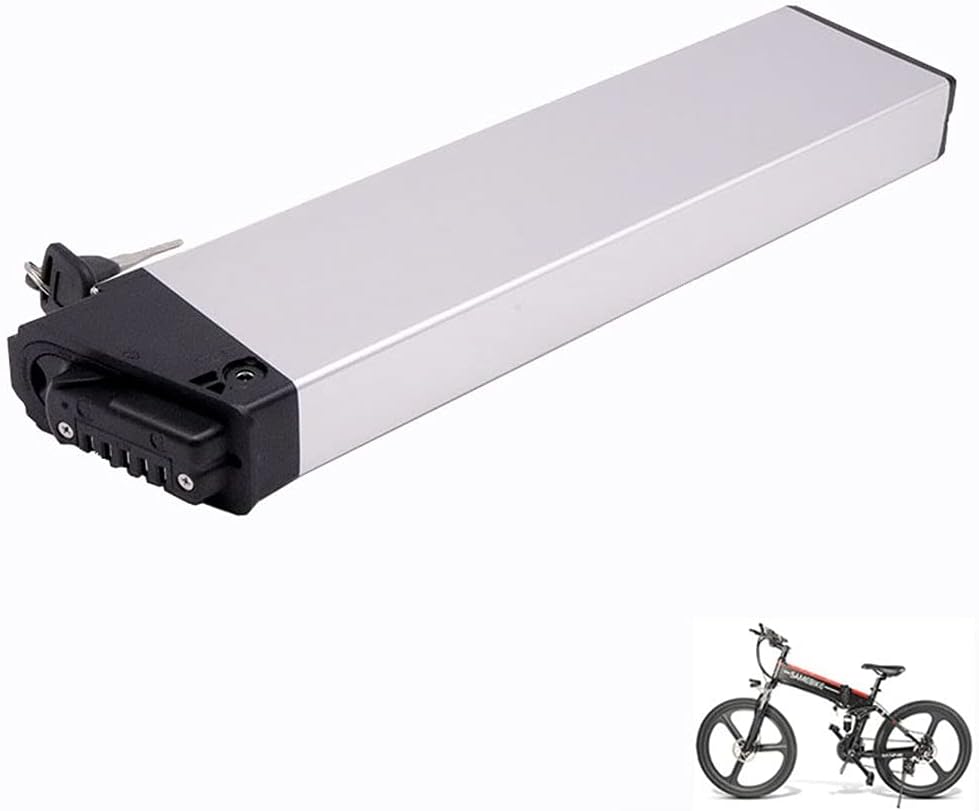

Зураг 2.1: The 48V 12.8Ah lithium-ion e-bike battery, shown with its keys for securing and removing the unit. The main body is silver, with a black end housing the connection terminals and lock mechanism.

Зураг 2.2: Нарийвчилсан view highlighting the charging port and the portable handle located at one end of the battery. The charging port is a circular input, and the handle facilitates easy carrying and installation.

Гол онцлогууд:

• Хөнгөн загвар: The battery is designed to be lightweight for easy handling and installation.
• Anti-theft Device: Includes an anti-theft mechanism to secure the battery to your e-bike and prevent loss.
• Water and Sand Resistant: The fully sealed design allows for use in various weather conditions, including rain and muddy environments.
• Зөөврийн бариул: Equipped with a handle for convenient carrying and removal.

3. Тохиргоо ба суурилуулалт

Follow these steps to properly install and prepare your battery for use.

3.1 Battery Installation on E-bike

1. Locate the battery compartment or mounting bracket on your electric bicycle.
2. Align the battery with the mounting mechanism. The lightweight design facilitates easy placement.
3. Secure the battery in place using the integrated locking mechanism and keys. Ensure it is firmly seated to prevent movement during riding.
4. Connect the battery to the e-bike's power system, ensuring correct polarity.

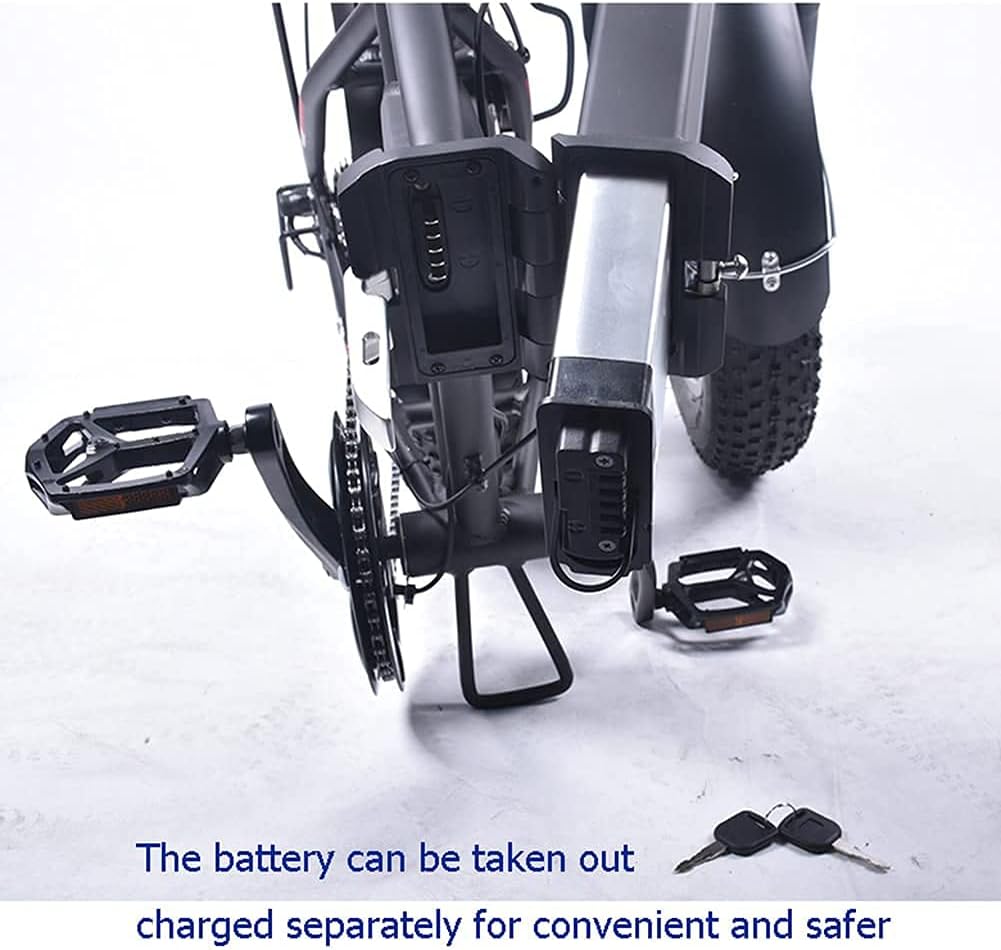

Зураг 3.1: The battery shown partially removed from the frame of a folding electric bicycle, demonstrating its removable nature. Keys are visible, indicating the locking mechanism.

Зураг 3.2: An orange electric bicycle with a transparent overlay showing the internal battery cells. This illustrates that the battery is built-in but can be unloaded and removed separately for charging.

3.2 Анхны төлбөр

Before first use, or if the battery has been stored for an extended period, it is recommended to fully charge the battery.

• Connect the special charger to the battery's charging port (refer to Image 2.2).
• Цэнэглэгчийг ердийн цахилгаан залгуурт холбоно уу.
• Allow approximately 5 to 6 hours for a full charge. The charger's indicator light will typically change color to indicate a full charge.
• Цэнэглэж дууссаны дараа цэнэглэгчийг салга.

4. Ашиглалтын заавар

This section covers the general operation of your e-bike battery.

4.1 Өдөр тутмын хэрэглээ

• Ensure the battery is securely installed and locked onto your e-bike before riding.
• Turn on your e-bike's power system. The battery will provide power to the motor.
• The ideal riding distance per charge is typically between 30 to 50 km, depending on factors such as terrain, rider weight, assistance level, and weather conditions.

4.2 Зайг цэнэглэх

The lithium-ion battery has no memory effect and requires no maintenance in terms of discharge cycles. It can be recharged as needed.

1. You can charge the battery while it is installed on the e-bike, or remove it for separate charging (refer to Image 3.1 and 3.2).
2. Connect the special charger to the battery's charging port.
3. Цэнэглэгчийг тохирох цахилгаан залгуурт холбоно уу.
4. Charging typically takes 5 to 6 hours for a full charge. Monitor the charger's indicator for completion.
5. Always disconnect the charger from both the battery and the power outlet once charging is complete.

5. Засвар үйлчилгээ, арчилгаа

Зөв арчилгаа нь таны батерейны урт наслалт, оновчтой ажиллагааг баталгаажуулдаг.

• Тогтмол цэнэглэх: Recharge the battery after each significant use to maintain its health. Avoid completely draining the battery frequently.
• Хадгалах: Store the battery in a cool, dry place away from direct sunlight and extreme temperatures. The ideal storage temperature is between 0°C and 20°C (32°F and 68°F).
• Урт хугацааны хадгалалт: If the battery will not be used for two months or more, ensure it is fully charged before storage. Recharge the battery every two months during long-term storage to prevent deep discharge.
• Цэвэрлэгээ: The battery is water and sand resistant. You can wipe it clean with a damp даавуу. Хүчтэй химийн бодис эсвэл зүлгүүрийн цэвэрлэгч бүү хэрэглэ. Цэнэглэхийн өмнө цэнэглэх порт хуурай байгаа эсэхийг шалгаарай.
• Шалгалт: Periodically inspect the battery casing and connections for any signs of damage or wear. If any damage is observed, discontinue use and contact customer support.

6. Алдаа засах

Энэ хэсэгт таны батерейтай холбоотой нийтлэг асуудлуудыг авч үзэх болно.

If energy loss occurs during storage or transport, ensure the battery is fully charged before use.

For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact customer support for assistance. We aim to respond within 24 hours.

7. Техникийн үзүүлэлтүүд

Detailed technical specifications for the Generic 48V 12.8Ah Lithium-ion E-bike Battery.

Зураг 7.1: A diagram illustrating the physical dimensions of the battery: 430mm total length, 100mm width, and 46mm thickness. The main body length is 370mm.

8. Баталгаат хугацаа ба дэмжлэг

This product is covered by PICC (People's Insurance Company of China), ensuring a level of product assurance. Please use with confidence.

For any questions, concerns, or support needs regarding your battery, please contact customer service. We are committed to responding to your inquiries within 24 hours.

Худалдан авахаас өмнөasing, please verify the dimensions of your electric vehicle's battery compartment to ensure compatibility. If the dimensions do not match, contact customer service for assistance in finding a suitable size.
