Танилцуулга
Thank you for choosing the Topyond Hilda Rotary Tools Kit. This versatile and compact cordless rotary tool is designed for precision work, including carving, grinding, drilling, and polishing. Its portable design, variable speed settings, and comprehensive accessory kit make it ideal for a wide range of applications from intricate crafts to light home repairs. Please read this manual thoroughly before operation to ensure safe and effective use of your new tool.
Image: The Topyond Hilda Rotary Tool Kit, showcasing the main unit, USB charging cable, and a variety of included accessories for different tasks.
Тохиргоо
Хэрэгслийг цэнэглэж байна
The rotary tool is powered by a built-in 3.6V 700mAh lithium battery and charges via a universal USB interface. To charge:
- Connect the provided USB cable to the charging port on the tool.
- USB кабелийн нөгөө үзүүрийг тохирох USB тэжээлийн эх үүсвэрт (жишээ нь, компьютерын USB порт, USB ханын адаптер) залгаарай.
- The charging indicator lights will illuminate to show charging status. Ensure the tool is fully charged before first use for optimal battery life.
Дагалдах хэрэгсэл суурилуулах
The tool features a brass thick wall chuck with a clamping range of 0.5-3.2mm, allowing for various accessories.
- Ensure the tool is turned off before installing or changing accessories.
- Unscrew the chuck nut counter-clockwise to open the jaws.
- Insert the desired accessory shank fully into the chuck.
- Tighten the chuck nut clockwise until the accessory is securely held. Do not overtighten.
Image: A hand demonstrating the installation of an accessory into the brass chuck of the rotary tool, highlighting the secure clampмеханизм.
Ашиглалтын заавар
Асаах/унтраах
To turn the tool on or off, press the power button located on the body of the tool. The indicator lights will show the current speed setting when powered on.
Хурд тохируулах
The Topyond Hilda Rotary Tool offers three variable speed levels to suit different materials and tasks:
- 1-р түвшин: 5000 RPM (for delicate work, polishing, or soft materials)
- 2-р түвшин: 10000 RPM (for general carving, grinding, or medium-density materials)
- 3-р түвшин: 15000 RPM (for aggressive material removal, drilling, or hard materials)
Press the speed adjustment button to cycle through the three speed settings. The corresponding indicator light will illuminate.
Хэрэглээний зөвлөмжүүд
- Тохиромжтой хамгаалалтын хэрэгсэл, түүний дотор нүдний хамгаалалтыг үргэлж өмс.
- Start with a lower speed setting and gradually increase if needed.
- Apply light, consistent pressure. Let the tool do the work.
- For fine carving and engraving, use precise, controlled movements.
- The tool is suitable for household use, egg carvings, fine carving, and jewelry work, among other applications.

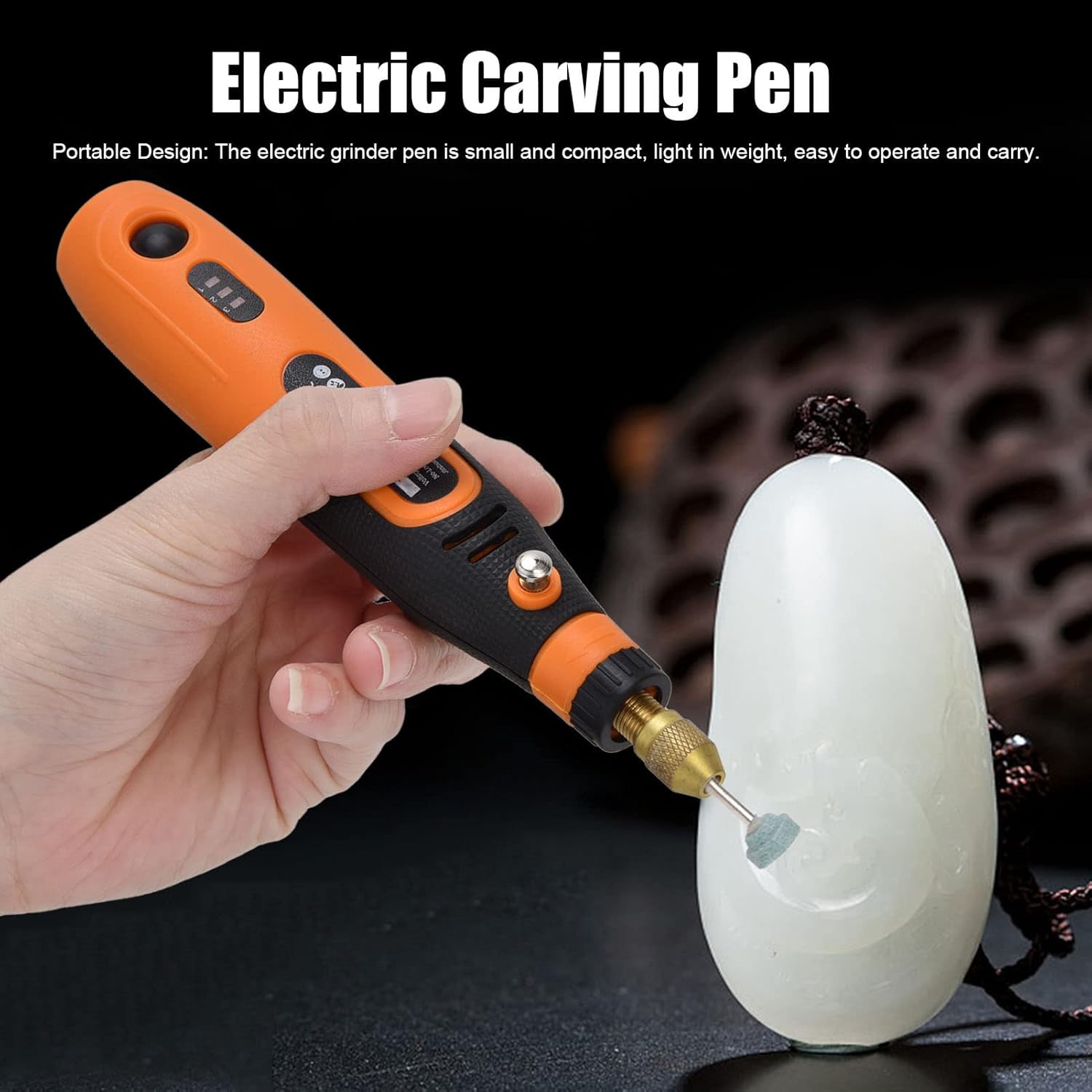

Image: A user holding the Topyond Hilda Rotary Tool, demonstrating its ergonomic design and ease of use while performing a carving task on a small, light-colored object.
Засвар үйлчилгээ
Цэвэрлэгээ
- After each use, disconnect the tool from any power source.
- Багажны их биеийг зөөлөн, хуурай даавуугаар арчина.
- Remove any dust or debris from the chuck and ventilation openings using a small brush or compressed air.
- Химийн бодис, зүлгүүрийн цэвэрлэгч бүү хэрэглэ.
Хадгалах
- Store the tool and its accessories in a clean, dry place, away from direct sunlight and extreme temperatures.
- Хүүхдийн гар хүрэхгүй газар хадгална.
- Ensure the battery is partially charged (around 50%) before long-term storage to preserve battery health.
Алдааг олж засварлах
If you encounter issues with your Topyond Hilda Rotary Tools Kit, please refer to the following common problems and solutions:
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Хэрэгсэл асахгүй байна. | Батерей дуусч байна. | Charge the tool using the provided USB cable. |
| Accessory slips in chuck. | Chuck not tightened sufficiently; accessory shank too small. | Ensure chuck is tightened securely. Use accessories with shanks within the 0.5-3.2mm range. |
| Tool loses power quickly. | Battery not fully charged; battery degradation. | Ensure full charge before use. If problem persists, battery may need replacement (contact support). |
| Хэт их чичиргээ эсвэл дуу чимээ. | Accessory not properly seated or bent; internal issue. | Check accessory for proper seating and straightness. If issue persists, discontinue use and contact support. |
Үзүүлэлтүүд
| Онцлог | Тодорхойлолт |
|---|---|
| Загварын дугаар | Topyond1ds9ugyrpz |
| Цахилгаан хангамжийн төрөл | Rechargeable, Lithium Battery Technology |
| Үнэлгээтэй ботьtage | 3.6 В |
| Баригдсан лити батерей | 3.6V 700mAh |
| Цэнэглэх горим | USB |
| Чакны хэмжээ | Approx. 3.2mm (0.13in) |
| No Load Speed (Three Levels) | 5000-10000-15000 RPM |
| Зүйлийн жин | 9.9 унц |
| Материал | ABS + Brass |
| Дагалдах хэрэгсэлд багтсан | 30 Pcs/set |
Баталгаат болон дэмжлэг
For warranty information and customer support, please refer to the documentation included with your purchase or contact the seller directly. The seller for this product is YouXink. Keep your proof of purchase for any warranty claims.
For further assistance or technical inquiries, please reach out to the manufacturer or authorized service center.
