Topyond Electric Bike Controller Kit User Manual

1. Танилцуулга

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Topyond Electric Bike Controller Kit. This kit includes a 36V/48V 500W brushless motor controller, an 805 half throttle handle with an integrated LCD panel, and a lock. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Аюулгүй байдлын мэдээлэл

• Always disconnect the battery before performing any installation, maintenance, or repair work on the electric bike system.
• Богино холболтоос урьдчилан сэргийлэхийн тулд бүх холболтууд найдвартай, зөв ​​тусгаарлагдсан эсэхийг шалгаарай.
• Do not attempt to modify the controller or any components of the kit. Unauthorized modifications can lead to malfunction, damage, or injury.
• Keep the controller and electrical components away from water and excessive moisture.
• Хэрэв та суулгах алхмуудын талаар эргэлзэж байвал мэргэшсэн техникчтэй зөвлөлдөнө үү.

3. Багцын агуулга

Доор жагсаасан бүх бүрэлдэхүүн хэсгүүд таны багцад байгаа эсэхийг шалгаарай.

• 1 x 36V/48V 500W Brushless Motor Controller
• 1 x 805 Half Throttle Handle with LCD Panel and Lock
• 2 x Keys for Throttle Lock
• 2 x Handlebar Grips
• Утасны бэхэлгээ ба холбогч

Зураг 3.1: Илүүview of the Topyond Electric Bike Controller Kit components.

Зураг 3.2: Өөр view of the complete kit contents.

4. Тохиргоо ба суурилуулалт

Follow these steps for installing the electric bike controller kit. Ensure the bike's power is off and the battery is disconnected before starting.

1. Хянагчийг суурилуулах: Secure the brushless motor controller to a suitable location on your electric bike frame. The metal housing features a notch design for heat dissipation, so ensure adequate airflow around it.
2. Install the Throttle Handle: The 805 half throttle handle is designed to fit a standard 22.5mm handlebar. Slide the throttle onto the right side of the handlebar and secure it. Install the accompanying grip on the left side.


Figure 4.1: The 805 half throttle handle with LCD display and key lock.

3. Утасыг холбоно уу: Carefully connect the wiring harness from the throttle to the controller. The controller has various color-coded connectors for the motor, battery, throttle, and other accessories. Match the connectors according to their type and color. Refer to the wiring diagram provided with your motor or bike for specific connections.

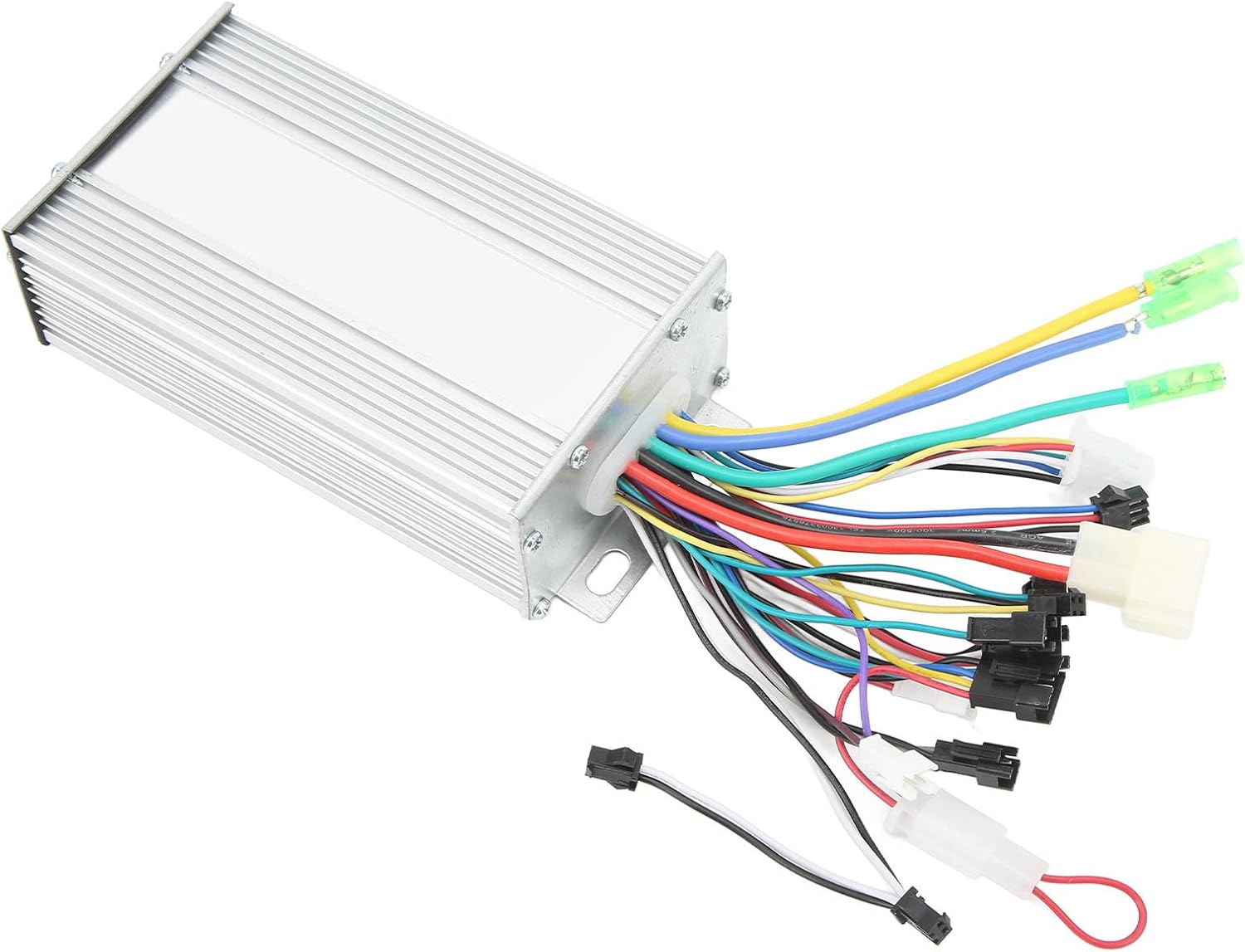

Figure 4.2: The controller showing its multiple wiring connections.
4. Зайны холболт: Connect the controller to your electric bike's 36V or 48V battery. Ensure correct polarity.
5. Эцсийн шалгалтууд: Before powering on, double-check all connections for security and proper insulation. Ensure no wires are pinched or exposed.

5. Ашиглалтын заавар

Once installed, operate the electric bike controller kit as follows:

1. Асаах: Insert the key into the lock on the throttle handle and turn it to the 'ON' position. The LCD panel will illuminate.

Figure 5.1: Illuminated LCD display on the throttle handle.
2. Тохируулагчийн удирдлага: Gently twist the half throttle handle to engage the motor and control your speed. The controller provides stable speed regulation and sensitive response.
3. Тоормослох: The system is designed for sensitive response to braking. Apply brakes as usual; the motor will disengage.
4. Унтраах: Turn the key to the 'OFF' position to power down the system. Remove the key for security.

6. LCD дэлгэцийн функцууд

The integrated LCD panel provides essential riding information:

• Real-time Speed: Displays your current riding speed.
• Single Run Mileage: Shows the distance covered in the current trip.
• Нийт миль: Accumulates the total distance traveled by the bike.
• Зайны чадлын түвшин: Үлдсэн батерейны цэнэгийг харуулна.
• Ботьtage Түвшин: Одоогийн батерейны хэмжээг харуулнаtage.
• Батарей багатай дохиолол: Notifies you when the battery charge is critically low.
• Gear Indication: Shows the current assist level or gear.
• Fault Coding: Displays error codes if a system malfunction occurs. Refer to the troubleshooting section for common codes.

Use the buttons on the LCD panel to navigate through different display modes and settings.

7. Засвар үйлчилгээ

Regular maintenance ensures the longevity and optimal performance of your controller kit:

• Дулаан ялгаруулалт: The controller's metal housing is designed for efficient heat dissipation. Ensure it remains free from obstructions and dirt to maintain proper cooling.
• Цэвэрлэгээ: Periodically clean the controller and throttle handle with a soft, dry cloth. Avoid using harsh chemicals or excessive moisture.
• Холболтын шалгалт: Regularly inspect all electrical connections for tightness and signs of wear or corrosion. Re-secure any loose connections.
• Кабелийн бүрэн бүтэн байдал: Check all cables for cuts, fraying, or damage. Replace damaged cables immediately to prevent electrical hazards.

8. Алдаа засах

Хэрэв танд асуудал тулгарвал дараах нийтлэг алдааг олж засварлах алхмуудыг үзнэ үү.

For fault codes displayed on the LCD, refer to the specific error code definitions provided by the manufacturer or contact customer support.

9. Техникийн үзүүлэлтүүд

Key specifications for the Topyond Electric Bike Controller Kit:

10. Баталгаат хугацаа ба дэмжлэг

For warranty information and technical support, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your purchase receipt as proof of purchase.
