Generic CV628H-T42 LCD TV Motherboard User Manual

1. Танилцуулга

This manual provides essential information for the proper installation, operation, and maintenance of the Generic CV628H-T42 LCD TV Motherboard. Designed for integration into compatible television systems, this motherboard serves as the central processing unit, managing display, audio, and input/output functions. Please read this manual thoroughly before proceeding with installation or operation to ensure safe and efficient use.

2. Аюулгүй байдлын мэдээлэл

Эх хавтанг гэмтээх эсвэл өөртөө гэмтэл учруулахаас сэргийлэхийн тулд дараах аюулгүй байдлын урьдчилан сэргийлэх арга хэмжээг үргэлж дагаж мөрдөөрэй.

• Эрчим хүчийг салгах: Ensure all power sources are disconnected from the television and motherboard before installation, removal, or maintenance.
• Цахилгаан статик ялгадас (ESD): Electronic components are sensitive to ESD. Use an anti-static wrist strap or take other ESD precautions when handling the motherboard.
• Тохиромжтой хэрэгсэл: Use appropriate tools for installation and removal. Avoid excessive force.
• Агааржуулалт: Ensure adequate ventilation around the motherboard once installed to prevent overheating.
• Мэргэжлийн суурилуулалт: Хэрэв та ямар нэгэн алхамын талаар эргэлзэж байвал мэргэшсэн техникчээс тусламж хүсээрэй.

3. Багцын агуулга

Бүх зүйл багцад байгаа эсэхийг шалгана уу:

• Generic CV628H-T42 LCD TV Motherboard
• (Optional, depending on specific package) Remote control receiver cable
• (Optional, depending on specific package) Хэрэглэгчийн гарын авлага (энэ баримт бичиг)

4. Тохиргоо ба суурилуулалт

4.1. Бэлтгэл ажил

1. Power off and unplug the television from the main power outlet.
2. Carefully open the television's back panel to access the internal components. Refer to your television's service manual for specific instructions on panel removal.
3. Discharge any static electricity from your body before handling the motherboard.

4.2. Физик суурилуулалт

1. Locate the existing motherboard within the television chassis.
2. Carefully disconnect all cables and connectors from the old motherboard, noting their positions for re-connection.
3. Remove the screws securing the old motherboard and gently lift it out.
4. Position the new Generic CV628H-T42 motherboard in the chassis, aligning it with the screw holes.
5. Secure the new motherboard with the appropriate screws. Do not overtighten.

4.3. Холболтууд

Reconnect all cables and connectors to the new motherboard. Ensure each connection is firm and correctly oriented. Common connections include:

• Эрчим хүчний хангамж: Connect the main power cable from the TV's power board to the motherboard.
• LVDS Cable: Connect the LVDS (Low-Voltage Differential Signaling) cable from the display panel to the corresponding port on the motherboard. This cable transmits video signals.
• Backlight Cable: Connect the backlight power cable to the motherboard or directly to the power board, depending on the TV model.
• IR/Keypad: Connect the cable for the infrared receiver and physical control buttons.
• Илтгэгчид: Connect the speaker cables to the audio output ports.
• Antenna/HDMI/USB: Ensure external input ports are properly aligned with the TV chassis openings.

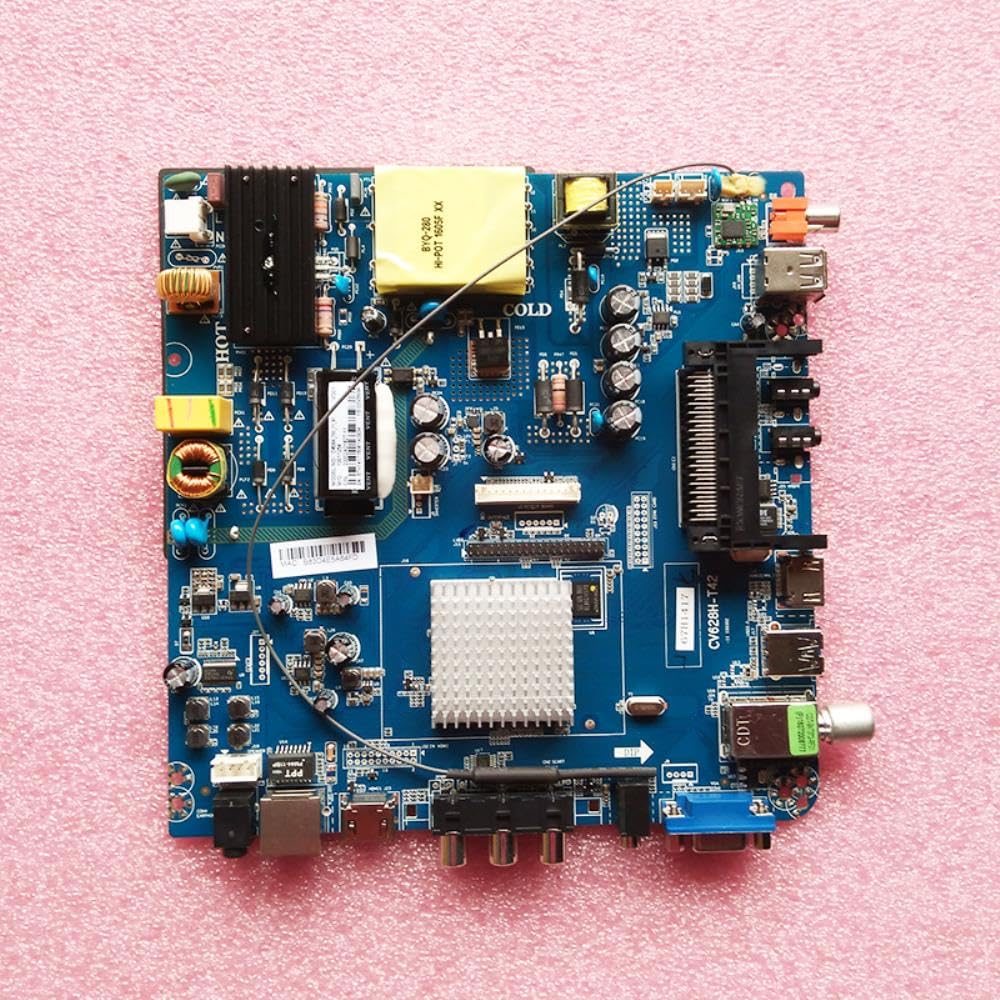

This image displays the Generic CV628H-T42 LCD TV Motherboard. Key features visible include the main processor, memory slots, and various input/output ports such as HDMI, USB, and power connectors, essential for connecting to a television panel and other peripherals.

5. Ашиглалтын заавар

5.1. Анхдагч асаалт

1. After ensuring all connections are secure and the TV's back panel is re-secured (or temporarily closed for testing), plug the television back into the power outlet.
2. ТВ эсвэл алсын удирдлага дээрх цахилгаан товчийг дарна уу.
3. Observe the TV screen for the initial boot sequence or brand logo.

5.2. Програм хангамж ба програм хангамж

The CV628H-T42 motherboard typically operates on a Linux-based platform. Depending on the TV manufacturer's implementation, it may require specific firmware or software configurations. If the TV does not function correctly after installation, it may be necessary to:

• Програм хангамжийн шинэчлэлт: Consult the television manufacturer's support resources for instructions on updating the firmware via USB or network.
• Үйлдвэрийн анхны байдал: Perform a factory reset through the TV's service menu if accessible, to clear any previous settings.

5.3. Үндсэн функциональ байдал

Once powered on, verify the following basic functions:

• Дэлгэц: Ensure the screen displays an image clearly.
• Аудио: Check for sound output from the speakers.
• Алсын удирдлага: Verify that the remote control functions correctly.
• Оролтын шилжүүлэлт: Test switching between different input sources (HDMI, AV, etc.).

6. Засвар үйлчилгээ

6.1. Цэвэрлэгээ

To maintain optimal performance and longevity:

• Periodically clean the internal components of the television, including the motherboard, using compressed air to remove dust buildup.
• Ensure the TV is unplugged before cleaning.
• Шингэн цэвэрлэгчийг эх хавтан дээр шууд хэрэглэж болохгүй.

6.2. Програм хангамжийн шинэчлэлтүүд

Regularly check the television manufacturer's website for available firmware updates. Updates can improve performance, add features, or fix bugs. Follow the manufacturer's instructions precisely when performing firmware updates.

6.3. Хадгалах

If the motherboard needs to be stored, keep it in an anti-static bag in a cool, dry place, away from direct sunlight and extreme temperatures.

7. Алдаа засах

Хэрэв танд асуудал тулгарвал дараах нийтлэг асуудал, шийдлүүдийг үзнэ үү.

• Эрчим хүчгүй:
  Шийдэл: Check all power connections. Ensure the TV is plugged into a working outlet. Verify the power supply unit is functioning.
• Зураггүй/Хар дэлгэц:
  Шийдэл: Check the LVDS cable connection. Ensure the backlight cable is properly connected. Verify the input source is correctly selected. Try a factory reset if possible.
• Дуугүй:
  Шийдэл: Check speaker connections. Ensure audio settings are correct in the TV menu. Test with different input sources.
• Алсын удирдлага ажиллахгүй байна:
  Шийдэл: Check batteries in the remote. Ensure the IR receiver cable is properly connected to the motherboard.
• TV Freezes or Restarts:
  Шийдэл: This could indicate a firmware issue or overheating. Ensure proper ventilation. Consider a firmware update or factory reset.

If problems persist after attempting these solutions, contact a qualified technician or the television manufacturer's support.

8. Техникийн үзүүлэлтүүд

Key technical specifications for the Generic CV628H-T42 LCD TV Motherboard:

9. Баталгаат хугацаа ба дэмжлэг

9.1. Баталгаат хугацааны мэдээлэл

This Generic CV628H-T42 LCD TV Motherboard is typically covered by a limited warranty provided by the seller or manufacturer. Please refer to your purchase documentation or contact the seller directly for specific warranty terms and conditions, including duration and coverage details. The warranty generally covers defects in materials and workmanship under normal use.

9.2. Техникийн дэмжлэг

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact the retailer or the manufacturer from whom you purchased this product. Be prepared to provide your product model number (CV628H-T42) and proof of purchase.
