JATRHG S1 7kW 8M 32A Single-Phase Type 2 EV Charging Station User Manual

1. Танилцуулга

This user manual provides essential information for the safe and efficient operation of your JATRHG S1 7kW 8M 32A Single-Phase Type 2 EV Charging Station. Please read this manual thoroughly before installation and use, and retain it for future reference. Adherence to these instructions will ensure optimal performance and longevity of your charging station.

2. Бүтээгдэхүүн дууссанview

The JATRHG S1 EV Charging Station is designed for reliable and efficient electric vehicle charging. Familiarize yourself with its components:

Зураг 2.1: Бүтээгдэхүүний бүрэлдэхүүн хэсгүүд
1. Charging Station, 2. Type 2 EV Connector, 3. 8m Charging Cable, 4. 1m Input Cable, 5. Mounting Plaque, 6. Plug Holder, 7. Screw Kit, 8. User Manual.

3. Аюулгүй байдлын мэдээлэл

Please observe the following safety guidelines to prevent injury, damage, or malfunction:

• Мэргэжлийн суурилуулалт: This device must be installed by a qualified electrician in accordance with all local electrical codes and standards. Incorrect installation can lead to risks of electrocution or fire.
• Зориулалтын хэрэглээ: Use this equipment solely for its intended purpose of charging electric vehicles. Any modification or inappropriate use may result in damage or safety hazards.
• Хяналт: Do not leave the charging station operating unsupervised. In case of any problem or unusual behavior, immediately turn off the power and consult a professional.
• Байгаль орчны нөхцөл: Operate the equipment within the recommended environmental conditions. Avoid exposure to excessive humidity, direct water spray, or extreme temperatures. The unit is designed for outdoor use with IP66 rating, but extreme conditions should be avoided.
• Засвар үйлчилгээ: Do not attempt to repair the device yourself. All repairs must be performed by a qualified technician. Inadequate maintenance may void the warranty.
• Child and Animal Safety: Keep the charging equipment out of reach of children and animals.
• Emergency Disconnection: In an emergency, disconnect the device from the power supply to prevent any danger.
• Зөв хэрэглээ: The user must strictly follow the manufacturer's instructions. Any incorrect use or unauthorized modification of the charging station is the sole responsibility of the user. The manufacturer and reseller are not liable for direct or indirect damages resulting from such actions.
• Тээврийн хэрэгслийн нийцтэй байдал: Ensure your vehicle is compatible with the technical specifications of this charging station. The manufacturer is not responsible for damages due to incompatibility.

4. Суурилуулалт

The JATRHG S1 charging station is designed for robust outdoor use and embedded installation. Professional installation is mandatory.

4.1 Structural Waterproof Design

The charging station features a multi-layer, modular construction, ensuring excellent waterproofing (IP66 rated), sun protection, and flame retardancy. This design makes it suitable for various outdoor environments.

Figure 4.1: Structural Waterproof Design

4.2 Суулгасан суурилуулалт

The optimized casing structure is ideal for embedded installation, further enhancing its outdoor protection rating and providing a clean, integrated look.

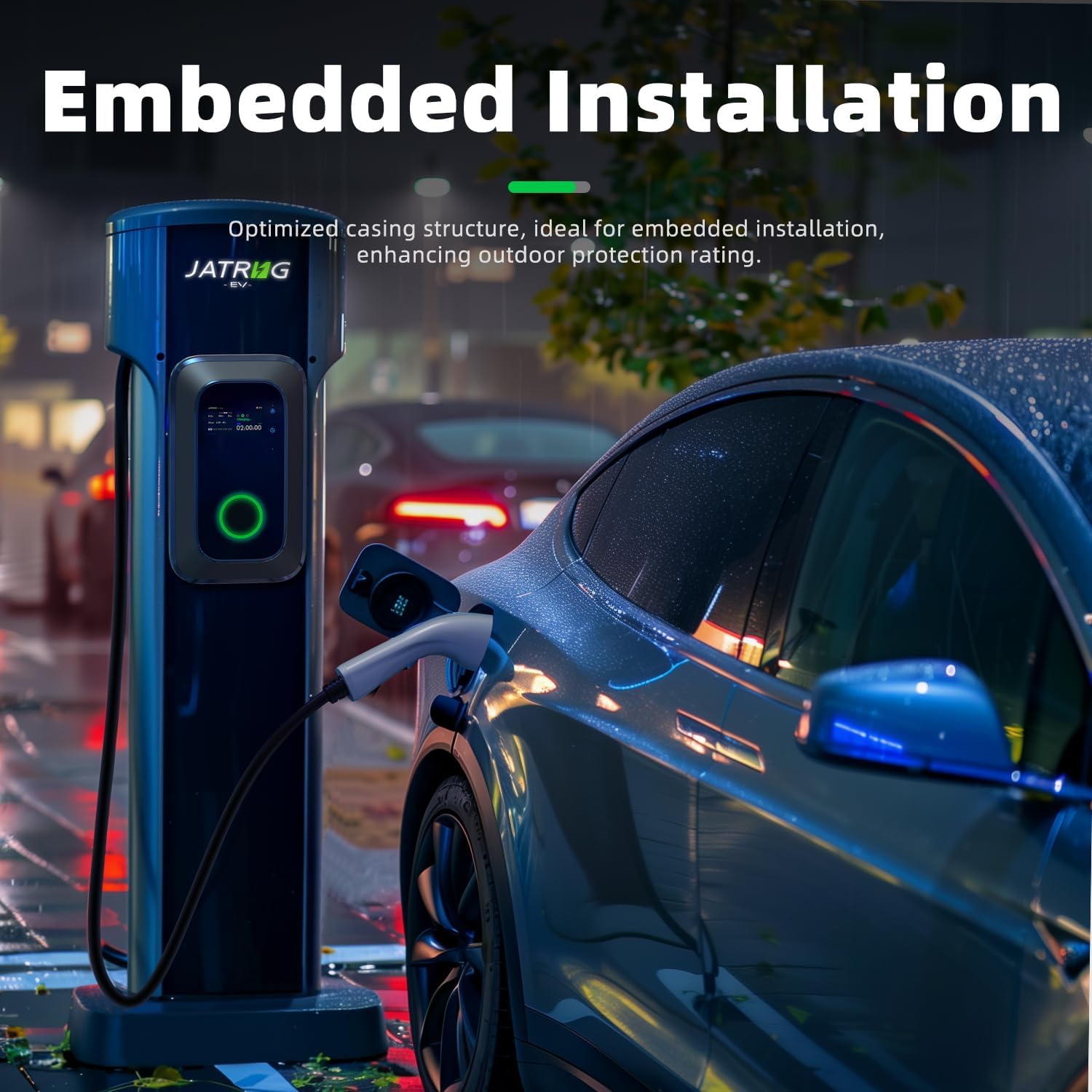

Figure 4.2: Embedded Installation Example

4.3 Integrated Type B RCD Protection

The charging station is equipped with an integrated Type B Residual Current Device (RCD) (AC 30mA + DC 6mA) for enhanced safety. This integrated motherboard solution replaces costly external modules.

5. Ашиглалтын заавар

Follow these steps for effective use of your JATRHG S1 charging station.

5.1 Multilingual Interface

The charging station features a multilingual menu for ease of use. To change the language, press and hold button 'A' on the device interface. The interface supports English, French, German, Spanish, and Italian.

Figure 5.1: Multilingual Display Options

Figure 5.2: Control Buttons and Display
Click button 'A' to adjust current. Press and hold button 'A' to change menu language.

5.2 Manual Load Shedding (Current Adjustment)

You can manually adjust the charging current to increase or reduce power consumption based on your current electrical load. This feature helps prevent overloads and circuit breaker trips. Available settings include 32A, 24A, 16A, 13A, and 8A.

Figure 5.3: Adjustable Current Graph
Adjust current and set charging schedule before connecting the vehicle.

5.3 Schedule Charging

The charging station allows you to schedule charging times to take advantage of off-peak electricity rates. You can set a delayed charging time from 0 to 12 hours.

• Click button 'B' to set the scheduled time.
• Press and hold button 'B' to cancel the scheduled time.

Figure 5.4: Electricity Tariff Schedule Example
Schedule charging to avoid peak hours (18:00-23:00).

Figure 5.5: Multilingual Timer Interface

5.4 Гар утасны програмын хяналт

The charging station can be controlled via a mobile application, allowing you to:

• Start or stop charging.
• Lock or unlock the charging station.
• View real-time electrical information (voltage, гүйдэл, хүч).
• Access charging records, including dates, times, duration, and energy consumed (kWh).
• Monitor your overall consumption.

Figure 5.6: Mobile Application Interface

5.5 Тээврийн хэрэгслийн нийцтэй байдал

The JATRHG S1 charging station is compatible with all 100% electric vehicles, plug-in hybrids, and extended-range electric vehicles, regardless of brand, that use a Type 2 IEC 62196-2 connector.

5.6 Цэнэглэх кабель

The charging station comes with an 8-meter TPU cable, providing ample length to meet various charging distance requirements.

Figure 5.7: 8-Meter TPU Charging Cable

6. Засвар үйлчилгээ

To ensure the continued safe and efficient operation of your charging station, regular maintenance is required. This should be performed by qualified professionals. Inadequate maintenance may void the product warranty.

• Periodically inspect the charging cable and connector for any signs of wear, damage, or corrosion.
• Ensure the charging station's housing is clean and free from debris.
• Цэвэрлэхэд химийн хатуу бодис, зүлгүүрийн материалыг бүү ашигла.
• Any internal inspection or repair must be carried out by a certified technician.

7. Алдаа засах

If you encounter issues with your JATRHG S1 charging station, consider the following general troubleshooting steps:

• Эрчим хүчгүй: Check the circuit breaker in your electrical panel. Ensure the input cable is securely connected.
• Цэнэглэж эхлэхгүй байна: Verify that the charging cable is properly connected to both the station and your vehicle. Ensure your vehicle is ready to accept a charge. Check the display for any error messages.
• Удаан цэнэглэх: Confirm the current setting (Manual Load Shedding) is appropriate for your needs. Ensure your vehicle's charging settings are not limiting the input.
• Дэлгэц дээрх алдааны мэдэгдэл: Refer to the specific error code displayed. If the issue persists, disconnect the power, wait a few minutes, and reconnect.
• Overheating Alert: The station has a high-temperature alert function. If this occurs, stop charging immediately and allow the unit to cool down. Ensure proper ventilation around the unit.

For persistent issues or complex problems, contact a qualified electrician or JATRHG customer support.

8. Техникийн үзүүлэлтүүд

9. Баталгаат хугацаа ба дэмжлэг

The JATRHG S1 EV Charging Station comes with a 2 жилийн баталгаат хугацаа худалдан авсан өдрөөс. Энэхүү баталгаа нь ердийн ашиглалтын үед хийгдсэн материал, хийцийн согогийг хамарна.

The warranty may be voided by:

• Improper installation not performed by a qualified electrician.
• Зөвшөөрөлгүй өөрчлөлт, засвар.
• Use outside of intended purpose or recommended environmental conditions.
• Inadequate or non-professional maintenance.

For warranty claims, technical support, or any questions regarding your charging station, please contact JATRHG customer service through your purchase platform or the official JATRHG website. Please have your model number (JATRHG-S1) and proof of purchase ready when contacting support.
