1. Танилцуулга
This manual provides essential information for the safe and effective installation, operation, and maintenance of your new Recoil Pull Starter Assembly. This product is designed as a replacement part for specific lawn mower models. Please read this manual thoroughly before attempting any installation or operation.

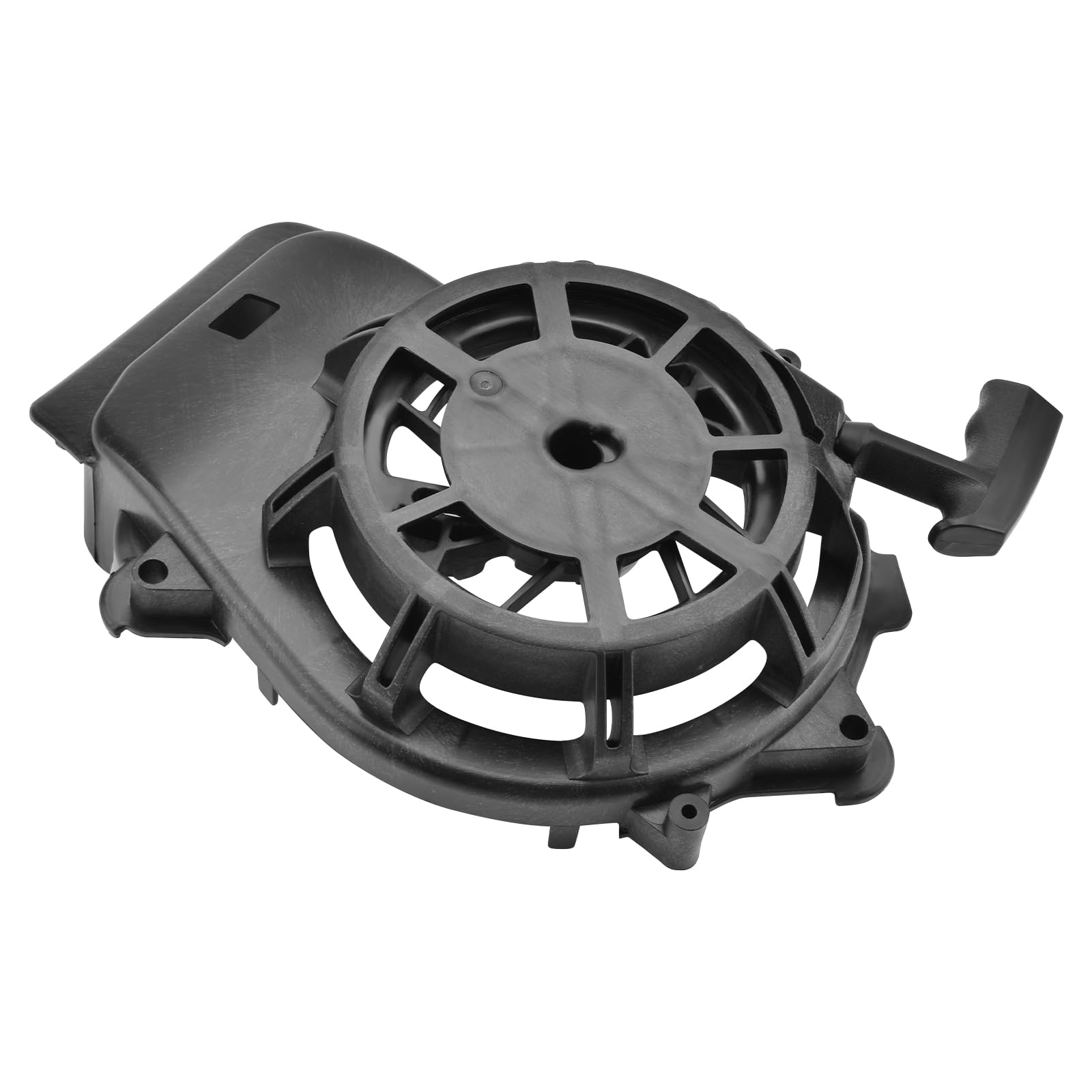

Figure 1: Generic Recoil Pull Starter Assembly. This image shows the complete recoil starter unit, highlighting its design and components.
2. Бүтээгдэхүүний онцлог
- Smooth Starting: The recoil mechanism is engineered to provide a smooth and consistent pull, reducing the effort required to start your lawn mower.
- Хялбар суурилуулалт: Designed for straightforward replacement, requiring minimal tools and time.
- Найдвартай ажиллагаа: Ensures consistent engagement for dependable engine starts.
- Удаан эдэлгээтэй барилга: Built to withstand regular use in outdoor power equipment.
3. Тохиромжтой байдал
This Recoil Pull Starter Assembly is specifically compatible with:
- 163cc Toro 20333 Lawn Mower (163cc engine models ONLY)
Verify your lawn mower's model number and engine size before installation to ensure proper fitment.
Figure 2: Compatibility information. This image visually confirms the starter's compatibility with the 163cc Toro 20333 Lawn Mower.
4. Багцын агуулга
Багцад дараахь зүйлс орно.
- 1 x Recoil Pull Starter Assembly
5. Аюулгүй байдлын мэдээлэл
Always prioritize safety when working with power equipment. Failure to follow these safety guidelines may result in serious injury or damage to the equipment.
- Очлуур залгуурыг салгах: Засвар үйлчилгээ эсвэл суурилуулалт хийхээсээ өмнө хөдөлгүүрийг санамсаргүйгээр асаахаас сэргийлж оч залгуурын утсыг үргэлж салгаж байгаарай.
- Хамгаалалтын хэрэгсэл өмсөх: Use appropriate personal protective equipment, including gloves and eye protection.
- Агааржуулалт сайтай газар ажиллах: Ensure adequate ventilation if working with fuel or other chemicals.
- Зүлэг хадагчийг бэхлээрэй: Place the lawn mower on a stable, level surface and ensure it cannot move during the installation process.
- Зөв хэрэгслийг ашиглах: Use only the recommended tools for the job to avoid damage to fasteners or components.
6. Тохиргоо ба суурилуулалт
Follow these steps to replace the recoil pull starter assembly:
- Бэлтгэл: Ensure the lawn mower engine is cool. Disconnect the spark plug wire from the spark plug to prevent accidental starting.
- Эхлүүлэгч рүү нэвтрэх: Locate the existing recoil starter assembly on your lawn mower. It is typically mounted on top of the engine.
- Хуучин эхлүүлэгчийг устгах: Using appropriate tools (e.g., a socket wrench or screwdriver), carefully unbolt and remove the old recoil starter assembly. Note the position and orientation of any mounting bolts or screws.
- Шалгах талбай: Clean any debris or dirt from the mounting area before installing the new starter.
- Шинэ эхлүүлэгч суурилуулах: Position the new recoil pull starter assembly onto the engine, aligning the mounting holes. Ensure the starter rope is correctly oriented.
- Secure the Starter: Reinstall the mounting bolts or screws, tightening them securely but do not overtighten.
- Очлуур залгуурыг дахин холбоно уу: Once the new starter is securely in place, reconnect the spark plug wire.
Figure 3: Product details and components. This image provides a close-up view of the starter's internal mechanism, pull handle, and mounting points, which are helpful during installation.
7. Ашиглалтын заавар
After successful installation, follow your lawn mower's standard starting procedure:
- Түлшний сав дүүрсэн, тосны түвшин зөв байгаа эсэхийг шалгаарай.
- Set the throttle to the 'Start' or 'Choke' position as per your mower's instructions.
- Стартерийн бариулыг чанга атга.
- Pull the rope slowly until you feel resistance, then pull with a rapid, smooth motion. Do not pull the rope to its full extension or let it snap back.
- Repeat as necessary until the engine starts.
- Once the engine starts, return the starter handle gently to its housing.
Figure 4: Recoil mechanism for smooth starting. This image illustrates the internal design that contributes to a smooth and consistent pull, making engine starting easier.
8. Засвар үйлчилгээ
Proper maintenance extends the life of your recoil starter:
- Цэвэр байлгах: Regularly clean the starter assembly to prevent dirt and debris from interfering with its operation.
- Олсыг шалгах: Periodically check the starter rope for fraying or damage. Replace if necessary.
- Avoid Snapping: Always return the starter handle gently to prevent damage to the recoil spring.
- Хадгалах: Store the lawn mower in a dry, clean environment to protect the starter from corrosion.
9. Алдаа засах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Гарааны олс бүрэн татагдахгүй байна. | Damaged recoil spring or debris in housing. | Inspect for debris and clear. If spring is damaged, replacement of the assembly may be required. |
| Стартерийн олс сугалж байгаа боловч хөдөлгүүрийг ажиллуулдаггүй. | Pawls not extending or worn. | Inspect pawls for damage or obstruction. Clean or replace assembly if pawls are worn. |
| Starter rope is frayed or broken. | Элэгдэл, урагдах. | Replace the starter rope or the entire assembly if the rope cannot be replaced independently. |
10. Техникийн үзүүлэлтүүд
- Бүтээгдэхүүний хэмжээ: 11.6 x 8.7 x 2.94 инч
- Барааны жин: 1.01 фунт
- Үйлдвэрлэгч: Baowen
- Загварын дугаар: DaYHbaowen160
- ASIN: B0DBKVTLTP
- Тохиромжтой байдал: 163cc Toro 20333 Lawn Mower (163cc ONLY)
11. Баталгаат хугацаа ба дэмжлэг
Баталгаат хугацаа эсвэл техникийн дэмжлэг авахыг хүсвэл худалдагч эсвэл үйлдвэрлэгчтэй шууд холбогдоно уу. Худалдан авалтын баримтаа худалдан авалтын нотолгоо болгон хадгална уу.
For further assistance, you may refer to the product page on Amazon: Амазоны бүтээгдэхүүний хуудас
