1. Танилцуулга
This manual provides instructions for the safe and effective use of your QUMOX Electric Ear Wax Removal Kit, Model E30. This device is designed to gently clean ear canals by irrigating them with water, helping to remove earwax, dirt, and debris. Please read this manual thoroughly before first use and retain it for future reference.

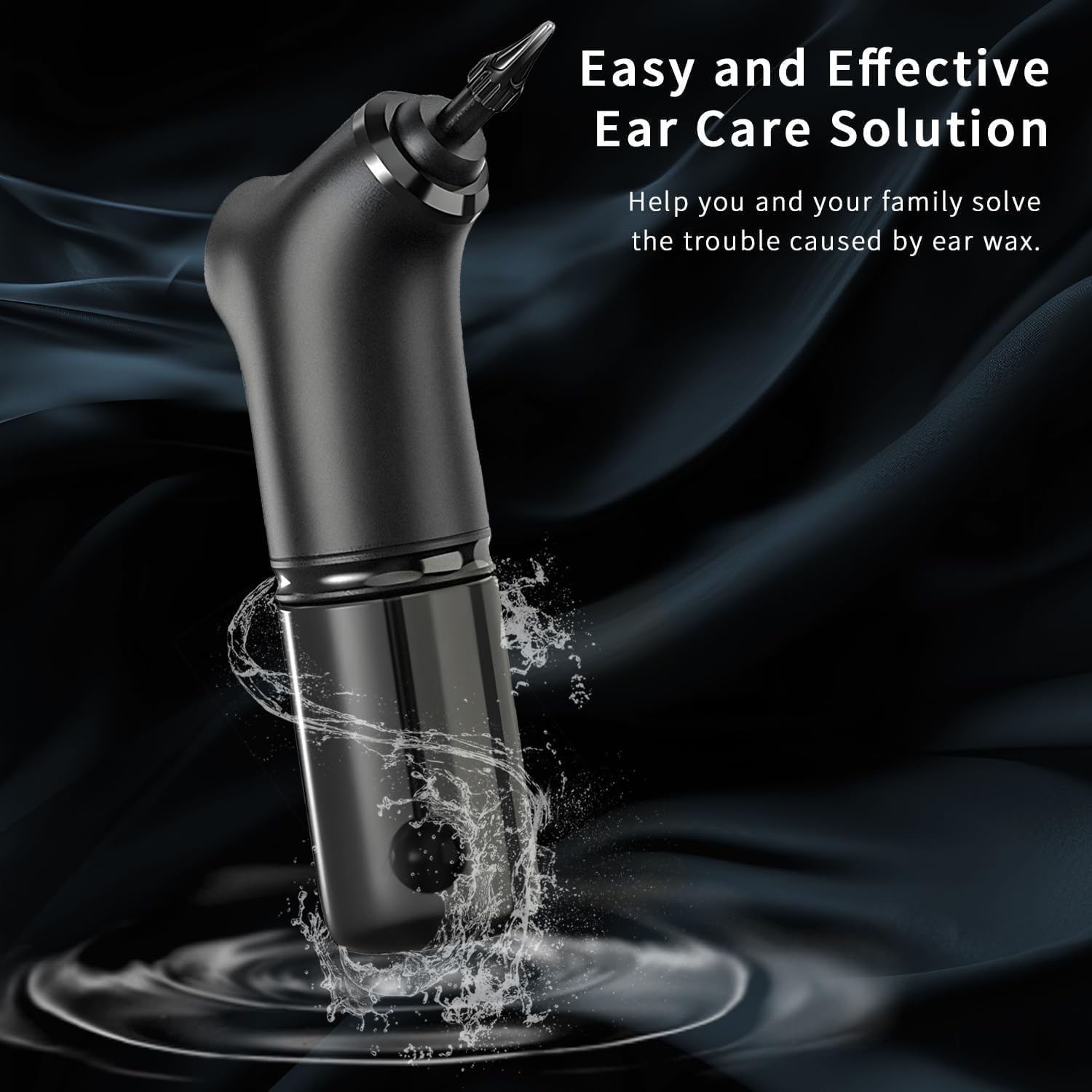

Image 1.1: QUMOX Electric Ear Wax Removal Kit in operation.
2. Аюулгүй байдлын мэдээлэл
Чухал: Always consult a medical professional before using this device if you have any pre-existing ear conditions, ear pain, discharge, recent ear surgery, or a perforated eardrum. Do not use this device on children without medical advice.
- Use only lukewarm water. Water that is too hot or too cold can cause dizziness or discomfort.
- Do not insert the ear tip too deeply into the ear canal.
- Discontinue use immediately if you experience pain, dizziness, or hearing changes.
- Төхөөрөмжийг хүүхдэд хүрэхгүй газар хадгална уу.
- Ensure the device is fully charged before use to avoid interruptions.
- Use only the provided disposable ear tips to maintain hygiene and prevent infection.

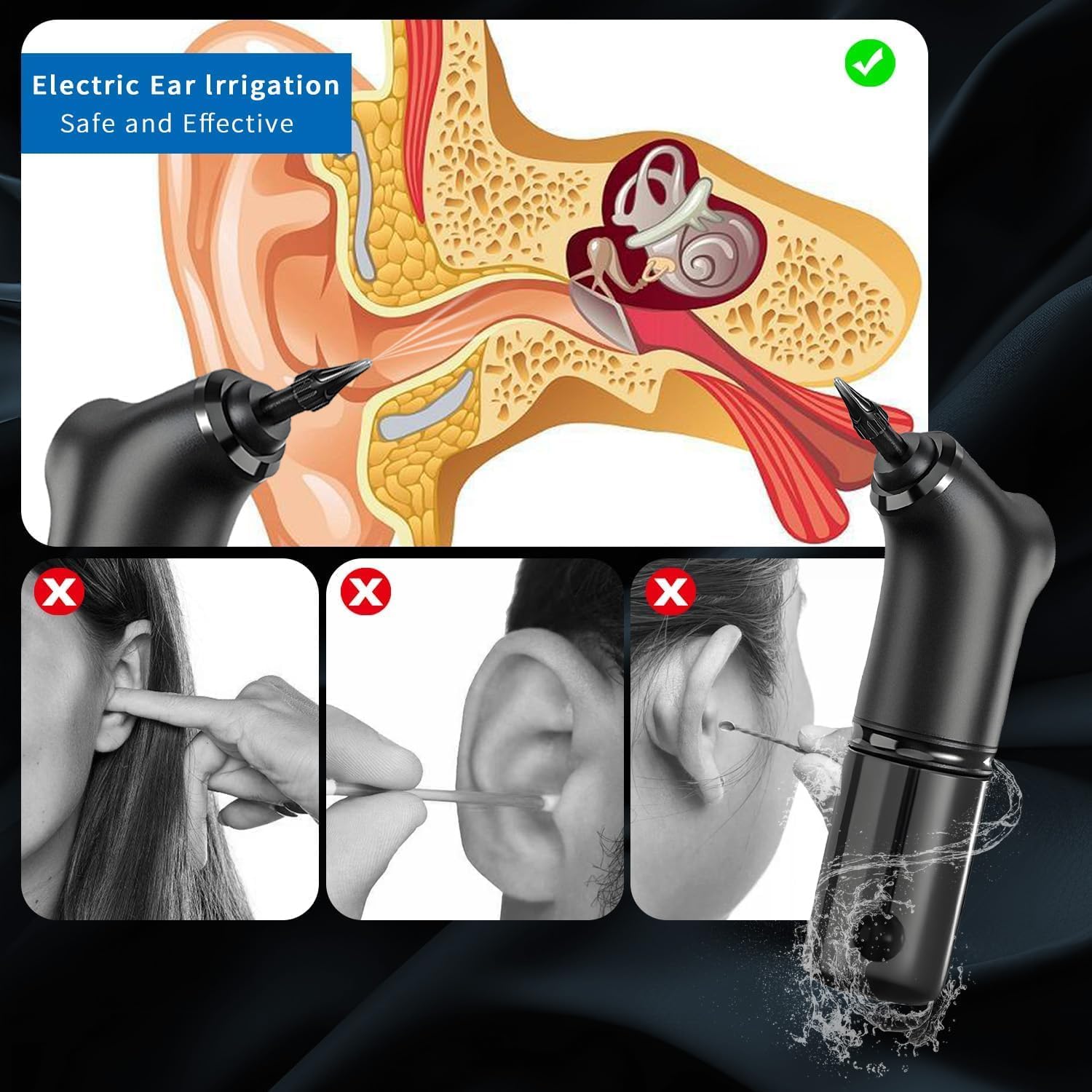

Image 2.1: Illustration of safe ear cleaning practices with the device versus unsafe methods.
3. Багцын агуулга
Таны багцад бүх зүйл байгаа эсэхийг шалгана уу:
- Electric Ear Wax Cleaning Kit (Main Unit)
- Ear Wax Remover with Gravity Straw
- Усны сав
- Ear Catch Basin
- 10 Disposable Soft Ear Tips
- C төрлийн цэнэглэгч кабель
- Хэрэглэх заавар (энэ баримт бичиг)
Image 3.1: All components included in the QUMOX Ear Wax Removal Kit.
4. Бүтээгдэхүүний онцлог
- Gentle and Effective Cleaning: Designed to remove earwax, dirt, and debris without harming sensitive ear canal skin.
- Эрүүл ахуйн дизайн: Includes 10 disposable soft ear tips for sanitary use and reduced risk of infection.
- Four Adjustable Pressure Settings: Offers Normal, Soft, Pulse, and Strong modes (7 to 24.5 PSI) for customized cleaning.
- Удаан эдэлгээтэй батерей: Equipped with a 2000 mAh battery, providing up to 7 hours of use on a full charge.
- Type-C цэнэглэх: For quick and efficient recharging.
5. Тохиргоо
- Төхөөрөмжийг цэнэглэх: Before first use, fully charge the device using the provided Type-C charging cable. Connect the cable to the device's charging port and a suitable USB power adapter (not included). The indicator light will show charging status.
- Ус бэлтгэх: Fill the water bottle with lukewarm water. Ensure the water temperature is comfortable and not too hot or cold.
- Attach Ear Tip: Select a new, disposable soft ear tip and securely attach it to the nozzle of the main unit.
- Угсрах: Attach the water bottle to the main unit, ensuring it is securely fastened to prevent leaks.
6. Ашиглалтын заавар
- Байршил: Lean your head over a sink or use the provided ear catch basin to collect the water and dislodged earwax.
- Асаах: Press and hold the power switch until the indicator light blinks.
- Сонгох горим: Press the "M" button to cycle through the four pressure settings: Normal, Soft, Pulse, and Strong. Choose the setting that feels most comfortable and effective for your needs.
- Begin Irrigation: Gently insert the ear tip into the ear canal. Do not force it. Press the power switch again to start the water flow.
- Clean Ear: Allow the water to irrigate the ear canal. Move the device slightly to ensure thorough cleaning. The water will flow out into the sink or catch basin.
- Шаардлагатай бол давтана уу: If needed, repeat the process for the same ear or switch to the other ear.
- Унтраах: Press and hold the power switch to turn off the device after use.
Image 6.1: Device controls and pressure settings.
7. Засвар үйлчилгээ, цэвэрлэгээ
- Discard Ear Tip: After each use, remove and discard the used disposable ear tip.
- Empty Water Bottle: Empty any remaining water from the bottle.
- Угаах бүрэлдэхүүн хэсгүүд: Rinse the water bottle and the main unit's nozzle with clean water.
- Арчих: Wipe the exterior of the device with a clean, damp даавуу. Үндсэн төхөөрөмжийг усанд дүрж болохгүй.
- Бүрэн хатаана: Хадгалахаасаа өмнө бүх бүрэлдэхүүн хэсгүүд бүрэн хатсан эсэхийг шалгаарай.
8. Хадгалах
Store the QUMOX Electric Ear Wax Removal Kit in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it out of reach of children.
9. Алдаа засах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Төхөөрөмж асахгүй байна | Low battery; Device not properly switched on. | Charge the device fully; Press and hold the power switch until the indicator light blinks. |
| Усны даралт сул | Low battery; Water bottle not securely attached; Clogged ear tip. | Charge the device; Ensure the water bottle is tightly screwed on; Replace the ear tip. |
| Ус гоожих | Water bottle not securely attached; Damaged ear tip. | Ensure the water bottle is tightly screwed on; Replace the ear tip. |
| Усны урсгал байхгүй | Water bottle empty; Ear tip clogged. | Refill the water bottle; Replace the ear tip. |
10. Техникийн үзүүлэлтүүд
- Загварын дугаар: E30
- Зай: 1 лити ион батерей (дагсан), 2000 мАч
- Цэнэглэх порт: Төрөл-C
- Даралтын тохиргоо: 4 levels (7 to 24.5 PSI)
- Хэмжээ: Approximately 211.6 mm (8.33 inches) height x 56.4 mm (2.22 inches) width
- Жин: Ойролцоогоор 1.04 фунт
Image 10.1: Device dimensions.
11. Баталгаат хугацаа ба дэмжлэг
For warranty information or technical support, please refer to the contact details provided at the point of purchase or visit the official QUMOX webсайт. Худалдан авалтын баримтаа худалдан авалтын баталгаа болгон хадгалаарай.
Хүнсний нэмэлтүүдийн талаархи мэдэгдлийг FDA-аас үнэлээгүй бөгөөд аливаа өвчин, эрүүл мэндийн байдлыг оношлох, эмчлэх, эмчлэх, урьдчилан сэргийлэхэд зориулагдаагүй болно.
