Joydeem Hot Water Dispenser JD-DSP203 User Manual

1. Аюулгүй байдлын чухал мэдээлэл

Please read all instructions carefully before using the appliance and keep this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Хуурай буцалгах хамгаалалт: The dispenser is equipped with boil-dry protection. If the water level is too low, the unit will automatically shut off to prevent damage.
• Хамгаалалтын түгжээ: A safety lock feature prevents accidental dispensing of hot water. Always unlock before dispensing.
• Даралтын анхааруулга: After the water boils and stops boiling, wait for 3 minutes before pressing the dispense button. This avoids an imbalance of pressure in the thermos pot, which could result in unsmooth water dispensing.
• Усны түвшин: Do not add water above the maximum water level (MAX 3L) to avoid danger of overflow.
• Материалын аюулгүй байдал: The hot water pot is BPA and PFOA free, featuring a high borosilicate glass body and a fully removable stainless steel inner lid for healthy and safe use.
• Байршил: Place the appliance on a stable, flat, heat-resistant surface, away from edges and out of reach of children.
• Цахилгааны утас: Ensure the power cord is securely plugged into a grounded outlet. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.

Image: Safety features including boil-dry and overheat shut-off protection.

2. Бүтээгдэхүүн дууссанview

The Joydeem Hot Water Dispenser JD-DSP203 is a versatile countertop appliance designed for rapid water heating and maintaining desired temperatures. It is ideal for preparing baby formula, tea, coffee, oatmeal, or pasta, suitable for both home and office use.

Гол онцлогууд:

• Түргэн халаалт: 1000W power output for quick boiling.
• Хүчин чадал: 3 Liters (101 Oz / 12 Cups) for daily use.
• 5 Keep Warm Temperature Settings: Choose from 113°F/131°F/149°F/167°F/185°F (45°C/55°C/65°C/75°C/85°C).
• Extended Keep Warm: Maintains selected temperature for up to 48 hours.
• Эрүүл материал: High borosilicate glass body and fully removable stainless steel inner lid. BPA and PFOA free.
• Хос температурын дэлгэц: Supports both °C and °F, easily switchable.
• Аюулгүй байдлын онцлогууд: Includes boil-dry protection and a safety lock.
• Хэрэглэгчдэд ээлтэй дизайн: Portable wide handle, detachable lid, removable power cord, and anti-slip base.

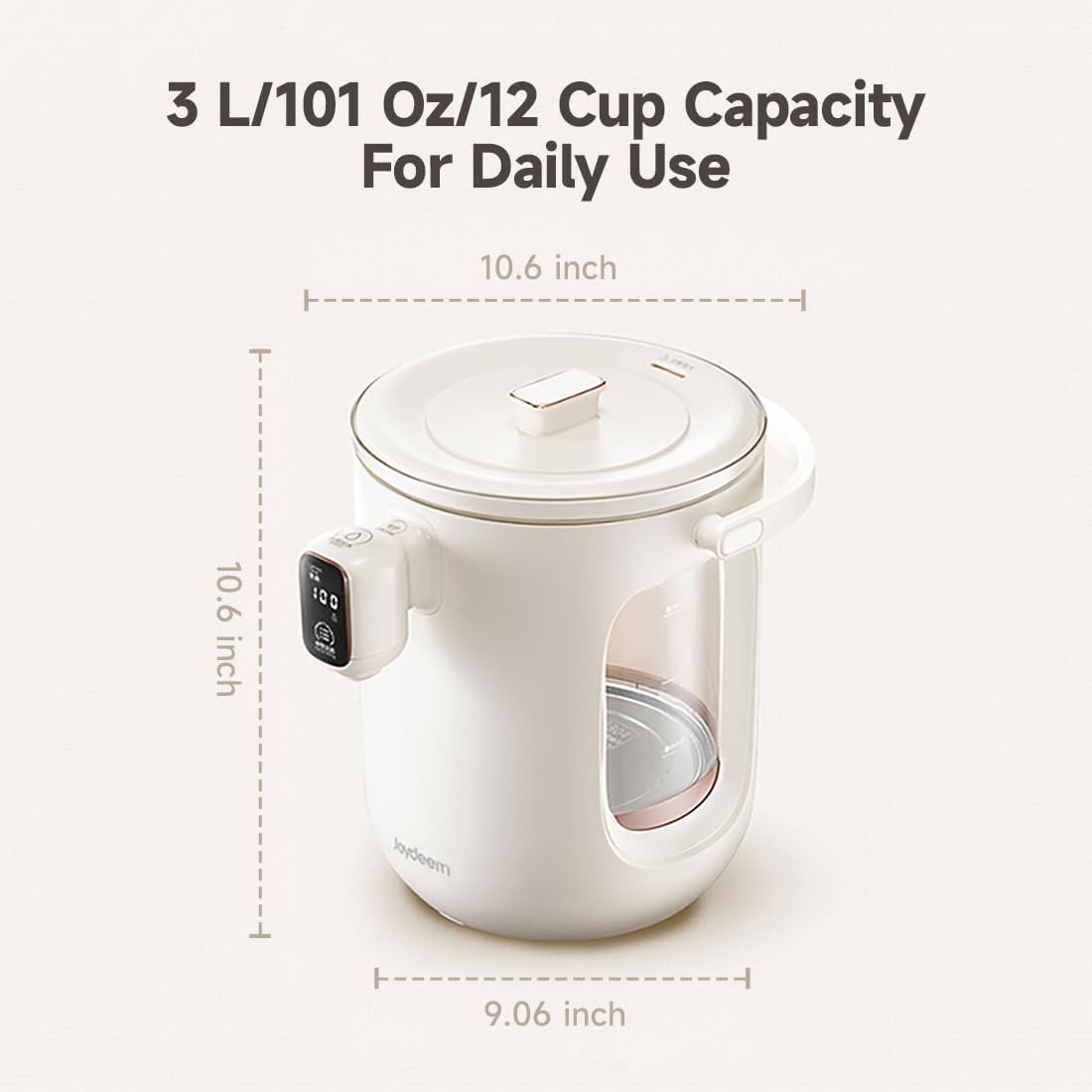

Image: Joydeem Hot Water Dispenser JD-DSP203 with its sleek design.

Image: Product details highlighting the portable wide handle, detachable lid, removable power cord, and anti-slip base.

3. Тохиргоо

3.1 Сав баглаа боодол, эхний цэвэрлэгээ

1. Бүх сав баглаа боодлын материалыг болгоомжтой авч, диспенсерийг ямар нэгэн эвдрэл гарсан эсэхийг шалгана уу.
2. Wash the removable lid and the interior of the glass pot with warm, soapy water. Rinse thoroughly and dry.
3. Диспенсерийн гадна талыг зараар арчинаamp даавуу. Үндсэн төхөөрөмжийг усанд дүрж болохгүй.

3.2 Ус дүүргэх

• Тагийг нь ав.
• Fill the glass pot with purified water. Tap water can also be used, but purified water is recommended to minimize scale buildup.
• Ensure the water level is between the MIN (1L) and MAX (3L) marks on the side of the pot. Do not overfill.
• Тагийг нь аюулгүйгээр солино.

3.3 Эрчим хүчний холболт

• Plug the removable power cord firmly into the power inlet at the back of the dispenser.
• Plug the other end of the power cord into a standard 120V AC electrical outlet.

4. Ашиглалтын заавар

4.1 Activating the Unit

• After plugging in the power cord, press any key on the machine to turn it on. The display will light up.

4.2 Toggling Temperature Units (°C/°F)

• The default display is in Fahrenheit (°F). To switch between °F and °C, press the Түгжээг тайлах болон Гараар буцалгах товчлууруудыг 2 секундын турш нэгэн зэрэг дарна.

4.3 Boiling Water Directly

• To boil water to 100°C (212°F) without a specific keep warm temperature, simply press and hold the Гараар буцалгах button. The unit will start boiling.

4.4 Setting Keep Warm Temperature

• To boil water and then cool down to a fixed temperature, press the Гараар буцалгах button repeatedly to cycle through the 5 available keep warm temperatures: 113°F/131°F/149°F/167°F/185°F (45°C/55°C/65°C/75°C/85°C).
• After selecting your desired temperature, the dispenser will enter heating or keep warm mode after 3 seconds of no operation. It can maintain the temperature for up to 48 hours.

Image: The control panel displaying the 5 available keep warm temperature settings in both Celsius and Fahrenheit.

4.5 Ус түгээх

• дээр дарна уу Түгжээг тайлах button once to unlock the dispenser.
• -г удаан дар Гарга Ус гаргах товчлуур. Ус өгөхөө зогсоохын тулд товчлуурыг суллана уу.

5. Засвар үйлчилгээ, цэвэрлэгээ

5.1 Ерөнхий цэвэрлэгээ

• Always unplug the dispenser and allow it to cool completely before cleaning.
• The removable lid and glass pot can be hand washed with warm, soapy water. Rinse thoroughly.
• Төхөөрөмжийн гадна талыг зөөлөн арчиж, damp даавуу. Зүлгүүрийн цэвэрлэгч, цэвэрлэгч хэрэглэж болохгүй.

5.2 Хатаах

• If scale forms due to tap water usage, add lemon slices or white vinegar to the pot, fill with water, bring to a boil, and then pour out to clean. Repeat if necessary.

Image: High borosilicate glass body and 304 stainless steel components ensure easy cleaning and durability.

6. Алдаа засах

• Water not dispensing smoothly: If water dispenses unevenly after boiling, ensure you wait at least 3 minutes after the water stops boiling before pressing the dispense button. This allows internal pressure to equalize.
• Төхөөрөмж асахгүй байна: Check if the power cord is securely plugged into both the dispenser and the electrical outlet. Press any key to activate the display.
• Ус халаахгүй байна: Ensure the unit is powered on and a temperature setting or boiling mode has been selected. Check for boil-dry protection activation (add water if needed).
• Хуваарийн хуримтлал: If using tap water, regular descaling as described in the Maintenance section is recommended to prevent mineral buildup.

7. Техникийн үзүүлэлтүүд

8. Баталгаат хугацаа ба дэмжлэг

For warranty information, technical support, or customer service inquiries, please refer to the product packaging or contact JOYDEEM customer support directly. Keep your purchase receipt as proof of purchase.
