VEMER VE795800 TUO 4G Thermostat User Manual

Танилцуулга

The VEMER TUO 4G-LTE thermostat provides advanced remote control and monitoring of your heating system. Featuring integrated 4G LTE connectivity, it allows operation even without a Wi-Fi connection, making it ideal for primary residences, secondary homes, offices, or environments without a fixed internet line. This smart chronothermostat offers security and comfort with intuitive app control and weekly programming capabilities.

It is compatible with boilers, heat pumps, and mixed heating systems, ensuring easy integration into various installations. The device is powered by 230V, designed for stability and reliability in heating control.

Тохиргоо ба суурилуулалт

The VEMER TUO 4G thermostat is designed for straightforward installation and configuration. Follow these steps for initial setup:

1. Эрчим хүчний хангамж: Connect the thermostat to a 230V power supply. This ensures stable and reliable operation within conventional electrical installations.

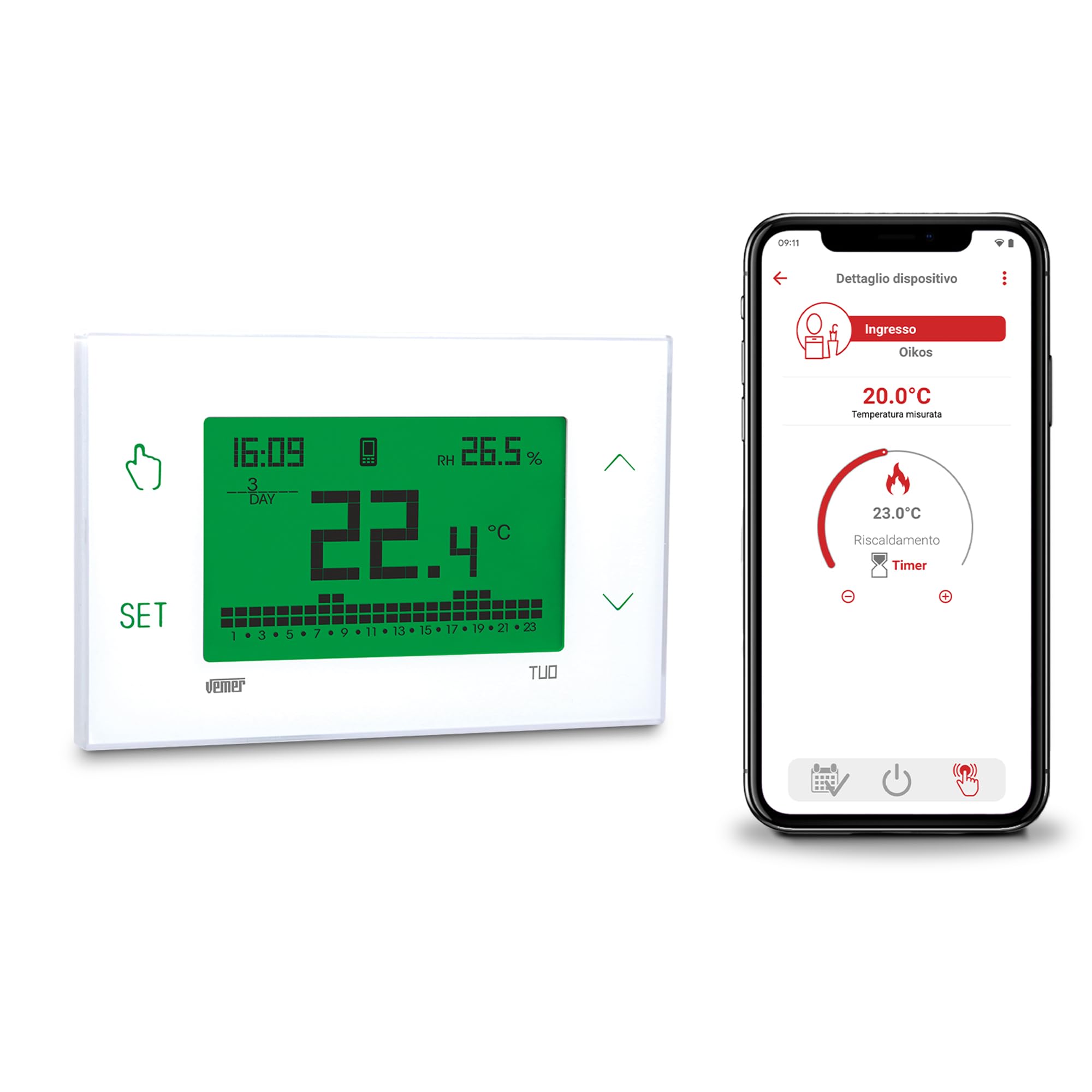

   Зураг: Урд view of the VEMER TUO 4G thermostat display, showing time, temperature, and programming indicators.
2. Физик суурилуулалт: The thermostat can be easily installed on a wall or within a 503 flush-mounted box cover. Detailed installation instructions are provided in the included manual.


   Image: The VEMER TUO 4G thermostat mounted on a wall in a modern living room setting.

3. SIM карт: The thermostat comes with a pre-installed SIM card, including 1 year of data traffic (for activations after 01-09-2025). No initial additional costs apply. After this period, you can renew your subscription via the app. Alternatively, you can remove the pre-installed SIM and insert a new one from a different mobile provider.
4. Апп тохиргоо: Configuration is performed via the dedicated smartphone app (available for Android and iOS) using Bluetooth. This ensures a quick and simple setup process.


   Image: A smartphone displaying the VEMER TUO 4G control app interface, showing temperature settings.

Ашиглалтын заавар

The VEMER TUO 4G thermostat offers both local and remote control options for managing your heating system efficiently.

Аппликешнээр дамжуулан алсын удирдлага

• Ухаалаг менежмент: Use the free smartphone app to manage and monitor your heating remotely. The app allows for intelligent and programmable control, including setting weekly schedules to optimize energy consumption.
• Долоо хоног тутмын програмчлал: Configure detailed weekly programs to adapt heating to your household or business habits, ensuring comfort and energy savings.

Local Operation via Touch Screen

• Дэлгэц: The large, multi-color backlit touch screen provides an elegant and simple interface. You can choose from 48 different display colors, or set it to vary between red, green, and blue based on the temperature deviation from the set point.
• Мэдрэгч товчлуурууд: Four touch keys located on the sides of the screen allow for direct management, programming, and configuration of the chronothermostat.
• Орон нутгийн хяналт: In case of temporary connectivity issues, the local operation feature enables full control of the thermostat directly from its keypad.

Image: Close-up of the VEMER TUO 4G thermostat display with labeled touch controls and screen elements.

Засвар үйлчилгээ

Regular maintenance ensures the longevity and optimal performance of your VEMER TUO 4G thermostat.

• Цэвэрлэгээ: Дэлгэцийг зөөлөн арчиж, дараа ньasing зөөлөн, хуурай даавуугаар. Зүлгүүрийн цэвэрлэгч, уусгагч хэрэглэхээс зайлсхий.
• Нөөц батерей: The device includes a replaceable AAA NiMH backup battery. This battery allows the thermostat to send a notification in case of a power outage and retains the time until full discharge. Replace the battery as needed without disconnecting the main power supply.
• SIM картыг шинэчлэх: If you are using the pre-installed SIM card, remember to renew your data subscription via the app after the initial 1-year period to maintain remote connectivity.

Алдааг олж засварлах

If you encounter issues with your VEMER TUO 4G thermostat, consider the following common solutions:

• Дэлгэц / хүч байхгүй:
  • Check the 230V power supply connection.
  • Ensure the backup battery is correctly installed and charged.
• Connectivity Issues (4G/App):
  • Verify that the SIM card is active and has a valid data plan.
  • Check for local network coverage in your area.
  • Ensure the thermostat is within Bluetooth range of your smartphone during initial app configuration.
  • If remote control is unavailable, utilize the local operation feature directly from the thermostat's touch screen.
• Температурын буруу заалт:
  • Термостатыг нарны шууд тусгал, ноорог, дулааны эх үүсвэрт өртөөгүй байгаа эсэхийг шалгаарай, энэ нь түүний дотоод мэдрэгчэд нөлөөлдөг.
• Програмчлалын алдаанууд:
  • Review your weekly programming settings in the app or directly on the device.
  • Refer to the detailed manual for specific programming steps.

For persistent issues, please contact VEMER technical support as described in the Support section.

Үзүүлэлтүүд

Баталгаат хугацааны мэдээлэл

Specific warranty details for the VEMER VE795800 TUO 4G thermostat are typically provided with the product packaging or on the manufacturer's official webсайт. Баталгаат нөхцлийн дэлгэрэнгүйг эдгээр эх сурвалжаас авна уу.

Техникийн дэмжлэг

For any technical issues or assistance with your VEMER TUO 4G thermostat, VEMER technical support is available. You can contact them by sending an email to:

supporto.tecnica@vemer.it

Please include your product model number (VE795800) and a detailed description of the issue when contacting support.
