Wood Ranger Mini Chainsaw (Model WD-001) Instruction Manual

1. Бүтээгдэхүүн дууссанview

The Wood Ranger Mini Chainsaw is a compact and powerful cordless electric chain saw designed for light carpentry, yard work, and garden maintenance. Its 4-inch chain and efficient motor allow for easy cutting of branches and small logs. The ergonomic design ensures comfortable handling and maneuverability.

Image 1.1: The Wood Ranger Mini Chainsaw, a compact and portable tool for various cutting tasks.

Гол онцлогууд:

• Компакт, хүчирхэг: Equipped with a highly efficient motor for reliable cutting performance on branches and small logs.
• Зөөврийн дизайн: Weighs only 2.42 pounds, featuring an ergonomic handle for comfortable use and easy maneuverability.
• Аюулгүй байдлын онцлогууд: Includes a safety switch, chain brake, and a protective cover to prevent debris from flying during operation.
• Хэрэглэхэд хялбар: Simple design with an easy-to-start mechanism and tool-less chain tension adjustment.
• Удаан эдэлгээтэй барилга: Made with high-quality materials, including a deep quenched steel chain, for long-lasting service.

Image 1.2: Illustration of the chainsaw's premium pure copper motor, highlighting quicker cutting, more torque, longer running time, and overheat protection.

2. Аюулгүй байдлын мэдээлэл

Always prioritize safety when operating power tools. Read and understand all safety warnings and instructions before using the Wood Ranger Mini Chainsaw. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

Аюулгүй байдлын ерөнхий заавар:

• Аюулгүйн шил, бээлий, сонсголын хамгаалалт зэрэг зохих хувийн хамгаалах хэрэгсэл (PPE)-ийг өмс.
• Ажлын талбайг ойр дотны хүмүүс, ялангуяа хүүхэд, тэжээвэр амьтнаас хол байлгах хэрэгтэй.
• Гинжин хөрөөг нойтон нөхцөлд эсвэл шатамхай шингэн, хий байгаа нөхцөлд бүү ажиллуул.
• Keep a firm grip on the chainsaw with both hands during operation.
• Never overreach. Maintain proper footing and balance at all times.
• Аливаа тохируулга хийх, дагалдах хэрэгслийг солих, багажийг хадгалахын өмнө батерейг салга.

Chainsaw Specific Safety Features:

• Safety Baffle/Guard: The protective cover helps prevent debris from flying towards the user.
• Хамгаалалтын түгжээ: Requires two buttons to be pressed simultaneously to activate the saw, preventing accidental starts.
• Гулсдаггүй бариул: Provides a secure grip for better control.

Зураг 2.1: Дууслааview of the chainsaw's multiple safety protections, including the safety baffle, safety lock, non-slip handle, and an integrated LED light.

3. Багцын агуулга

Upon opening your Wood Ranger Mini Chainsaw package, verify that all components are present and undamaged. The standard package includes:

• 1 x Mini Chainsaw Unit
• 2 х 24В лити-ион батерей
• 1 x Зай цэнэглэгч
• 3 x Saw Chains (Note: Product title indicates 3 chains, specifications indicate 1 chain. Please verify actual contents upon receipt.)
• 1 х халив
• 1 х эрэг чангалах түлхүүр
• 1 x Storage Box/Carrying Case
• 1 х хэрэглэгчийн гарын авлага

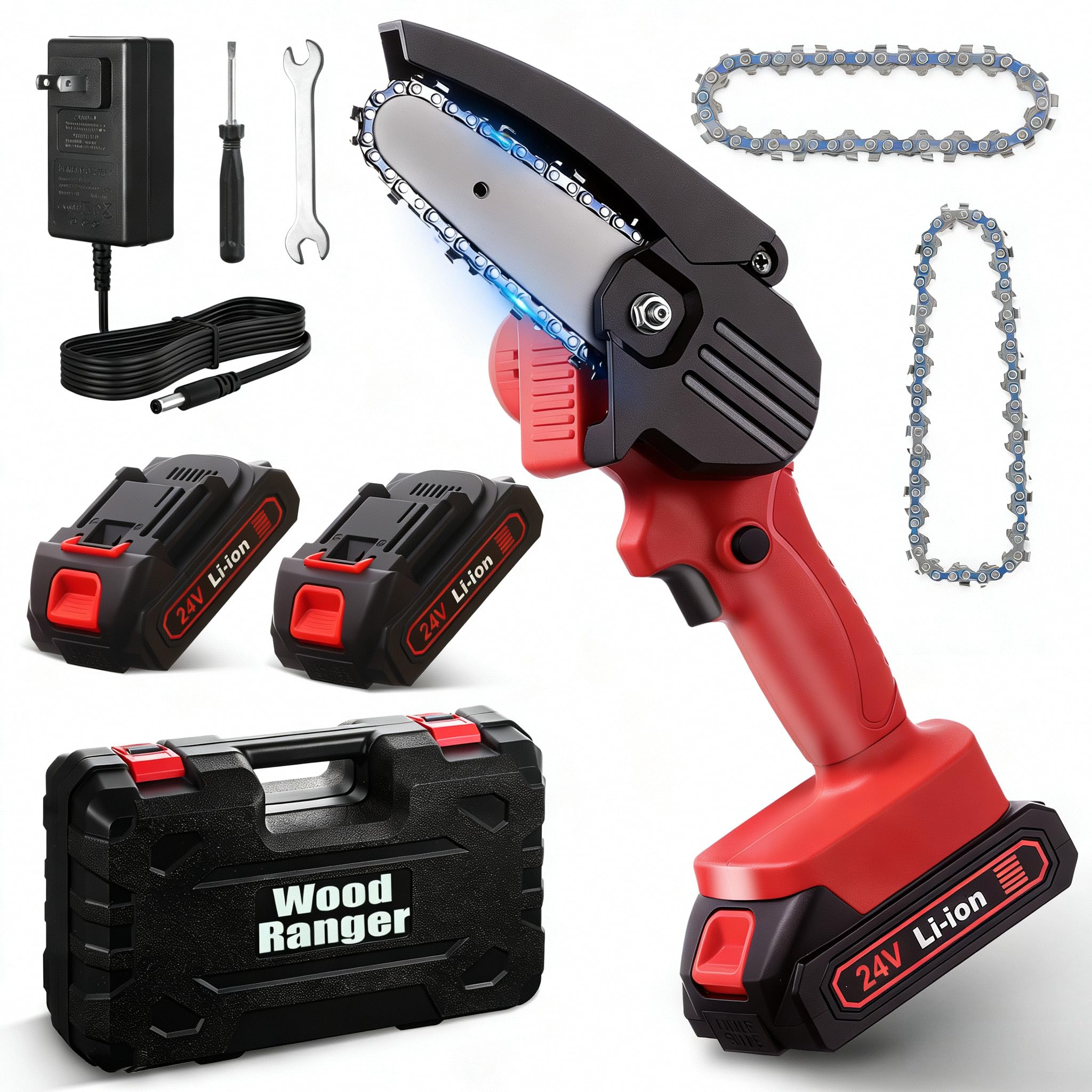

Image 3.1: A visual representation of all items included in the Wood Ranger Mini Chainsaw package.

4. Тохиргоо

4.1 Батерейг цэнэглэх

1. Цэнэглэгчийг цахилгаан залгуурт холбоно уу.
2. Зайны багцыг цэнэглэгч рүү шургуул. Энэ нь байрандаа орсон эсэхийг шалгаарай.
3. Allow 1.5-2 hours for a full charge. The indicator light on the charger will change to show charging status.
4. Бүрэн цэнэглэгдсэний дараа зайг цэнэглэгчээс салга.

Image 4.1: The 24V Lithium-Ion battery, showing approximately 40 minutes of working time and 1.5-2 hours of charging time.

4.2 Батерей суурилуулах

1. Align the charged battery pack with the battery slot on the bottom of the chainsaw handle.
2. Slide the battery into the slot until it locks securely into place.
3. To remove, press the release button(s) on the battery pack and slide it out.

4.3 Chain Installation and Tension Adjustment

Refer to the video below for a visual guide on installing and adjusting the chain.

1. Ensure the battery is removed before handling the chain.
2. Carefully place the chain around the guide bar, ensuring the cutting teeth are facing the correct direction.
3. Mount the guide bar and chain onto the chainsaw body.
4. Use the provided wrench to tighten the retaining nut, adjusting the chain tension as needed. The chain should be snug but still able to move freely around the guide bar.
5. Чухал: If the chainsaw does not cut effectively, the chain may be installed backward. Remove the chain and reinstall it with the cutting teeth facing the opposite direction.

5. Үйл ажиллагаа

5.1 Хөрөөг эхлүүлэх

1. Батерейг найдвартай суурилуулсан эсэхийг шалгаарай.
2. With one hand, press and hold the safety lock button (usually located on the side of the handle).
3. With the other hand, press the trigger switch to start the chainsaw. Release the safety lock button once the saw is running.

5.2 Зүсэх техник

Always maintain a stable stance and a firm grip on the chainsaw. Allow the chainsaw to reach full speed before engaging the material. Apply light pressure and let the saw do the work. Avoid forcing the saw, as this can lead to kickback or damage to the tool.

Зураг 5.1: Жишээ ньamples of various scenarios where the mini chainsaw can be used, including forestry tasks, cutting with the chainsaw bar, and wood-making.

5.3 Хөрөөг зогсоох

Release the trigger switch to stop the chainsaw. The chain brake will engage automatically to quickly stop the chain's movement.

6. Засвар үйлчилгээ

Тогтмол засвар үйлчилгээ нь таны хөрөөний урт наслалт, аюулгүй ажиллагааг баталгаажуулдаг.

6.1 Chain Sharpening/Replacement

• A dull chain will reduce cutting efficiency and increase strain on the motor. Sharpen the chain regularly or replace it with a new one when necessary.
• Use the provided extra chain as a replacement when the original becomes too dull or damaged.

Image 6.1: Close-up of the deep quenched steel chain, designed for durability and tackling tough tasks.

6.2 Цэвэрлэгээ

• Хэрэглэх болгоны дараа зайгаа аваад цахилгаан хөрөөг цэвэрлэ.
• Use a brush or compressed air to remove sawdust, wood chips, and debris from the chain, guide bar, and motor vents.
• The safety guard can be pulled up to easily remove any trapped leaves or debris.

6.3 Хадгалалт

• Store the chainsaw in its carrying case in a dry, secure location, out of reach of children.
• Ensure the battery is removed from the chainsaw before long-term storage.

7. Алдаа засах

8. Техникийн үзүүлэлтүүд

9. Баталгаат хугацаа ба дэмжлэг

For warranty information, returns, or technical support, please refer to the documentation included with your purchase or contact the seller directly. Specific warranty terms and conditions may vary.
