S.M.S.L PL100PRO

SMSL PL100PRO CD Player User Manual

Model: PL100PRO | Brand: S.M.S.L

1. Танилцуулга

This manual provides detailed instructions for the proper use and maintenance of your SMSL PL100PRO CD Player. Please read this manual thoroughly before operating the device to ensure optimal performance and longevity. The PL100PRO is a high-fidelity CD player featuring advanced DAC chips, multiple output options, and compatibility with various disc formats.

2. Багцын агуулга

Carefully unpack your SMSL PL100PRO CD Player and verify that all items listed below are included:

Видео тайлбар: This video demonstrates the unboxing process of the SMSL PL100PRO CD Player, showing the contents of the package including the main unit, cables, remote control, and user manual.

3. Бүтээгдэхүүн дууссанview

Familiarize yourself with the components and controls of your PL100PRO CD Player.

SMSL PL100PRO Front and Rear Panel Diagram with Labeled Ports and Controls

Зургийн тайлбар: A detailed diagram illustrating the front and rear panels of the SMSL PL100PRO CD Player. The front panel shows the disc slot, IPS LCD display, and control buttons. The rear panel displays various input and output ports, including XLR, RCA, optical, coaxial, and headphone jacks, each with corresponding numerical labels.

Урд самбарын удирдлага:

  1. Дууг нэмэгдүүлэх: Increases output volume.
  2. Дууг багасгах: Decreases output volume.
  3. Next/Fast Reverse: Skips to the next track or fast reverses within a track.
  4. Previous/Fast Forward: Skips to the previous track or fast forwards within a track.
  5. Play/Pause / Power On/Off: Toggles playback or powers the unit on/off.
  6. STOP / Open_Close: Stops playback or opens/closes the disc tray.
  7. Remote Window: Алсын удирдлагад зориулсан хэт улаан туяаны хүлээн авагч.
  8. Дэлгэц: Full-color IPS LCD screen showing track information and settings.
  9. Дискний үүр: Insert CDs here.

Арын самбарын холболтууд:

  1. XLR Тэнцвэржүүлсэн Гаралт (R/L): For balanced audio connection to compatible amplifiers or DACs.
  2. 4.4 мм чихэвчний гаралт: Balanced headphone output.
  3. 3.5 мм чихэвчний гаралт: Single-ended headphone output.
  4. RCA Output (R/L): For unbalanced audio connection to compatible amplifiers or DACs.
  5. Оптик гаралт: Дижитал оптик аудио гаралт.
  6. Коаксиаль гаралт: Дижитал коаксиаль аудио гаралт.
  7. USB Input (5V/2A): Төхөөрөмжийн тэжээлийн оролт.

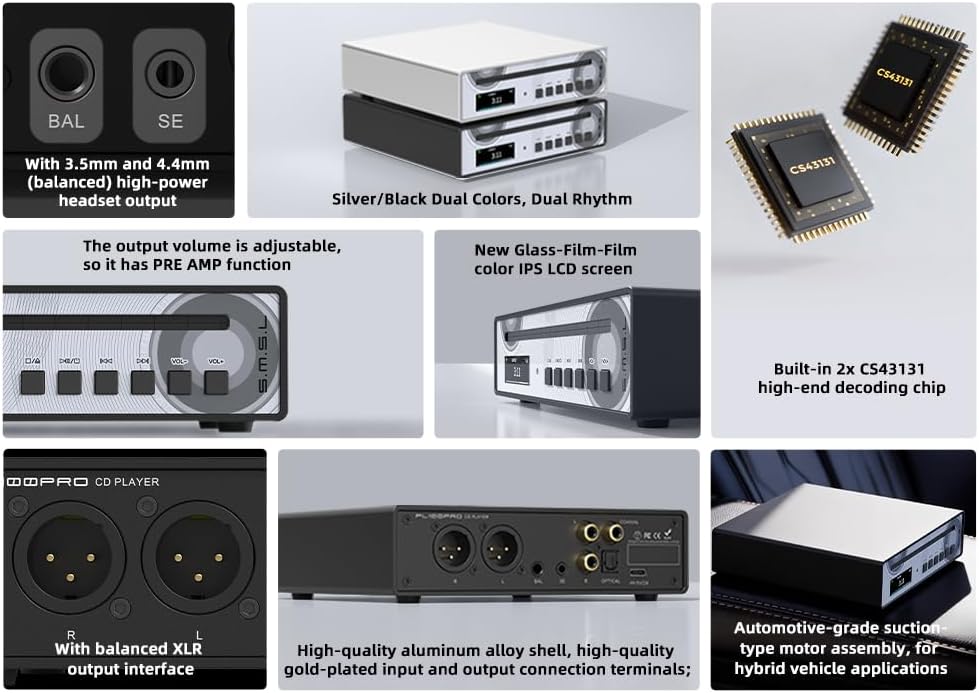

Collage of SMSL PL100PRO features including DAC chips, various outputs, display, and chassis

Зургийн тайлбар: Коллаж шоуasing key features of the SMSL PL100PRO. It highlights the 3.5mm and 4.4mm headphone outputs, silver/black dual colors, adjustable output volume (PRE AMP function), new glass-film-film color IPS LCD screen, built-in 2x CS43131 high-end decoding chips, balanced XLR output interface, high-quality aluminum alloy shell, gold-plated terminals, and automotive-grade suction for hybrid vehicle applications.

4. Тохиргоо

4.1 Эрчим хүчний холболт

Connect the provided USB cable to the USB input (5V/2A) on the rear panel of the PL100PRO. Connect the other end to a compatible 5V/2A USB power adapter (not included). Ensure the power adapter provides at least 2 amps for correct functionality.

4.2 Аудио гаралтын холболт

Choose your preferred audio output method:

4.3 Анхдагч асаалттай

After connecting power and audio outputs, press the Play/Pause / Power On/Off button on the front panel or the remote control to power on the device. The IPS LCD display will illuminate.

Видео тайлбар: This short video demonstrates the SMSL PL100PRO CD Player being used in an outdoor camping setting, highlighting its portability and robust design suitable for various environments.

5. Ашиглалтын заавар

5.1 Диск тоглуулах

  1. Төхөөрөмж асаалттай байгаа эсэхийг шалгаарай.
  2. Gently insert a CD (CD/CD-R/CD-RW/MP3 disc) into the disc slot. The player will automatically load the disc.
  3. The display will show track information. Press the Play/Pause button to begin playback.
  4. Use the Next/Fast Reverse and Previous/Fast Forward buttons to navigate between tracks or fast scan within a track.
  5. Дахин тоглуулахыг зогсоохын тулд STOP товчийг дарна уу.

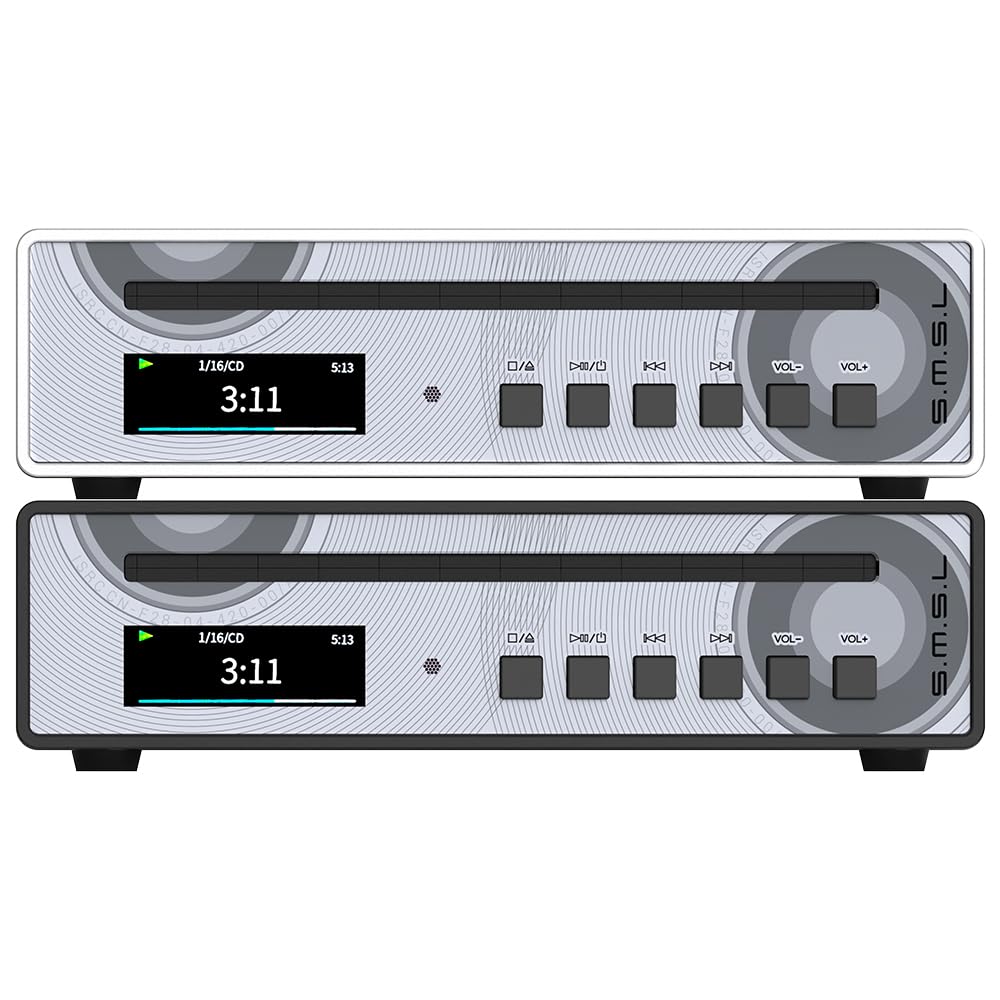

Close-up of a hand inserting a CD into the SMSL PL100PRO CD Player's disc slot

Зургийн тайлбар: Ойрын зураг view of a hand inserting a compact disc into the slot-loading mechanism of the SMSL PL100PRO CD Player. The player's display shows track information, indicating readiness for playback.

5.2 Алсын удирдлагын функцууд

The included full-function remote control allows for convenient operation from a distance.

SMSL PL100PRO Remote Control Layout with Labeled Buttons

Зургийн тайлбар: An image displaying the remote control for the SMSL PL100PRO, with various buttons labeled for functions such as Power ON/OFF, Mute, Volume +/-, Play/Pause, Previous/Fast reverse, Next/Fast forward, Stop, Open_Close, FN, DISP, and numerical track selection buttons (0-9), Random, and Repeat.

5.3 Урьдчилсанampөргөгч функц

The PL100PRO includes a preamplifier function, allowing you to adjust the output volume directly from the unit or remote control. This is particularly useful when connecting directly to powered speakers or a power amplifier without its own volume control.

6. Холболтын сонголтууд

The PL100PRO offers a wide range of connectivity options to integrate into various audio setups.

Diagram illustrating Bit-Stream Direct Output via Optical and Coaxial connections to external DACs or integrated ampамьдрагчид

Зургийн тайлбар: A diagram titled 'Bit-Stream Direct Output' showing the rear panel of the PL100PRO. Arrows indicate digital signal output from the optical and coaxial ports leading to an external Audio DAC (SMSL D200) or an Integrated Amplifier (SMSL RAW-HA1). Text explains that this allows lossless transmission of original digital audio signals to external systems.

7. Техникийн үзүүлэлтүүд

Detailed technical specifications for the SMSL PL100PRO CD Player.

SMSL PL100PRO dimensions and detailed technical specifications table

Зургийн тайлбар: An image displaying the dimensions of the SMSL PL100PRO (160mm x 44.5mm x 160mm) and a table of its technical specifications. The table includes Input (CD), Output (XLR/RCA/4.4 or 3.5mm headphone/Optical/Coaxial), CD Type (CD/CD-R/CD-RW/MP3 CD), Output Level (RCA: 2Vrms, XLR: 4Vrms), Headphone output power (Balanced and Unbalanced for various impedances), THD+N (0.001%), SNR (110dB), Power consumption (4W), Standby power (<0.1W), Size, and Weight (953.5g/2.1lbs).

ОнцлогТодорхойлолт
ОруулахCD
ГаралтXLR/RCA/4.4 or 3.5mm headphone/Optical/Coaxial
CD төрөлCD/CD-R/CD-RW/MP3 CD
RCA гаралтын түвшин2 цаг
XLR Output Level4 цаг
Headphone Output Power (Balanced)100mW(16Ω), 200mW(32Ω), 160mW(64Ω), 85mW(150Ω), 53mW(300Ω), 25mW(600Ω)
Headphone Output Power (Unbalanced)58mW(16Ω), 58mW(32Ω), 45mW(64Ω), 23mW(150Ω), 12mW(300Ω), 6mW(600Ω)
THD+N0.001%
SNR110дБ
Эрчим хүчний хэрэглээ4W
Хүлээлгийн горим<0.1W
Хэмжээ (ӨХХХД)160x44.5x160мм
Жин953.5г / 2.1лб
DAC чипүүд2 x CS43131
MQA тоглуулахДэмжигдсэн

8. Алдаа засах

If you encounter issues with your PL100PRO, please refer to the following common solutions:

If the issue persists, please contact S.M.S.L customer support for further assistance.

9. Засвар үйлчилгээ

To maintain the performance and appearance of your PL100PRO CD Player:

10. Баталгаат хугацаа ба дэмжлэг

The SMSL PL100PRO CD Player comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, service, or warranty claims, please contact your authorized S.M.S.L dealer or visit the official S.M.S.L webсайт.
