Generic Carburetor Instruction Manual

1. Бүтээгдэхүүн дууссанview

This carburetor is a replacement component designed for various small engine equipment, including leaf blowers and trimmers. It ensures the correct mixture of fuel and air for optimal engine performance. This unit is compatible with specific models from Poulan, Paramount, and Weed Eater, and replaces several OEM part numbers.

Key Compatibility:

• Poulan: WT3100
• Paramount: GB151 Gas Blower, GB151C Gas Blower, GB351 Gas Blower, PLT2248 Gas Trimmer, PLT2651 Gas Trimmer, PLT2857 Gas Trimmer
• Weed Eater: BV165, GBI30V, GBI22, GBI20, SV22, SB180, GTI15, GTI15T, GTI16, GTI16 SUPER, GTI16D, GTI17, GTI17C, GTI17XP
• OEM дугааруудыг орлоно: 545081825, 530035263, 530071638, WT-629, WT-629-1, WT-298A, WA-219B, WT-141A, WT-583

Зураг 1: Дээрээс доош view of the carburetor, highlighting the fuel inlet and adjustment screws.

2. Аюулгүй байдлын мэдээлэл

Always prioritize safety when working with fuel systems and small engines. Failure to follow these safety guidelines may result in injury or damage to equipment.

• Очлуур залгуурыг салгах: Before performing any maintenance or installation, always disconnect the spark plug wire to prevent accidental engine startup.
• Агааржуулалт: Work in a well-ventilated area to avoid inhaling fuel fumes.
• Нүд хамгаалах: Wear safety glasses to protect your eyes from fuel splashes or debris.
• Галын аюул: Keep open flames, sparks, and other ignition sources away from fuel and fuel system components.
• Түлшний зохицуулалт: Handle gasoline with care. Store it in approved containers and wipe up any spills immediately.
• Халуун гадаргуу: Түлэгдэхээс сэргийлж хөдөлгүүрийг ажиллуулахаасаа өмнө бүрэн хөргөхийг хүлээнэ үү.

3. Багцын агуулга

Багцад дараахь зүйлс орно.

• 1 х карбюратор

4. Тохиргоо ба суурилуулалт

This section provides general guidance for replacing a carburetor. Specific steps may vary depending on your equipment model. If you are unsure about any step, consult your equipment's service manual or seek professional assistance.

1. Бэлтгэл: Ensure the engine is cool. Disconnect the spark plug wire. Drain any fuel from the fuel tank.
2. Access Carburetor: Remove the air filter cover, air filter, and any housing or shrouds that obstruct access to the carburetor.
3. Бүрэлдэхүүн хэсгүүдийг салгах: Carefully disconnect the fuel lines from the old carburetor. Note their positions for reinstallation. Disconnect the throttle linkage and choke linkage.
4. Хуучин карбюраторыг арилгах: Unbolt the old carburetor from the engine manifold. Be mindful of any gaskets between the carburetor and the engine.
5. Шинэ карбюратор суурилуулах: Place new gaskets (if supplied or required) and mount the new carburetor onto the engine manifold. Secure it with the bolts.
6. Бүрэлдэхүүн хэсгүүдийг дахин холбох: Reattach the fuel lines to their correct ports on the new carburetor. Reconnect the throttle and choke linkages. Ensure all connections are secure and move freely.
7. Дахин угсрах: Reinstall the air filter housing, air filter, and any other removed shrouds or covers.
8. Fuel and Spark Plug: Refill the fuel tank with fresh, appropriate fuel mixture. Reconnect the spark plug wire.
9. Эхлэх: If your equipment has a primer bulb, press it several times until fuel is visible in the bulb.

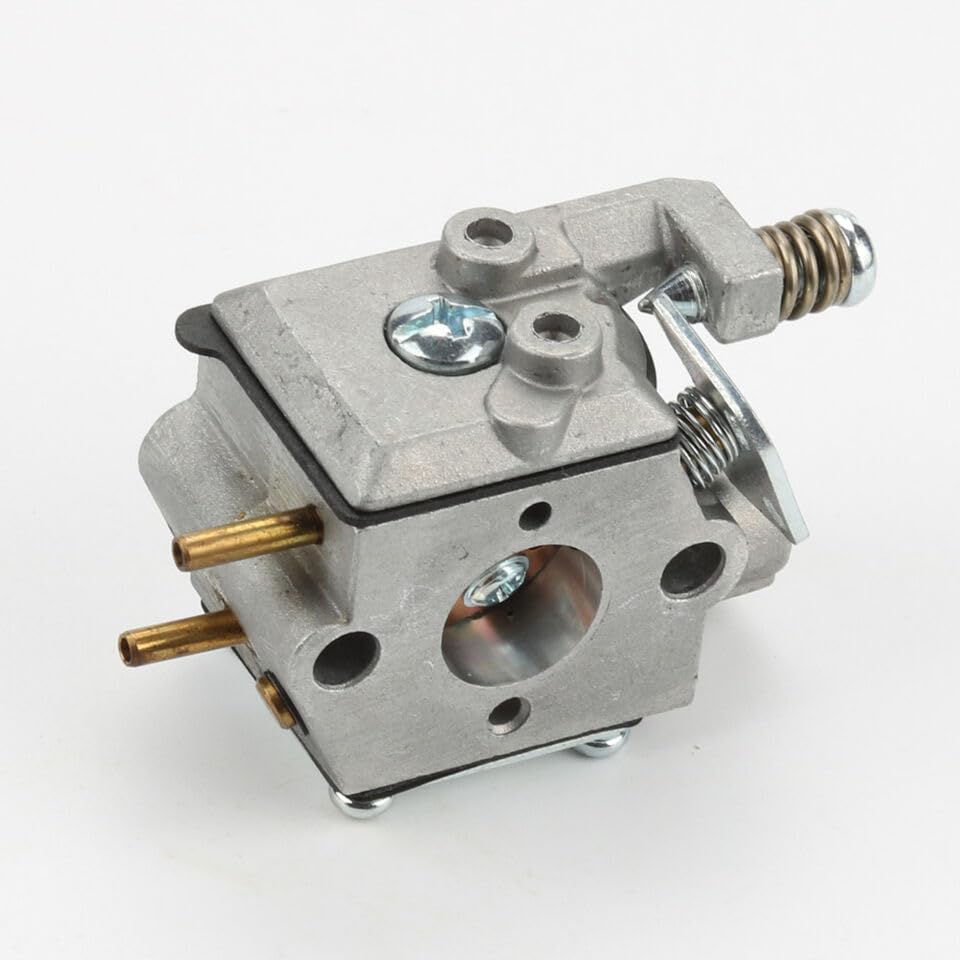

Зураг 2: Хажуу тал view of the carburetor, illustrating the fuel intake and mounting points.

5. Ажиллаж байгаа

The carburetor's primary function is to mix air and fuel in the correct ratio for combustion. Once installed, the carburetor operates automatically to deliver this mixture to the engine. Proper starting procedures for your specific equipment (choke settings, primer bulb use) should be followed as outlined in your equipment's original manual.

After installation, the engine may require a few pulls to start as the fuel system primes. If the engine runs rough, minor adjustments to the carburetor's idle speed or mixture screws (if present and adjustable) may be necessary. Refer to your equipment's manual for specific adjustment procedures.

6. Засвар үйлчилгээ

Regular maintenance of your carburetor and fuel system can extend the life of your equipment and ensure reliable operation.

• Шатахууны чанар: Always use fresh, clean fuel. Stale fuel can cause deposits and clog carburetor jets. Consider using a fuel stabilizer, especially during storage.
• Шатахууны шүүлтүүр: Regularly inspect and replace the fuel filter (if equipped) to prevent contaminants from reaching the carburetor.
• Агаарын шүүлтүүр: A clean air filter is crucial for proper air-fuel mixture. Clean or replace the air filter as recommended by your equipment's manufacturer.
• Карбюратор цэвэрлэх: If performance issues arise, the carburetor may need cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and blowing them dry with compressed air. This task is best performed by experienced individuals.
• Жийргэвчний үзлэг: Periodically check for fuel leaks around the carburetor and fuel lines. Replace any cracked or worn gaskets and fuel lines.

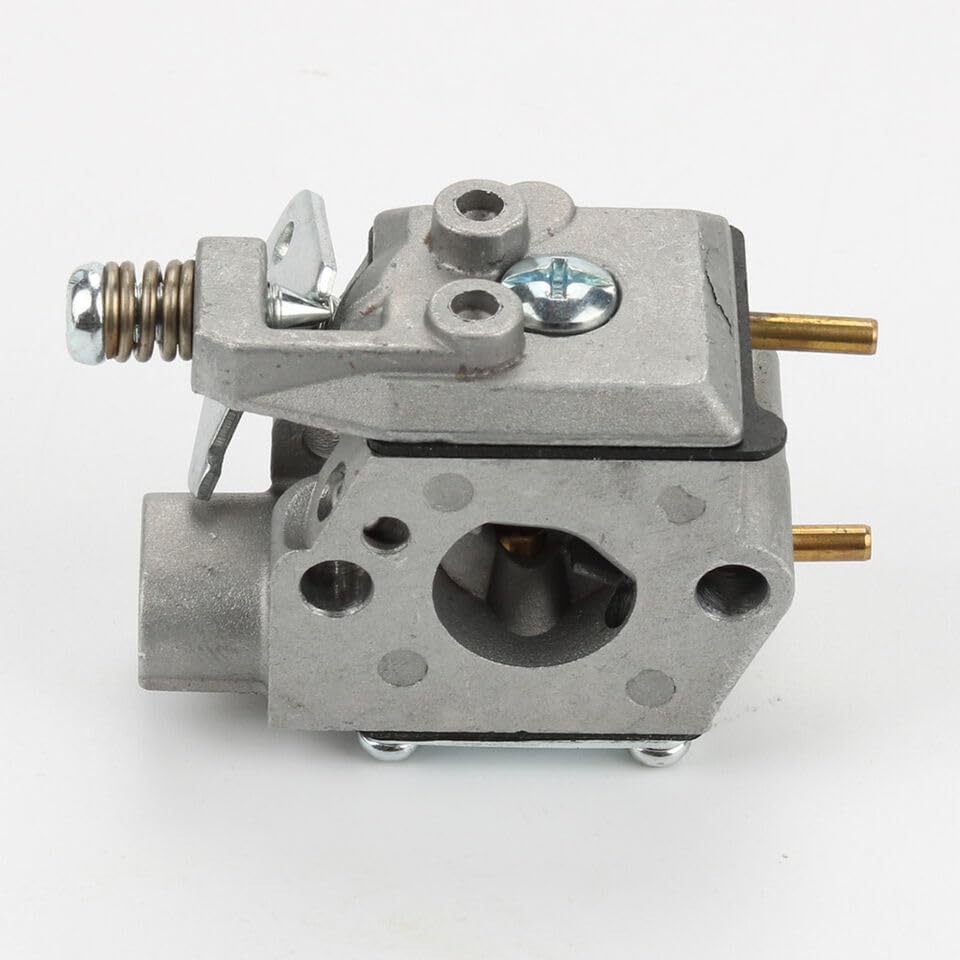

Зураг 3: Өөр нэг тал view of the carburetor, detailing the throttle plate and spring mechanism.

7. Алдаа засах

If your equipment experiences issues after carburetor replacement, consider the following common problems and solutions:

8. Техникийн үзүүлэлтүүд

• Брэнд: Ерөнхий
• Model Numbers (Compatible): BV165, GBI30V, GBI22, GBI20, SV22, SB180 (and others listed in Product Overview)
• Үйлдвэрлэгч: Madoanlong
• Үйлдвэрлэгчийн хэсгийн дугаар: #545081825
• Барааны жин: Ойролцоогоор 2 фунт

9. Баталгаат хугацааны мэдээлэл

Specific warranty details for this Generic carburetor are not provided in the product information. Please refer to the seller or original purchase documentation for any applicable warranty terms.

10. Дэмжлэг

For technical support or further assistance, please contact the seller through your purchase platform. Ensure you have your order details and product information available when contacting support.
