SIRUI AM-AC03 Magnetic Quick Release Action Camera Head Mount User Manual

Танилцуулга

The SIRUI AM-AC03 Head Strap Mount is designed for hands-free recording with action cameras and smartphones. It allows users to capture immersive first-person perspective footage during various activities. This manual provides instructions for proper setup, operation, and maintenance of your device.

Хайрцагт юу байна

Бүх бүрэлдэхүүн хэсгүүд багцад байгаа эсэхийг шалгана уу:

Quick-release Head Strap x 1
Magnetic Adapter x 1
T-shaped Screw x 1
Утас Clamp x 1
Mini Adapter x 1

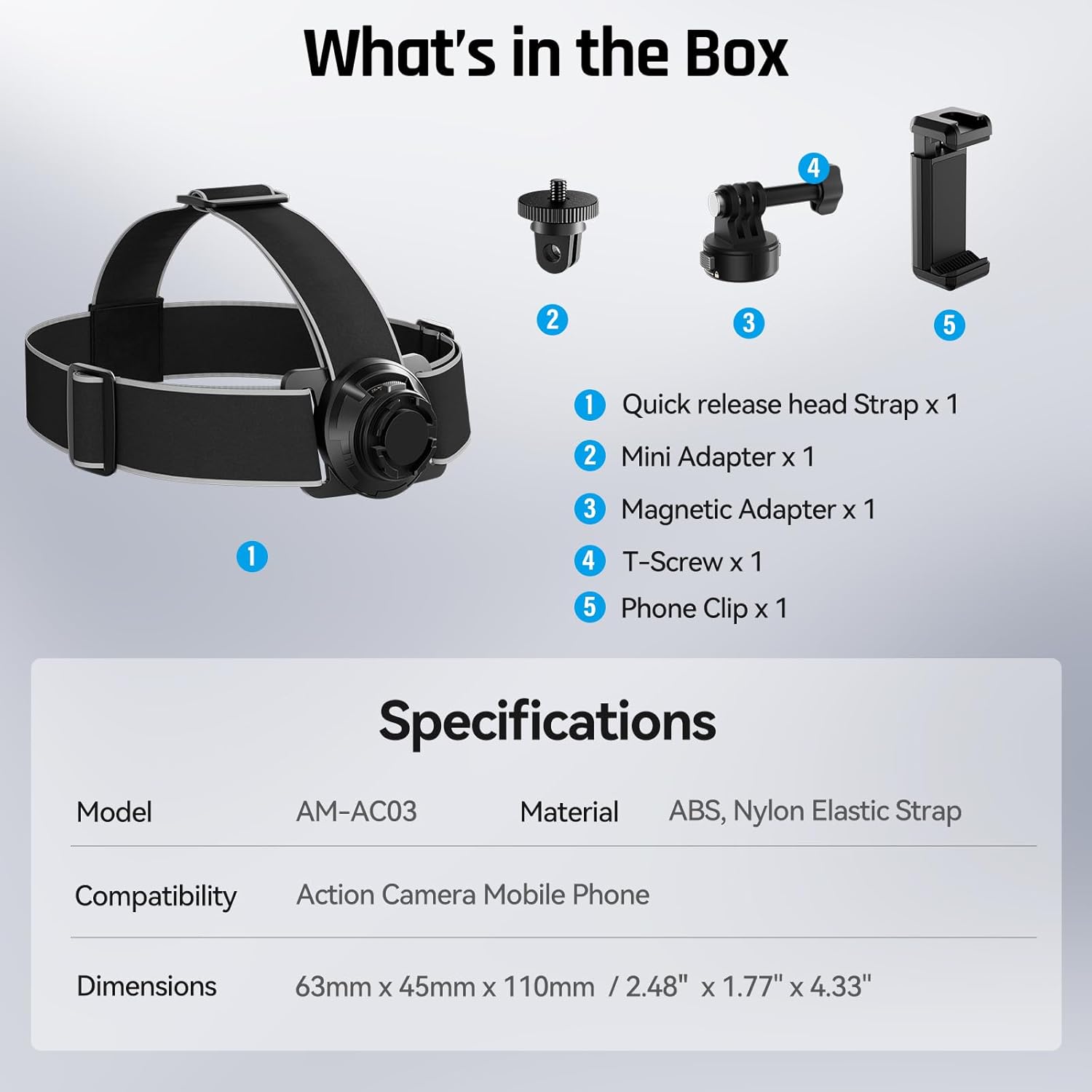

All components included in the SIRUI AM-AC03 Head Mount package. — Зураг: Бүтэнview of all items included in the product package: the quick-release head strap, magnetic adapter, T-shaped screw, phone clamp, and mini adapter.

Тохиргоо ба суурилуулалт

1. Төхөөрөмжөө холбох

The AM-AC03 head mount supports both action cameras and smartphones. Use the appropriate adapter for your device.

Үйлдлийн камерын хувьд: Attach your action camera directly to the magnetic quick-release base using the provided T-shaped screw.
Ухаалаг гар утасны хувьд: Insert your smartphone into the phone clamp. Then, attach the phone clamp to the magnetic quick-release base using the mini adapter and T-shaped screw. The phone clamp also features a 1/4-inch threaded hole and a cold shoe mount for additional accessories.

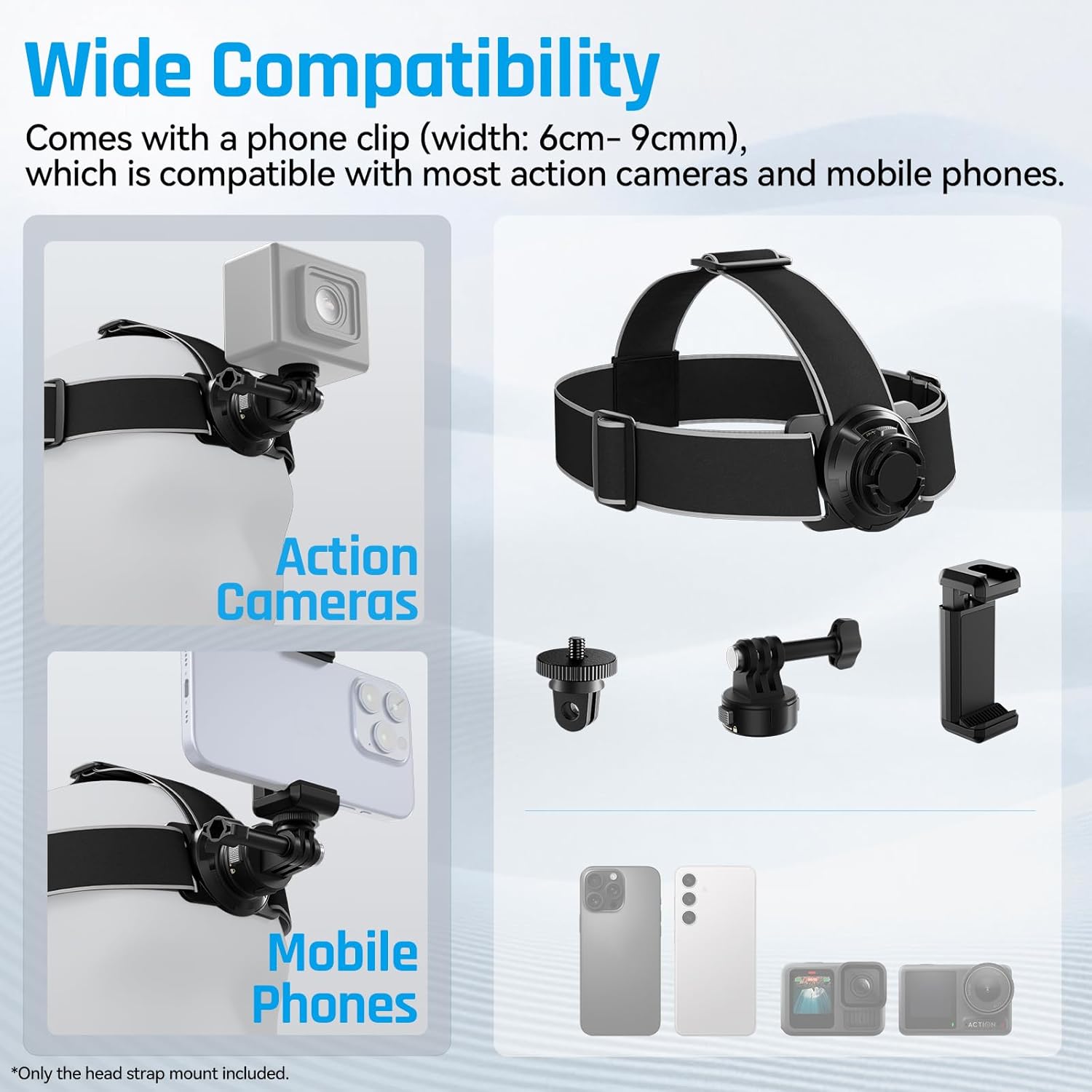

SIRUI AM-AC03 Head Mount compatible with action cameras and mobile phones. — Image: The head mount shown with both an action camera and a smartphone attached, highlighting its wide compatibility. Various camera and phone models are depicted as exampцөөн тооны нийцтэй төхөөрөмжүүд.

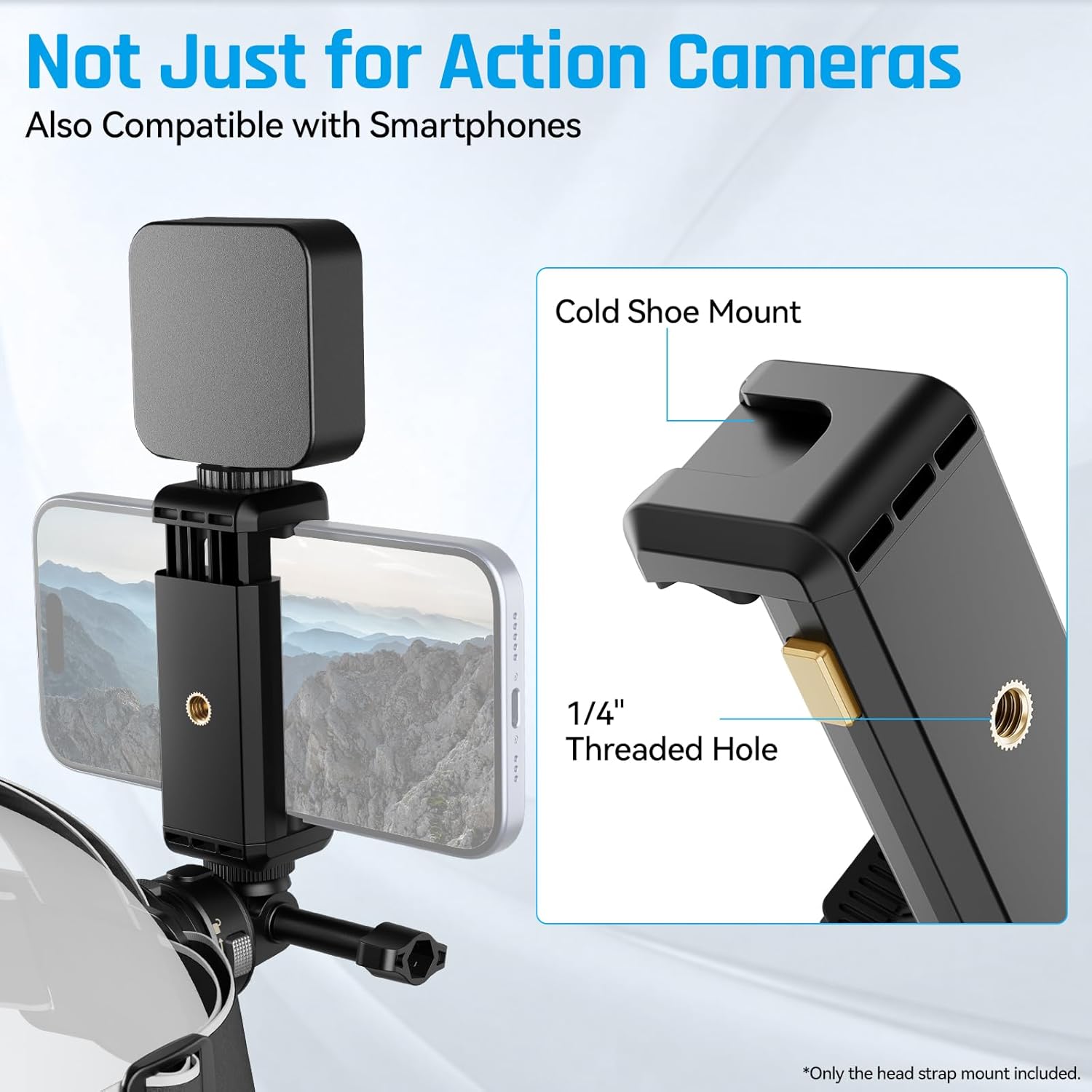

SIRUI AM-AC03 phone clamp with 1/4 inch threaded hole and cold shoe mount. — Image: A close-up of the phone clamp accessory, detailing its 1/4-inch threaded hole for mounting on the head strap and a cold shoe mount for attaching additional accessories like lights or microphones.

2. Толгойн оосорыг тохируулах

The head strap is designed for comfort and stability. Adjust the elastic strap using the buckles to fit your head circumference securely. Ensure the strap is snug but not uncomfortably tight.

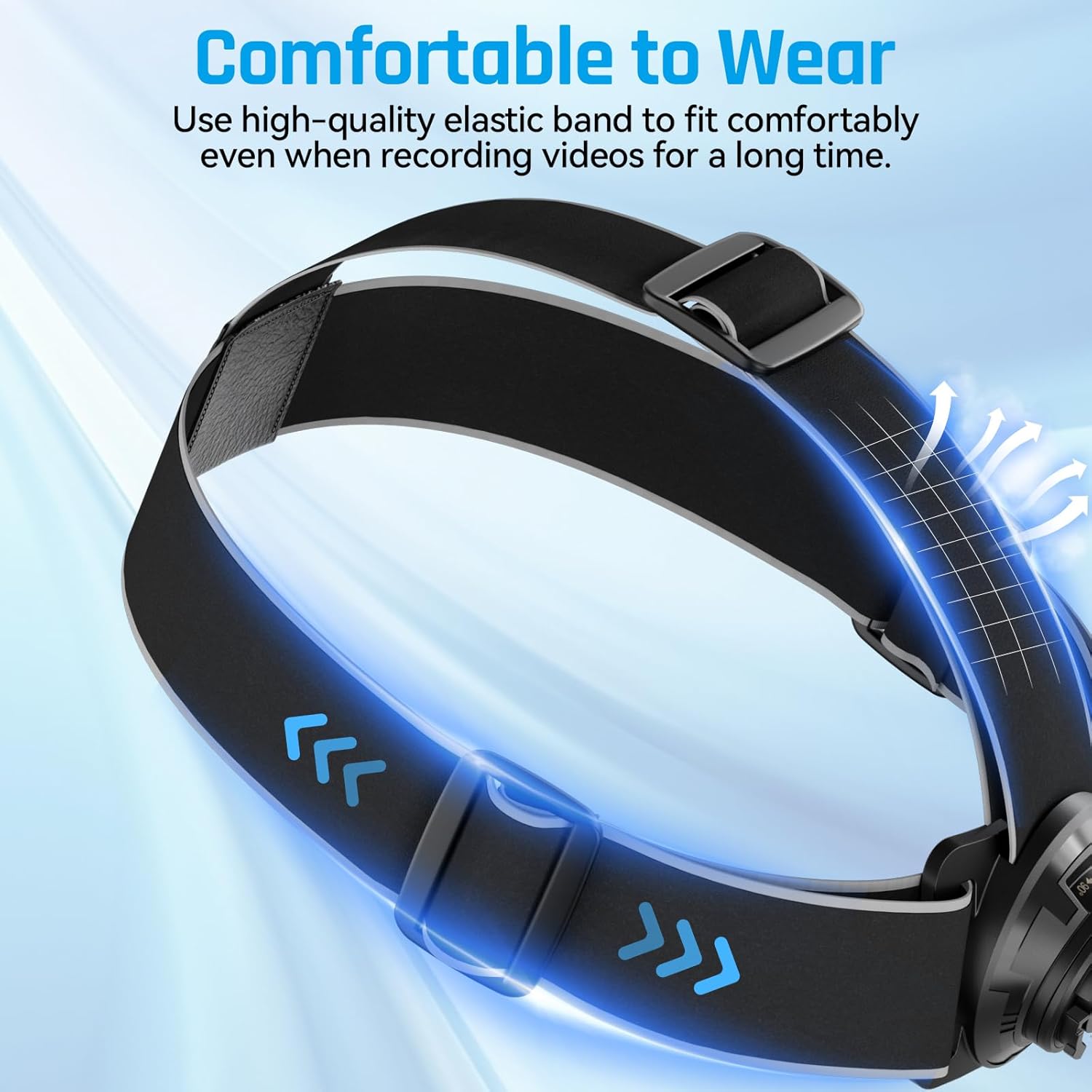

Close-up of the SIRUI AM-AC03 elastic head strap with adjustment buckles. — Зураг: Нарийвчилсан view of the high-quality elastic head strap, featuring adjustable buckles for a comfortable and secure fit. The design also indicates breathability for extended wear.

Ашиглалтын заавар

1. Quick Release Function

The magnetic quick-release system allows for easy attachment and detachment of your camera or phone.

To detach: Press and hold the left and right removal buttons on the quick-release base.
Rotate the attached device 90 degrees to remove it from the base.
To attach: Align the device with the base and push until it clicks into place, ensuring a secure connection.

Нарийвчилсан view of the SIRUI AM-AC03's magnetic quick-release system. — Image: A diagram demonstrating the magnetic quick-release mechanism. It shows how to press the side buttons and rotate the device 90 degrees to detach it, and the magnetic connection for secure attachment.

2. Adjusting Shooting Angles (90° Rotation)

The head mount features a 90-degree rotation capability, allowing you to switch between horizontal and vertical shooting modes directly.

To switch orientation: Rotate the camera or phone 90 degrees on the quick-release base to achieve either vertical or horizontal framing.

SIRUI AM-AC03 Head Mount showing 90-degree rotation for vertical and horizontal shooting. — Image: This image displays the 90-degree rotation capability of the head mount, allowing users to easily switch between vertical and horizontal shooting orientations for their camera or smartphone.

Онцлог ба ашиг тус

Hands-Free POV Shooting: Ideal for capturing first-person perspective footage during activities like outdoor sports, water activities, travel recording, and everyday life.
Сайжруулсан тогтвортой байдал: Designed with a full head strap style, offering both side and top support to reduce camera shake and provide greater stability compared to single head strap designs.
Тав тухтай хувцас: Made from breathable, skin-friendly, high-elastic material with adjustable buckles for a secure and comfortable fit during extended use.
Өргөн нийцтэй байдал: Includes a phone clamp (6cm-9cm width) and adapters for compatibility with most action cameras and smartphones on the market.

SIRUI AM-AC03 Head Mount used for hands-free POV recording during cycling, fishing, running, boating, and skiing. — Image: This image illustrates the versatility of the SIRUI AM-AC03 Head Mount, showing its application in various activities such as cycling, fishing, running, boating, and skiing for hands-free, first-person perspective video capture.

Comparison of SIRUI AM-AC03's full head strap stability versus other designs. — Image: This image compares the AM-AC03's design, which offers both side and top support for reduced camera shake, against other head strap designs that provide only side support.

Үзүүлэлтүүд

Загвар	AM-AC03
Материал	ABS, Nylon Elastic Strap
Тохиромжтой байдал	Action Cameras, Mobile Phones (Phone Clamp width: 6cm-9cm)
Суурилуулах төрөл	Толгойн уул
Нэмэлт онцлогууд	Magnetic Quick Release, 90° Vertical Rotation, Adjustable Strap
Хэмжээ	63мм x 45мм x 110мм / 2.48" x 1.77" x 4.33"

Алдааг олж засварлах

Device not attaching securely: Ensure the quick-release mechanism is clean and free of debris. Press the release buttons firmly when detaching and ensure a clear click when attaching.
Head strap feels loose: Adjust the elastic strap using the buckles until a snug, comfortable fit is achieved. The strap should be firm enough to prevent movement but not uncomfortably tight.
Excessive camera shake: Ensure the head strap is properly tightened and positioned. The AM-AC03 is designed with side and top support to minimize shake. If using a heavy phone, ensure it is centered and balanced.
Phone not fitting in clamp: Verify your phone's width is within the 6cm-9cm range supported by the phone clamp.

Засвар үйлчилгээ

Цэвэрлэгээ: Wipe the head strap and plastic components with a damp даавуу. Химийн хүчтэй бодисоос зайлсхий.
Хадгалах: Store the head mount in a cool, dry place away from direct sunlight when not in use.
Шалгалт: Periodically check the straps, buckles, and quick-release mechanism for any signs of wear or damage.

Баталгаат болон дэмжлэг

The SIRUI AM-AC03 Magnetic Quick Release Action Camera Head Mount comes with a 2 жилийн үйлдвэрлэгчийн баталгаа.

For technical support, warranty claims, or further assistance, please contact SIRUI customer service through their official webтухайн бүтээгдэхүүнийг худалдаж авсан сайт эсвэл жижиглэнгийн худалдаачин. Баталгаат баталгааг баталгаажуулахын тулд худалдан авалтаа баталгаажуулна уу.
