Танилцуулга
This manual provides essential instructions for the assembly, operation, and maintenance of your new 3-Drawer Mobile Filing Cabinet. Please read this manual thoroughly before beginning assembly or use to ensure proper function and safety.
The cabinet features three drawers, a locking mechanism for security, and mobile casters for easy relocation. It is designed to accommodate various file sizes including letter, legal, and A4 hanging folders.
Аюулгүй ажиллагааны зааварчилгаа
- Keep all assembly hardware out of reach of children.
- Хэрэглэхийн өмнө бүх эрэг, бэхэлгээг сайтар чангалж байгаа эсэхийг шалгаарай.
- Do not overload drawers. The maximum load capacity per drawer is 70KG (154 lbs).
- Always close drawers completely when moving the cabinet to prevent tipping.
- Engage the brakes on the front casters when the cabinet is in its desired position to prevent unintended movement.
- Do not stand or sit on the cabinet.
- Use caution when opening multiple drawers simultaneously, especially the top drawers, to maintain stability. The central caster helps prevent tipping when the bottom drawer is extended.
Багцын агуулга
Угсарч эхлэхээс өмнө бүх бүрэлдэхүүн хэсгүүд байгаа эсэхийг шалгаарай. Хэрэв ямар нэг хэсэг дутуу эсвэл гэмтсэн бол хэрэглэгчийн тусламжтай холбоо барина уу.
- Filing Cabinet Body (1)
- Шургуулга (3)
- Casters (5) - 2 with brakes, 2 without, 1 central anti-tip caster
- Түлхүүрүүд (2)
- Pencil Tray (1)
- Hanging Rods for File Drawer (1 set)
- Угсрах тоног төхөөрөмж (эрэг, боолт гэх мэт)
- Хэрэглэх заавар (энэ баримт бичиг)
Тохиргоо ба угсралт
Assembly is required for this filing cabinet. Follow these general steps. Refer to the included assembly diagram for detailed illustrations.
- Кастеруудыг хавсаргах: Carefully turn the cabinet body upside down. Insert the stems of the five casters into the designated holes on the bottom of the cabinet. Ensure the two casters with brakes are installed on the front side of the cabinet. The central caster should be installed in the middle-front position. Tighten securely.
- Шүүгээ суурилуулах: Slide each drawer into its respective slot. Ensure the drawer slides align correctly with the cabinet rails. The top two drawers are identical in size. The bottom drawer is larger.
- Insert Pencil Tray: Place the pencil tray into the top drawer.
- Өргөгдсөн саваа суурилуулах: For the bottom file drawer, insert the removable hanging rods into the slots provided to accommodate letter, legal, or A4 size hanging folders. Adjust their position as needed for your file төрөл.
- Туршилтын түгжээ: Insert a key into the lock cylinder located on the top drawer. Turn the key to ensure all three drawers lock and unlock properly.
Image: Cabinet dimensions for planning placement.
Ашиглалтын заавар
Шүүгээ ашиглах нь
- Шилдэг хоёр шургуулга: These drawers are suitable for stationery, small office supplies, books, or notebooks. The included pencil tray can be placed in the top drawer for organizing pens and other small items.
- Доод талд File Шүүгээ: This larger drawer is designed for storing larger items such as printer paper or for use with hanging file folders. Adjust the hanging rods to fit letter (vertical), legal (vertical), or A4 (horizontal) size folders.

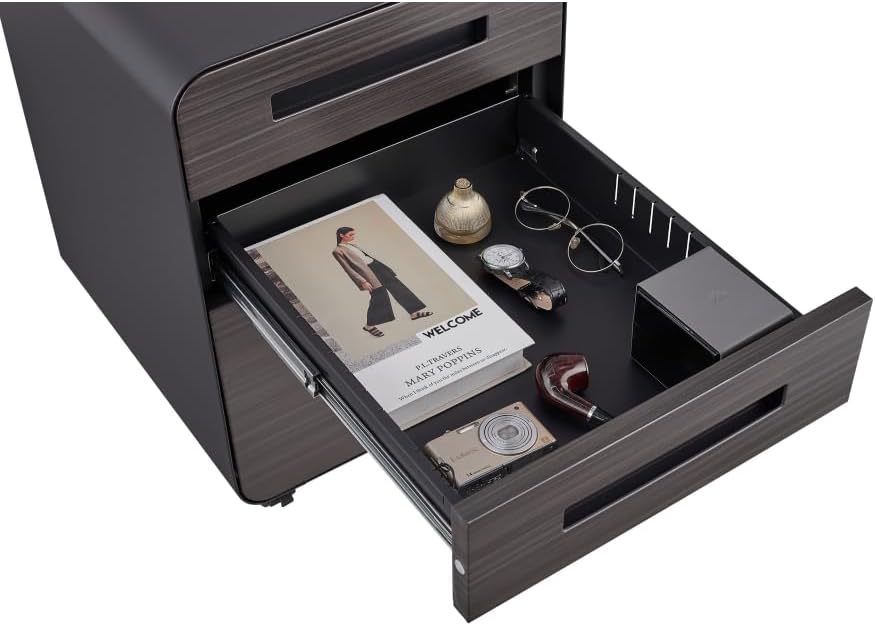

Image: Top drawer with pencil tray for organizing small items.
Image: Bottom drawer configured for hanging files.
Түгжих механизм
The single lock located on the top drawer secures all three drawers simultaneously. Insert one of the provided keys into the lock and turn it to engage or disengage the locking mechanism. Remove the key after locking for security.
Хөдөлгөөн ба тогтвортой байдал
- Кастерууд: The four 360° swivel universal wheels allow for easy movement of the cabinet.
- Тоормос: The two front casters are equipped with brakes. Press down on the lever of these casters to lock the cabinet in place and prevent accidental rolling. Lift the lever to unlock.
- Anti-Tip Caster: A fifth central caster is located under the bottom drawer. This caster provides additional stability and prevents the cabinet from tipping forward when the bottom drawer is fully extended and loaded.
Засвар үйлчилгээ
- Цэвэрлэгээ: Шүүгээний гадаргууг зөөлөн арчиж, damp даавуу. Өнгөлгөөг гэмтээж болох зүлгүүрийн цэвэрлэгч эсвэл хүчтэй химийн бодисоос зайлсхий.
- Кастерууд: Periodically check the casters for debris (hair, dust) that might impede smooth rolling. Clean as necessary.
- Шүүгээний слайдууд: If drawers do not slide smoothly, a small amount of silicone lubricant can be applied to the drawer slides.
- Түгжих: Ensure the lock mechanism operates freely. Do not force the key if it feels stiff.
- Бэхэлгээ: Occasionally check all screws and fasteners to ensure they remain tight. Retighten if loose.
Алдааг олж засварлах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Шүүгээнүүд жигд гулсдаггүй. | Debris in slides, overloaded drawer, misaligned slides. | Clean drawer slides. Reduce drawer load. Check for proper alignment during assembly. Apply silicone lubricant. |
| Cabinet tips when a drawer is open. | Overloaded drawer, uneven floor, central anti-tip caster not functioning. | Ensure drawers are not overloaded. Place cabinet on a level surface. Verify the central anti-tip caster is installed correctly and making contact with the floor when the bottom drawer is extended. |
| Lock does not engage all drawers. | Drawers not fully closed, locking mechanism misalignment. | Ensure all drawers are pushed in completely before attempting to lock. Check if any objects are obstructing the locking bar. |
| Дугуйчид чөлөөтэй өнхрөхгүй. | Debris caught in casters, brakes engaged. | Clean any hair or debris from caster wheels. Disengage caster brakes if movement is desired. |
Үзүүлэлтүүд
- Брэнд: ерөнхий
- Загварын дугаар: IGA122627265
- Өнгө: Black Wood (finish)
- Үндсэн материал: Металл
- Бүтээгдэхүүний хэмжээс (D x W x H): 17.71" x 15.35" x 23.62"
- Барааны жин: 34.76 фунт
- Шүүгээний тоо: 3
- Шургуулгын ачааллын багтаамж: 70KG (154 lbs) per drawer
- Онцлог шинж чанарууд: Lockable, Wheeled, Moisture Resistant, Scratch Resistant
- Суурилуулах төрөл: Шалны уул
- Суурилуулалтын төрөл: Freestanding (Assembly Required)
- Бариулын материал: Металл
Баталгаат болон дэмжлэг
This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty details, please refer to the documentation included with your purchase or contact the retailer.
For technical support, missing parts, or warranty claims, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.
