Generic 50000mAh Solar Power Bank User Manual

1. Танилцуулга

Thank you for choosing the Generic 50000mAh Solar Power Bank. This high-capacity portable charger is designed to keep your electronic devices powered on the go, featuring solar charging capabilities, multiple output ports, and a digital display for convenience. Please read this manual carefully to ensure proper use and optimal performance of your device.

2. Бүтээгдэхүүн дууссанview

2.1 Гол онцлогууд

• Impressive 50000mAh Capacity: Provides multiple recharges for mobile devices.
• Нэгдсэн нарны хавтан: Offers alternative charging for emergency situations or outdoor use.
• Олон талт цэнэглэх: Equipped with 4 USB outputs (3 standard USB, 1 fast charging USB) and a USB Type-C output.
• Advanced Fast Charging: Supports 22.5W fast charging for efficient and rapid device power-up.
• Дижитал дэлгэц: Integrated LCD screen accurately shows the remaining battery level.
• Олон оролтын сонголтууд: Compatible with Lightning, Micro USB, and USB Type-C inputs for recharging the power bank.
• Практик дизайн: Portable white structure with a convenient carrying handle, ideal for travel, work, and outdoor activities.

2.2 Бүрэлдэхүүн хэсэг

Familiarize yourself with the different parts of your power bank:

• Дижитал дэлгэц: Батерейны цэнэгийг харуулнаtage.
• Нарны хавтан: Located on the front for solar charging.
• USB гаралтын портууд (x4): Гадны төхөөрөмжийг цэнэглэхэд зориулагдсан.
• USB Type-C Output Port: Гадны төхөөрөмжийг цэнэглэхэд зориулагдсан.
• Input Ports (Lightning, Micro USB, USB Type-C): Power Bank-г цэнэглэх зориулалттай.
• Цахилгаан товч: To activate the display or turn on/off the device.
• Зөөх бариул: Хялбар зөөвөрлөхийн тулд.

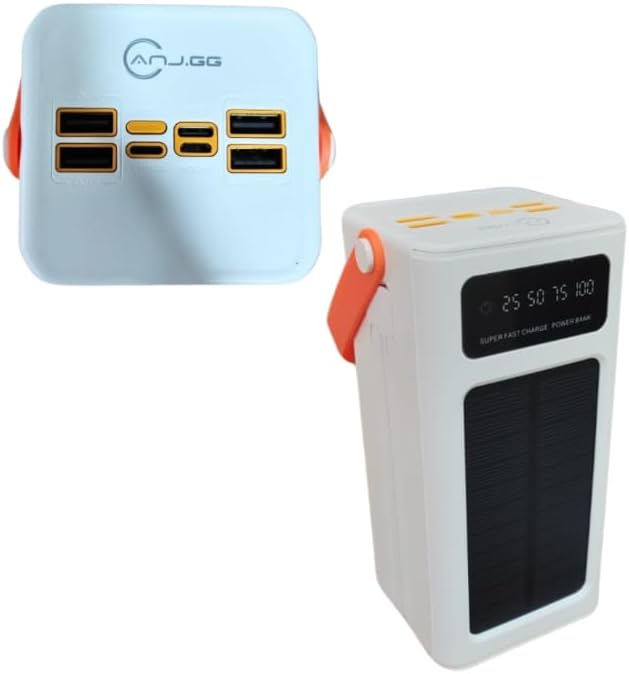

Зураг 2.2.1: Дээд талд view of the power bank, highlighting the four USB output ports and various input ports.

Зураг 2.2.2: Урд тал view of the power bank, showing the digital display, solar panel, and carrying handle.

3. Тохиргоо

3.1 Эрчим хүчний банкны анхны цэнэглэлт

Before first use, fully charge the power bank using a wall adapter. This ensures the internal battery is properly conditioned.

1. Connect a compatible charging cable (Micro USB, Lightning, or USB Type-C) to one of the power bank's input ports.
2. Connect the other end of the cable to a USB wall adapter (not included) and plug it into a power outlet.
3. The digital display will show the charging progress. Charge until the display reads 100%.

3.2 Нарны эрчим хүчээр цэнэглэх

The integrated solar panel provides an alternative charging method, primarily for emergencies or maintaining charge. It is not intended as the primary charging source due to varying solar intensity and charging speed.

• Цахилгаан банкаа нарны хавтанг нарны шууд тусгал руу харуулан байрлуул.
• Ensure no obstructions block the solar panel.
• The solar charging indicator on the display will activate when charging via solar power.

4. Ашиглалтын заавар

4.1 Гадаад төхөөрөмжийг цэнэглэх

1. Ensure the power bank is sufficiently charged. Check the digital display for the battery level.
2. Connect your device's charging cable to one of the power bank's USB output ports or the USB Type-C output port.
3. Кабелийн нөгөө үзүүрийг төхөөрөмждөө холбоно уу.
4. The power bank should automatically begin charging your device. If not, press the power button once to activate.
5. The digital display will show the power bank's remaining charge.

For optimal performance, use quality charging cables compatible with your devices.

4.2 Дижитал дэлгэцийн тухай ойлголт

The digital display provides real-time information about the power bank's status:

• Батерей Персенtage: Shows the exact remaining charge (e.g., 25, 50, 75, 100).
• Цэнэглэх үзүүлэлт: An icon or animation will appear when the power bank is being recharged.
• Нарны цэнэгийн үзүүлэлт: A specific icon (e.g., a sun) will light up when solar charging is active.

Image 4.2.1: Close-up of the digital display showing battery level indicators (25, 50, 75, 100).

5. Засвар үйлчилгээ

• Тогтмол цэнэглэх: To maintain battery health, fully recharge the power bank at least once every three months, even if not in use.
• Хадгалах: Эрчим хүчний банкийг нарны шууд тусгал, хэт температураас хол, сэрүүн, хуурай газар хадгална.
• Цэвэрлэгээ: Гадна талыг цэвэрлэхдээ зөөлөн, хуурай даавуу ашиглаарай. Хүчтэй химийн бодис эсвэл зүлгүүрийн материал бүү хэрэглээрэй.
• Уналт, нөлөөллөөс зайлсхийх: Protect the device from physical damage.
• Усанд өртөх: Энэ төхөөрөмж нь ус нэвтэрдэггүй. Ус эсвэл өндөр чийгшилд өртөхөөс зайлсхий.

6. Алдаа засах

• Төхөөрөмжийг цахилгаан банкнаас цэнэглэхгүй байна:
  • Ensure the power bank is charged (check digital display).
  • Цэнэглэгч кабель нь цахилгаан банк болон төхөөрөмждөө найдвартай холбогдсон эсэхийг шалгана уу.
  • Try a different USB port on the power bank.
  • Өөр цэнэглэгч кабель ашиглаж үзнэ үү.
  • Гаралтыг идэвхжүүлэхийн тулд цахилгаан банкны асаах товчийг дарна уу.
• Power bank цэнэглэхгүй байна:
  • Ensure the charging cable is securely connected to the power bank's input port and the wall adapter.
  • Verify the wall adapter is working and plugged into a live outlet.
  • Өөр цэнэглэгч кабель эсвэл ханын адаптер ашиглаж үзээрэй.
  • For solar charging, ensure the panel is in direct sunlight and unobstructed. Note that solar charging is slower than wall charging.
• Удаан цэнэглэх:
  • Та хурдан цэнэглэдэг кабель ашиглаж байгаа эсэх, таны төхөөрөмж хурдан цэнэглэлтийг дэмждэг эсэхээ шалгаарай.
  • The 22.5W fast charging port provides higher output; ensure you are using this specific port if fast charging is desired.
  • Close unnecessary applications on your device while charging.

7. Техникийн үзүүлэлтүүд

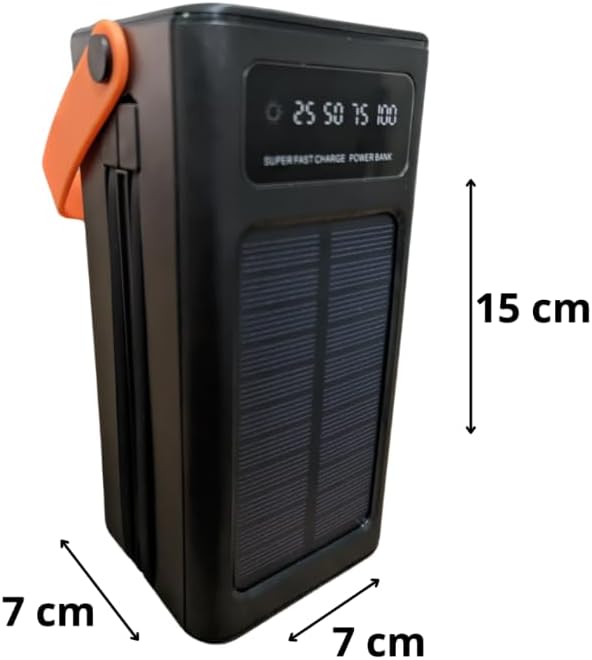

Image 7.1: Dimensions of the power bank (note: image shows black version for clarity of dimensions).

8. Баталгаат хугацааны мэдээлэл

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. The warranty period typically begins from the date of purchase. Please retain your proof of purchase for any warranty claims. For specific warranty terms and conditions, refer to the documentation provided at the time of purchase or contact your retailer.

9. Дэмжлэг

If you encounter any issues or have questions regarding your Generic 50000mAh Solar Power Bank that are not addressed in this manual, please contact the retailer or the point of purchase for assistance. Provide your product model and a detailed description of the issue to facilitate support.
