Generic ST-6691Plus Cordless Car Vacuum Cleaner User Manual

Танилцуулга

The Generic ST-6691Plus is a versatile cordless vacuum cleaner designed for both vacuuming and blowing functions, ideal for car interiors, home, and office use. This portable device features a Type-C charging interface, a battery level display, and comes with a comprehensive set of accessories to address various cleaning needs. Its compact design allows for convenient storage and easy handling.

Багцын агуулга

Please check the package for the following items. If any items are missing or damaged, contact customer support.

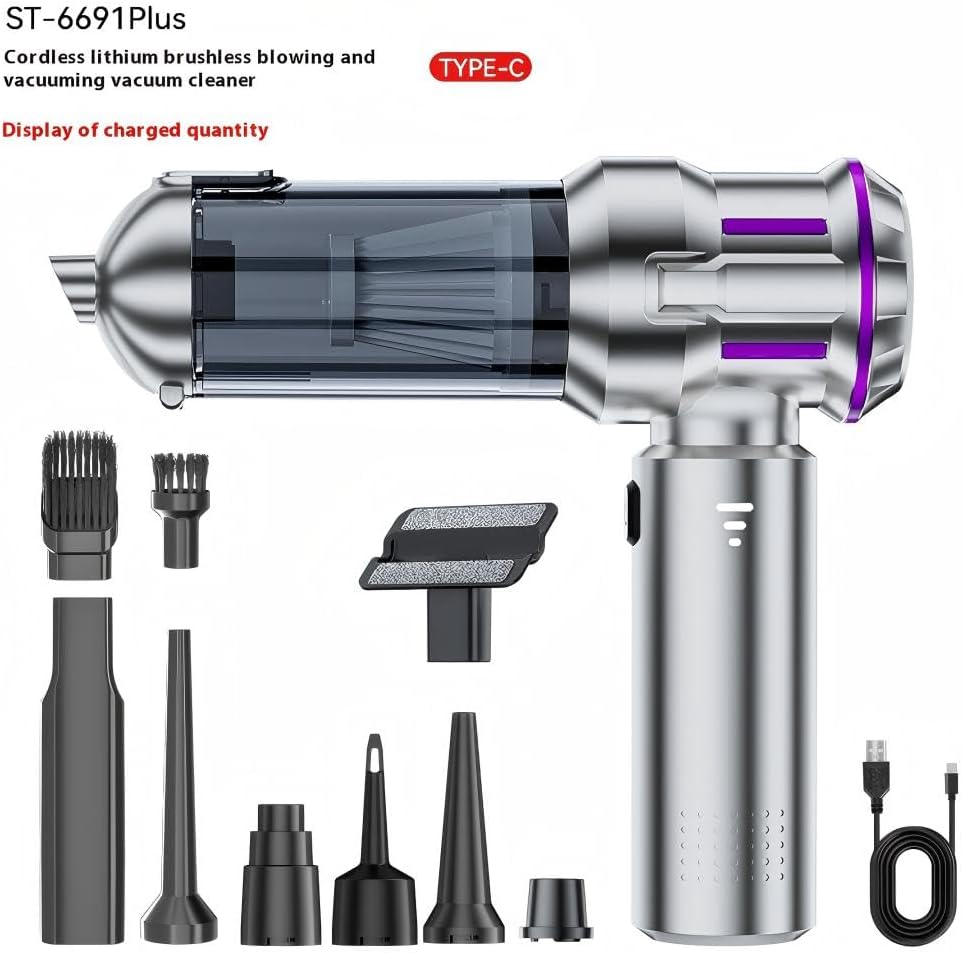

Image: The ST-6691Plus main unit and its full array of accessories, including various nozzles and brushes, are displayed.

Image: A closer look at the numbered accessories, providing a clear identification of each component.

1. Main Unit (Host)
2. Урт хавтгай хушуу
3. Урт үлээх цорго
4. Богино үлээх цорго
5. Inflating Nozzle
6. Тоос бүрхэвч
7. Filter Element (HEPA Filter)
8. Brush Nozzle (for vacuuming)
9. Сорох хушуу
10. Brush Blowing Nozzle
11. Small Floor Brush
12. C төрлийн цэнэглэгч кабель

Аюулгүй ажиллагааны зааварчилгаа

• Хэрэглэхийн өмнө бүх зааврыг уншина уу.
• Keep the device away from water and moisture. Do not use in wet conditions.
• Шатамхай болон шатамхай материал, халуун үнс, хурц үзүүртэй зүйлсийг тоос соруулж болохгүй.
• Ашиглалтын өмнө шүүлтүүрийг зөв суурилуулсан эсэхийг шалгаарай.
• Ашиглалтын явцад агаарын оролт, гаралтыг хааж болохгүй.
• Үс, сул хувцас, хуруу, биеийн бүх хэсгийг нүх, хөдлөх хэсгүүдээс хол байлга.
• Зөвхөн дагалдаж ирсэн Type-C цэнэглэгч кабелийг ашиглана уу.
• Төхөөрөмжийг өөрөө задлах, засах гэж бүү оролдоорой. Мэргэшсэн үйлчилгээний ажилтантай холбоо барина уу.
• Төхөөрөмжийг хуурай газар, хүүхдэд хүрэхгүй газар хадгална.

Тохиргоо

1. Төхөөрөмжийг цэнэглэж байна

Before first use, fully charge the vacuum cleaner. The device features a battery level display to monitor charging status.

• Connect the provided Type-C charging cable to the charging port on the vacuum cleaner.
• Plug the other end of the cable into a compatible USB power adapter (not included) or a Type-C port.
• The battery level display will indicate charging progress. A full charge typically takes approximately 3 hours.
• Бүрэн цэнэглэгдсэний дараа цэнэглэгчийг салга.

Image: The vacuum cleaner is shown connected to its Type-C charging cable, illustrating the charging process.

2. Дагалдах хэрэгслийг хавсаргах

Select the appropriate nozzle or brush for your cleaning task and attach it firmly to the main unit's suction or blowing port.

• For vacuuming, attach desired nozzle (e.g., Long Flat Nozzle, Brush Nozzle, Suction Nozzle, Small Floor Brush) to the front suction opening.
• For blowing, attach desired nozzle (e.g., Long Blowing Nozzle, Short Blowing Nozzle, Inflating Nozzle, Brush Blowing Nozzle) to the rear blowing port.

Ашиглалтын заавар

1. Powering On/Off and Speed Adjustment

• To turn on the device, press the power button. The device will start in the default speed mode.
• To switch between the 2 available speeds, press the power button again.
• To turn off the device, press the power button once more after cycling through the speeds, or press and hold the button.

2. Тоос сорогч функц

Use the vacuum function for collecting dust, crumbs, and small debris.

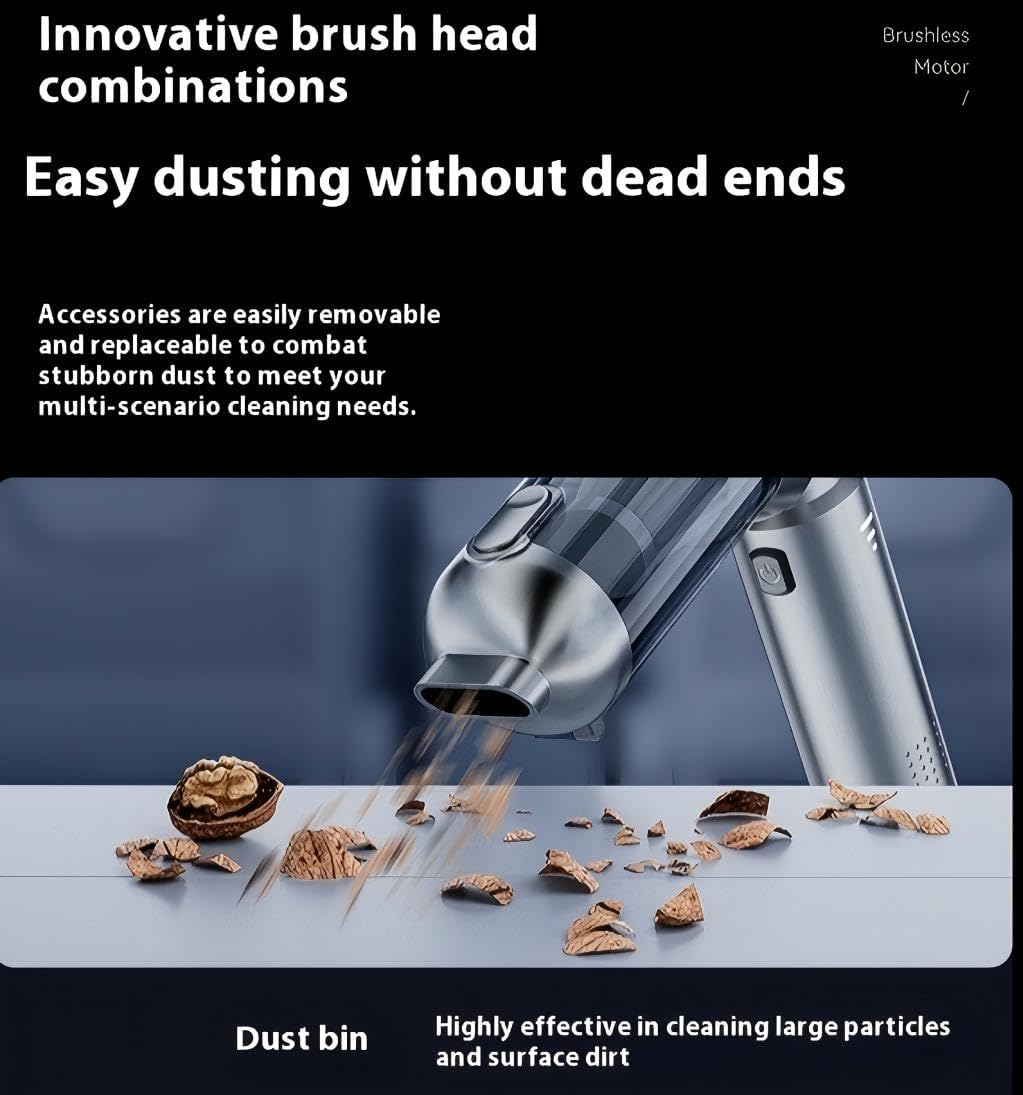

Image: The vacuum cleaner in action, demonstrating its ability to pick up various types of debris.

• Attach a suitable vacuuming nozzle (e.g., Suction Nozzle for general use, Long Flat Nozzle for crevices).
• Turn on the device and select the desired speed.
• Move the nozzle over the surface to be cleaned, ensuring the suction opening is in contact with the debris.

3. Blowing Function

The blowing function is useful for clearing dust from hard-to-reach areas, keyboards, or for inflating small items.

• Attach a suitable blowing nozzle (e.g., Long Blowing Nozzle for focused airflow, Inflating Nozzle for inflation).
• Turn on the device and select the desired speed.
• Direct the airflow towards the area to be cleaned or the item to be inflated.

4. Using Specific Attachments

Image: Demonstrates the application of the long flat nozzle for narrow gaps and the brush nozzle for textured surfaces in a car.

Image: Shows the short mouthpiece for precise cleaning, the suction nozzle for general vacuuming, and the small floor brush for larger fabric surfaces.

• Long Flat Nozzle: Ideal for reaching into narrow gaps, crevices, and corners in car seats, dashboards, or furniture.
• Brush Nozzle (Vacuuming): Use for cleaning delicate surfaces, vents, or to agitate stubborn dirt on carpets and upholstery before vacuuming.
• Small Floor Brush: Suitable for larger flat surfaces like car mats, carpets, sofas, or bed linens.
• Blowing Nozzles (Long/Short): Direct powerful airflow to clear dust from keyboards, electronics, or tight spaces.
• Inflating Nozzle: Can be used for inflating small items like air pillows or toys.

Засвар үйлчилгээ

1. Тоосны савыг хоослох

Хамгийн оновчтой сорох хүчийг хадгалахын тулд тоосны савыг тогтмол хоослох хэрэгтэй.

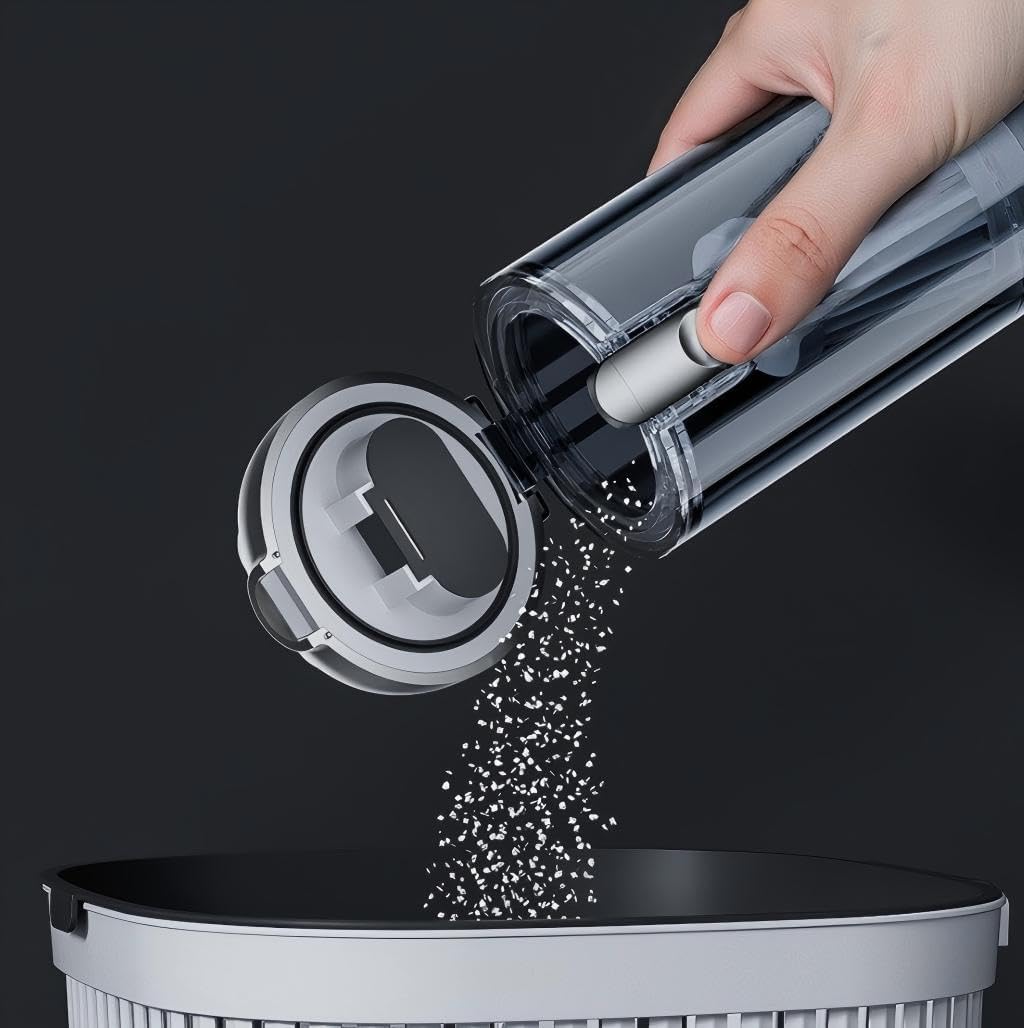

Image: A hand is shown detaching and emptying the transparent dust collection chamber, illustrating the one-touch dust removal system.

• Төхөөрөмж унтарсан эсэхийг шалгана уу.
• Twist or unlatch the dust bin from the main unit (refer to diagram in Package Contents for specific mechanism).
• Цуглуулсан хогийг хогийн саванд болгоомжтой хийнэ.
• Тоосны савыг үндсэн төхөөрөмжид найдвартай буцааж бэхлээрэй.

2. Шүүлтүүрийг цэвэрлэх

The HEPA filter should be cleaned regularly to ensure efficient operation and prevent clogging.

• Дээр дурдсанчлан тоосны савыг зайлуул.
• Carefully remove the HEPA filter element from inside the dust bin.
• Tap the filter gently to dislodge dust. For a more thorough cleaning, rinse the filter under running water.
• Чухал: Allow the filter to air dry completely before reinserting it into the dust bin. Do not use the vacuum with a wet filter.
• Once dry, reinsert the filter and reattach the dust bin.

3. General Cleaning and Storage

• Тоос сорогчийн гадна талыг зөөлөн арчиж, damp даавуу. Хүчтэй химийн бодис, зүлгүүрийн цэвэрлэгч хэрэглэж болохгүй.
• Store the vacuum cleaner and its accessories in a cool, dry place. The compact design allows it to fit in car cup holders for convenient storage.

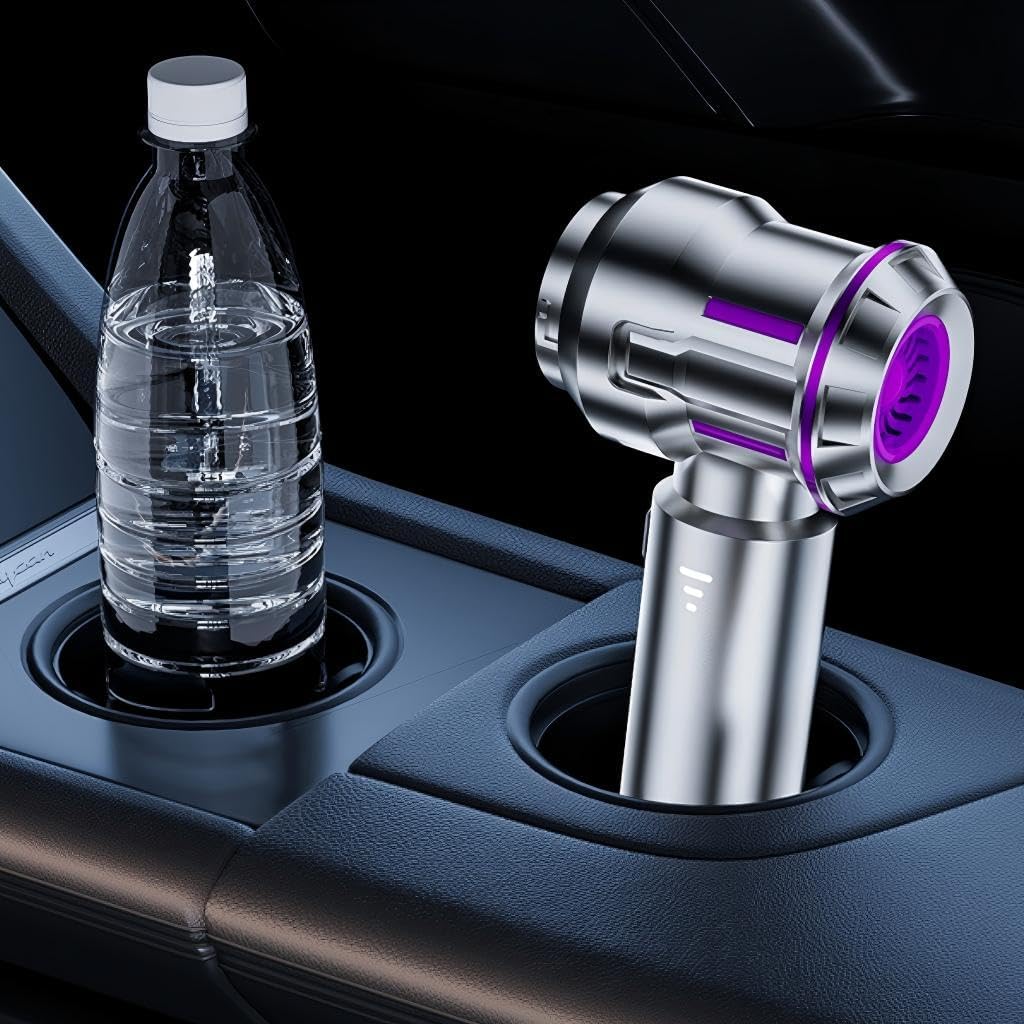

Image: The compact vacuum cleaner is shown neatly placed in a car's cup holder, highlighting its convenient storage capability.

Алдааг олж засварлах

Үзүүлэлтүүд

Баталгаат болон дэмжлэг

This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation provided at the time of purchase or contact your retailer.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact the manufacturer or your point of purchase. Ensure you have your product model number (ST-6691Plus) and purchase information ready when contacting support.
