Instruction Manual: Generic Carburetor

1. Танилцуулга

This manual provides essential information for the proper installation, operation, and maintenance of your new Generic Carburetor. This carburetor is designed as a direct replacement for BS-498298 and is compatible with various equipment from MTD, Troy-Bilt, White Outdoor, Cub Cadet, and Electrolux. Please read this manual thoroughly before attempting any installation or maintenance procedures.

2. Аюулгүй байдлын мэдээлэл

Always prioritize safety when working with engine components and fuel. Failure to follow these safety guidelines may result in serious injury or damage to equipment.

• Цахилгааныг салгах: Before beginning any work, ensure the engine is off and cool. Disconnect the spark plug wire to prevent accidental starting.
• Түлшний зохицуулалт: Work in a well-ventilated area. Keep open flames, sparks, and smoking materials away from fuel. Use an approved container for fuel storage.
• Хувийн хамгаалах хэрэгсэл: Wear safety glasses, gloves, and appropriate clothing to protect against fuel, oil, and sharp edges.
• Халуун гадаргуу: Engine components can remain hot for an extended period after operation. Allow the engine to cool completely before handling.
• Тохиромжтой хэрэгсэл: Use the correct tools for each task to prevent damage to fasteners and components.

3. Багцын агуулга

Carefully unpack the box and verify that all items are present and undamaged. If any parts are missing or damaged, contact your seller immediately.

• 1 x Generic Carburetor (BS-498298 Replacement)
• 2 x Gaskets (as pictured)

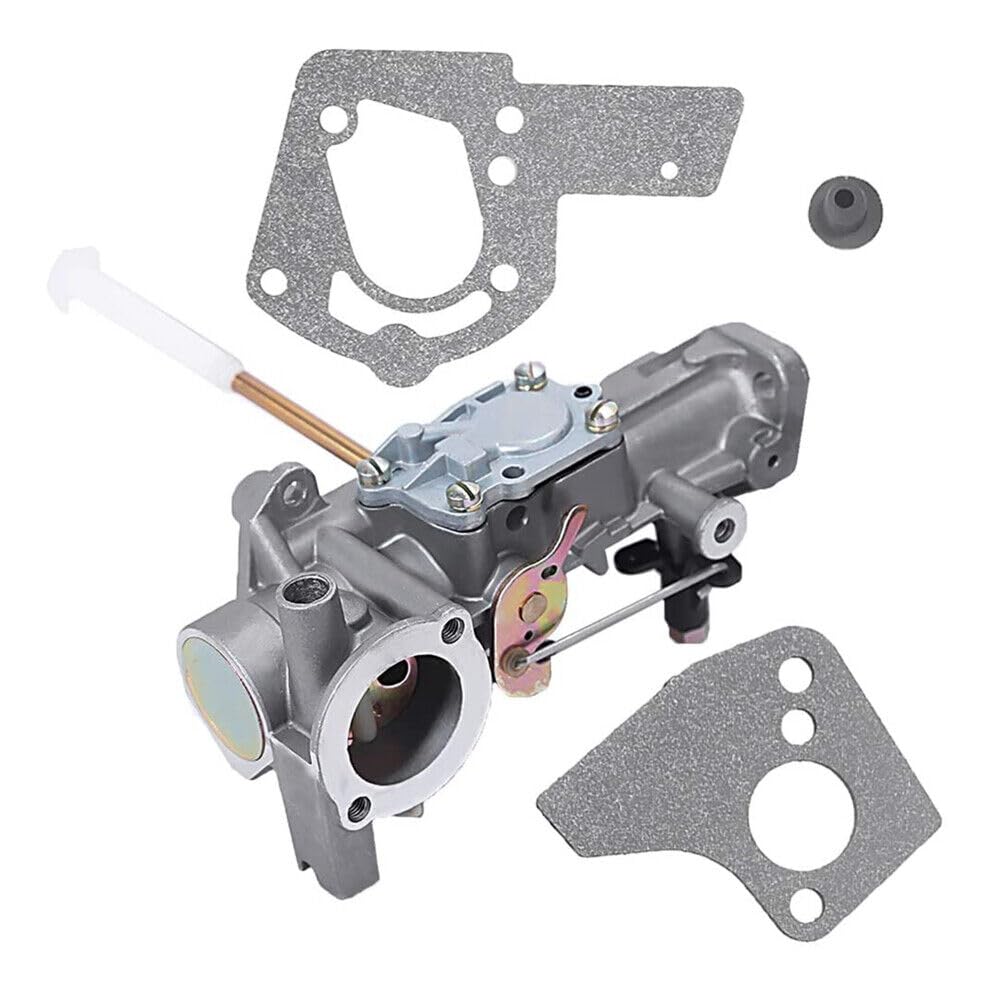

Зураг 3.1: Included carburetor and gaskets. The image shows the carburetor from a top-down perspective, highlighting the fuel inlet, adjustment screws, and the two distinct gasket shapes.

4. Тохиргоо ба суурилуулалт

This section outlines the general steps for replacing your old carburetor with the new Generic Carburetor. Specific procedures may vary slightly depending on your equipment model. Refer to your equipment's service manual for detailed instructions if available.

1. Бэлтгэл: Ensure the engine is cool and the fuel tank is empty or the fuel line is clamped. Disconnect the spark plug wire. Gather necessary tools (wrenches, screwdrivers, pliers, fuel-resistant rags).
2. Агаарын шүүлтүүрийн угсралтыг арилгах: Locate and remove the air filter housing and air filter. This will expose the carburetor.
3. Disconnect Linkages and Fuel Line: Carefully disconnect the throttle and choke linkages from the old carburetor. Use pliers to remove the fuel line clamp and detach the fuel line. Be prepared for residual fuel to spill.
4. Хуучин карбюраторыг арилгах: Unbolt the old carburetor from the engine manifold. Note the orientation of any spacers or additional gaskets.
5. Шинэ жийргэвч суурилуулах: Clean the mounting surfaces on both the engine manifold and the air filter housing. Place the new gaskets in their correct positions. Ensure they are seated properly to prevent air leaks.
6. Шинэ карбюратор суурилуулах: Carefully position the new Generic Carburetor onto the engine manifold, aligning it with the bolt holes and gaskets. Secure it with the original bolts, tightening them evenly.


Зураг 4.1: Өнцөгтэй view of the carburetor, illustrating the various ports and mounting flanges. This perspective helps in identifying the fuel inlet and throttle linkage points during installation.

7. Reconnect Linkages and Fuel Line: Reattach the throttle and choke linkages to the new carburetor. Ensure they move freely and operate correctly. Reconnect the fuel line and secure it with the clamp.

Зураг 4.2: Хажуу талын мэргэжлийнfile of the carburetor, showing the float bowl assembly and the main jet area. This view is useful for understanding the internal components and potential adjustment points.
8. Reinstall Air Filter Assembly: Replace the air filter and its housing.
9. Эцсийн шалгалтууд: Double-check all connections, ensuring they are tight and secure. Look for any signs of fuel leaks.

5. Operating Instructions (After Installation)

After installing the new carburetor, follow these general steps to start your equipment:

• Шатахуун дүүргэх: Add fresh, clean fuel to the tank.
• Прайм (хэрэв байгаа бол): If your equipment has a primer bulb, press it several times until fuel is visible.
• Амьсгалах: Set the choke to the 'Full Choke' position for cold starts.
• Хөдөлгүүрийг эхлүүлэх: Reconnect the spark plug wire. Attempt to start the engine according to your equipment's manufacturer instructions.
• Багалзуурыг тохируулах: As the engine warms up, gradually move the choke to the 'Run' position.
• Сул зогсолтын тохируулга: If the engine idles too high or too low, a slight adjustment to the idle screw on the carburetor may be necessary. Consult your equipment's manual for specific idle speed recommendations.

6. Засвар үйлчилгээ

Тогтмол засвар үйлчилгээ нь таны карбюраторын урт наслалт, оновчтой ажиллагааг хангахад тусална.

• Шатахууны чанар: Always use fresh, clean fuel. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer, especially during storage.
• Агаарын шүүлтүүр: Regularly inspect and clean or replace the air filter. A clogged air filter can restrict airflow and affect carburetor performance.
• Цэвэрлэгээ: If the carburetor becomes dirty or clogged, it may require cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This procedure should only be performed by individuals with mechanical experience.
• Хадгалах: Before long-term storage, run the engine until it runs out of fuel, or drain the fuel system to prevent fuel degradation and gumming in the carburetor.

7. Алдаа засах

Хэрэв та шинэ карбюратор суурилуулсны дараа асуудалтай тулгарвал дараах нийтлэг асуудал, шийдлүүдийг анхаарч үзээрэй.

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified service technician or contact your seller for further assistance.

8. Техникийн үзүүлэлтүүд

• Бүтээгдэхүүний төрөл: Aftermarket Carburetor
• Брэнд: Ерөнхий
• Солих: BS-498298
• Тохиромжтой байдал: MTD, Troy-Bilt, White Outdoor, Cub Cadet, Electrolux equipment (verify specific model fitment)
• Материал: Durable metal alloy construction

9. Баталгаат хугацаа ба дэмжлэг

This Generic Carburetor is an aftermarket replacement part. For any questions regarding installation, performance, or warranty claims, please contact the seller directly through your purchase platform. Keep your purchase receipt as proof of purchase.
