1. Танилцуулга
This manual provides essential information for the safe and effective installation, operation, and maintenance of your new LED Refrigerator Light Lamp Assembly. This replacement part is designed to restore optimal interior lighting in compatible GE refrigerator models, ensuring clear visibility of your refrigerator's contents. Please read these instructions thoroughly before proceeding with installation.
2. Аюулгүй байдлын мэдээлэл
Always follow basic safety precautions when installing or servicing electrical appliances to reduce the risk of fire, electric shock, or injury.
- Цахилгааныг салгах: Always unplug the refrigerator from the power outlet before attempting any installation, repair, or maintenance.
- Мэргэшсэн боловсон хүчин: Хэрэв та ямар нэгэн алхам хийх талаар эргэлзэж байвал мэргэшсэн цахилгаан хэрэгслийн техникчээс зөвлөгөө аваарай.
- Тохиромжтой хэрэгсэл: Although this is a DIY installation, ensure you have any necessary non-conductive tools if required for prying or securing.
- Бүрэлдэхүүн хэсгүүдийг шалгах: Before installation, inspect the new light assembly for any damage. Do not install if damaged.
- Устгах: Dispose of old parts according to local regulations.
3. Бүтээгдэхүүн дууссанview
The LED Refrigerator Light Lamp Assembly is a direct replacement part designed for specific GE refrigerator models. It features bright, energy-efficient LED lighting to provide clear illumination inside your appliance. Constructed with durable materials, it is built for a long service life and reliable performance.

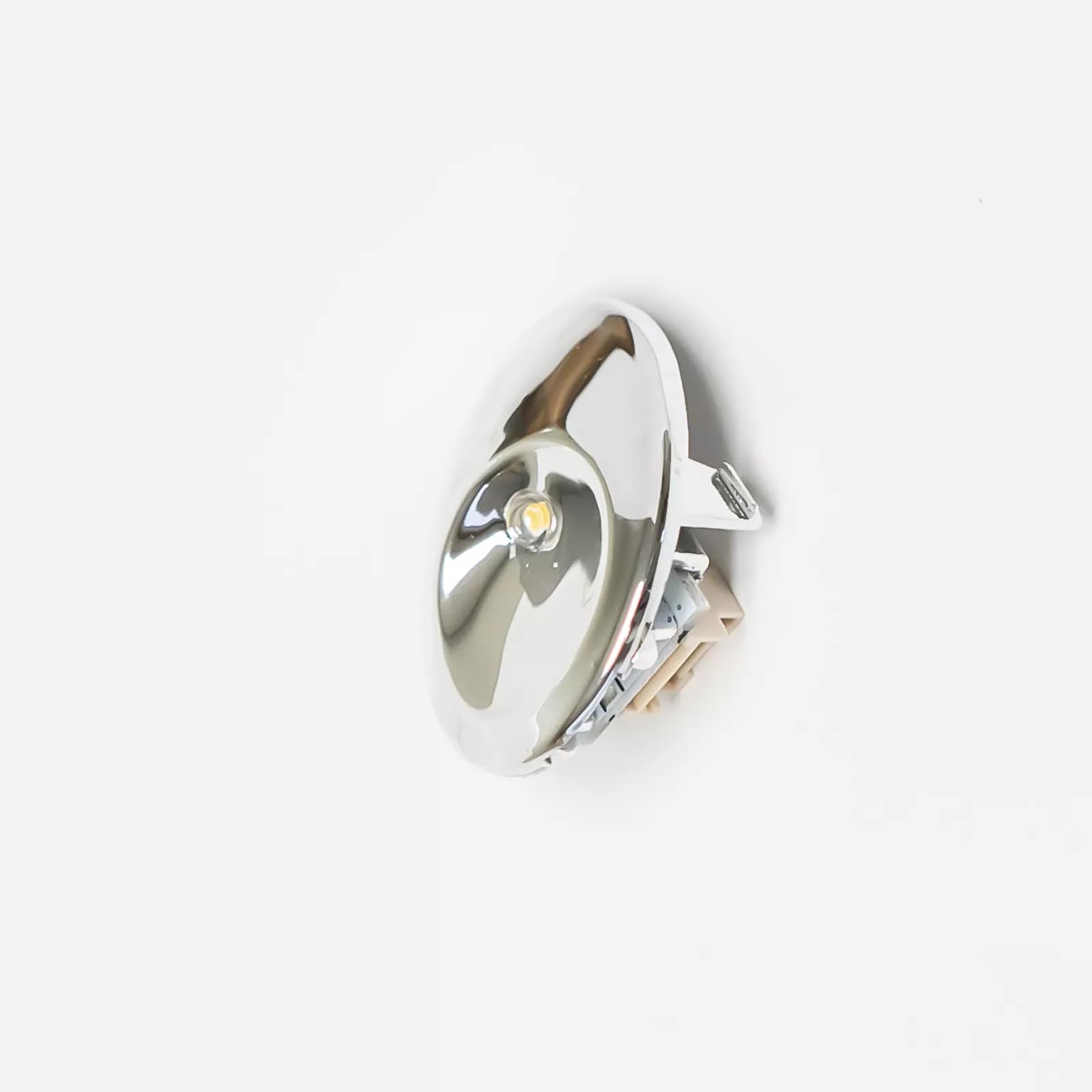

Зураг 1: Урд view of the LED Refrigerator Light Lamp Assembly. This image shows the front of the LED Refrigerator Light Lamp Assembly, featuring the bright LED bulb and the chrome-finished housing.
4. Тохиромжтой загварууд
This LED Refrigerator Light Lamp Assembly is compatible with a wide range of GE refrigerator models. Please verify your refrigerator's model number before installation.
- CYE22TP2MCS1
- CYE22TP2MDS1
- CYE22TP2MES1
- CYE22TP2MFS1
- CYE22TP2MGS1
- CYE22TP3MCD1
- CYE22TP3MDD1
- CYE22TP3MED1
- CYE22TP3MFD1
- CYE22TP3MGD1
- CYE22TP3MHD1
- CYE22TP4MCW2
- CYE22TP4MDW2
- CYE22TP4MEW2
- CYE22TP4MGW2
- CYE22TP4MHW2
- CYE22TP4MIW2
- CYE22UP2MCS1
- CYE22UP2MDS1
- CYE22UP2MGS1
- CYE22UP3MCD1
- CYE22UP3MDD1
- CYE23TSDASS
5. Суурилуулах заавар
This LED light assembly is designed for easy DIY installation, often requiring no special tools. Follow these steps carefully:
- Цахилгааныг салгах: Locate your refrigerator's power cord and unplug it from the wall outlet. This is a critical safety step.
- Locate Existing Light: Open your refrigerator door and identify the non-working light assembly. It is typically located on the ceiling or side wall of the fresh food or freezer compartment.
- Хуучин гэрлийг арилгах: Depending on your specific GE model, the old light assembly may snap into place, be held by a small screw, or require a gentle pry with a flat-head screwdriver (ensure it's non-conductive). Carefully disconnect any electrical connectors.
- Install New Light: Connect the electrical connector from the refrigerator to the new LED light assembly. Ensure the connection is secure.
- Secure New Light: Gently push or snap the new LED light assembly into its designated slot until it is firmly seated.
- Цахилгааныг дахин холбох: Plug your refrigerator back into the wall outlet.
- Туршилтын ажиллагаа: Open and close the refrigerator door to verify that the new LED light illuminates correctly.
Зураг 2: Арын view of the LED Refrigerator Light Lamp Assembly. This image displays the rear side of the LED Refrigerator Light Lamp Assembly, highlighting the electrical connector for easy plug-and-play installation into compatible GE refrigerator models.
6. Үйл ажиллагаа
The LED Refrigerator Light Lamp Assembly operates automatically in conjunction with your refrigerator's door switch. When the refrigerator door is opened, the light will illuminate, providing clear visibility of the interior. When the door is closed, the light will turn off.
7. Засвар үйлчилгээ
The LED Refrigerator Light Lamp Assembly requires minimal maintenance.
- Цэвэрлэгээ: If the light cover becomes dirty, gently wipe it with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners. Ensure the refrigerator is unplugged before cleaning.
- Шалгалт: Periodically inspect the light assembly for any signs of wear or damage. If any issues are observed, consider replacing the unit.
8. Алдаа засах
If the LED light does not function after installation, refer to the following table:
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Гэрэл асахгүй байна | Хөргөгч залгуургүй эсвэл цахилгаангүй байнаtage | Check if the refrigerator is plugged in and if there is power to the outlet. |
| Гэрэл асахгүй байна | Сул цахилгаан холболт | Unplug the refrigerator, then re-check the connection of the light assembly. Ensure it is firmly seated. |
| Гэрэл асахгүй байна | Faulty light assembly | If all connections are secure and power is present, the new light assembly may be defective. Contact the manufacturer for assistance. |
| Гэрэл анивчих эсвэл бүдэг байна | Сул холболт эсвэл цахилгааны хэлбэлзэл | Unplug and re-plug the refrigerator. Check the light assembly connection. If the problem persists, consult a technician. |
9. Техникийн үзүүлэлтүүд
| Онцлог | Дэлгэрэнгүй |
|---|---|
| Хэсгийн дугаар | CYE22TP2MCS1, CYE22TP2MDS1, CYE22TP2MES1 (representative) |
| Ботьtage | 120 вольт |
| Ватtage | 60.00 ватт |
| Оруулсан бүрэлдэхүүн хэсгүүд | As Picture (LED Light Lamp Ассемблей) |
10. Баталгаат хугацаа ба дэмжлэг
For warranty information or technical support regarding this LED Refrigerator Light Lamp Assembly, please refer to the documentation provided with your purchase or contact the manufacturer directly. Ensure you have your purchase details and the product's model information available when contacting support.
