AirWire 20x40 FT Metal Carport Canopy

1. Аюулгүй байдлын мэдээлэл

This product has no specific safety warnings beyond standard construction and assembly precautions. Always exercise caution during assembly and use.

• Хэрэглэхийн өмнө бүх эд ангиудыг найдвартай бэхэлсэн эсэхийг шалгаарай.
• Хүчтэй салхи эсвэл цаг агаарын таагүй нөхцөлд угсрах гэж бүү оролд.
• Wear appropriate personal protective equipment (PPE) such as gloves and eye protection during assembly.
• Ensure the installation site is level and clear of obstructions.
• Clear snow promptly from the roof to prevent structural damage.

2. Багцын агуулга

Verify all parts are present before beginning assembly. Refer to the detailed parts list provided in your physical instruction manual.

• High-quality 2-inch square steel tubing for the frame.
• Galvanized steel roof panels.
• Reinforced base components.
• 18 heavy-duty anchor bolts.
• All necessary fasteners (screws, bolts).
• Waterproof seals and durable rubber edges.

Figure 2.1: Key structural features of the AirWire Metal Carport.

3. Тохируулах заавар

Assembly of the AirWire 20x40 FT Metal Carport requires 5-6 people for efficient and safe installation. Detailed step-by-step instructions are provided in the included paper manual.

3.1. Угсралт дууссанview

Figure 3.1: Simplified assembly steps for the carport.

3.2. Detailed Assembly Steps

1. Сайтыг бэлтгэх: Ensure a flat, level surface for construction to ensure proper water drainage and structural integrity.
2. Хүрээг угсарна уу: Connect the main frame components using the provided bolts and screws. The frame is made of high-quality 2-inch square steel tubing.
3. Дээврийн дам нурууг суурилуулах: Attach the 9 additional center roof beams and other diagonal support designs to increase top load capacity and resistance to strong winds.
4. Дээврийн хавтанг холбох: Secure the galvanized steel roof panels. Apply waterproof tape to the outside seams of the two layers of tin to prevent leakage.
5. Install Side Reinforcement: Add multiple roof and side reinforcement bars for improved stability.
6. Суурийг хамгаалах: Equip the carport with the 18 heavy-duty anchor bolts to accommodate various terrains.

4. Үйл ажиллагаа

The AirWire Metal Carport is designed to provide reliable shelter for various vehicles and equipment. Its dimensions (466.1 inches x 238.1 inches x 116.9 inches) can easily accommodate tractors, boats, and trucks.

• Use the carport to protect vehicles from sun, rain, and snow.
• The UV-resistant galvanized sheet helps protect your vehicle from high temperatures in summer.
• The sloped roof design provides better leak protection on rainy days.

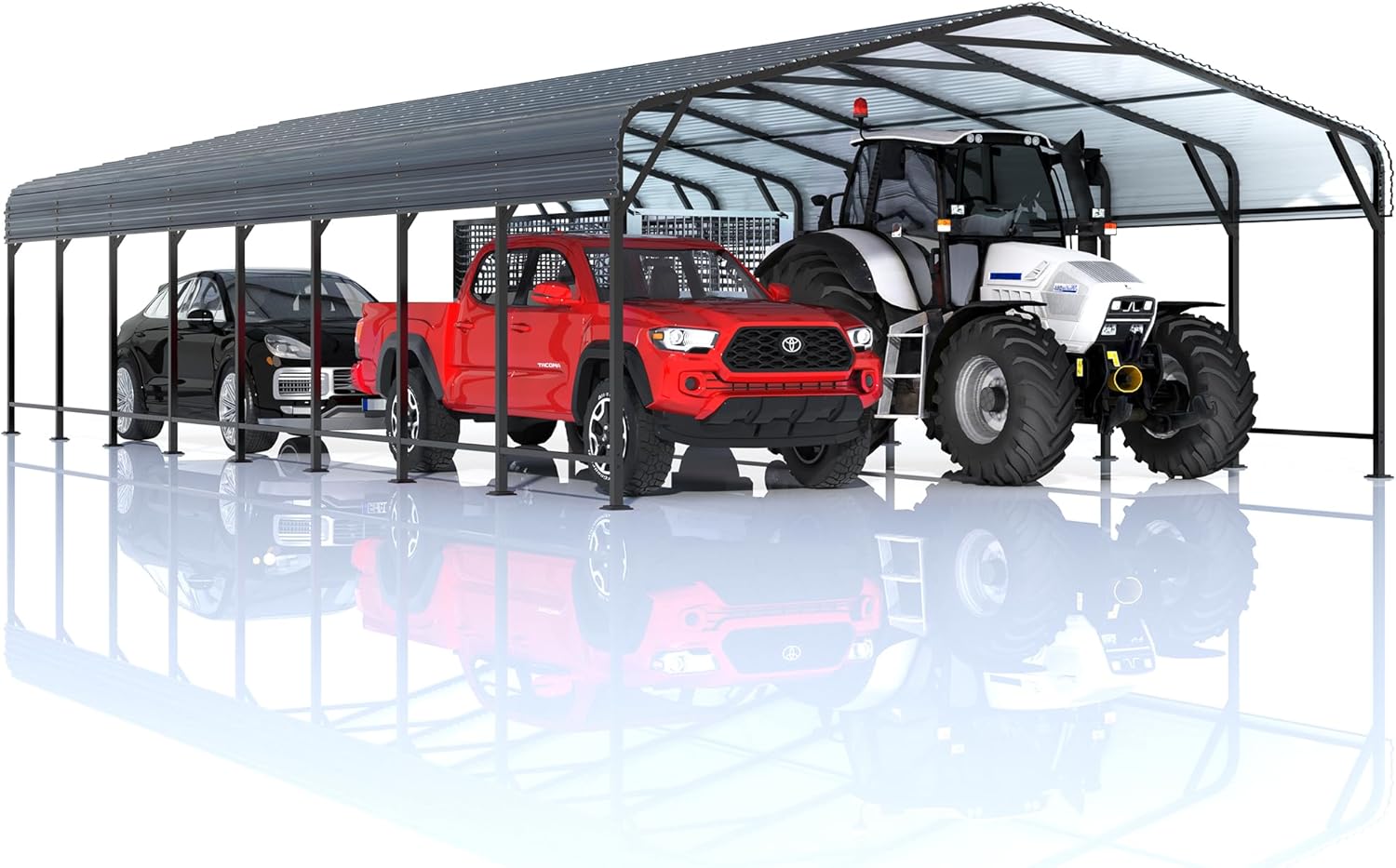

Figure 4.1: The carport providing shelter for multiple vehicles.

5. Засвар үйлчилгээ

Regular maintenance ensures the longevity and performance of your carport.

• Цас арилгах: Clear snow promptly from the roof to protect your vehicle and the carport structure from damage due to excessive weight.
• Шалгалт: Бүх боолт болон холболтууд нь чанга, найдвартай байгаа эсэхийг үе үе шалгаж байгаарай.
• Зэвнээс урьдчилан сэргийлэх: The frame components are coated with three layers of rust-resistant coating. However, regularly check for any signs of rust or damage to the coating and address them as needed to prolong service life.
• Цэвэрлэгээ: Clean the roof and frame as necessary to remove dirt, debris, or leaves that may accumulate.

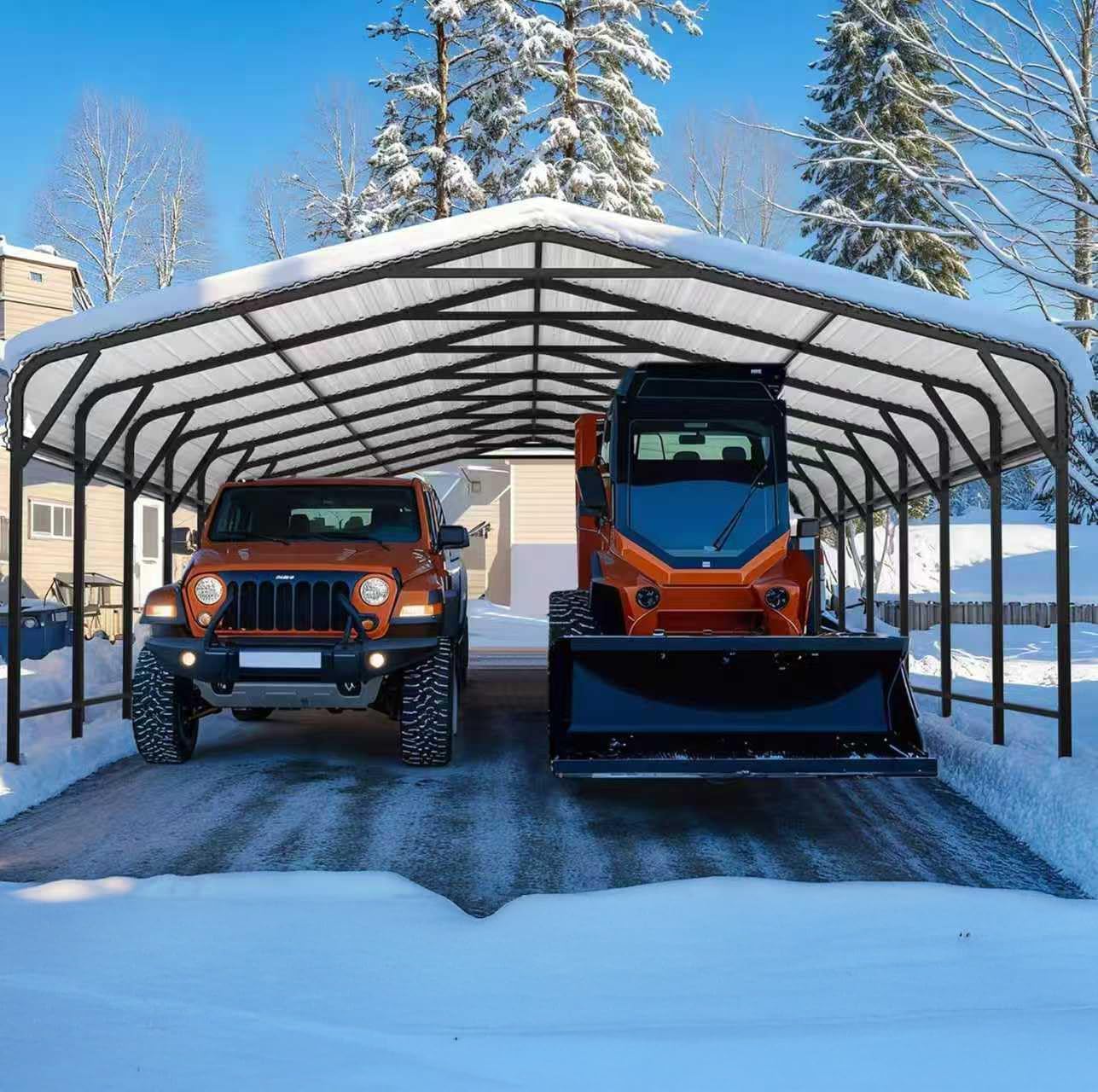

Figure 5.1: Carport effectively sheltering vehicles in snowy conditions, highlighting the importance of snow removal.

6. Алдаа засах

Хэрэв та машины зогсоолтой холбоотой асуудалтай тулгарвал дараахь зүйлийг анхаарч үзээрэй.

• Усны алдагдал: Ensure all roof panels are correctly overlapped and securely fastened. Verify that the waterproof seals and rubber edges are properly installed and intact. Reapply or reinforce waterproof tape if necessary.
• Бүтцийн тогтворгүй байдал: Check all anchor bolts and ground stakes to confirm they are firmly secured. Ensure all frame connections are tight. If the ground is soft, consider additional anchoring methods.
• Дутуу хэсгүүд: If any parts are missing upon delivery, contact customer support immediately with your purchase details.

7. Техникийн үзүүлэлтүүд

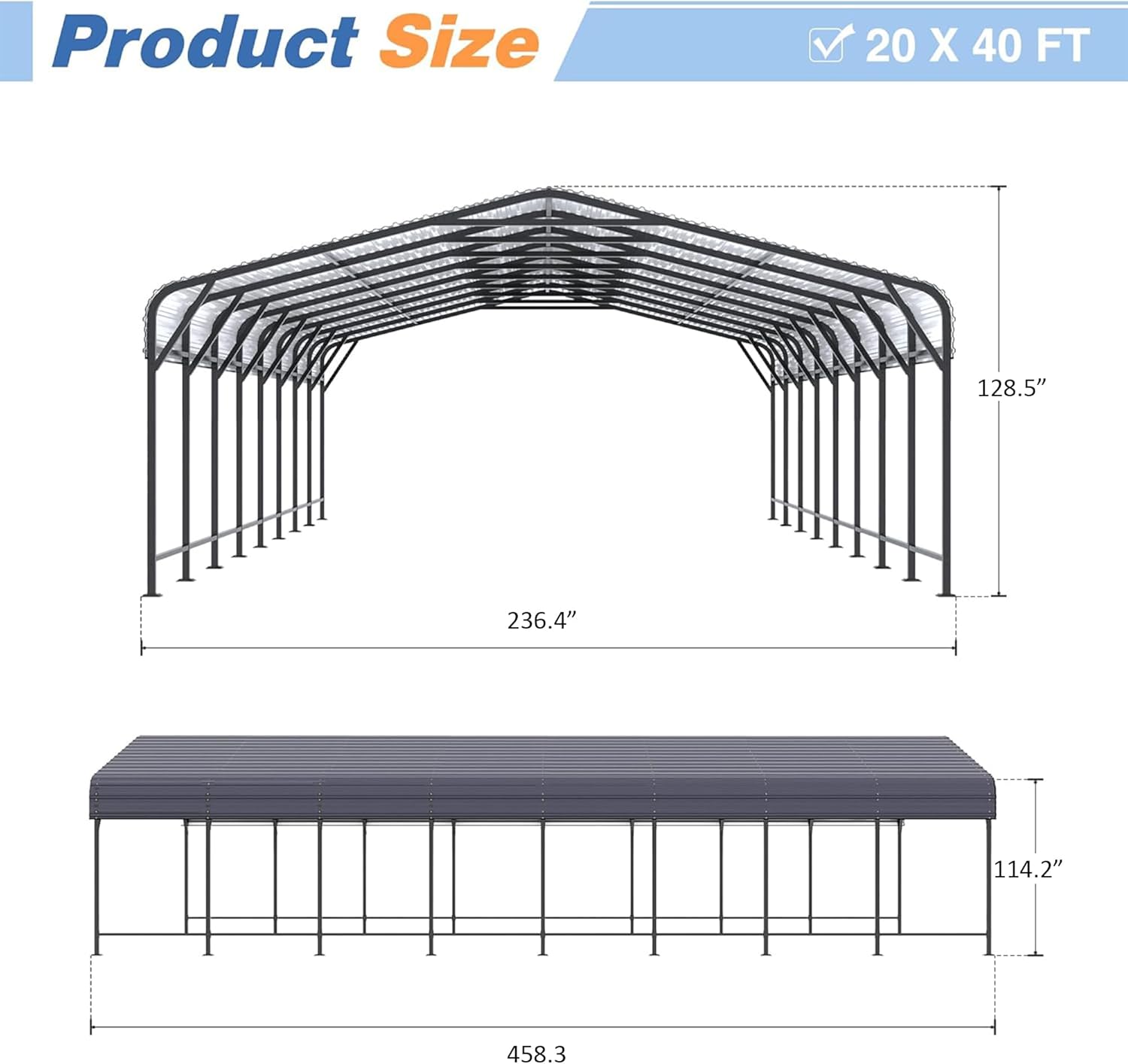

Зураг 7.1: Бүтээгдэхүүний нарийвчилсан хэмжээсүүд.

8. Баталгаат хугацаа ба дэмжлэг

Your AirWire Metal Carport comes with a 30-day easy return policy. For any questions, concerns, or support needs regarding your product, please contact the seller, FengLin Direct, directly through your purchase platform. They are committed to providing a smooth and satisfying ownership experience.
