Generic Folding Chair Storage Cart User Manual

1. Танилцуулга

This manual provides instructions for the assembly, operation, and maintenance of the Generic Folding Chair Storage Cart, Model JHEJ97H1SAPFOK5I7BI. This heavy-duty cart is designed for efficient storage and transport of folding chairs in various settings such as offices, gyms, and event halls. Please read these instructions carefully before assembly and use to ensure safe and proper operation.

Зураг 1.1: Дууслааview of the Folding Chair Storage Cart, showing its overall dimensions and 500 lbs (226.8 kg) load capacity. The cart measures approximately 53 inches (134.6 cm) in length, 28 inches (71 cm) in width, and 52.7 inches (134 cm) in height. Various types of folding chairs are shown alongside, indicating compatibility.

2. Аюулгүй байдлын мэдээлэл

Бүтээгдэхүүнд гэмтэл учруулах, эвдрэл гарахаас урьдчилан сэргийлэхийн тулд эдгээр аюулгүй байдлын удирдамжийг үргэлж дагаж мөрдөөрэй.

• Ачааллын хүчин чадал: Do not exceed the maximum load capacity of 500 lbs (226.8 kg). Overloading can cause instability and damage.
• Тэгш хуваарилалт: Distribute the weight of the chairs evenly on the cart to maintain balance.
• Secure Chairs: Always use the provided fixed straps to secure chairs during transport to prevent shifting or falling.
• Тоормос: Engage the wheel brakes when loading, unloading, or storing the cart to prevent unintended movement.
• Хөдөлгөөн: Move the cart slowly and carefully, especially on uneven surfaces or ramps. Ensure clear pathways.
• Ассемблей: Ensure all bolts and screws are tightened securely before use. Periodically check for loose fasteners.
• Хүүхдүүд: Keep children away from the cart during assembly and operation.

3. Багцын агуулга

Угсарч эхлэхээс өмнө бүх бүрэлдэхүүн хэсгүүд байгаа эсэхийг шалгаарай. Хэрэв ямар нэг хэсэг дутуу эсвэл гэмтсэн бол хэрэглэгчийн тусламжтай холбоо барина уу.

• Top crossbars: 4
• H-shaped top connection frame: 1
• Суурь: 2
• Side columns with holes: 8
• Cylindrical support rods: 12
• Wheels with brakes: 4
• Handrails: 4
• Triangular clips: 4
• Two-hole clips: 20
• Түлхүүр: 2
• Hexagonal wrench: 1
• Шураг: 24
• Боолт: 24
• 1.5m fixed straps: 2

4. Тохиргоо ба угсралт

Follow these steps to assemble your folding chair storage cart. Refer to the assembly image for visual guidance.

Image 4.1: A grid of 16 images illustrating the step-by-step assembly process of the folding chair storage cart. This includes attaching wheels, connecting frame components, securing handrails, and inserting support rods using the provided screws, bolts, and wrenches.

1. Дугуйг хавсаргах: Secure the four wheels with brakes to the two base frames using the provided bolts and wrenches. Ensure brakes are functional.
2. Суурийн хүрээг холбох: Join the two base frames using the appropriate connectors and secure with screws.
3. Install Side Columns: Attach the eight side columns with holes to the base frames. These columns allow for height adjustment.
4. Assemble Top Crossbars: Connect the four top crossbars to form the upper structure.
5. Attach H-shaped Top Connection Frame: Secure the H-shaped frame to the top crossbars.
6. Insert Cylindrical Support Rods: Place the twelve cylindrical support rods into the designated holes. These rods are angled for better chair storage.
7. Attach Handrails: Secure the four handrails to the side columns at a comfortable height for maneuvering.
8. Клипээр хамгаалах: Use the triangular and two-hole clips to reinforce connections as indicated in the assembly diagram.
9. Эцсийн чангаруулах: Double-check all screws and bolts to ensure they are securely tightened.

Image 4.2: Illustration of the cart's thoughtful design, highlighting the slanted support rods for better chair storage and the four adjustable height settings (6in, 8in, 10in, 12in) for the chair support bars.

5. Ашиглалтын заавар

5.1 Loading Chairs

• Ensure the cart is on a level surface and all four wheel brakes are engaged.
• Begin stacking folding chairs onto the cart. The angled support rods are designed to hold chairs in a tilted position for stability and space optimization.
• Distribute chairs evenly to maintain balance. The cart can accommodate 32-40 chairs depending on their size.

5.2 Securing Chairs

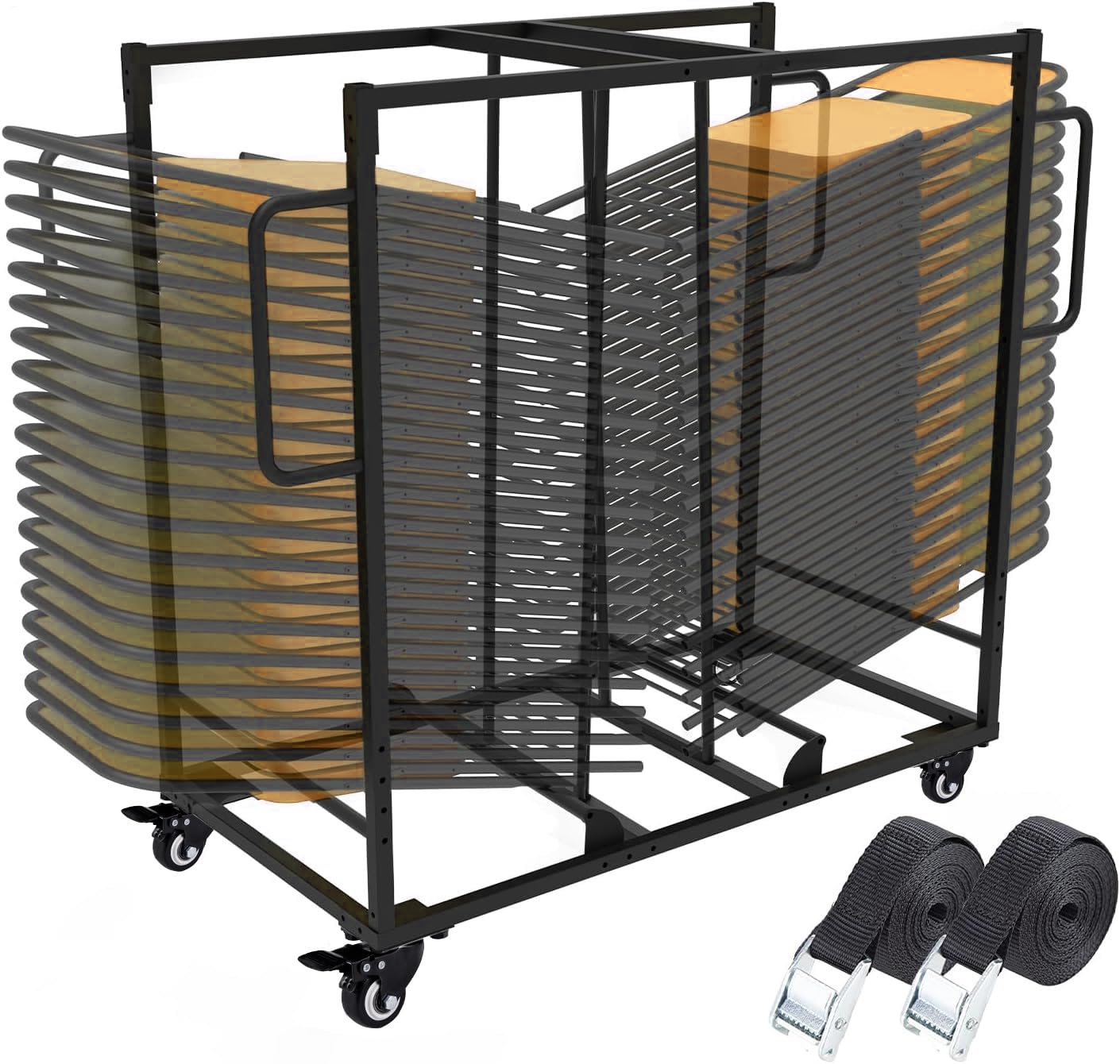

Image 5.1: The folding chair cart with stacked chairs, demonstrating the use of the two 1.5m fixed straps to improve stability and safety during transportation by preventing chairs from shifting.

• Once chairs are loaded, use the two provided 1.5m fixed straps to secure the stack of chairs to the cart frame.
• Thread the straps through the chair frames and around the cart's vertical supports, tightening them firmly to prevent movement during transport.

5.3 Moving the Cart

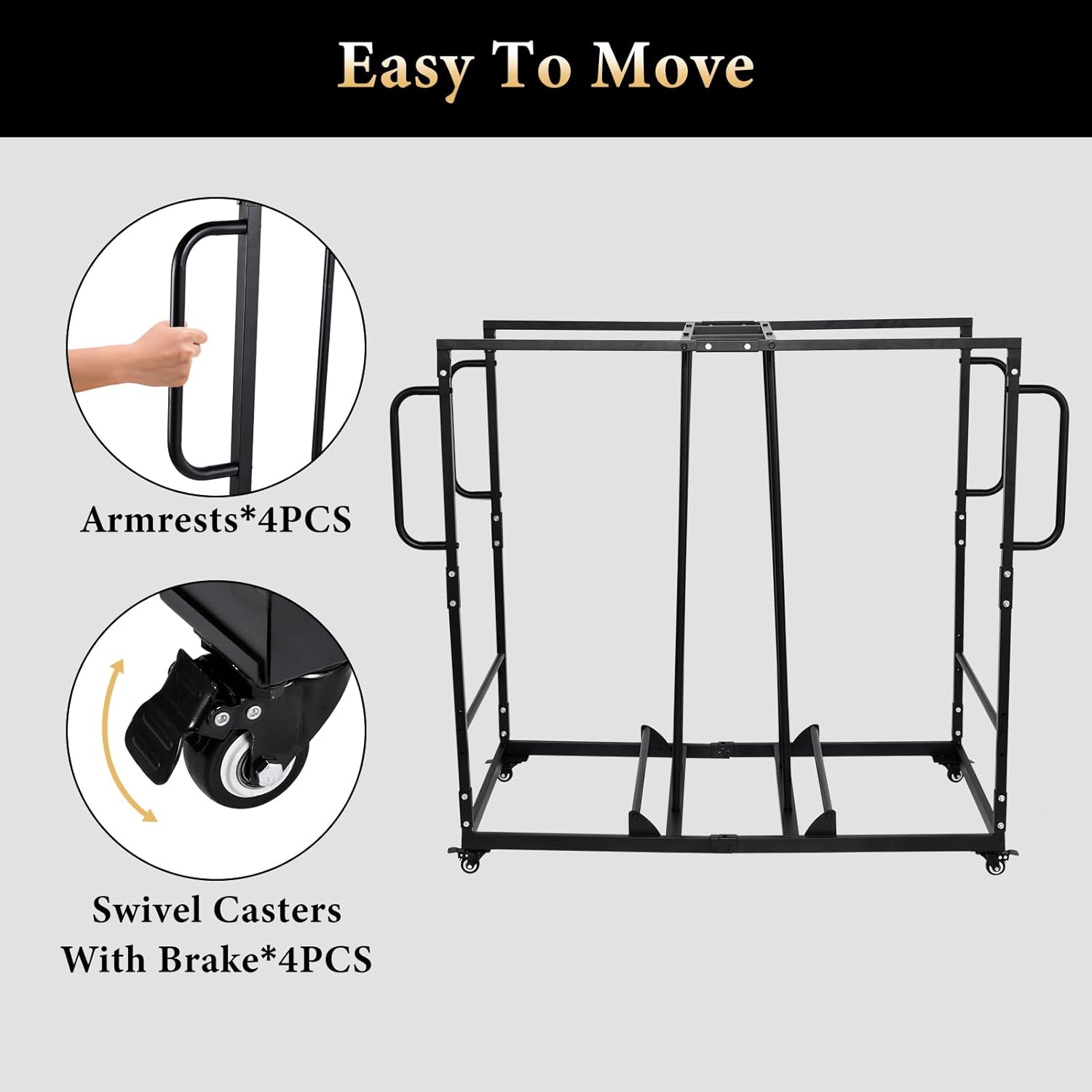

Image 5.2: Detail showing the four handrails for easy gripping and the four 4-inch swivel casters, each equipped with a brake, for effortless mobility and secure positioning.

• Release all four wheel brakes before moving the cart.
• Use the four handrails to push or pull the cart.
• Move the cart slowly and with caution, especially when navigating corners, ramps, or crowded areas.
• Engage the brakes once the cart is in its desired location for storage or unloading.

5.4 Өндөрийг тохируулах

• The cart features adjustable height settings for the chair support rods.
• To adjust, unload chairs, loosen the fasteners securing the support rods, and reposition them to the desired height (6", 8", 10", or 12").
• Securely tighten all fasteners after adjustment.

6. Засвар үйлчилгээ

• Цэвэрлэгээ: Wipe down the carbon steel frame with a damp шаардлагатай бол даавуугаар арчина. Зүлгүүрийн цэвэрлэгчээс зайлсхий.
• Бэхэлгээ: Periodically check all bolts, screws, and clips for tightness. Retighten if necessary to ensure structural integrity.
• Дугуй: Inspect wheels and casters for wear or damage. Ensure they swivel freely and brakes engage properly. Lubricate moving parts if needed.
• Хадгалах: Store the cart in a dry environment to prevent rust, especially if not in regular use.

7. Алдаа засах

• Сагсыг зөөхөд хэцүү:
  • Check if wheel brakes are engaged.
  • Ensure wheels are free of debris and can swivel.
  • Verify the load does not exceed 500 lbs.
• Тэрэг тогтворгүй санагдаж байна:
  • Ensure chairs are evenly distributed.
  • Confirm all assembly fasteners are securely tightened.
  • Always use the fixed straps to secure the chairs.
• Chairs are not fitting properly:
  • Check the adjustable height settings of the support rods. Adjust as needed for your specific chair type.
  • Ensure chairs are folded correctly before stacking.

8. Техникийн үзүүлэлтүүд

9. Баталгаат хугацаа ба дэмжлэг

Information regarding product warranty and customer support is not available in this manual. Please refer to your purchase documentation or contact the retailer for details on warranty coverage and support options.
