Generic 13-inch Manual Meat Slicer Instruction Manual

1. Танилцуулга

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Generic 13-inch Manual Meat Slicer. Please read this manual thoroughly before operating the appliance and retain it for future reference. This commercial-grade slicer is designed for professional use in delis, restaurants, and commercial kitchens, capable of slicing meats, cheeses, and vegetables with precision.

2. Аюулгүй ажиллагааны чухал заавар

АНХААРУУЛГА: Эдгээр аюулгүй байдлын зааврыг дагаж мөрдөхгүй байх нь ноцтой гэмтэл эсвэл үхэлд хүргэж болзошгүй.

2.1 Ерөнхий аюулгүй байдал

• Always operate the slicer on a stable, level, and non-slip surface.
• Keep hands and fingers away from the blade at all times.
• Ensure all guards and safety features are in place and functioning correctly before operation.
• Never leave the slicer unattended while it is operating.
• Do not allow children or untrained personnel to operate the slicer.
• Wear appropriate personal protective equipment (PPE), including cut-resistant gloves, during operation and cleaning.

2.2 Цахилгааны аюулгүй байдал

• Connect the slicer only to a grounded electrical outlet with the correct voltagд бүтээгдэхүүний шошгон дээр заасан .
• Do not use extension cords unless absolutely necessary, and ensure they are rated for the appliance's power requirements.
• Never operate the slicer with a damaged power cord or plug.
• Unplug the slicer before cleaning, maintenance, or when not in use.

2.3 Blade Safety

• The blade is extremely sharp. Exercise extreme caution when handling or cleaning.
• Always engage the blade guard when the slicer is not in use or during cleaning.
• Never attempt to stop the blade with your hand.

3. Бүтээгдэхүүн дууссанview

The Generic 13-inch Manual Meat Slicer is a robust, stainless steel appliance designed for high-volume slicing. It features a powerful 1/2 HP motor, a precision-engineered 13-inch stainless steel blade, and an ergonomic manual carriage for controlled slicing. An integrated sharpener ensures the blade remains optimally sharp.

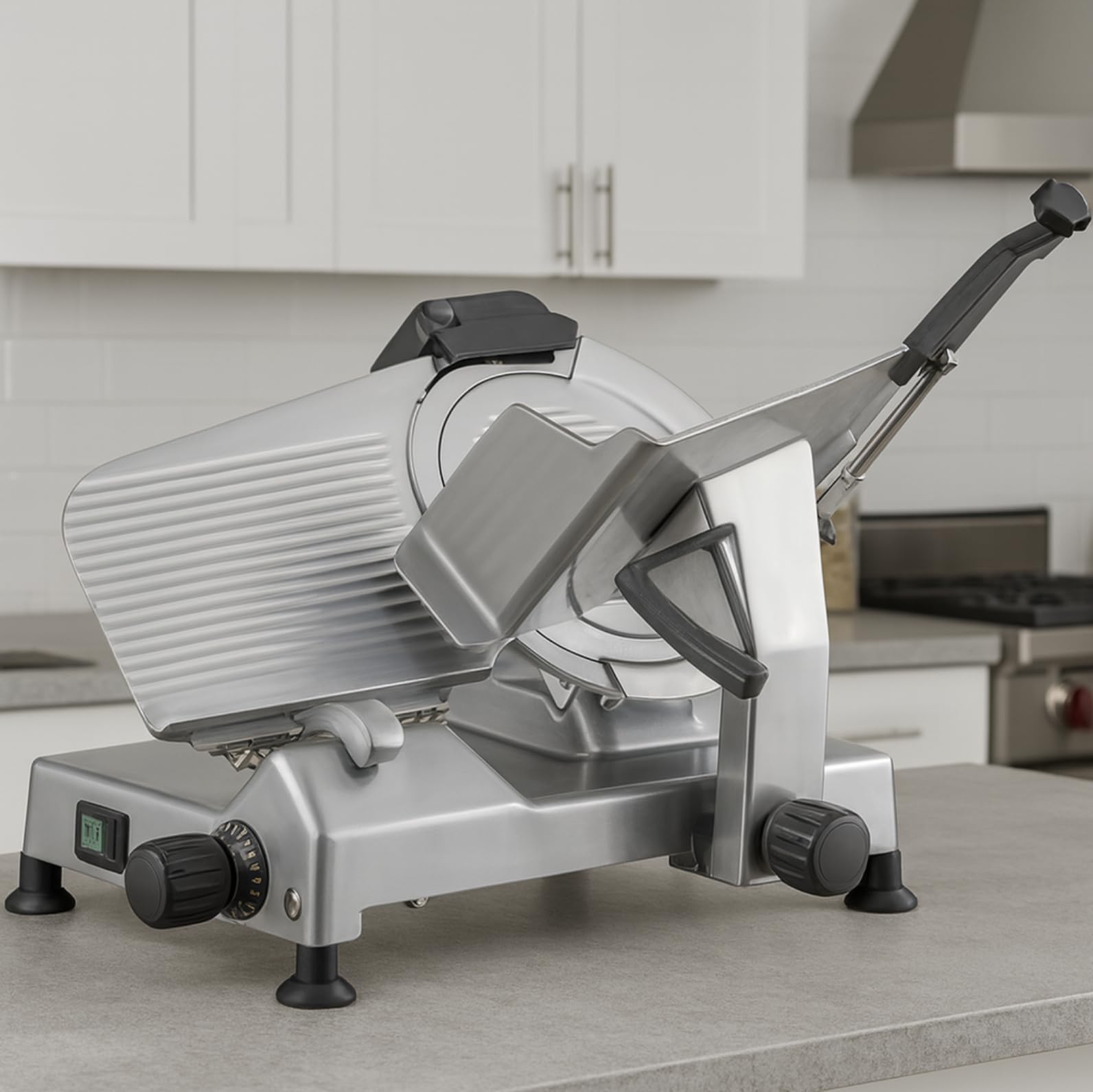

Зураг 1: Generic 13-inch Manual Meat Slicer. This image shows the stainless steel slicer positioned on a light-colored kitchen counter. The manual carriage and blade guard are visible, along with the power cord coiled on the counter. The overall design emphasizes durability and commercial utility.

4. Тохиргоо ба суурилуулалт

4.1 Савлах

1. Carefully remove the slicer from its packaging.
2. Inspect the slicer for any signs of damage during transit. If damaged, do not operate and contact your supplier immediately.
3. Хамгаалалтын хальс эсвэл зангиа зэрэг бүх сав баглаа боодлын материалыг ав.

4.2 Байршил

• Place the slicer on a sturdy, level, and non-slip surface capable of supporting its weight.
• Ensure adequate clearance around the slicer for ventilation and safe operation.
• Keep the slicer away from heat sources and water.

4.3 Эрчим хүчний холболт

• Цахилгаан хангамжийн хүчдэлтэй тохирч байгаа эсэхийг шалгана ууtage and frequency specified on the slicer's rating label.
• Цахилгааны утсыг газардуулсан цахилгааны залгуурт холбоно уу.

4.4 Анхны цэвэрлэгээ

• Before first use, thoroughly clean all food-contact surfaces with a mild detergent and warm water.
• Rinse thoroughly and dry completely. Refer to the 'Cleaning and Maintenance' section for detailed instructions.

5. Үйл ажиллагаа

5.1 Adjusting Slice Thickness

1. Ensure the slicer is unplugged when adjusting the thickness knob for safety.
2. Locate the thickness adjustment knob, typically on the side or front of the slicer.
3. Turn the knob clockwise for thinner slices and counter-clockwise for thicker slices. Start with a moderate setting and adjust as needed.

5.2 Хоолыг ачаалах

1. Place the food item (meat, cheese, or vegetable) onto the food carriage.
2. Secure the food item firmly against the product grip to prevent movement during slicing.

5.3 Slicing Procedure

1. Plug in the slicer and turn it ON using the power switch.
2. Using the manual carriage handle, push the food carriage back and forth across the rotating blade.
3. Apply steady, even pressure to the food item against the blade for consistent slices.
4. Collect sliced food from the receiving tray.
5. When finished, turn the slicer OFF and unplug it.

5.4 Яаралтай зогсолт

In case of an emergency, immediately turn off the power switch and unplug the unit from the electrical outlet.

6. Цэвэрлэгээ ба засвар үйлчилгээ

WARNING: Always unplug the slicer before cleaning or performing any maintenance.

6.1 Өдөр тутмын цэвэрлэгээ

Regular cleaning is crucial for hygiene and optimal performance. The slicer features removable components for easy cleaning.

1. Turn off and unplug the slicer.
2. Set the slice thickness knob to zero (closed position) to cover the blade edge.
3. Remove the food carriage and product grip.
4. Carefully wipe down the blade and all food-contact surfaces with a damp даавуу, зөөлөн, хүнсний аюулгүй угаалгын нунтаг.
5. Rinse with clean water and dry thoroughly with a clean cloth.
6. For stubborn residue, use a non-abrasive brush or scraper.
7. Reassemble all components once dry.

Product Care Instructions: Hand Wash Only for removable components.

6.2 Хутгыг хурцлах

This slicer includes an integrated sharpener to maintain a razor-sharp cutting edge. Sharpen the blade regularly, or when you notice a decrease in slicing efficiency.

1. Ensure the slicer is clean and unplugged.
2. Consult the specific instructions for engaging the integrated sharpener, typically involving rotating or positioning the sharpening stones against the blade.
3. Follow the manufacturer's guidelines for the duration and frequency of sharpening cycles.
4. After sharpening, clean the blade thoroughly to remove any metal particles.

6.3 Хяналт шалгалт

• Цахилгааны утсанд гэмтэл байгаа эсэхийг үе үе шалгана.
• Check all knobs and fasteners to ensure they are secure.
• Ensure the blade guard and other safety features are intact and functional.

7. Алдаа засах

8. Техникийн үзүүлэлтүүд

9. Баталгаат хугацаа ба дэмжлэг

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact your authorized dealer. Keep your purchase receipt as proof of purchase for any warranty claims.
