1. Танилцуулга
This manual provides instructions for the installation, operation, and maintenance of the Generic 46" Deck Engagement Clutch Cable. This component is designed to replace the original clutch cable in compatible lawn mower models, ensuring proper engagement and disengagement of the mower deck blades. Please read this manual thoroughly before attempting any installation or maintenance.
2. Аюулгүй байдлын мэдээлэл
Цахилгаан тоног төхөөрөмжтэй ажиллахдаа аюулгүй байдлыг үргэлж нэн тэргүүнд тавь. Аюулгүй ажиллагааны зааврыг дагаж мөрдөөгүй тохиолдолд ноцтой гэмтэл бэртэл авах эсвэл тоног төхөөрөмжид эвдрэл учруулж болзошгүй.
- Очлуур залгуурыг салгах: Засвар үйлчилгээ эсвэл суурилуулалт хийхээсээ өмнө хөдөлгүүрийг санамсаргүйгээр асаахаас сэргийлж оч залгуурын утсыг үргэлж салгаж байгаарай.
- Хамгаалалтын хэрэгсэл өмсөх: Use appropriate personal protective equipment, including gloves and eye protection.
- Зүлэгжүүлэгчийн гарын авлагыг үзнэ үү: Refer to your lawn mower's original owner's manual for specific safety procedures and instructions related to your model.
- Аюулгүй тоног төхөөрөмж: Ensure the lawn mower is on a flat, stable surface and cannot roll or tip during work.
- Зөв хэрэгслийг ашиглах: Use only the appropriate tools for the job to avoid damage to parts or injury.
3. Тохиромжтой байдал
This 46" Deck Engagement Clutch Cable is a direct replacement for various lawn mower models. Verify your mower's model number and the original part number against the list below to ensure compatibility.
Тохиромжтой хэсгийн дугаар:
- For AYP: 435111, 13261, 197257, 408714
- For Craftsman: 197257
- For Husqvarna: 532197257, 532408714, 532435111
- For Poulan: 408714
- For Ariens: 21547599
Compatible Mower Models:
- For Ariens: 93600, 936056, 936072, 936073, 936074, 936079, 936080, A20K46YT
- For Husqvarna: CT 126, LTH 1438, LTH 1538, LTH 18538, YT 16542, YT 1942, YT2046
- For AYP: LT2223A2, LZ11577, LZ11577HRB, LZ11577RB, P11577, P11577RB, P12510H, P145107HP, P18510H
- For Craftsman: YT3000, YT4000, YTS 4000, 3000, DYS4500, DY4500 Lawn Mower
- For Weed Eater: W14538 Lawn Tractor
4. Багцын агуулга
The package includes the following item:
- 1 x Deck Engagement Clutch Cable

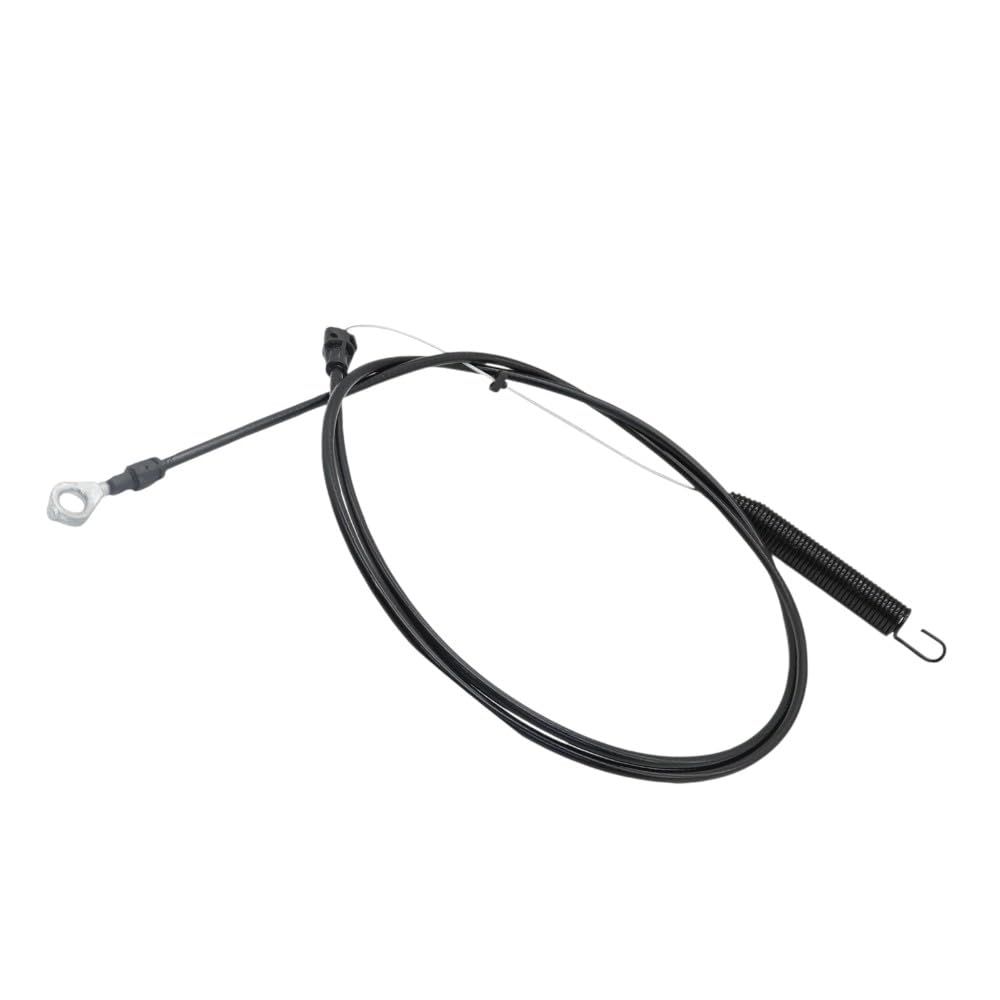

Image 1: The complete 46-inch deck engagement clutch cable, showing its overall length and components.
5. Тохиргоо ба суурилуулалт
Replacing the deck engagement clutch cable requires careful attention to detail. If you are unsure about any step, consult a qualified technician or your mower's service manual.
Шаардлагатай хэрэгслүүд (өөр байж болно):
- Түлхүүрүүд (янз бүрийн хэмжээтэй)
- бахө
- Халив
- Ажлын бээлий
- Хамгаалалтын шил
Суулгах алхамууд:
- Хадуур бэлтгэх: Park the lawn mower on a level surface. Engage the parking brake. Disconnect the spark plug wire to prevent accidental starting.
- Хуучин кабелийг олох: Identify the existing deck engagement clutch cable. It typically runs from the engagement lever near the operator's station down to the mower deck or a tensioning mechanism.
- Хуучин кабелийг салгах:
- Disconnect the cable from the engagement lever.
- Follow the cable's path, detaching it from any clips or guides.
- Disconnect the cable's lower end from the deck engagement mechanism. This usually involves removing a spring and an eyelet or Z-bend connection.

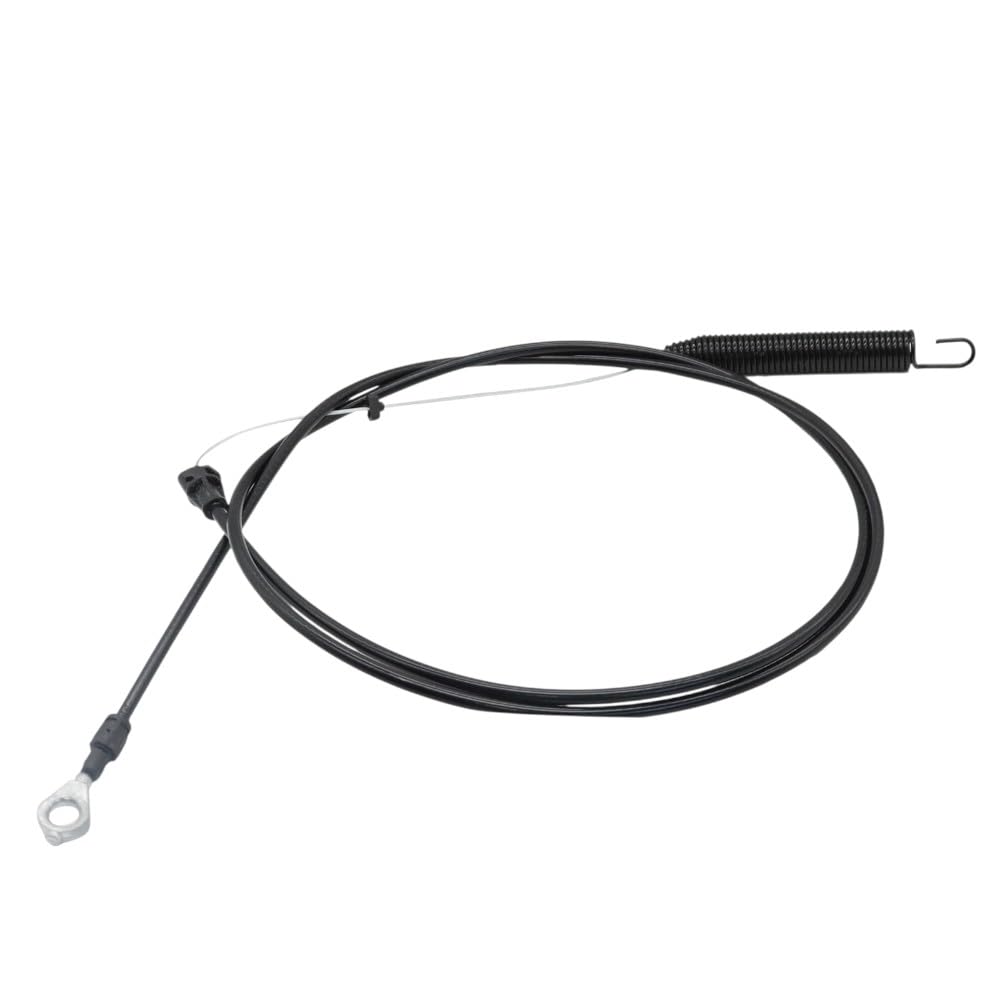

Image 2: Close-up of the spring end of the clutch cable, which connects to the deck engagement mechanism.

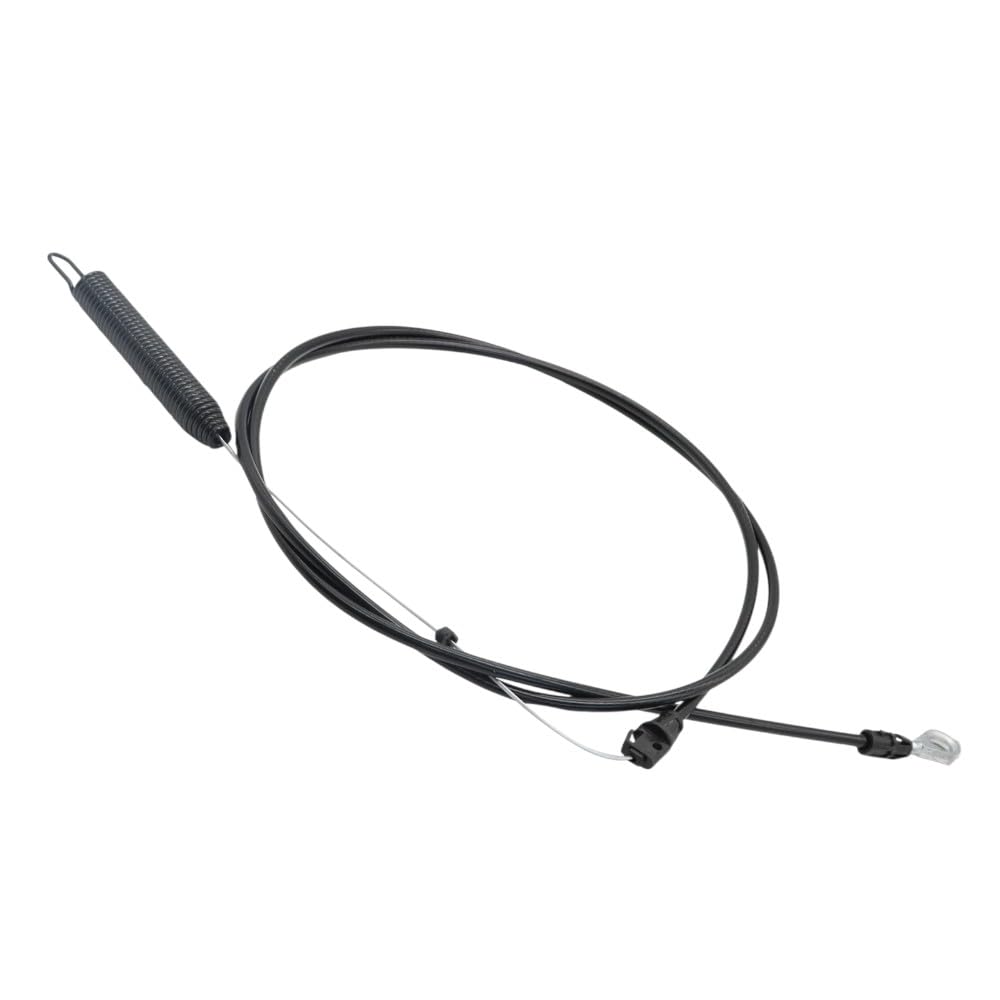

Image 3: Close-up of the eyelet end of the clutch cable, typically connecting to the engagement lever.
- Шинэ кабель суурилуулах:
- Attach the lower end of the new cable to the deck engagement mechanism, ensuring the spring is correctly seated.
- Route the new cable along the same path as the old one, securing it with any existing clips or guides. Ensure the cable is not pinched or kinked.
- Connect the upper end of the cable to the engagement lever.
Image 4: Detail of the cable's adjustment mechanism, allowing for fine-tuning of tension.
- Кабелийн хурцадмал байдлыг тохируулах: Most clutch cables have an adjustment point (often a threaded barrel or nut) to set the proper tension. Adjust the cable so that the deck engages smoothly and fully when the lever is activated, and disengages completely when released. Refer to your mower's manual for specific tensioning guidelines.
- Туршилтын ажиллагаа: Reconnect the spark plug wire. Start the engine and carefully test the deck engagement. Ensure the blades stop completely when disengaged and engage properly when activated. If operation is not smooth, readjust the cable tension.
6. Үйл ажиллагаа
Once installed, the deck engagement clutch cable facilitates the operation of your lawn mower's cutting deck. When the engagement lever is activated, the cable pulls on a mechanism that tensions the drive belt, causing the blades to spin. When the lever is released, the cable slackens, allowing the belt to loosen and the blades to stop.
- Сонирхолтой ирнүүд: Move the deck engagement lever to the 'Engage' or 'On' position.
- Disengaging Blades: Move the deck engagement lever to the 'Disengage' or 'Off' position. Ensure blades come to a complete stop before leaving the operator's position or performing any tasks near the deck.
7. Засвар үйлчилгээ
Regular inspection and minor maintenance can extend the life of your clutch cable and ensure safe operation.
- Тогтмол шалгах: Periodically check the cable for signs of wear, fraying, kinks, or damage to the outer casing.
- Тосолгоо: Apply a light lubricant (e.g., silicone spray or graphite) to the cable ends and any pivot points to ensure smooth operation. Avoid excessive lubrication that could attract dirt.
- Цэвэр байдал: Keep the cable and its routing path free from dirt, debris, and grass clippings.
- Зөв тохируулга: Ensure the cable tension remains correctly adjusted. An improperly tensioned cable can lead to premature wear or poor blade engagement.
8. Алдаа засах
If you experience issues with your deck engagement, consider the following common problems and solutions:
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Blades do not engage | Cable too loose; cable broken; mechanism seized | Adjust cable tension; replace cable; lubricate/repair mechanism |
| Blades do not disengage fully | Cable too tight; mechanism binding | Adjust cable tension; lubricate/repair mechanism |
| Кабель хатуу эсвэл наалдамхай мэдрэгддэг | Lack of lubrication; internal corrosion; kinked cable | Lubricate cable; replace cable if damaged |
| Cable breaks prematurely | Improper routing; excessive tension; manufacturing defect | Ensure correct routing and tension; contact seller if defect suspected |
9. Техникийн үзүүлэлтүүд
- Хэсгийн төрөл: Deck Engagement Clutch Cable
- Урт: Approximately 46 inches (as per product description)
- Үйлдвэрлэгч: VDH
- Брэнд: Ерөнхий
- Загварын дугаар: VDH-1126TD-0873
- Гадна: Стандарт
10. Баталгаат хугацаа ба дэмжлэг
For information regarding warranty coverage or technical support, please refer to the seller's policies or contact the seller directly through your purchase platform. Keep your purchase receipt as proof of purchase.
