Generic D7Uf1 Transmission Clutch Actuator Assembly Instruction Manual

Танилцуулга

This manual provides essential information for the installation, operation, and maintenance of the Generic D7Uf1 Transmission Clutch Actuator Assembly. This component is designed for specific Hyundai models from 2005 to 2023. The clutch actuator is a critical part of the vehicle's power transmission system, facilitating the engagement and disengagement of the clutch between the engine and the transmission for optimal vehicle operation.

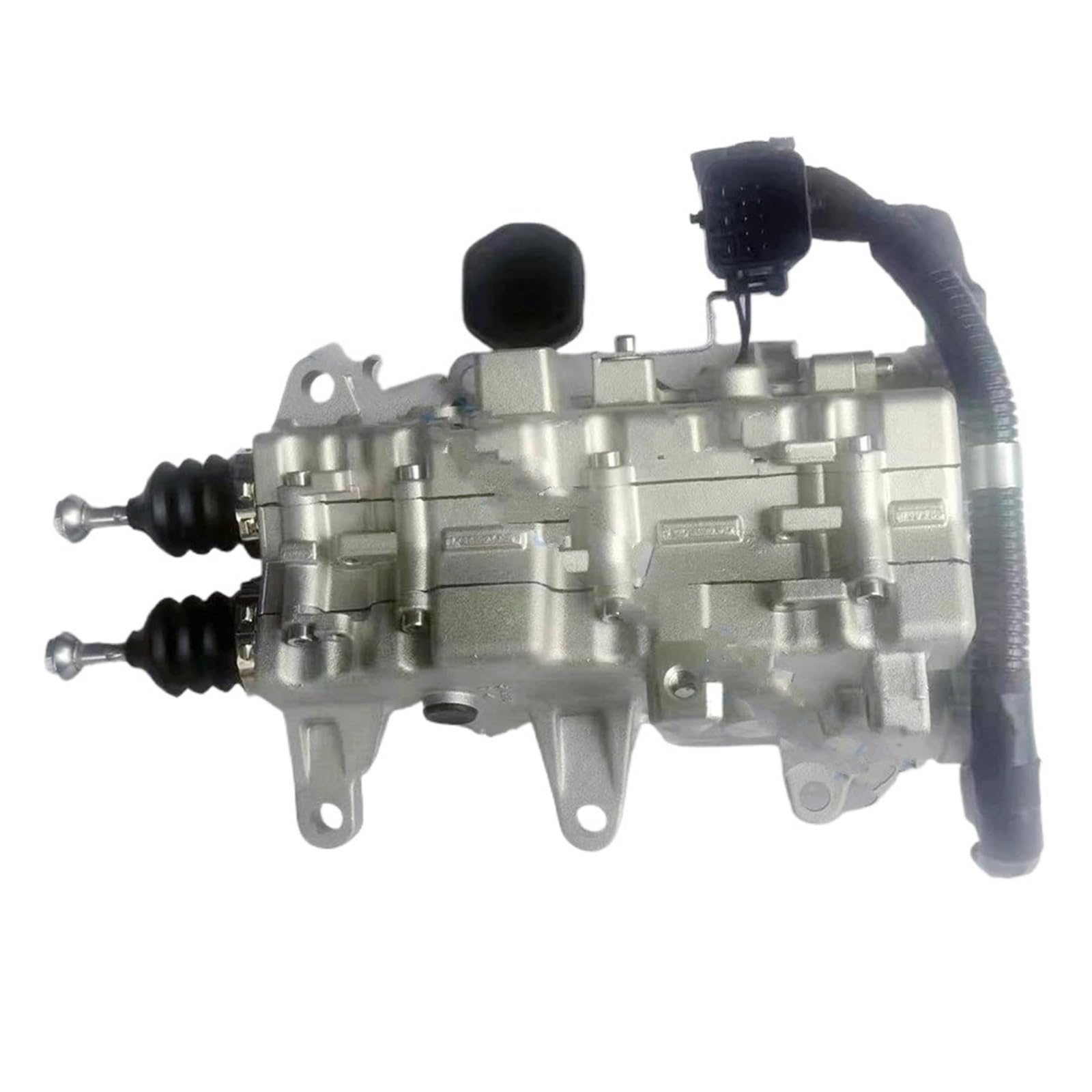

Зураг 1: Дууслааview of the D7Uf1 Transmission Clutch Actuator Assembly. This image shows the complete unit with its various components and mounting points.

Тохиргоо ба суурилуулалт

The D7Uf1 Transmission Clutch Actuator Assembly is designed for direct replacement. While installation is generally straightforward, it is highly recommended that this procedure be performed by a qualified automotive technician to ensure proper function and safety. Incorrect installation can lead to vehicle malfunction or damage.

• Бэлтгэл: Ensure the vehicle is safely secured and the battery is disconnected before beginning any work.
• Устгах: Carefully remove the old clutch actuator assembly, noting the connections and mounting positions.
• Суурилуулалт: Position the new D7Uf1 actuator assembly. Align all mounting points and secure with appropriate fasteners. Connect all electrical connectors firmly.
• Суулгасны дараах шалгалт: After installation, reconnect the battery and perform a system check to verify proper operation. Consult your vehicle's service manual for specific calibration or diagnostic procedures if required.

Зураг 2: Хажуу тал view of the D7Uf1 Transmission Clutch Actuator, highlighting the electrical connector and mounting brackets. Ensure all connections are secure.

Үйл ажиллагааны зарчим

The clutch actuator is an integral part of the automatic transmission system. Its primary function is to control the engagement and disengagement of the clutch, which transmits power from the engine to the gearbox. This precise control allows for smooth gear changes and efficient power delivery, contributing to the overall performance and drivability of the vehicle.

The actuator receives signals from the vehicle's transmission control unit (TCU) to precisely manage clutch operation based on driving conditions, driver input, and engine speed. This ensures optimal power transfer and prevents damage to the transmission components.

Засвар үйлчилгээ

Regular inspection of the automatic transmission clutch and its actuator is crucial for maintaining vehicle performance and preventing premature wear. While the D7Uf1 actuator is designed for durability, periodic checks can help identify potential issues before they escalate.

• Харааны үзлэг: Periodically inspect the actuator for any signs of physical damage, corrosion, or loose connections.
• Шингэний алдагдал: Check for any signs of fluid leaks around the transmission and actuator area.
• Гүйцэтгэлийн хяналт: Pay attention to any unusual noises, vibrations, or changes in gear shifting behavior, which could indicate an issue with the clutch or actuator.
• Мэргэжлийн үзлэг: It is recommended to have your vehicle's transmission system, including the clutch actuator, inspected by a professional technician during routine vehicle servicing.

Зураг 3: Топ view of the D7Uf1 Transmission Clutch Actuator, showing the overall robust construction and material quality.

Алдааг олж засварлах

If you experience issues with your vehicle's transmission, such as rough shifting, delayed engagement, or warning lights, the clutch actuator may be a contributing factor. Here are some general troubleshooting steps:

• Оношлогооны алдааны кодуудыг (DTC) шалгах: Use an OBD-II scanner to check for any stored fault codes related to the transmission or clutch system.
• Холболтуудыг шалгах: Ensure all electrical connectors to the actuator are clean, secure, and free from corrosion.
• Шингэний түвшин: Verify that the transmission fluid level is correct and the fluid is in good condition.
• Мэргэжлийн оношлогоо: For persistent or complex issues, it is strongly recommended to seek diagnosis and repair from a certified automotive technician. They have specialized tools and knowledge to accurately identify and resolve transmission problems.

Үзүүлэлтүүд

Баталгаат хугацааны мэдээлэл

Specific warranty details for the Generic D7Uf1 Transmission Clutch Actuator Assembly are provided by the seller or manufacturer at the time of purchase. Please refer to your purchase documentation or contact the seller directly for comprehensive warranty terms and conditions. It is important to retain your proof of purchase for any warranty claims.

Хэрэглэгчийн дэмжлэг

For any questions, concerns, or assistance regarding the D7Uf1 Transmission Clutch Actuator Assembly, please contact the seller or manufacturer directly. Customer service is available to provide support and address any inquiries you may have.

Please note: Always provide your product model number (414702D011, 414702C210) and purchase details when contacting support for faster service.
