Generic Engine Cooling Radiator Fan Assembly User Manual

1. Аюулгүй байдлын мэдээлэл

Please read all safety instructions carefully before attempting to install or operate this product. Failure to follow these instructions may result in personal injury or damage to the product or vehicle.

• Мэргэжлийн суурилуулалтыг санал болгож байна: Due to the complexity of automotive systems, installation of this radiator fan assembly should be performed by a qualified professional.
• Батерейг салгах: Always disconnect the vehicle's battery terminals before beginning any electrical work to prevent electrical shock or short circuits.
• Хамгаалалтын хэрэгсэл өмсөх: Use appropriate personal protective equipment, including safety glasses and gloves, during installation.
• Халуун гадаргуу: Engine components can be extremely hot. Allow the engine to cool completely before working on the radiator fan.
• Хөдөлгөөнт хэсгүүд: The fan blades can cause serious injury. Ensure the engine is off and the fan is completely stopped before handling.
• Тээврийн хэрэгслийн нийцтэй байдал: Verify that this product is compatible with your specific vehicle make, model, and year before installation. Refer to the specifications section.

2. Бүтээгдэхүүн дууссанview

This Engine Cooling Radiator Fan Assembly is designed to provide efficient cooling for your vehicle's engine. It plays a critical role in maintaining optimal engine temperature by drawing air through the radiator, dissipating heat, and preventing overheating. The assembly is constructed from durable iron and ABS plastic, ensuring stable performance and resistance to aging and wear.

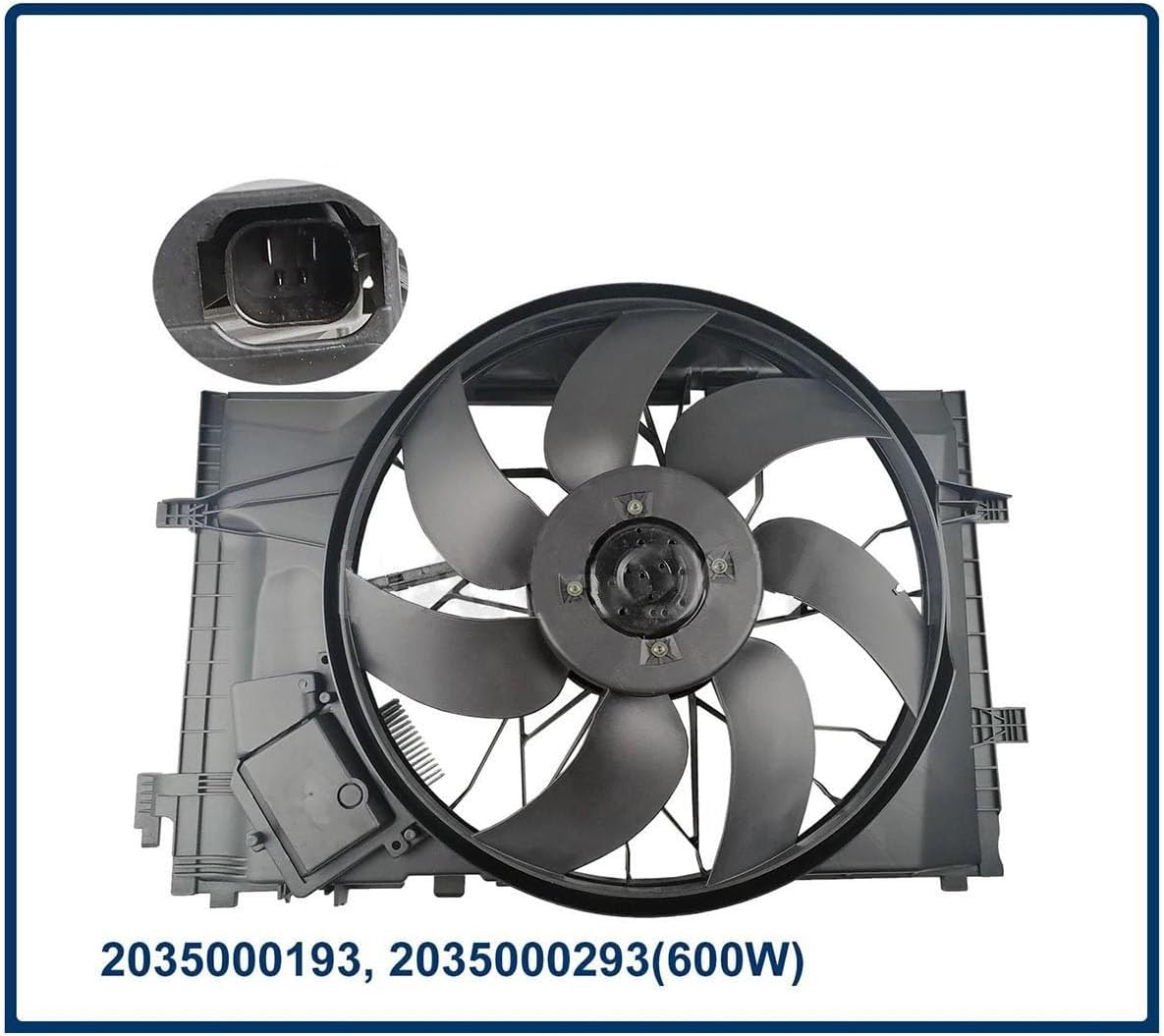

Зураг 2.1: Урд view of the radiator fan assembly, highlighting the main fan blades, shroud, and the electrical connector for power and control. This image shows the overall structure and the integrated wiring harness connection point.

Гол онцлогууд:

• Үр ашигтай хөргөлт: Delivers significant airflow to cool down engine components, radiator, and intercooler.
• Удаан эдэлгээтэй барилга: Made from high-quality iron and ABS plastic for long-lasting strength and durability.
• Дуу чимээ багатай ажиллагаа: Designed for quiet and efficient performance while providing strong airflow.
• Шууд тохируулга: Engineered for specific Mercedes-Benz C-Class W203 models for straightforward replacement.

3. Тохиргоо & Суурилуулалт

Installation of the radiator cooling fan assembly requires mechanical knowledge and specialized tools. It is strongly recommended that installation be performed by certified automotive technicians.

Суулгах ерөнхий алхамууд (Мэргэжлийн суулгахыг зөвлөж байна):

1. Бэлтгэл:
   • Ensure the vehicle's engine is completely cool.
   • Тээврийн хэрэгслийн батерейны сөрөг терминалыг салга.
   • Drain a portion of the coolant if necessary to access the radiator.
2. Remove Old Fan Assembly:
   • Locate and disconnect the electrical connector(s) for the existing fan.
   • Unbolt and carefully remove the old radiator fan assembly from its mounting points.
   • Be mindful of any hoses or wires that may be attached or routed near the fan.
3. Install New Fan Assembly:
   • Position the new fan assembly (Model 2035000293) into place, ensuring proper alignment with mounting holes.
   • Secure the fan assembly with the appropriate bolts, tightening them to the manufacturer's specifications.
   • Connect the electrical connector(s) firmly.
4. Эцсийн алхамууд:
   • Refill coolant if it was drained, and bleed the cooling system as per vehicle manufacturer guidelines.
   • Зайны сөрөг терминалыг дахин холбоно уу.
   • Start the engine and check for proper fan operation and any leaks.

Зураг 3.1: Тунгалаг урд тал view of the radiator fan assembly, showing the fan blades and the surrounding shroud. This perspective is useful for understanding the fan's physical dimensions and mounting points during installation.

4. Үйл ажиллагаа

The Engine Cooling Radiator Fan operates automatically, controlled by the vehicle's engine control unit (ECU) or a dedicated fan control module. Its primary function is to activate when the engine coolant temperature reaches a predetermined threshold or when the air conditioning system is engaged, ensuring optimal engine operating temperatures.

• Автоматаар идэвхжүүлэх: The fan will turn on and off as needed to maintain the engine's temperature within safe limits.
• Агаарын урсгалын чиглэл: The fan is designed to pull air through the radiator, drawing cooler air from the front of the vehicle over the radiator fins to dissipate heat.
• Хэвийн ажиллагаа: It is normal for the fan to cycle on and off, especially in stop-and-go traffic, during hot weather, or when the air conditioning is running.

Зураг 4.1: Өнцөг view of the radiator fan assembly, providing a perspective of its depth and how the fan motor is integrated into the shroud. This view helps in understanding the overall form factor for fitting into the engine bay.

5. Засвар үйлчилгээ

Regular inspection of the radiator fan assembly can help ensure its longevity and proper function. While the fan itself requires minimal maintenance, periodic checks are recommended.

• Харааны үзлэг: Periodically inspect the fan blades for any cracks, damage, or debris accumulation. Ensure the shroud is intact and securely mounted.
• Цахилгааны холболтууд: Check the electrical connector for corrosion, looseness, or damage. Ensure it is securely plugged in.
• Цэвэр байдал: Keep the fan blades and radiator fins free from excessive dirt, leaves, or other obstructions that could impede airflow. Use compressed air or a soft brush for cleaning.
• Ер бусын дуу чимээ: Listen for any unusual noises (e.g., grinding, squealing) coming from the fan, which could indicate a failing motor or bearing.

6. Алдаа засах

If you experience issues with your radiator fan, consult this section for common problems. For complex issues, professional diagnosis and repair are recommended.

7. Техникийн үзүүлэлтүүд

8. Дэмжлэг

For any concerns regarding your purchase, product compatibility, or technical assistance, please contact the seller or manufacturer directly. It is crucial to ensure the product fits your car before installation.

Manufacturer: hongfengymd

Note: This manual provides general guidance. Always refer to your vehicle's specific service manual for detailed procedures and safety precautions.
