Generic ZK-SMC05 Stepper Motor Pulse Controller User Manual

1. Танилцуулга

This manual provides detailed instructions for the installation, operation, and maintenance of the ZK-SMC05 Stepper Motor Pulse Controller. Please read this manual thoroughly before using the device to ensure proper functionality and safety.

Гол онцлогууд:

1.8 инчийн HD өнгөт дэлгэц: Provides clear display of operational parameters.
Silicone Key Design: Durable and responsive buttons for reliable operation.
Үйлдлийн давтамж: Supports 1Hz to 200,000Hz motor pulse frequency.
Харилцааны олон сонголтууд: Supports Modbus Serial, Bluetooth, and RS485 for versatile integration.
20 Motion Modes: Offers a variety of pre-programmed motion profiles for diverse applications.
Remote Firmware Upgrade: Allows for convenient updates to enhance functionality.
Олон төхөөрөмжийн удирдлага: Features dual-end control and rich interfaces for expandability.
Multi-Language Interface: Supports both Chinese and English display options.

2. Аюулгүй байдлын мэдээлэл

Төхөөрөмжийг гэмтээх, гэмтээхгүйн тулд дараах аюулгүй байдлын арга хэмжээг дагаж мөрдөнө үү.

Эрчим хүчний хангамжийн хэмжээг баталгаажуулна ууtage нь заасан үйлдлийн хэмжээтэй таарч байнаtage (12-24V DC).
Do not operate the device in environments exceeding the specified temperature range (-5°C to 60°C) or in condensing conditions.
All wiring should be performed by qualified personnel.
Disconnect power before making any wiring changes or performing maintenance.
Avoid exposing the device to moisture, dust, or corrosive substances.

3. Product Description and Specifications

The ZK-SMC05 is a versatile stepper motor pulse controller designed for precise motor control in various industrial and scientific applications. It features a user-friendly interface with a color screen and tactile buttons, along with advanced communication capabilities.

Техникийн үзүүлэлтүүд:

Загвар: ZK-SMC05
Үйл ажиллагааны ботьtage: 12-24V тогтмол гүйдэл
Гаралтын дохио: 4 outputs, 0V output voltage
Оролтын дохио: 4 limit switch inputs, 3 expansion button interfaces
Үйл ажиллагааны орчин: -5°C - 60°C (конденсацигүй)
Motor Pulse Frequency: 1 Гц-200,000 Гц
Дэлгэц: 1.8 инчийн өнгөт дэлгэц
Харилцаа холбоо: Modbus Serial, Bluetooth, RS485

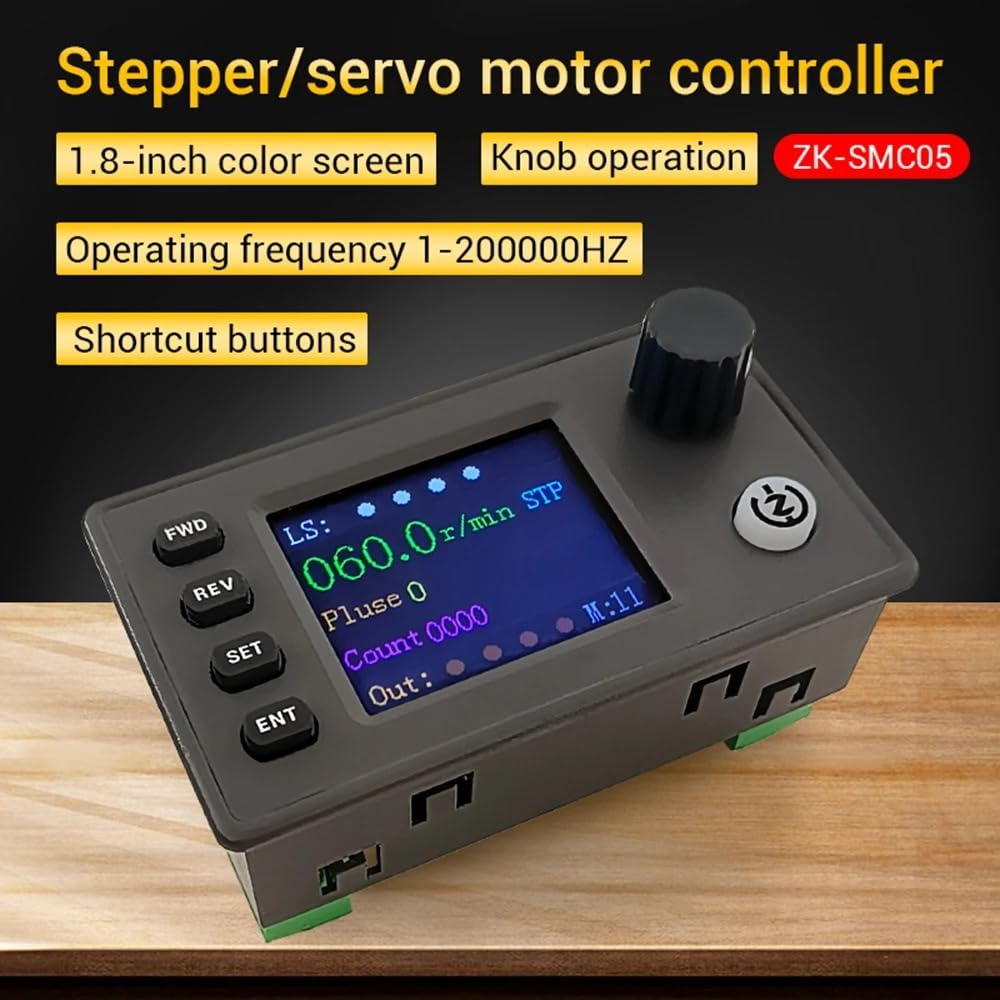

ZK-SMC05 Stepper Motor Pulse Controller with 1.8-inch color screen, knob, and shortcut buttons

Figure 3.1: ZK-SMC05 Stepper Motor Pulse Controller showing its 1.8-inch color screen, knob operation, operating frequency range, and shortcut buttons.

ZK-SMC05 Controller highlighting 20 sports modes, expansion button, limit switch, output control, and multi-language display

Figure 3.2: The ZK-SMC05 controller's display, emphasizing support for 20 motion modes, expansion buttons, limit switches, output control, and display in both Chinese and English.

4. Тохиргоо ба суурилуулалт

4.1. Утасны диаграм

Refer to the following diagrams for proper connection of power, inputs, and outputs.

Wiring diagram for ZK-SMC05 expansion interface showing NPN proximity switch connections and output drive signals

Figure 4.1: Expansion interface wiring diagram. This diagram illustrates how to connect NPN normally open proximity switches (brown wire to 24V, blue wire to 0V, black wire to limit interface X1/X2/X3/X4) and shows Y1-Y4 as output drive signals for indicator lights, solenoid valves, etc.

Detailed diagram of ZK-SMC05 controller's function introduction and extension interface

Figure 4.2: Function introduction and extension interface. This image labels the various components and connection points on the controller, including power supply (DC12-24V), limit switch inputs, expansion button inputs, output terminals, stepper/servo motor drive connections, and communication interfaces with pluggable terminals.

4.2. Холболтын заавар

Эрчим хүчний хангамж: Connect a 12-24V DC power source to the designated terminals. Observe polarity.
Мотор хөтөч: Connect the stepper or servo motor drive to the appropriate output terminals. Refer to your motor drive's manual for specific wiring.
Хязгаарын унтраалга: For NPN normally open proximity switches, connect the brown wire to 24V, the blue wire to 0V, and the black wire to the limit interface inputs (X1/X2/X3/X4).
Expansion Buttons: Connect external buttons to the expansion button interfaces as needed.
Outputs (Y1-Y4): These terminals provide output drive signals for external devices such as indicator lights or solenoid valves.
Харилцаа холбооны интерфейс: Use the Modbus Serial, Bluetooth, or RS485 interface for PC or app communication.

5. Үйл ажиллагаа

5.1. Үндсэн удирдлага

The ZK-SMC05 features a 1.8-inch color screen, a rotary knob, and several buttons for intuitive control:

Урд зүгт (Урагш): Initiates forward rotation.
REV (Урвуу): Initiates reverse rotation.
Тохируулах: Enters settings menu or confirms a selection.
ENT (Enter): Confirms input or selection.
Хаалганы бариул: Used for navigation, adjusting values, and starting/stopping motion (press).

5.2. Дэлгэцийн үзүүлэлтүүд

The screen displays various parameters and indicators:

LS: Limit input indication.
Судасны цохилт: Current pulse count.
Тоо: Total count.
Гарсан: Output switch indication.
Communication Indication: Shows status of communication (e.g., Bluetooth, RS485).
Хөдөлгөөний горим: Displays the currently selected motion mode.

5.3. Motion Modes

The controller supports 20 distinct motion modes. These modes can be selected and configured via the SET button and knob. Refer to the on-screen menu for detailed descriptions and parameter adjustments for each mode.

ZK-SMC05 controller display showing 20 sports modes and remote firmware upgrade capability

Figure 5.1: The ZK-SMC05 display highlighting its 20 motion modes and the ability for remote firmware upgrades, covering various usage scenarios.

5.4. PC and App Communication

The ZK-SMC05 can be controlled and configured using a PC application or an Android mobile application via Modbus Serial, Bluetooth, or RS485. This allows for advanced parameter setting, real-time monitoring, and remote control.

ZK-SMC05 controller connected to PC and Android app interfaces for control and firmware upgrade

Figure 5.2: The ZK-SMC05 controller demonstrating compatibility with PC and Android applications for control, firmware upgrades, and wireless Bluetooth operation. The image shows both a desktop application interface and a mobile app interface.

5.5. Програм хангамжийн шинэчлэл

The controller supports remote firmware upgrades, allowing users to update the device with the latest features and improvements. Instructions for firmware upgrades are typically provided with the upgrade package or through the official support channels.

6. Засвар үйлчилгээ

Цэвэрлэгээ: Төхөөрөмжийг цэвэрлэхийн тулд зөөлөн, хуурай даавуу ашиглана уу. Зүлгүүрийн цэвэрлэгч, уусгагчийг бүү ашигла.
Байгаль орчин: Ашиглалтын орчин нь тогтоосон температур, чийгшлийн хязгаарт байгаа эсэхийг шалгаарай.
Холболтууд: Бүх холболтын битүүмжлэл болон элэгдлийн шинж тэмдгийг үе үе шалгаж байгаарай.

7. Алдаа засах

Эрчим хүчгүй: Цахилгаан хангамжийн холболт болон боть шалгахtage. Ensure the power adapter is functioning correctly.
Мотор хөдөлдөггүй: Verify motor drive connections, motor parameters, and selected motion mode. Check for limit switch activation.
Харилцааны асуудлууд: Ensure correct communication protocol (Modbus, Bluetooth, RS485) is selected and configured. Check cable connections or Bluetooth pairing.
Дэлгэцийн алдаа: If the display shows unusual characters or is unresponsive, try power cycling the device.

For persistent issues, refer to the official product support resources or contact customer service.

8. Баталгаат хугацаа ба дэмжлэг

This product comes with a standard manufacturer's warranty. Please retain your proof of purchase for warranty claims. For technical support, troubleshooting assistance, or warranty inquiries, please contact the vendor or manufacturer directly through their official support channels.
