RadioShack Matching Transformer
Загвар: 1501253
Хэрэглэгчийн гарын авлага
Танилцуулга
This manual provides comprehensive instructions for the proper installation, operation, and maintenance of your RadioShack Matching Transformer Model 1501253. Please read this manual thoroughly before using the device to ensure safe and efficient performance. A matching transformer is designed to convert impedance between two circuits, typically used to connect a 300-ohm twin-lead antenna to a 75-ohm coaxial cable input on a television or other receiver.

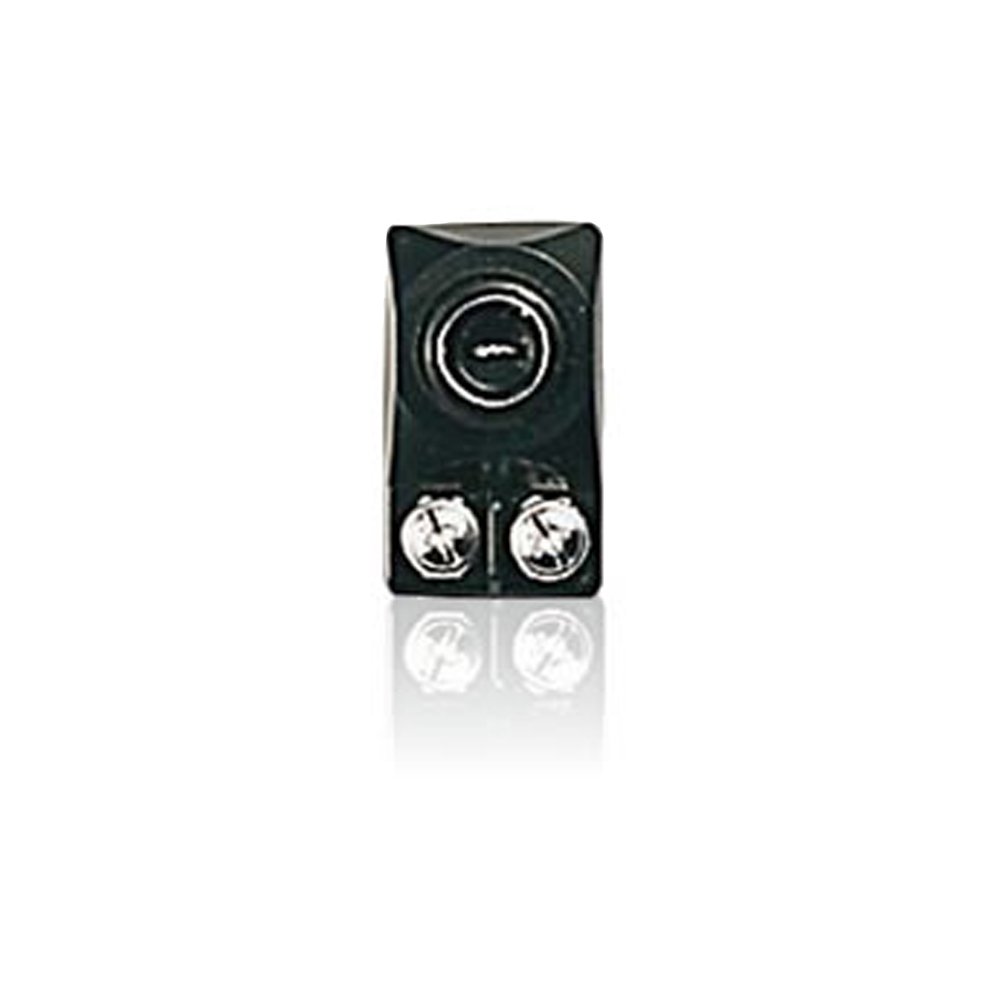

Figure 1: RadioShack Matching Transformer Model 1501253. This image displays the RadioShack Matching Transformer Model 1501253, showing its compact design and connection points.
Тохиргоо
- Холболтуудыг тодорхойлох: Locate the 300-ohm screw terminals and the 75-ohm coaxial connector (F-type) on the matching transformer.
- Антен холбох: Attach the 300-ohm twin-lead antenna wires to the screw terminals on the matching transformer. Ensure a secure connection by tightening the screws.
- Хүлээн авагчтай холбогдох: Connect a 75-ohm coaxial cable (not included) to the F-type connector on the matching transformer. Then, connect the other end of the coaxial cable to the antenna input (usually labeled "Antenna In" or "RF In") on your television, VCR, or digital converter box.
- Аюулгүй байршуулалт: Position the transformer and cables to avoid strain or damage. Ensure connections are not exposed to excessive moisture or extreme temperatures.
Ажиллаж байна
The RadioShack Matching Transformer Model 1501253 is a passive device and requires no external power. Once properly connected, it automatically converts the impedance. Its operation is seamless and requires no user interaction beyond initial setup.
- Дохио дамжуулалт: The transformer facilitates efficient signal transfer from your 300-ohm antenna to your 75-ohm input device.
- Дохионы чанар: Proper impedance matching helps minimize signal loss and reflections, leading to improved picture and sound quality.
Засвар үйлчилгээ
The matching transformer requires minimal maintenance to ensure long-term performance.
- Цэвэрлэгээ: Periodically wipe the exterior of the transformer with a soft, dry cloth to remove dust. Do not use liquid cleaners or solvents.
- Холболт шалгах: Occasionally inspect the antenna and coaxial cable connections to ensure they remain tight and free from corrosion. Loose connections can degrade signal quality.
- Байгаль орчныг хамгаалах: Keep the transformer away from direct sunlight, excessive heat, and moisture.
Алдааг олж засварлах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Зураг/дууны чанар муу | Loose or corroded connections. Incorrect antenna orientation. Damaged cables. | Check all connections for tightness and corrosion. Adjust antenna direction. Inspect cables for damage and replace if necessary. |
| Дохио алга | Disconnected cables. Incorrect input selected on TV. Transformer failure (rare). | Ensure all cables are securely connected. Verify the TV input is set to the correct source (e.g., "Antenna" or "TV"). If all else fails, consider replacing the transformer. |
Үзүүлэлтүүд
- Загвар: 1501253
- Оролтын эсэргүүцэл: 300 Ohms (Twin-lead)
- Гаралтын эсэргүүцэл: 75 Ohms (Coaxial F-type)
- Хэмжээ: Approximately 5.55 x 4.97 x 0.54 inches (based on package dimensions, actual product may be smaller)
- Жин: Ойролцоогоор 2.83 унц
- Тохиромжтой байдал: Designed for VHF/UHF antennas
Баталгаат болон дэмжлэг
This RadioShack Matching Transformer Model 1501253 is typically covered by a limited warranty against defects in materials and workmanship. Please refer to the original product packaging or retailer's policy for specific warranty terms and duration. For technical support or further assistance, please contact the retailer or manufacturer's customer service department.
Note: Warranty details may vary based on purchase location and date. Keep your proof of purchase for warranty claims.
