1. Танилцуулга
This manual provides essential instructions for the safe and effective use of your Leica V-LUX 20 digital camera. Please read it thoroughly before operating the camera and keep it for future reference. The Leica V-LUX 20 is a 12.1-megapixel digital camera featuring a 12x optical zoom lens and a 3.0-inch LCD, designed for high-quality photography and HD video recording.
2. Аюулгүй байдлын мэдээлэл
- Батерейны аюулгүй байдал: Use only the specified Lithium-Ion battery and charger. Do not expose batteries to excessive heat, direct sunlight, or dispose of them in fire. Keep batteries out of reach of children.
- Усны эсэргүүцэл: Энэ камер нь үгүй Усанд тэсвэртэй. Ус эсвэл өндөр чийгшилд өртөхөөс зайлсхий.
- Линзний арчилгаа: Do not touch the lens surface directly. Clean with a soft, lint-free cloth designed for optical lenses.
- Үйл ажиллагааны орчин: Avoid using the camera in extreme temperatures, dusty environments, or near strong magnetic fields.
- Салгах: Камерыг задлах, өөрчлөхийг бүү оролд. Бүх үйлчилгээг мэргэшсэн боловсон хүчинд шилжүүлээрэй.
3. Эхлэх болон тохируулах
3.1. Батерейг цэнэглэж байна
Insert the Lithium-Ion battery into the supplied charger and connect the charger to a power outlet. The charging indicator will show the charging status. Ensure the battery is fully charged before first use.
3.2. Санах ойн картыг оруулах
The camera supports SD, SDHC, and SDXC memory cards. Open the battery/card compartment cover. Insert the memory card into the slot with the contacts facing the correct direction until it clicks into place. Close the cover securely.
Note: A memory card is not included with the camera and must be purchased separately.
3.3. Анхдагч асаалт ба тохиргоо
Slide the ON/OFF switch to the ON position. Upon first power-on, you may be prompted to set the language, date, and time. Follow the on-screen instructions using the directional pad and MENU/SET button.
Зураг: Топ view of the Leica V-LUX 20 camera. This image displays the camera's top panel, highlighting the ON/OFF slide switch on the right, the shutter button, and the mode dial with various shooting options like P, A, S, M, SCN, MS1, MS2, and CUST. The zoom lever (W/T) is integrated around the shutter button.
4. Камерыг ажиллуулах
4.1. Камерын хяналт дууссанview

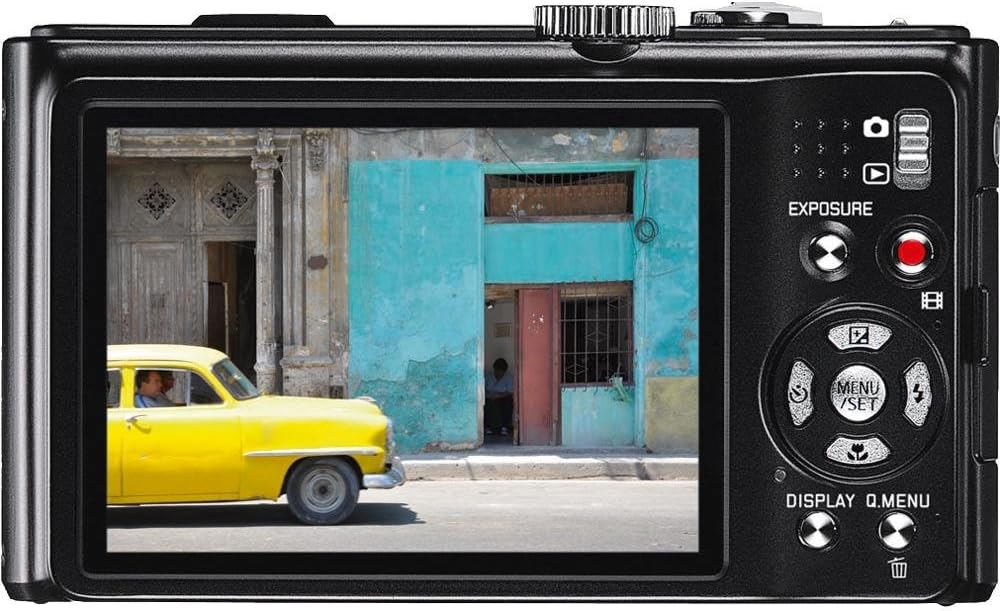

Зураг: Арын view of the Leica V-LUX 20 camera. This image shows the 3.0-inch LCD screen, the exposure compensation button, the dedicated video record button, and the directional pad with MENU/SET, DISPLAY, and Q.MENU functions. The zoom controls are also visible on the right side of the screen.
Үндсэн удирдлагатай танилц:
- ON/OFF унтраалга: Located on the top panel, used to power the camera on or off.
- Хөшигний товчлуур: Төвлөрөхийн тулд хагасыг, зураг авахын тулд бүрэн дарна уу.
- Томруулах хөшүүрэг (W/T): Surrounds the shutter button, used to adjust the 12x optical zoom (W for wide, T for telephoto).
- Залгах горим: Selects various shooting modes (Program, Aperture Priority, Shutter Priority, Manual, Scene, Custom).
- MENU/SET Button: Accesses the camera's menu system and confirms selections.
- Чиглэлийн дэвсгэр: Navigates through menus and settings. Also controls flash, self-timer, and exposure compensation in shooting mode.
- DISPLAY/Q.MENU Button: Toggles display information or accesses the Quick Menu for common settings.
- Видео бичлэгийн товчлуур: Dedicated button for starting and stopping video recording.
4.2. Autofocus and Exposure
The camera features automatic exposure control and various autofocus modes including Multi, Center-weighted, and Spot metering. The autofocus system uses TTL (Through-The-Lens) detection with 11 autofocus points. For optimal focus, press the shutter button halfway until the focus indicator appears.
4.3. Flash горимууд
The built-in flash offers several modes, including Auto and scene-specific flash modes. Access flash settings via the directional pad or Quick Menu to select the appropriate mode for your lighting conditions.
5. Буудлагын горимууд
The mode dial on the top of the camera allows you to select different shooting modes:
- Автомат горим: The camera automatically sets all parameters for optimal results.
- AE (P) хөтөлбөр: Камер нь диафрагм болон хаалтын хурдыг тохируулдаг боловч та бусад тохиргоог өөрчилж болно.
- Диафрагмын тэргүүлэх чиглэл AE (A): Та диафрагмыг тохируулж, камер нь Хөшигний хурдыг тохируулна.
- Хөшигний тэргүүлэх чиглэл AE (S): Та Хөшигний хурдыг тохируулж, камер нь диафрагмыг тохируулдаг.
- Гараар өртөх (M): Та диафрагм болон Хөшигний хурдыг хоёуланг нь хянадаг.
- Үзэгдлийн горимууд (SCN): Pre-set modes for specific situations (e.g., Portrait, Landscape, Sports) to optimize settings automatically.
- Custom Modes (CUST, MS1, MS2): Allows you to save and quickly recall your preferred camera settings.
The camera captures images at 12.1 megapixels and supports JPEG file format. Optical Image Stabilization helps reduce blur from camera shake.

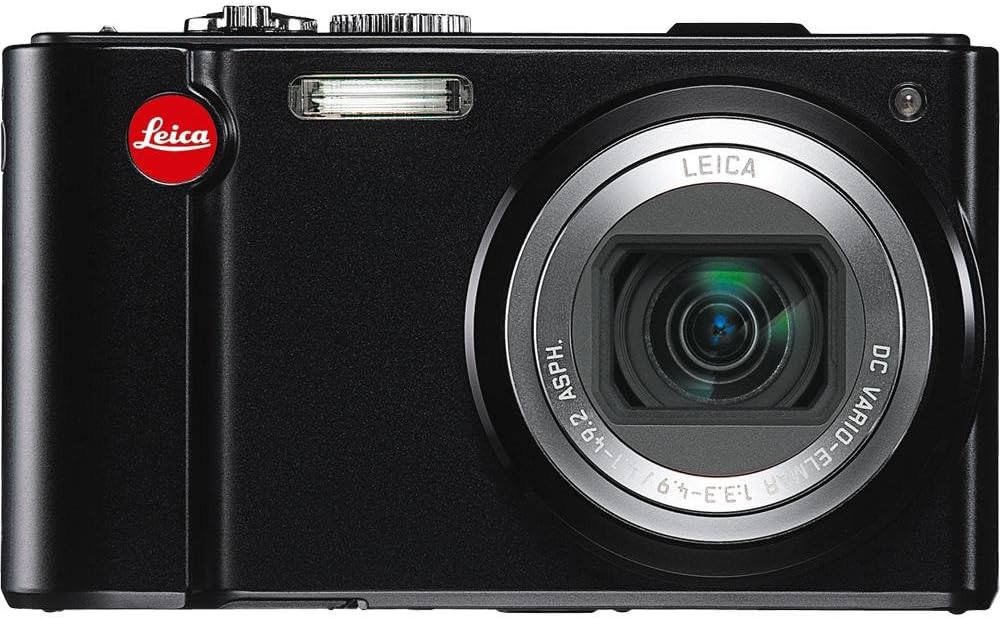

Зураг: Урд view of the Leica V-LUX 20 camera. This image showcases the camera's 12x Leica DC Vario-Elmar optical zoom lens, the built-in flash, and the Leica branding. The lens is shown in an extended position, indicating its zoom capability.
6. Видео бичлэг хийх
The Leica V-LUX 20 can record high-definition video. To start recording, press the dedicated red video record button on the back of the camera. Press it again to stop recording.
- Видеоны нягтрал: Supports 720p HD video at 60 frames per second (1280 x 720), as well as lower resolutions like 848 x 480 (30 fps), 640 x 480 (30fps), and 320 x 240 (30 fps).
- Zoom during Video: The 12x optical zoom can be used while recording video.
- File Формат: Videos are saved in MJPEG format.
7. Дахин тоглуулах
руу view your photos and videos, slide the power switch to the 'Play' position (or press the playback button if available, though the review mentions a slide switch for viewing stored pictures). Use the directional pad to navigate through your captured media. You can zoom in on photos or play videos using the controls.
8. Бусад төхөөрөмжид холбогдох
8.1. USB холболт
Connect the camera to a computer using a USB cable (not included) to transfer photos and videos. The camera is compatible with USB 2.0 devices. Your computer will recognize the camera as a removable storage device.
8.2. HDMI гаралт
Камерыг HDTV эсвэл дэлгэцтэй холбохын тулд HDMI кабель (дагалдах хэрэгсэлд ороогүй болно) ашиглана уу viewing your media on a larger screen. The camera features a built-in HDMI port.
9. Засвар үйлчилгээ, арчилгаа
- Камерын их биеийг цэвэрлэх: Камерын их биеийг зөөлөн, хуурай даавуугаар арчина. Зөрүүд бохирдсон тохиолдолд бага зэрэг чийгтэй даавуугаар арчина.amp даавуу, дараа нь сайтар хатаана.
- Линз цэвэрлэх: Use a lens brush to remove dust, then gently wipe with a lens cleaning cloth. Avoid using abrasive materials.
- LCD дэлгэц цэвэрлэх: Use a soft, dry cloth. For smudges, use a screen cleaner specifically designed for LCDs.
- Батерей хадгалах: Хэрэв камерыг удаан хугацаагаар хадгалах юм бол зайгаа салга. Батерейг сэрүүн, хуурай газар хадгална.
- Хадгалах: Камерыг нарны шууд тусгал, хэт температураас хол, хуурай, агааржуулалт сайтай газар хадгална.
10. Алдаа засах
| Асуудал | Боломжит шалтгаан / шийдэл |
|---|---|
| Камер асахгүй байна. | Battery may be depleted. Recharge the battery. Ensure the battery is inserted correctly. |
| Зураг авах боломжгүй. | Memory card may be full or not inserted correctly. Check card status or replace. Battery may be low. |
| Зургууд бүдэг байна. | Ensure optical image stabilization is active. Check focus. Use a faster shutter speed in low light. |
| Флэш асахгүй. | Flash mode may be set to 'Off' or 'Red-eye Reduction' (which delays firing). Check flash settings. |
| Компьютерт холбогдох боломжгүй байна. | Ensure USB cable is securely connected. Check computer's USB port. Try a different USB cable. |
11. Техникийн үзүүлэлтүүд
- Загварын нэр: V-LUX 20
- Фото мэдрэгчийн нягтрал: 12.1 МП
- Мэдрэгчийн төрөл: CCD (1/2.33 inches)
- Оптик томруулалт: 12x
- Линз: Leica DC Vario-Elmar 1:3.3-4.9 / 4.1-49.2mm ASPH (25-300mm equivalent in 35mm format)
- Зураг тогтворжуулах: Оптик
- Дэлгэцийн хэмжээ: 3.0 Inches LCD (460,800 dots)
- Дэмжигдсэн File Форматууд: JPEG (Stills), MJPEG (Video)
- Видеоны нягтрал: 1280 x 720 хүртэл (60 кадр/сек)
- Хадгалах медиа: SD/SDHC/SDXC картууд
- Холболт: HDMI, USB 2.0
- Зайны төрөл: Лити ион
- Барааны жин: 7.68 унц
- Онцлог шинж чанарууд: GPS module for geographical data registration.
12. Баталгаат хугацаа ба дэмжлэг
For warranty information and technical support, please refer to the documentation provided at the time of purchase or visit the official Leica website. Contact Leica customer service for assistance with product issues or repairs.
