Leica 50mm f/1.4 Summilux-M Aspherical Manual Focus Lens (11891)

1. Танилцуулга

This manual provides essential information for the proper use and care of your Leica 50mm f/1.4 Summilux-M Aspherical Manual Focus Lens (Model 11891). This high-performance lens is designed for Leica M-mount cameras, offering exceptional image quality and precise manual control. It features an advanced optical design with aspherical elements and a floating element system for consistent performance across all focusing distances.

Зураг 1: Өнцөг view of the Leica 50mm f/1.4 Summilux-M Aspherical Lens, showing aperture and focus rings.

2. Тохиргоо

2.1 Линзийг бэхлэх

1. Ensure both the camera and lens are clean and free of dust.
2. Align the red dot on the lens barrel with the corresponding red dot on your Leica M-mount camera body.
3. Gently insert the lens into the camera mount.
4. Rotate the lens clockwise until it clicks securely into place. Do not force the lens.

2.2 Линзийг арилгах

1. Камерын бие дээрх линз суллах товчийг дараад барина уу.
2. Rotate the lens counter-clockwise until it stops.
3. Gently pull the lens straight out from the camera mount.
4. Immediately attach the front and rear lens caps to protect the lens elements.

Figure 2: Rear lens cap with Leica logo, used for protecting the rear element when the lens is not mounted.

2.3 Using the Built-in Lens Hood

The lens features a built-in, retractable lens hood. To deploy, gently pull the hood forward until it locks into position. To retract, push it back towards the lens barrel until it clicks. The lens hood helps to reduce flare and ghosting caused by stray light and provides physical protection to the front element.

3. Линзийг ажиллуулах

3.1 Апертурын хяналт

The aperture is controlled by rotating the aperture ring located at the front of the lens. The ring is marked with f-stops from f/1.4 to f/16. Rotate the ring to select your desired aperture. Smaller f-numbers (e.g., f/1.4) indicate a wider aperture, allowing more light and producing a shallower depth of field. Larger f-numbers (e.g., f/16) indicate a narrower aperture, allowing less light and producing a greater depth of field.

Зураг 3: Урд view of the lens, highlighting the aperture ring (top) and focus ring with distance scales.

3.2 Manual Focusing

This is a manual focus lens. Focus is adjusted by rotating the focus ring. The lens features a focus tab for quick and precise adjustments. The focus ring has distance markings in both meters (m) and feet (feet). For optimal sharpness, use your camera's rangefinder or live view focusing aids.

Зураг 4: Хажуу тал view of the lens, showing the ergonomic focus tab for manual focusing.

3.3 Depth of Field Scale

The lens includes a depth of field scale, which helps in estimating the range of acceptable sharpness at different apertures and focus distances. Align the chosen aperture value on the scale with the corresponding distance markings to determine the near and far limits of your depth of field.

4. Засвар үйлчилгээ

4.1 Cleaning the Lens Elements

• Use a blower brush to remove loose dust and particles from the front and rear lens elements.
• For smudges or fingerprints, apply a small amount of lens cleaning fluid to a clean, soft microfiber cloth.
• Gently wipe the lens surface in a circular motion from the center outwards. Avoid excessive pressure.
• Хэзээ ч зүлгүүрийн материал эсвэл хүчтэй химийн бодис хэрэглэж болохгүй.

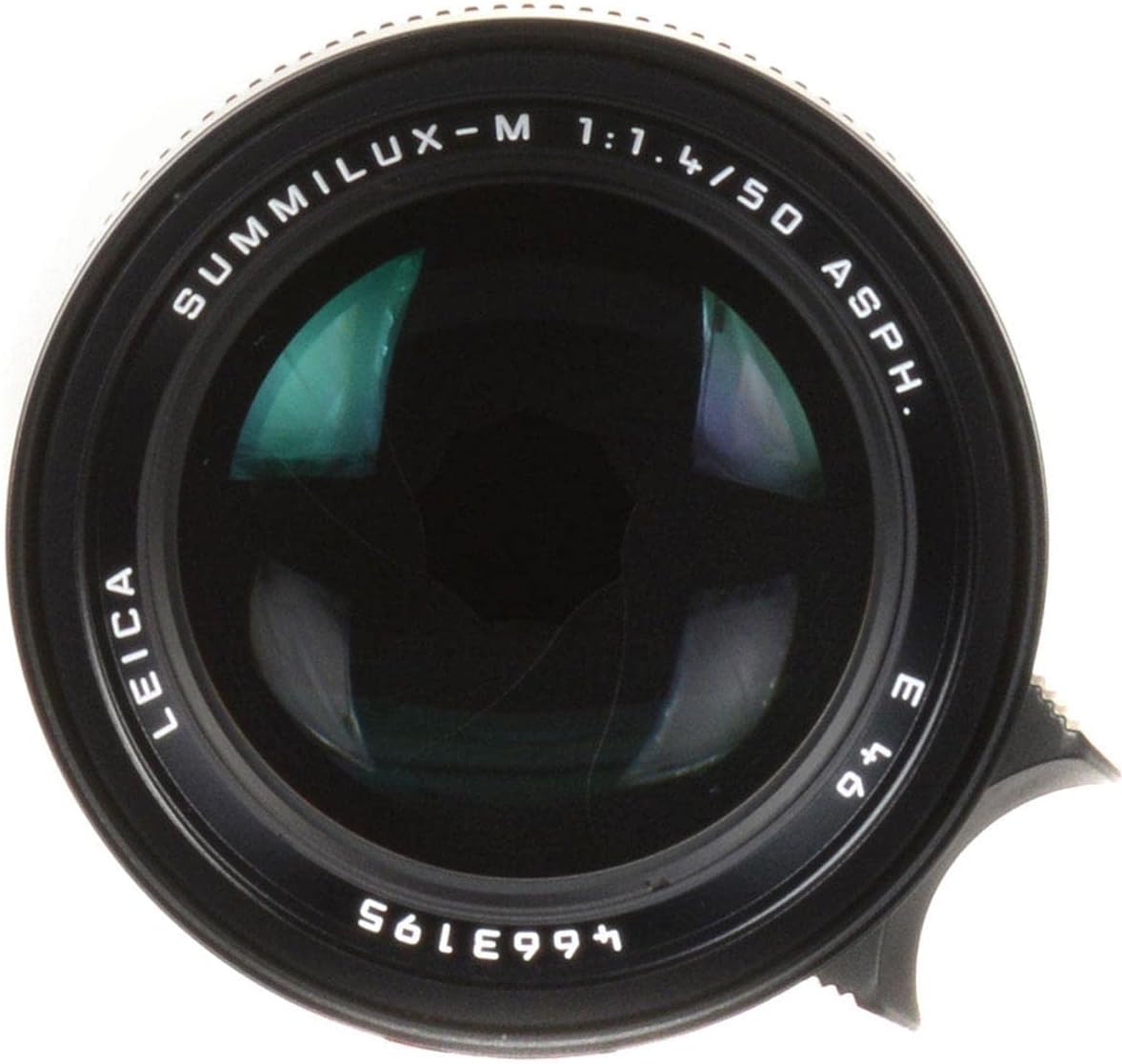

Figure 5: Front element of the lens, showing coatings and markings. Handle with care during cleaning.

4.2 Линзний их биеийг цэвэрлэх

Wipe the lens barrel with a clean, dry, soft cloth. For stubborn dirt, a slightly damp cloth can be used, followed by a dry cloth. Ensure no moisture enters the lens.

4.3 Хадгалалт

When not in use, always attach both front and rear lens caps. Store the lens in a dry, cool place, away from direct sunlight and extreme temperatures. Consider using a dehumidifying cabinet if you live in a high-humidity environment.

5. Алдаа засах

5.1 Нийтлэг асуудлууд

• Dust on Lens Elements: Use a blower brush to remove. If persistent, follow cleaning instructions in Section 4.1.
• Анхаарал төвлөрүүлэхэд бэрхшээлтэй байдал: Ensure the focus ring moves smoothly. Verify your camera's rangefinder or focusing aids are correctly calibrated.
• Линз найдвартай бэхлэгдээгүй байна: Check for obstructions on the lens mount or camera body. Ensure proper alignment of the red dots.

5.2 When to Seek Professional Service

If you experience any of the following, contact an authorized Leica service center:

• Visible damage to lens elements or barrel.
• Unusual resistance or grinding when adjusting focus or aperture.
• Internal dust or fungus that cannot be removed externally.
• Any malfunction affecting image quality or lens operation.

6. Техникийн үзүүлэлтүүд

7. Баталгаат хугацаа ба дэмжлэг

For specific warranty information, please refer to the warranty card included with your product or visit the official Leica website. Leica provides comprehensive customer support for its products.

For service inquiries or technical assistance, please contact an authorized Leica service center or visit the Амазон дээрх Leica дэлгүүр.
