Shark S3101 Steam Mop User Manual

1. Танилцуулга

Худалдан авалт хийсэнд баярлалааasing the Shark S3101 Steam Mop. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your steam mop. Please read these instructions thoroughly before first use and retain them for future reference.

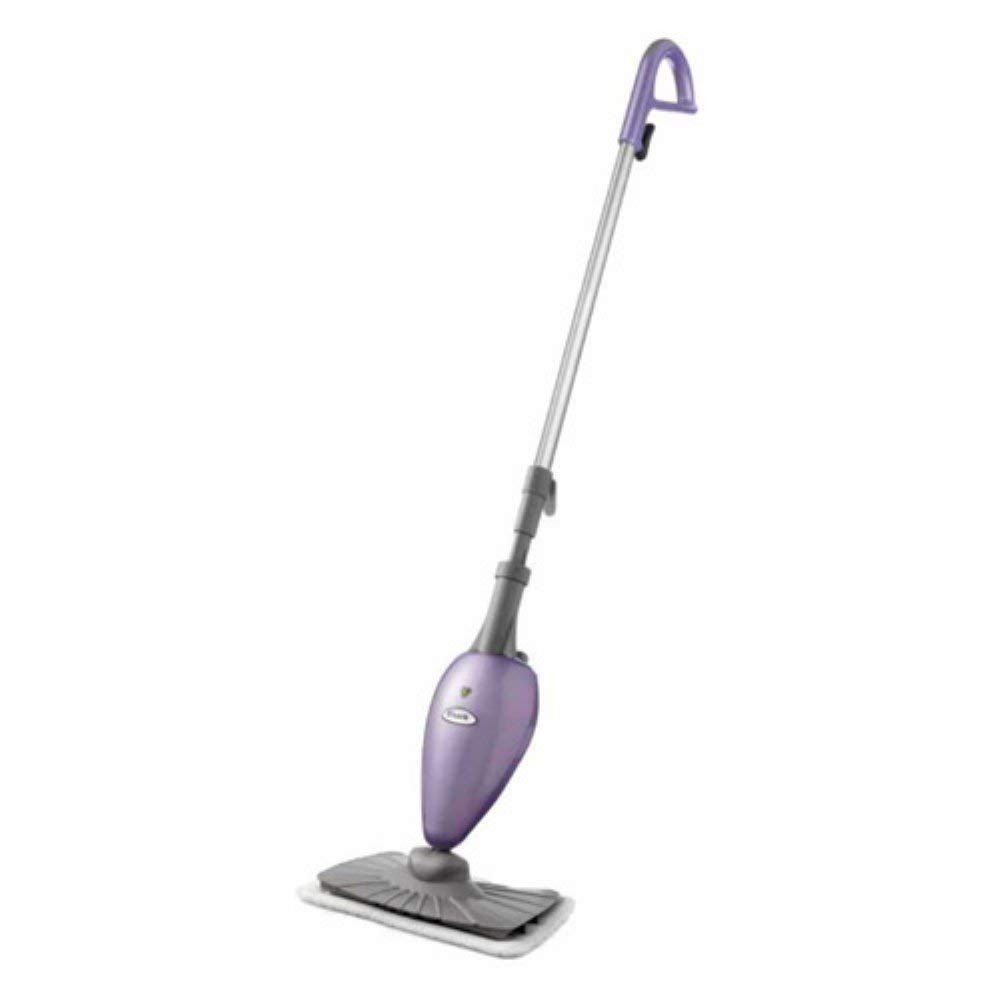

Figure 1: The Shark S3101 Steam Mop. This image shows the assembled steam mop, highlighting its compact design and ready-to-use configuration for floor cleaning.

2. Аюулгүй ажиллагааны чухал заавар

When using your Shark S3101 Steam Mop, basic safety precautions should always be observed to reduce the risk of fire, electric shock, or injury. Read all instructions before using this appliance.

• БИТГИЙ direct steam at people, animals, or electrical outlets.
• БИТГИЙ immerse the steam mop in water or other liquids.
• БИТГИЙ leave the steam mop unattended while plugged in.
• БИТГИЙ use on unsealed wood floors, as moisture may cause damage.
• Always unplug the power cord from the electrical outlet when not in use and before performing maintenance.
• Use only manufacturer's recommended accessories.
• Ашиглалтын явцад хүүхэд, гэрийн тэжээвэр амьтдыг уурын шүүрнээс хол байлга.
• Use only tap water or distilled water in the water tank. Do not add cleaning solutions, perfumes, or other chemicals.

3. Багцын агуулга

Таны багцад бүх бүрэлдэхүүн хэсгүүд байгаа эсэхийг шалгана уу:

• Shark S3101 Steam Mop Unit
• Mop Handle Assembly
• Шүүр толгой
• 2 x Washable Micro-Fiber Cleaning Pads
• Filling Flask (if included)
• Хэрэглэх заавар (энэ баримт бичиг)

4. Угсрах ба тохируулах

Follow these steps to assemble your steam mop before first use:

1. Бариулыг хавсаргах: Insert the handle assembly into the main body of the steam mop until it clicks securely into place. Ensure it is firmly seated.
2. Шүүрний толгойг бэхлэх: Align the mop head with the main body and push it on until it locks.
3. Цэвэрлэгээний дэвсгэрийг хавсаргана уу: Place one washable micro-fiber cleaning pad on the floor. Align the mop head over the pad and press down firmly to secure it. The pad attaches via hook-and-loop fasteners.
4. Усны савыг бөглөх: Open the water tank cap. Using the provided filling flask (if applicable) or a measuring cup, fill the water tank with clean tap water or distilled water. Do not overfill. Close the cap securely.

5. Ашиглалтын заавар

Your Shark S3101 Steam Mop is designed for effective cleaning and sanitization of hard floor surfaces.

1. Талбайг бэлтгэх: Before using the steam mop, sweep or vacuum the floor to remove loose dirt and debris.
2. Залгаас: Plug the power cord into a standard 110-volt electrical outlet. The indicator light will illuminate.
3. Уурын үйлдвэрлэл: The mop will begin to heat up. Steam will be ready in approximately 30 seconds.
4. Цэвэрлэгээг эхлүүлэх: Pump the handle a few times to release steam. Move the mop slowly and steadily over the floor surface. For heavily soiled areas, hold the mop over the spot for 5-10 seconds to allow the steam to penetrate.
5. Ариутгал: For optimal sanitization, ensure continuous steam contact with the surface for at least 15 seconds.
6. Цэвэрлэгээг дуусгах: When finished, unplug the power cord. Allow the mop to cool down before removing the cleaning pad or storing.

Жич: The steam mop is suitable for sealed hard floors and tiles. Test on a small, inconspicuous area before widespread use.

6. Засвар үйлчилгээ

Regular maintenance ensures the longevity and optimal performance of your Shark S3101 Steam Mop.

• Цэвэрлэх дэвсгэр: The micro-fiber cleaning pads are washable. Remove them after each use and wash them in a washing machine with mild detergent. Do not use bleach or fabric softeners. Air dry or tumble dry on low.
• Усны сав: After each use, empty any remaining water from the tank. For long-term storage, ensure the tank is completely dry.
• Гадна цэвэрлэгээ: Уурын шүүрний гадна талыг зар сурталчилгаагаар арчинаamp даавуу. Зүлгүүрийн цэвэрлэгч хэрэглэж болохгүй.
• Descaling (Optional): If you live in an area with hard water, mineral buildup may occur. Periodically descale the unit by filling the tank with a solution of equal parts white vinegar and water, letting it sit for 30 minutes, then running it through the mop until the tank is empty. Rinse thoroughly with clean water.

Хадгалах

Store the steam mop in a cool, dry place. Ensure the power cord is neatly wrapped and secured. Do not store with a wet cleaning pad attached.

7. Алдаа засах

Нийтлэг асуудлууд болон тэдгээрийн шийдлүүдийг энэ хэсгээс харна уу.

8. Бүтээгдэхүүний техникийн үзүүлэлтүүд

• Загвар: S3101
• Брэнд: Акул
• Ботьtage: 110 вольт
• Эрчим хүчний эх үүсвэр: Утастай цахилгаан
• Барааны жин: 5.14 фунт (2.33 кг)
• Бүтээгдэхүүний хэмжээ: 24 x 12 x 8 инч (60.96 x 30.48 x 20.32 см)
• Онцлог шинж чанар: Rapid Heat Up (30 seconds)
• Гадаргуугийн зөвлөмж: Floor (sealed hard floors and tiles)
• Оруулсан бүрэлдэхүүн хэсгүүд: Cleaning Pad, Nozzle
• UPC: 647213731989

9. Баталгаат хугацаа ба дэмжлэг

Баталгаат хугацааны мэдээлэл

The Shark S3101 Steam Mop comes with a 90 хоногийн хязгаарлагдмал баталгаат хугацаа from the date of purchase. This warranty covers defects in material and workmanship under normal household use. It does not cover damage resulting from misuse, abuse, accident, or unauthorized modifications. Please retain your proof of purchase for warranty claims.

Хэрэглэгчийн дэмжлэг

For technical assistance, warranty service, or to order replacement parts, please contact Shark Customer Service. Contact details can typically be found on the official Shark website or on your product packaging. When contacting support, please have your model number (S3101) and proof of purchase readily available.

You can also visit the official Shark website for FAQs and additional support resources: www.sharkclean.com
