1. Танилцуулга
The Brueder Mannesmann M 1255-420 Drill Stand is designed to provide enhanced stability and precision for various drilling applications. This manual provides essential information for safe assembly, operation, maintenance, and troubleshooting of your drill stand. Please read these instructions carefully before use and retain them for future reference.
2. Аюулгүй ажиллагааны заавар
Always observe basic safety precautions to reduce the risk of personal injury and damage to the product.
- Always wear appropriate personal protective equipment, including safety glasses, when operating the drill stand.
- Ensure the drill stand is securely mounted to a stable workbench before use.
- Always unplug the power drill from the power source before making any adjustments, changing drill bits, or performing maintenance on the drill stand.
- Ажлын хэсгийг cl ашиглан сайтар бэхлээрэйamps or a vise to prevent movement during drilling.
- Keep hands and fingers clear of the drill bit and moving parts during operation.
- Do not operate the drill stand if any parts are damaged or missing.
3. Багцын агуулга
Угсрахаас өмнө бүх бүрэлдэхүүн хэсгүүд байгаа эсэхийг шалгана уу:
- Drill Stand Base
- Босоо багана
- Drill Holder Assembly
- Үйл ажиллагааны бариул
- Fasteners and Wrenches (if applicable)
4. Тохиргоо ба угсралт
Follow these steps to assemble your drill stand:
- Place the drill stand base on a flat, stable surface.
- Insert the vertical column into the designated opening on the base. Secure it using the provided fasteners.
- Slide the drill holder assembly onto the vertical column. Ensure it moves freely up and down.
- Attach the operating handle to the drill holder assembly.
- Secure the entire drill stand to your workbench using appropriate clamps or bolts through the mounting holes in the base.
Image 1: Components of the Brueder Mannesmann M 1255-420 Drill Stand before assembly.
Image 2: The Brueder Mannesmann M 1255-420 Drill Stand fully assembled.
5. Ашиглалтын заавар
To achieve precise drilling results, follow these operating guidelines:
- Attaching Your Drill: cl-ийг сулланаamp on the drill holder assembly. Insert your power drill into the holder, ensuring it is securely seated and aligned. Tighten the clamp firmly to hold the drill in place.
- Өндөр тохируулах: Loosen the locking mechanism on the drill holder assembly. Move the assembly up or down the vertical column to the desired height. Tighten the locking mechanism to secure the height.
- Setting Depth Stop: The drill stand features a depth stop for consistent drilling depth. Adjust the depth stop mechanism to the required depth. This will prevent the drill bit from penetrating beyond the set point.
- Ажлын хэсгийг бэхлэх: Place your workpiece on the base of the drill stand. Use clamps or a vise to firmly secure the workpiece, preventing any movement during drilling.
- Өрөмдлөг: With the drill bit installed in your power drill and the workpiece secured, slowly lower the drill using the operating handle. Apply steady, even pressure. Once the desired depth is reached (indicated by the depth stop), retract the drill.

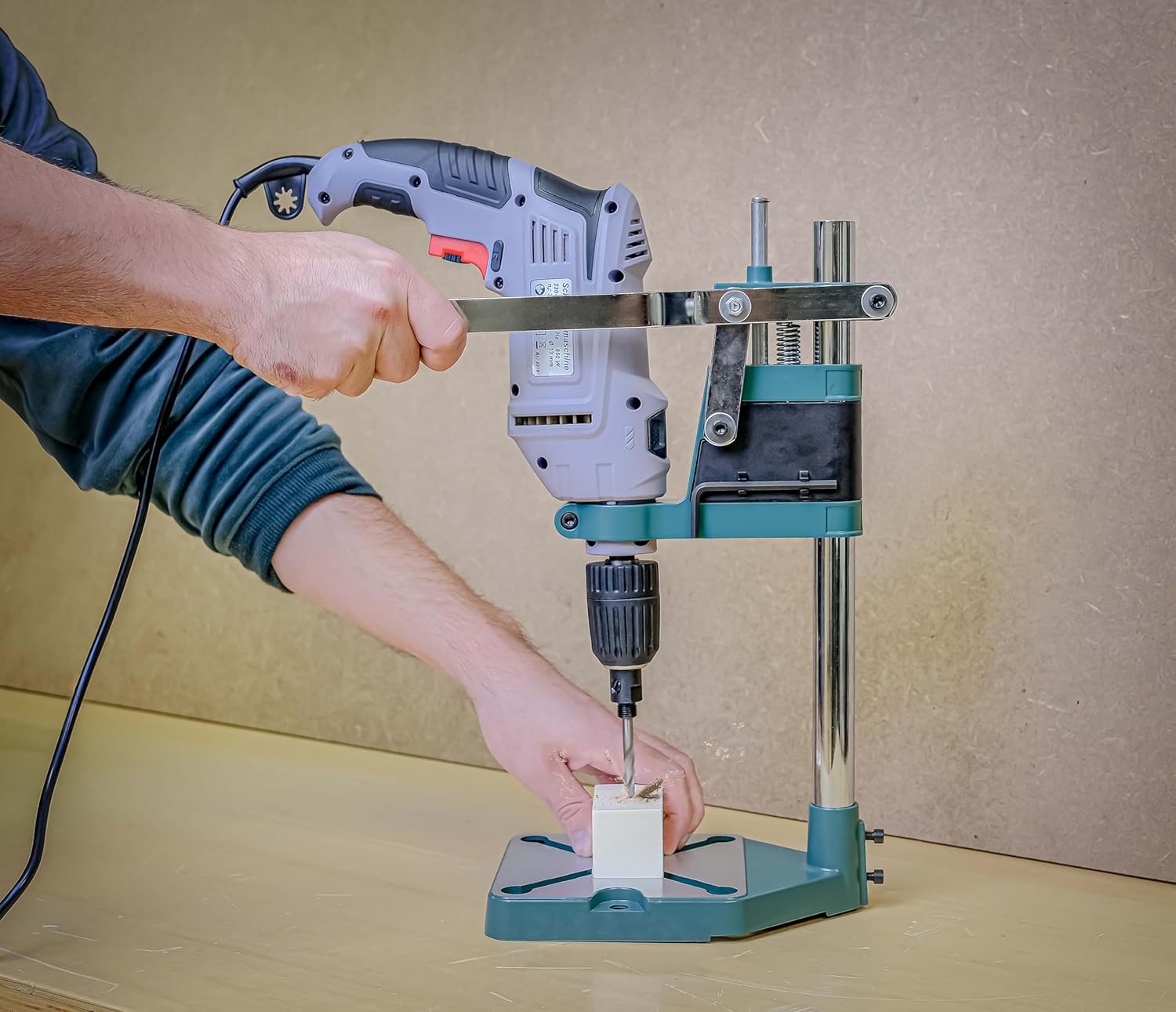

Image 3: A power drill securely mounted in the Brueder Mannesmann M 1255-420 Drill Stand.
Image 4: The drill stand in operation, demonstrating precise drilling with a workpiece.
6. Засвар үйлчилгээ
Regular maintenance ensures the longevity and optimal performance of your drill stand.
- Цэвэрлэгээ: After each use, wipe down the drill stand with a clean, dry cloth to remove dust and debris. For stubborn grime, use a slightly damp даавуу, зөөлөн угаалгын нунтаг, дараа нь сайтар хатаана.
- Тосолгоо: Periodically apply a light coat of machine oil to the vertical column to ensure smooth movement of the drill holder assembly.
- Бэхэлгээний шалгалт: Regularly inspect all fasteners and bolts to ensure they are tight. Tighten any loose fasteners to maintain stability and safety.
- Хадгалах: Store the drill stand in a clean, dry environment away from direct sunlight and extreme temperatures.
7. Алдаа засах
Нийтлэг асуудлууд болон тэдгээрийн шийдлүүдийг энэ хэсгээс харна уу.
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Drill wobbles during operation | Drill not securely clamped; Stand not securely mounted; Loose fasteners. | Ensure drill is tightly clamped. Securely mount the stand to the workbench. Check and tighten all fasteners. |
| Drill holder assembly sticks or moves roughly | Lack of lubrication; Dirt or debris on column. | Clean the vertical column and apply a light coat of machine oil. |
| Inconsistent drilling depth | Depth stop not properly set; Workpiece not secured. | Verify the depth stop is correctly adjusted and locked. Ensure the workpiece is firmly clamped. |
8. Техникийн үзүүлэлтүүд
Key technical details for the Brueder Mannesmann M 1255-420 Drill Stand:
- Үйлдвэрлэгч: Br<;FC>der Mannesmann Werkzeuge
- Хэсгийн дугаар: М 1255-420
- Барааны жин: 1.8 фунт
- Багцын хэмжээ: 16.26 x 6.42 x 3.27 инч
- Загварын дугаар: М 1255-420
- Өнгө: Олон өнгийн
- Барааны багцын тоо: 1
9. Баталгаат хугацаа ба дэмжлэг
For information regarding warranty coverage or technical support, please contact Br<;FC>der Mannesmann Werkzeuge directly or refer to their official webсайт. Худалдан авалтын баримтаа худалдан авалтын баталгаа болгон хадгалаарай.
