1. Танилцуулга
This manual provides comprehensive instructions for the Nikon COOLPIX P7100 digital camera. Designed for photographers seeking advanced control and portability, the P7100 delivers high-quality images and HD video. Familiarize yourself with the camera's features and functions to maximize your photographic experience.
Зураг 1.1: Урд view of the Nikon COOLPIX P7100 Digital Camera.
2. Тохиргоо
2.1 Оруулсан дагалдах хэрэгсэл
Verify that the following items are included with your Nikon COOLPIX P7100:
- AN-CP21 оосор
- UC-E6 USB кабель
- EG-CP16 Аудио/Видео Кабель
- EN-EL14 цэнэглэдэг ли-ион батерей
- MH-24 батерей цэнэглэгч
- NikonView NX 2 CD-ROM
- Reference Manual CD
2.2 Зайг цэнэглэх
Before initial use, fully charge the EN-EL14 Li-ion Battery using the MH-24 Battery Charger. Connect the charger to a power outlet and insert the battery. The charging indicator will blink during charging and glow steadily when complete.
2.3 Зай болон санах ойн карт оруулах
Open the battery/memory card compartment cover. Insert the charged EN-EL14 battery as shown, ensuring correct orientation. Insert an SD/SDHC/SDXC memory card into the designated slot until it clicks into place. Close the compartment cover securely.
Зураг 2.1: Ар талд view of the camera, showing the battery and memory card compartment area.
3. Үйл ажиллагаа
3.1 Асаах/унтраах
дээр дарна уу ON/OFF button located on the top panel to power the camera on or off. The camera features a fast startup time for quick readiness.
Зураг 3.1: Дээд тал view of the camera, highlighting the ON/OFF button and mode dial.
3.2 Shooting Modes and Controls
The mode dial on the top of the camera allows selection of various shooting modes, including Programmed auto (P), Shutter-priority auto (S), Aperture-priority auto (A), and Manual (M) modes for full creative control. Dedicated dials and buttons provide quick access to settings like ISO, white balance, and exposure compensation.
- PSAM Modes: Offer advanced control over exposure settings.
- Үзэсгэлэнгийн горимууд: Pre-set modes for specific shooting conditions (e.g., Portrait, Landscape, Night Landscape, Food, Sunset).
- Эффектийн горимууд: Apply in-camera special effects like Cross Process or HDR.
3.3 Image Quality and Lens Features
The P7100 is equipped with a large 10.1 MP, 1/1.7-inch CCD sensor for detailed images with reduced noise and a wide tonal range. The 7.1x optical Zoom-NIKKOR ED glass lens (28-200mm equivalent) provides versatile focal lengths, complemented by VR (Vibration Reduction) image stabilization to minimize blur.
Зураг 3.2: Урд view of the camera, highlighting the NIKKOR lens.
The camera supports shooting in NRW (RAW) file format, preserving original image data for extensive post-processing flexibility.
3.4 Vari-Angle LCD Monitor and Viewхайгч
The 3-inch Vari-Angle LCD monitor (921,000-dot) can be tilted up and down, offering flexibility for shooting from various angles. Its Clear Color Display and anti-reflection coating ensure clear viewing even in bright conditions. An optical viewfinder is also provided for traditional framing.

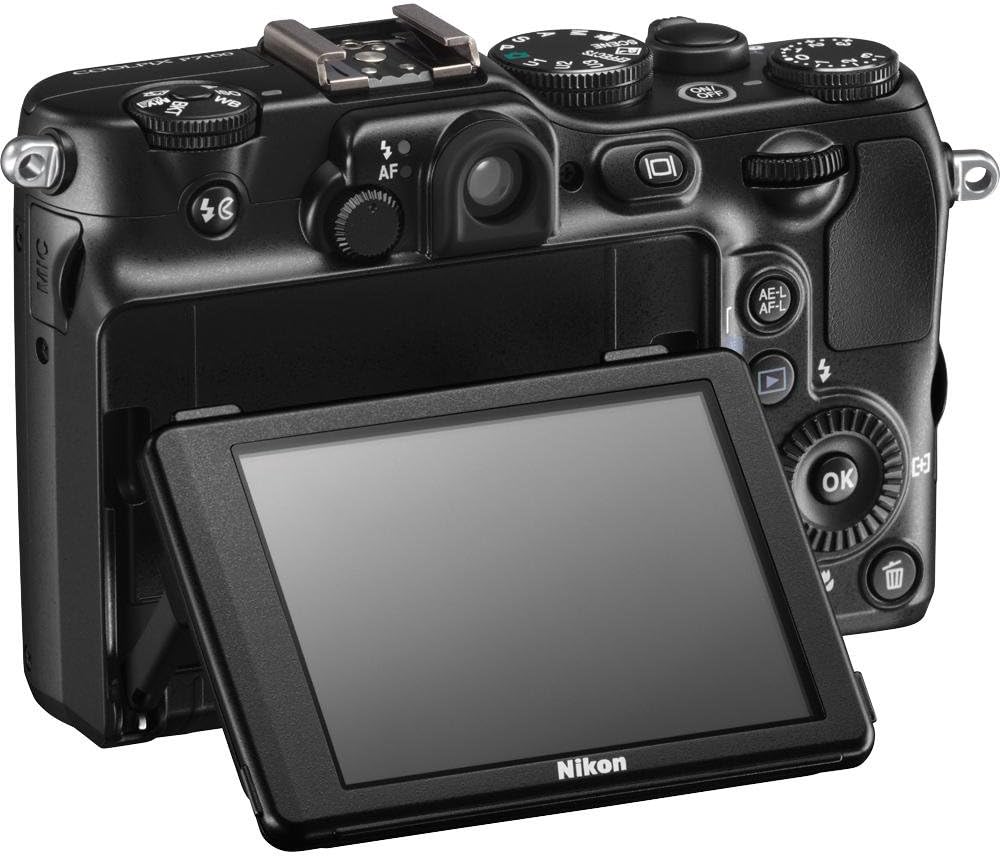

Зураг 3.3: Ар талд view of the camera with the Vari-Angle LCD monitor tilted for flexible viewing.
3.5 HD Video Recording
Record HD (720p) movies with stereo sound. The optical zoom function is available during video recording, allowing for dynamic framing. Connect the camera to an HDTV via the built-in HDMI port to view таны видеонууд.
Video 3.1: An official product video demonstrating features of the Nikon COOLPIX P7100, including its HD movie mode and vari-angle display.
4. Засвар үйлчилгээ
4.1 Камерыг цэвэрлэх
Use a soft, lint-free cloth to clean the camera body. For the lens and LCD screen, use a specialized lens cleaning cloth and solution. Avoid harsh chemicals or abrasive materials.
4.2 Батерейны арчилгаа
Store the battery in a cool, dry place when not in use. Avoid fully discharging the battery for extended periods. If the camera will not be used for a long time, remove the battery.
5. Алдаа засах
If you encounter issues with your Nikon COOLPIX P7100, refer to the following common solutions:
- Камер асахгүй байна: Батерейг бүрэн цэнэглэж, зөв оруулсан эсэхийг шалгаарай.
- Зургууд бүдэг байна: Check if VR (Vibration Reduction) is enabled. Ensure proper focus and sufficient lighting.
- Санах ойн картын алдаа: Reinsert the memory card. If the error persists, try a different compatible SD/SDHC/SDXC card.
- LCD дэлгэц харагдахгүй байна: Check if the Vari-Angle monitor is properly extended and rotated. Ensure the camera is powered on.
- Флэш асахгүй байна: Verify flash mode settings. Ensure the flash is not obstructed.
For more detailed troubleshooting, consult the Reference Manual CD included with your camera.
6. Техникийн үзүүлэлтүүд
| Онцлог | Дэлгэрэнгүй |
|---|---|
| Загварын нэр | Nikon COOLPIX P7100 |
| Үр дүнтэй шийдэл | 10.1 МП |
| Фото мэдрэгчийн хэмжээ | 1/1.7 инч |
| Фото мэдрэгчийн технологи | CCD |
| Оптик томруулалт | 7.1x |
| Линзний төрөл | Zoom-NIKKOR ED Glass Lens |
| Фокусын урт (35 мм экв.) | 28-200 мм |
| Зураг тогтворжуулах | Optical (VR) |
| Дэлгэцийн төрөл | 3 инчийн янз бүрийн өнцөгт LCD |
| Дэлгэцийн нягтрал | 921,000 цэг |
| Видеоны нягтрал | HD 720p |
| Дэмжигдсэн File Формат | RAW (NRW), JPEG |
| Флаш санах ойн төрөл | SD/SDHC/SDXC |
| Холболтын технологи | HDMI, USB |
| Зүйлийн жин | 14 унц |
| Өнгө | Хар |
7. Баталгаат хугацаа ба дэмжлэг
7.1 Баталгаат хугацааны мэдээлэл
This product comes with a 90-day parts and labor warranty. Please retain your proof of purchase for warranty claims.
7.2 Хэрэглэгчийн дэмжлэг
For technical assistance, service, or additional information, please refer to the official Nikon support channels or the detailed Reference Manual CD provided with your camera.
