AmScope PZ200TA Polarizing Trinocular Microscope Instruction Manual

1. Танилцуулга

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your AmScope PZ200TA Polarizing Trinocular Microscope. Please read this manual thoroughly before using the instrument to ensure proper function and longevity. The AmScope PZ200TA is designed for advanced applications in geology, petrology, mineralogy, toxicology, pharmacology, forensics, and industrial inspection, allowing for the viewing and measurement of birefringence in anisotropic materials.

2. Components and Unpacking

Carefully unpack all components and verify that all items listed below are present. Inspect for any damage that may have occurred during transit.

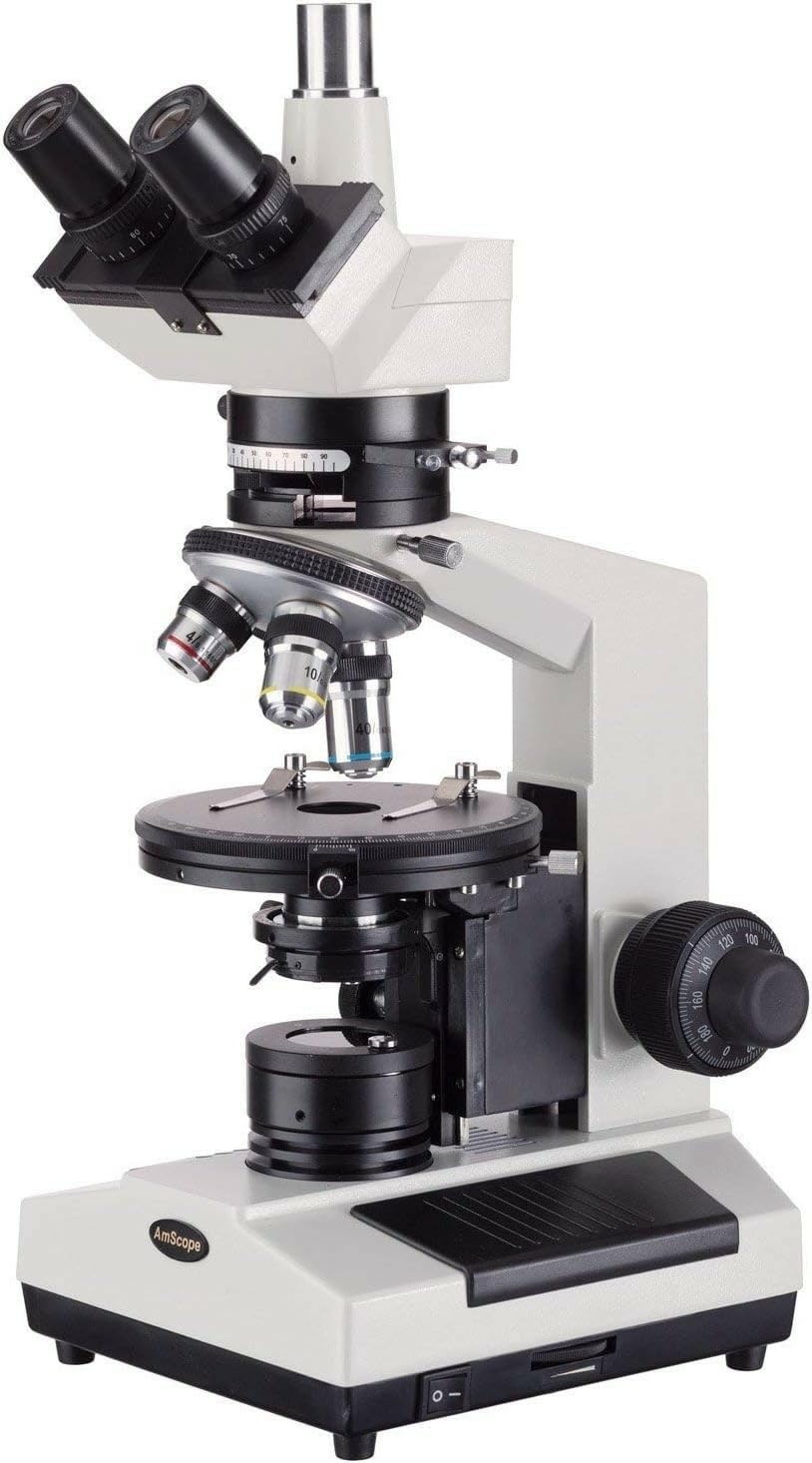

Figure 2.1: AmScope PZ200TA Polarizing Trinocular Microscope, front view. This image shows the complete microscope assembly, including the trinocular head, objectives, and stage.

2.1. Хайрцагт юу байгаа вэ:

• AmScope PZ200TA microscope body
• WF10x eyepieces (23mm), one pair
• WF16x eyepieces (23mm), one pair
• 4x DIN strain-free plan achromatic objective (20mm)
• 10x DIN strain-free plan achromatic objective (20mm)
• 40xS DIN strain-free plan achromatic objective (20mm)
• Туйлшруулагч
• Color filters: blue and green (2)
• Spare halogen bulbs (2)
• Сэлбэг гал хамгаалагч (2)
• Цахилгааны утас
• Тоос бүрхэвч
• Зааварчилгааны гарын авлага (энэ баримт бичиг)

3. Тохиргоо ба угсралт

Follow these steps to assemble your microscope. Ensure the microscope is placed on a stable, level surface.

1. Install Eyepieces: Gently insert the WF10x eyepieces into the Siedentopf binocular tubes on the trinocular head. You may also use the WF16x eyepieces as desired.
2. Install Objectives: Rotate the forward-facing triple nosepiece until an empty slot is accessible. Carefully screw in the 4x, 10x, and 40xS strain-free plan achromatic objectives into the nosepiece threads. Ensure they are securely fastened.
3. Эрчим хүчийг холбох: Locate the power input on the rear of the microscope. Connect the provided power cord to the microscope and then to a standard 110V electrical outlet.
4. Анхны тохируулга:
   • Сурагч хоорондын зай: Adjust the Siedentopf binocular head to match your interpupillary distance (55 to 75mm) for comfortable viewing.
   • Диоптрийн тохируулга: Use the dioptric adjustment ring on one eyepiece to compensate for individual eye-strength differences, ensuring both eyes see a sharp image.

Зураг 3.1: Дээд тал view of the microscope head, showing eyepiece insertion points and objectives on the nosepiece.

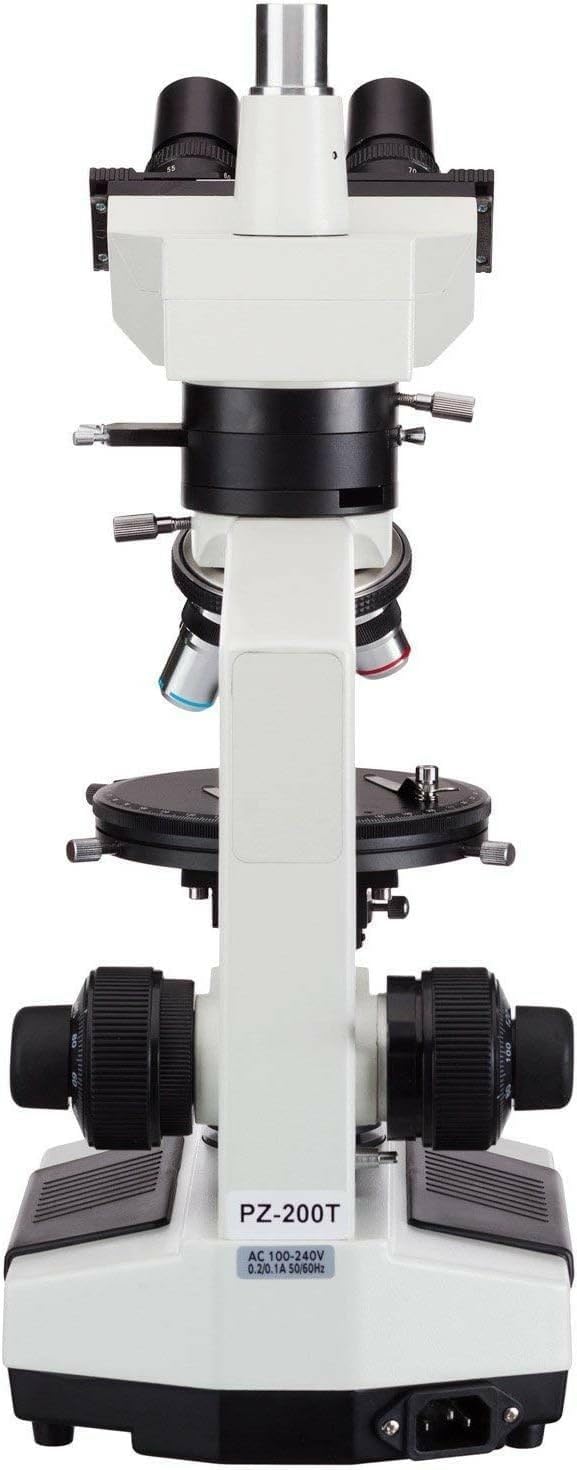

Зураг 3.2: Ар талд view of the AmScope PZ200TA, illustrating the power input port and main power switch.

4. Ашиглалтын заавар

This section details the steps for operating your AmScope PZ200TA microscope for both Brightfield and Polarizing observations.

4.1. Powering On and Illumination Control

1. Асаах: Flip the main power switch, usually located near the power cord input.
2. Гэрэлтүүлгийг тохируулах: Use the rheostat control knob to adjust the intensity of the 20W halogen illumination.
3. Select Illumination Type: Use the selection knob to switch between Polarizing and Brightfield illumination modes.
4. Condenser Adjustment: The 1.25 NA Abbe condenser is mounted on a rack-and-pinion system. Adjust its height to optimize the light path.
5. Цахилдаг диафрагм: Adjust the iris diaphragm on the condenser to control the amount of light illuminating the specimen, enhancing contrast and resolution.

4.2. Placing a Specimen and Focusing

1. Stage Preparation: Place your specimen slide onto the round 160mm diameter stage. Secure it using the detachable slide clips.
2. Бүдүүн фокус: Rotate the nested coaxial coarse focus knob to bring the specimen into approximate focus. The stage has a 28mm vertical travel range.
3. Нарийн фокус: Use the fine focus knob for precise focusing. The tension-adjustable coarse focusing and an adjustable lock ring stopper prevent damage to slides and objectives.
4. Stage Rotation: Stage can rotate 360 degrees on a ball-bearing movement. It is graduated in 1-degree increments with a vernier scale for precise retardation measurements (minimum resolution of 6 minutes of arc). A locking screw secures the stage байршил.

4.3. Magnification and Objective Selection

1. Select Objective: Rotate the triple nosepiece to select the desired objective (4x, 10x, or 40xS). The 40xS objective is spring-loaded to prevent slide damage.
2. Нийт үржүүлэх: Total magnification is calculated by multiplying the eyepiece magnification (10x or 16x) by the objective magnification (4x, 10x, or 40xS), providing a range of 40x to 640x.

4.4. Polarizing Features

The PZ200TA is equipped with specialized features for polarizing microscopy.

• Bertrand Lens: The built-in Bertrand lens is focusable and located on a rotatable disc with centering controls. It can be rotated 90 degrees with 1-degree graduations.
• Polarizer and Analyzer: The polarizer, analyzer, and Bertrand lens can be removed from the optical path to convert the microscope for standard Brightfield use.
• Strain-Free Objectives: The objectives are specifically designed as strain-free plan achromatic, optimized for use with polarized light to minimize internal stress birefringence.

4.5. Trinocular Port Usage

The vertical trinocular port allows for the attachment of a camera (sold separately) for image capture or display. It can be used as a C-Mount or a 23mm photo port.

Зураг 4.1: Хажуу тал view of the AmScope PZ200TA, highlighting the coarse and fine focus knobs, stage, and illumination controls.

5. Засвар үйлчилгээ

Regular maintenance ensures the longevity and optimal performance of your microscope.

• Цэвэрлэх линз: Use only specialized lens cleaning solution and lens paper to clean optical surfaces. Avoid touching lenses with bare hands.
• Цэвэрлэгээний байгууллага: Микроскопын их биеийг зөөлөн, хуурай даавуугаар арчина. Зөрүүд бохирдлыг бага зэрэг арчина.amp cloth with mild detergent can be used, ensuring no liquid enters internal components.
• Булцуу солих: If the illumination weakens or fails, replace the halogen bulb with one of the provided spare bulbs (6V/20W). Ensure the microscope is unplugged before attempting replacement.
• Гал хамгаалагч солих: If the microscope does not power on, check and replace the fuse with a spare if necessary. Ensure the microscope is unplugged before attempting replacement.
• Хадгалах: When not in use, cover the microscope with the provided dust cover to protect it from dust and environmental contaminants. Store in a dry, stable environment.

6. Алдаа засах

Энэ хэсэгт танд тулгарч болох нийтлэг асуудлуудыг авч үзэх болно.

7. Техникийн үзүүлэлтүүд

Detailed technical specifications for the AmScope PZ200TA Polarizing Trinocular Microscope.

8. Баталгаат хугацаа ба дэмжлэг

For warranty information and technical support, please contact United Scope LLC., the manufacturer of AmScope products. Refer to their official webсайт эсвэл бүтээгдэхүүний сав баглаа боодолоос хамгийн сүүлийн үеийн холбоо барих мэдээлэл болон баталгаат нөхцлүүдийг авна уу.
