Танилцуулга
This manual provides essential information for the safe and effective use of your Interstate Batteries 12V 9Ah High Rate Sealed Lead-Acid (SLA) Absorbent Glass Mat (AGM) Valve Regulated Lead-Acid (VRLA) Rechargeable Battery, model HSL1069. This battery is designed for high-rate discharge applications, such as Generac Generators and UPS Backup Systems, ensuring reliable power when needed.
Бүтээгдэхүүний онцлог
- High-Rate Discharge: Engineered for applications requiring rapid power delivery, such as UPS float standby systems and heavy-duty servers.
- Засвар үйлчилгээгүй: Sealed Lead-Acid (SLA) design with AGM and VRLA technology eliminates the need for maintenance.
- Асгарахаас хамгаалсан: VRLA technology prevents spills and over-pressurization, allowing for flexible mounting.
- Удаан эдэлгээтэй барилга: Features superior plate-to-terminal connections for critical power delivery and a robust design for longevity.
- Терминалын төрөл: Equipped with Nut & Bolt terminals for secure connections.

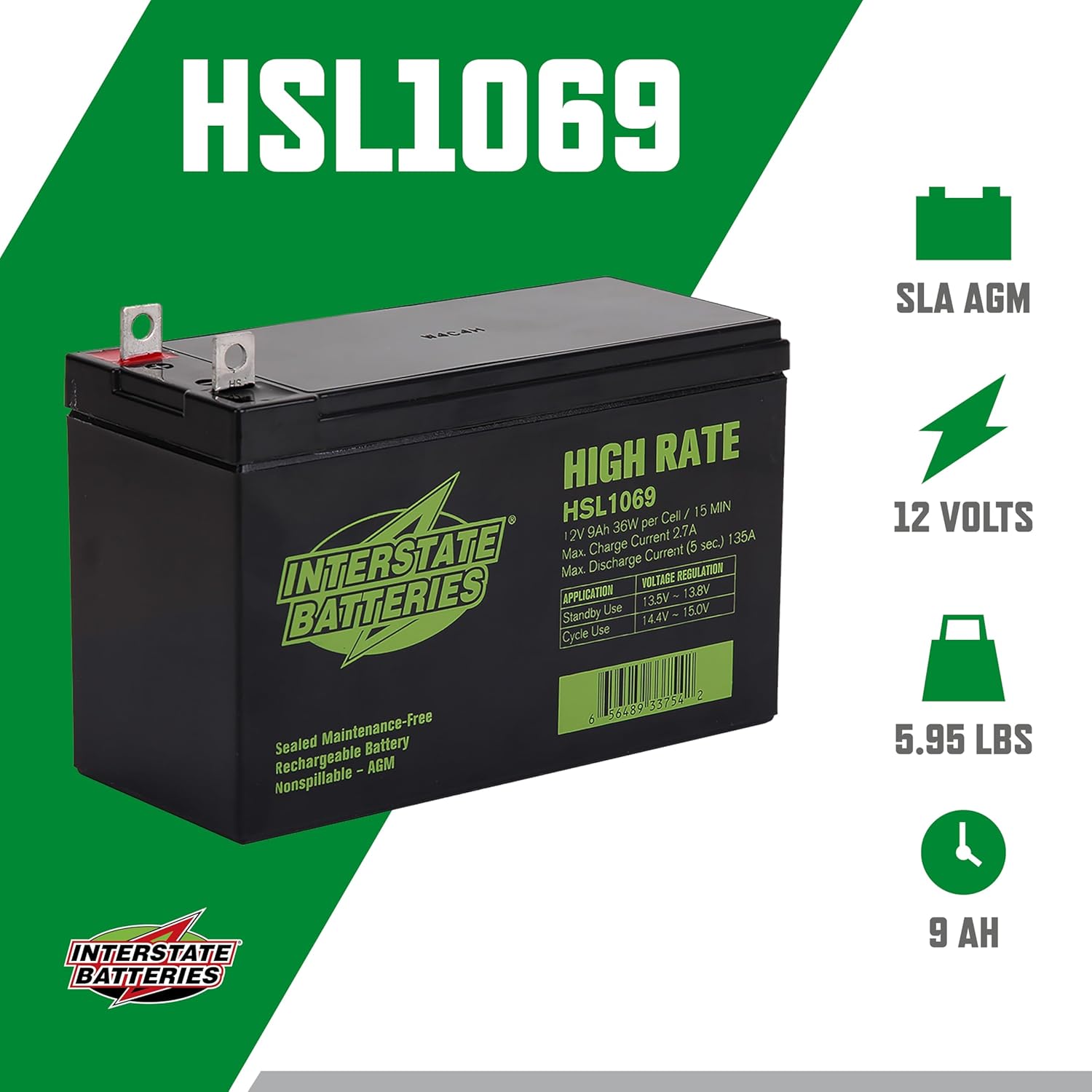

Image: Interstate Batteries HSL1069 High Rate Battery showing key specifications like 12 Volts, 9 Amp Hours, and 5.95 lbs weight.
Тохиромжтой байдал
The HSL1069 battery is a suitable replacement for various devices, including but not limited to:
- Generac Generators (e.g., 0G9449)
- UPS Backup Systems (e.g., HSL1069)
- Other compatible brands and models: APC (AMERICAN POWER CONVERSION), B & B BATTERY, COOPOWER, CSB, CYBER POWER, DURACELL, EXPERTPOWER, MIGHTY MAX, NPP, POWERSONIC, POWERSTAR, STANLEY TOOLS, WEIZE, YUASA, 6-MFQ-5, BW1290 NB.
Image: A banner reminding users to verify battery fit before purchase, referring to product guides and documents.
Тохиргоо ба суурилуулалт
Follow these general steps for battery installation. Always refer to your device's specific manual for detailed instructions and safety precautions.
- Эхлээд аюулгүй байдал: Ensure the device is turned off and disconnected from any power source before beginning installation. Wear appropriate personal protective equipment, such as gloves and eye protection.
- Хуучин батерейг арилгах: Carefully disconnect the negative (-) terminal first, then the positive (+) terminal from the old battery. Remove any securing brackets or straps.
- Шинэ батерей оруулах: Place the new HSL1069 battery into the battery compartment, ensuring it fits securely.
- Терминалуудыг холбох: Connect the positive (+) terminal first, then the negative (-) terminal. Ensure connections are tight and secure. The HSL1069 uses Nut & Bolt terminals.
- Аюулгүй батерей: Reinstall any battery brackets or straps to hold the battery firmly in place.
Video: An installation guide demonstrating the replacement of a battery in a Generac GP8000E generator. The video shows disconnecting the old battery, installing the new Interstate Batteries HSL1069, and starting the generator.
Image: Interstate Batteries HSL1069 with dimensions: 5.94 inches (L) x 2.56 inches (W) x 3.70 inches (H).
Үйл ажиллагаа
Once installed, the Interstate Batteries HSL1069 is ready to provide power. For generators, ensure fuel levels are adequate and follow the manufacturer's starting procedure. For UPS systems, the battery will automatically engage during power outages and recharge when utility power is restored.
Image: The HSL1069 battery installed in a generator, illustrating its application.
Засвар үйлчилгээ ба дахин боловсруулалт
The HSL1069 battery is a sealed, maintenance-free unit. No water addition or electrolyte checks are required. Keep the battery terminals clean and free from corrosion. Ensure the battery is stored in a cool, dry place if not in use for extended periods.
Interstate Batteries is committed to environmental responsibility. Please recycle your old batteries at an authorized Interstate All Battery Center or a local recycling facility. Do not dispose of batteries in household waste.
Image: A cutaway diagram illustrating the internal components of a sealed lead-acid battery, highlighting the plastic PVC case, one-way purge valve, sealed post, terminal, heat-sealed case, special lead plate, active material, and absorbent glass mat separator.
Image: A diagram explaining the Absorbent Glass Mat (AGM) technology used in the battery, showing the positive and negative plates separated by an absorbent glass mat.
Алдааг олж засварлах
If your device fails to start or operate correctly after battery installation, check the following:
- Ensure all terminal connections are clean and securely tightened.
- Verify the battery is fully charged. Although typically shipped charged, a trickle charge overnight is recommended before first use.
- Confirm the battery's voltage is appropriate for your device.
- Consult your device's specific manual for troubleshooting steps related to battery issues.
If problems persist, contact Interstate Batteries customer support.
Үзүүлэлтүүд
| Тодорхойлолт | Үнэ цэнэ |
|---|---|
| Загварын дугаар | HSL1069 |
| Ботьtage | 12 вольт |
| Amp Цаг | 9 Ах |
| Хэмжээ (L x W x H) | 5.94" x 2.56" x 3.70" |
| Жин | 5.62 фунт (2.55 килограмм) |
| Терминал төрөл | Самар ба боолт |
| Зайны төрөл | Битүүмжилсэн хар тугалганы хүчил (SLA) / Шингээгч шилэн дэвсгэр (AGM) |
| UPC | 656489337542 |
Баталгаат хугацааны мэдээлэл
The Interstate Batteries HSL1069 comes with a 12-month performance warranty from the manufacturer. This warranty covers defects in materials and workmanship under normal use. For specific terms and conditions, please refer to the warranty documentation included with your purchase or contact Interstate Batteries directly.
Дэмжлэг
For any questions, technical assistance, or warranty claims regarding your Interstate Batteries HSL1069, please contact Interstate Batteries directly. Contact information can typically be found on the product packaging or their official webсайт.
