Metra 99-6515W

Metra 99-6515W Single DIN Bianco Car Dash Kit for Fiat 500 2012-Up Instruction Manual

Танилцуулга

This manual provides essential information for the installation and use of the Metra 99-6515W Single DIN Bianco Car Dash Kit. This kit is specifically designed to facilitate the installation of an aftermarket single DIN radio into 2012-Up Fiat 500 vehicles without requiring dash cutting or modification. It is engineered for a precise, gapless fit, matching factory colors and textures.

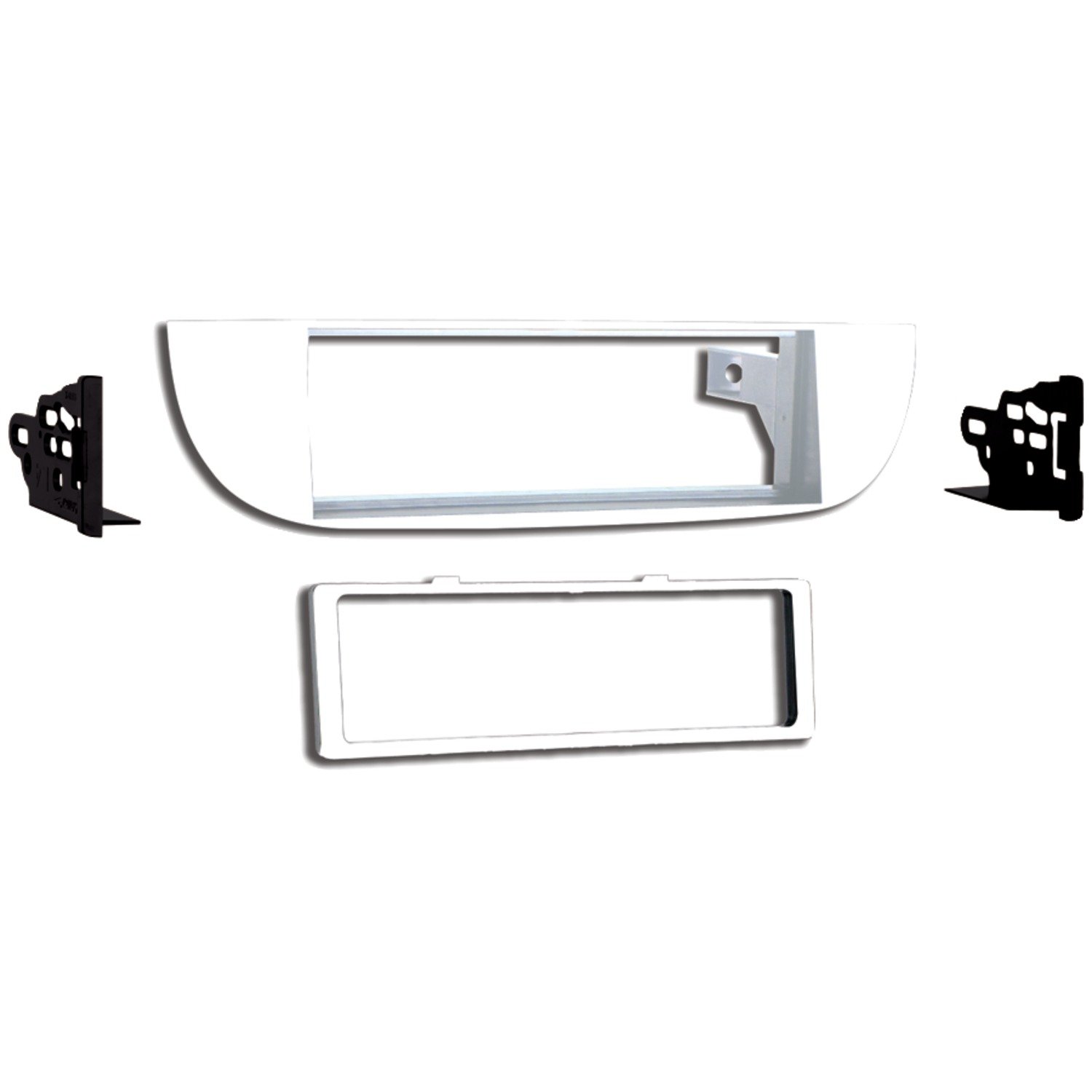

Metra 99-6515W Single DIN Bianco Car Dash Kit components

Image: Metra 99-6515W Single DIN Bianco Car Dash Kit. This image displays the primary components of the dash kit, including the radio housing and trim panel, designed for seamless integration into the Fiat 500 dashboard.

Багцын агуулга

Доор жагсаасан бүх зүйл таны багцад байгаа эсэхийг шалгаарай.

Шаардлагатай хэрэгслүүд

Амжилттай суурилуулахын тулд дараах хэрэгслүүдийг ашиглахыг зөвлөж байна.

Суурилуулалт (Тохируулга)

This dash kit is designed for a straightforward installation of a single DIN aftermarket radio into compatible Fiat 500 vehicles. No modifications to the vehicle's dashboard are required. The kit ensures a factory-matched appearance and a secure fit.

  1. Бэлтгэл: Цахилгааны ажил эхлэхийн өмнө машины зайг салгасан эсэхийг шалгаарай.
  2. Factory Radio Removal: Carefully remove the factory radio and associated trim panels using the recommended tools. Refer to your vehicle's service manual or specific guides for detailed instructions on removing the factory components.
  3. Иж бүрдэл угсралт: Follow the step-by-step instructions provided with your Metra 99-6515W kit to assemble the radio housing, trim panel, and brackets around your new single DIN aftermarket radio.
  4. Утас: Connect the aftermarket radio's wiring harness to the vehicle's wiring harness, ensuring all connections are secure and properly insulated.
  5. Installation into Dash: Mount the assembled radio and dash kit into the vehicle's dashboard opening. Ensure all mounting points are secured and the kit sits flush with the surrounding dash.
  6. Дахин угсрах: Reinstall any removed trim panels and reconnect the vehicle's battery.
  7. Туршилт: Power on the vehicle and test the functionality of the new radio.

Note: Detailed, visual step-by-step instructions are included with the physical product to guide you through the installation process.

Ажиллаж байна

The Metra 99-6515W dash kit is a mounting solution for an aftermarket radio. It does not have operational functions itself. The operation of your car's audio system will depend entirely on the aftermarket single DIN radio installed using this kit. Refer to the instruction manual provided with your aftermarket radio for operational details.

Засвар үйлчилгээ

This dash kit requires minimal maintenance. To clean the surface, use a soft, damp cloth. Avoid abrasive cleaners or solvents, as these may damage the finish. Ensure no liquids enter the radio opening or come into contact with electrical components.

Алдааг олж засварлах

Үзүүлэлтүүд

Загварын дугаар:99-6515 Вт
Тохиромжтой байдал:Fiat 500 (2012-Up)
Радио төрөл:Single DIN / ISO Single DIN
Өнгө:Бианко (Цагаан)
Материал:Өндөр зэрэглэлийн ABS хуванцар
Бүтээгдэхүүний хэмжээ:14 x 7 x 3 инч
Барааны жин:1.6 унц
Үйлдвэрлэгч:Metra Electronics Corp
Эхний боломжтой огноо:4 оны хоёрдугаар сарын 2013

Баталгаат хугацааны мэдээлэл

Specific warranty details for the Metra 99-6515W Car Dash Kit are not provided in this manual. For information regarding product warranty, please refer to the documentation included with your purchase or contact Metra Electronics Corp directly.

Дэмжлэг

If you encounter any issues or have questions not covered in this manual, please contact Metra Electronics Corp customer support for assistance. Refer to the official Metra webодоогийн холбоо барих мэдээллийг авахын тулд сайт эсвэл бүтээгдэхүүний сав баглаа боодол.
