Case G159 Engine Service Manual

1. Танилцуулга

This manual provides essential information for the service, maintenance, and repair of Case G159 engines. It is designed for technicians and individuals performing work on these engines, offering detailed specifications, procedures, and diagrams to ensure proper operation and longevity. Adherence to the instructions within this manual is crucial for safety and optimal engine performance.

2. General Engine Specifications

This section outlines the key specifications for both Spark Ignition and Diesel versions of the Case G159 engine. These details are fundamental for accurate diagnosis, repair, and component replacement.

2.1. Spark Ignition Engines

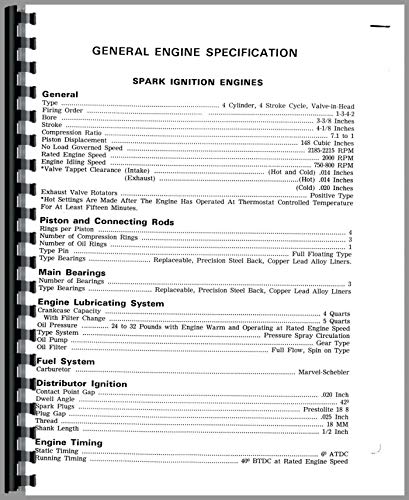

Зургийн тайлбар: A page from the service manual detailing general engine specifications for Case G159 Spark Ignition Engines. It lists parameters such as engine type (4 Cylinder, 4 Stroke Cycle, Valve-in-Head), firing order (1-3-4-2), bore (3-3/8 Inches), stroke (4-1/8 Inches), piston displacement (168 Cubic Inches), compression ratio (7.1 to 1), and various RPMs (No Load Governed Speed, Rated Engine Speed, Engine Idling Speed). It also includes valve tappet clearance, exhaust valve rotators, piston and connecting rod details (rings per piston, number of compression rings, number of oil rings, type of piston, type of bearing), main bearings (number of bearings, type of bearings), engine lubricating system (crankcase capacity, oil pressure, oil pump, oil filter), fuel system (carburetor), distributor ignition (contact point gap, dwell angle, spark plug gap, thread, crank length), and engine timing (static timing, running timing).

Key Spark Ignition Engine Specifications:

• Төрөл: 4 Cylinder, 4 Stroke Cycle, Valve-in-Head
• Галын тушаал: 1-3-4-2
• Цутгах: 3-3/8 инч
• Цус харвалт: 4-1/8 инч
• Piston Displacement: 168 Кубын инч
• Шахалтын харьцаа: 7.1-ээс 1 хүртэл
• Хөдөлгүүрийн нэрлэсэн хурд: 2000 эргэлт
• Valve Tappet Clearance (Intake/Exhaust): .014 Inches (Hot and Cold)
• Crankcase Capacity: 4 кварц
• Тосны даралт: 24 to 32 Pounds with Engine Warm and Operating at Rated Engine Speed
• Карбюратор: Marvel-Schebler
• Static Timing: @ ATDC

2.2. Diesel Engines

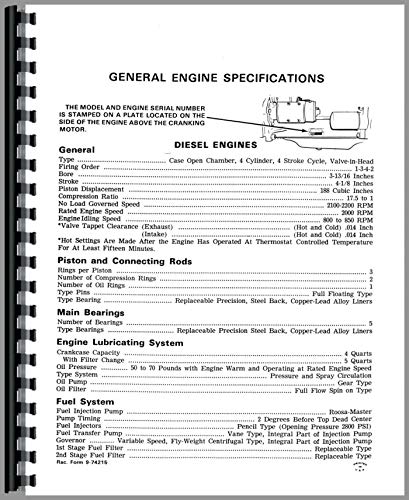

Зургийн тайлбар: A page from the service manual detailing general engine specifications for Case G159 Diesel Engines. It includes an illustration showing the model and engine serial number location on the side of the engine above the cranking motor. Specifications listed include engine type (Case Open Chamber, 4 Cylinder, 4 Stroke Cycle, Valve-in-Head), firing order (1-3-4-2), bore (3-3/8 Inches), stroke (4-1/8 Inches), piston displacement (188 Cubic Inches), compression ratio (17.5 to 1), and various RPMs (No Load Governed Speed, Rated Engine Speed, Engine Idling Speed). It also covers valve tappet clearance, piston and connecting rod details, main bearings, engine lubricating system (crankcase capacity, oil pressure, oil pump, oil filter), and fuel system (fuel injection pump, pump timing, nozzle, fuel transfer pump, governor, fuel filters).

Key Diesel Engine Specifications:

• Төрөл: Case Open Chamber, 4 Cylinder, 4 Stroke Cycle, Valve-in-Head
• Галын тушаал: 1-3-4-2
• Цутгах: 3-3/8 инч
• Цус харвалт: 4-1/8 инч
• Piston Displacement: 188 Кубын инч
• Шахалтын харьцаа: 17.5-ээс 1 хүртэл
• Хөдөлгүүрийн нэрлэсэн хурд: 2000 эргэлт
• Valve Tappet Clearance (Intake/Exhaust): .014 Inches (Hot and Cold)
• Crankcase Capacity: 5 кварц
• Тосны даралт: 50 to 70 Pounds with Engine Warm and Operating at Rated Engine Speed
• Fuel Injection Pump: Roosa-Master
• Pump Timing: 2 Degrees Before Top Dead Center

3. Засвар үйлчилгээний журам

Regular maintenance is critical for the longevity and reliable operation of your Case G159 engine. This section outlines general maintenance tasks.

• Тос болон шүүлтүүрийн өөрчлөлт: Refer to the specifications for recommended oil types and change intervals. Ensure the oil filter is replaced with a compatible part.
• Fuel System Checks: Regularly inspect fuel lines, filters, and connections for leaks or blockages. Replace fuel filters as per schedule to prevent contamination.
• Хөргөлтийн системийн үзлэг: Check coolant levels, hose conditions, and radiator for debris. Ensure the cooling system operates efficiently to prevent overheating.
• Ignition System (Spark Ignition): Inspect spark plugs, ignition wires, and distributor components for wear. Adjust contact point gap and timing as specified.
• Valve Tappet Adjustment: Periodically check and adjust valve tappet clearance to maintain proper engine breathing and performance.
• Туузан хурцадмал байдал: Verify the tension of all drive belts (e.g., fan belt, alternator belt) and adjust or replace as necessary.

4. Repair and Assembly Diagrams

Detailed diagrams are provided to assist in the disassembly, inspection, and reassembly of engine components. Always refer to the specific section of the full manual for step-by-step instructions.

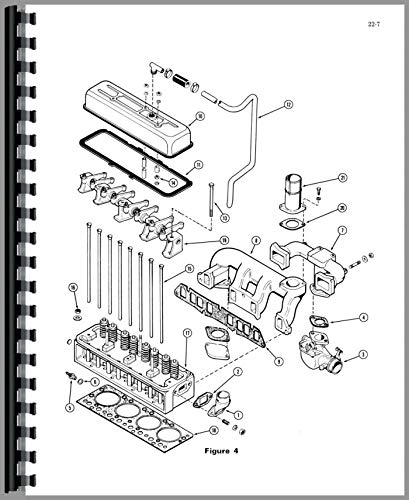

Зургийн тайлбар: Дэлбэрэв view diagram illustrating the components of a Case G159 engine's cylinder head, valve train, and intake/exhaust manifolds. Key components are numbered and include the valve cover, rocker arm assembly, pushrods, cylinder head, intake manifold, exhaust manifold, gaskets, and various fasteners. This diagram is essential for identifying parts during disassembly and ensuring correct reassembly.

When performing repairs, pay close attention to torque specifications for all fasteners and ensure all gaskets and seals are replaced with new ones to prevent leaks.

5. Нийтлэг асуудлуудыг олж засварлах

This section provides guidance on diagnosing common engine problems. For detailed troubleshooting trees and specific repair steps, consult the relevant chapters of the complete service manual.

• Хөдөлгүүр эхлэхэд алдаа гарлаа: Check fuel supply, ignition system (spark ignition), battery charge, and starter motor operation.
• Engine Runs Rough/Misfires: Inspect spark plugs, fuel injectors (diesel), air filter, and compression.
• Хэт халалт: Verify coolant level, radiator condition, thermostat function, and water pump operation.
• Эрчим хүчний алдагдал: Examine fuel delivery, air intake restrictions, turbocharger (if applicable), and engine timing.
• Хэт их утаа: Diagnose based on smoke color (blue for oil, black for rich fuel, white for coolant/steam).

6. Нэмэлт мэдээлэл

For further assistance or to purchase replacement parts, please refer to official Case service centers or authorized dealers. Always use genuine Case parts for optimal performance and compatibility.

This manual is a comprehensive guide for the Case G159 engine series, providing the necessary information to maintain and repair your engine effectively.
