1. Танилцуулга
Thank you for choosing the Näve 5123003 Solar LED Light Rope Bee Design. This product is designed to provide decorative outdoor lighting using solar energy. It features 10 LED lights encased in charming bee-shaped covers, ideal for enhancing balconies, terraces, and gardens. Please read this manual carefully before installation and use to ensure proper operation and longevity of your solar lights.
2. Аюулгүй байдлын мэдээлэл
- Ensure the solar panel is placed in an area that receives direct sunlight for optimal charging.
- Do not attempt to open or modify the solar panel or battery compartment, as this may damage the product and void the warranty.
- Бүтээгдэхүүнийг ил гал эсвэл хэт халуун эх үүсвэрээс хол байлга.
- This product is designed for outdoor use. While weather-resistant, avoid submerging the lights or solar panel in water.
- Орон нутгийн дүрмийн дагуу батерейг хаях.
- Хүүхэд, тэжээвэр амьтдын гар хүрэхгүй газар хадгална уу.
3. Багцын агуулга
Бүх бүрэлдэхүүн хэсгүүд багцад байгаа эсэхийг шалгана уу:
- 1x Solar LED Light Rope with 10 Bee Design LEDs
- 1x Solar Panel with integrated rechargeable AA NiMH 1.2V 400mA battery
- 1x Ground Stake for solar panel
4. Тохиргоо
- Бүтээгдэхүүнийг задлах: Сав баглаа боодолоос бүх бүрэлдэхүүн хэсгүүдийг болгоомжтой арилгана.
-
Assemble the Solar Panel: Attach the ground stake to the solar panel unit. Ensure it is securely fastened.
Image 1: Solar panel with ground stake and bee lights arranged on a bush. The solar panel should be positioned to receive maximum sunlight.
- Нарны хавтанг байрлуулах: Choose a location for the solar panel where it will receive at least 6-8 hours of direct sunlight daily. Push the ground stake firmly into the soil. Avoid shaded areas from trees, buildings, or other obstructions.
-
Гэрлийг байрлуулах: Uncoil the light rope and arrange the bee lights as desired in your garden, on a balcony railing, or around a patio. The total length of the light rope is 380 cm, with a lead cable of 180 cm from the solar panel to the first light.

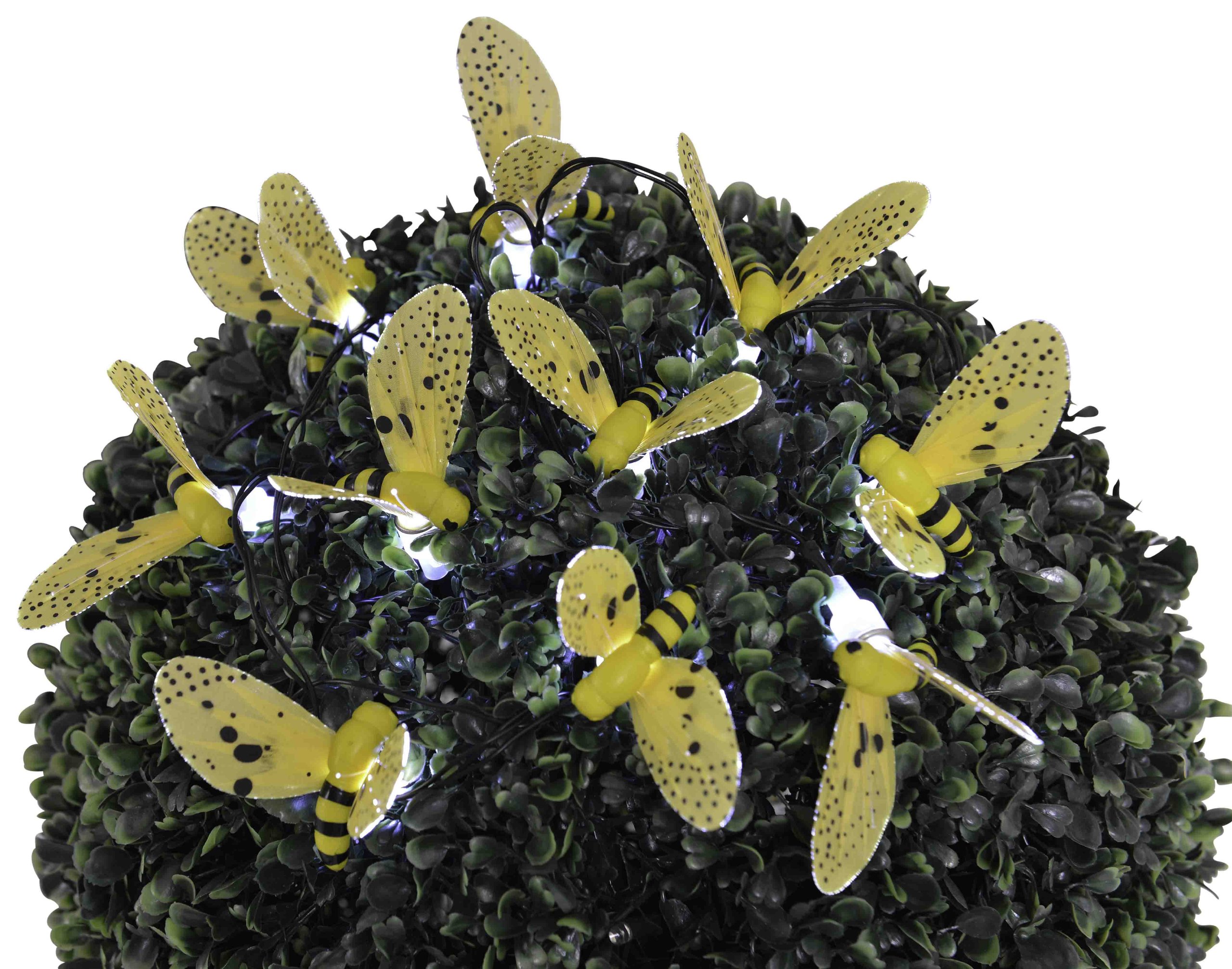

Зураг 2: Ойролцоогоор view of the individual bee-shaped LED lights, showing their design and how they can be integrated into garden decor.
- Анхны төлбөр: Before first use, ensure the solar panel is exposed to direct sunlight for a full day (at least 8 hours) with the power switch in the "ON" position. This allows the battery to fully charge.
5. Ашиглалтын заавар
The Näve Solar LED Light Rope is designed for automatic operation.
- Эрчим хүч солих: Locate the ON/OFF switch on the back or bottom of the solar panel unit. Slide the switch to the "ON" position to activate the lights.
- Горим сонгох: Some models may include a "MODE" button next to the ON/OFF switch. Press this button to cycle between continuous (steady on) and flashing light modes. If no mode button is present, the lights will operate in a single, pre-set mode.
- Автомат ажиллагаа: Once activated and sufficiently charged, the lights will automatically turn on at dusk and turn off at dawn. The duration of illumination depends on the amount of sunlight received during the day.
6. Засвар үйлчилгээ
- Нарны хавтанг цэвэрлэх: Нарны хавтангийн гадаргууг зөөлөн, d-ээр тогтмол арчинаamp Тоос, шороо, хог хаягдлыг арилгах даавуу. Цэвэр хавтан нь үр ашигтай цэнэглэлтийг баталгаажуулдаг.
-
Зай солих: The integrated battery is a 1x AA NiMH 1.2V 400mA rechargeable battery. If the lights' performance significantly decreases over time, the battery may need replacement.
- Carefully open the battery compartment on the solar panel unit (usually secured with small screws).
- Replace the old battery with a new rechargeable AA NiMH 1.2V 400mA battery of the same type and capacity.
- Ensure correct polarity (+/-) when inserting the new battery.
- Зайны тасалгааг найдвартай хаа.
- Өвлийн агуулах: During prolonged periods of low sunlight or harsh winter conditions, it is recommended to store the solar lights indoors. Clean the unit and store it in a dry place.
7. Алдаа засах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Шөнөдөө гэрэл асдаггүй. |
|
|
| Lights are dim or only stay on for a short time. |
|
|
8. Техникийн үзүүлэлтүүд
- Загварын дугаар: 5123003
- Гэрлийн эх үүсвэр: 10x Цагаан LED
- Зай: 1x AA NiMH 1.2 V 400 mA (rechargeable)
- Материал: Хуванцар
- Нийт урт: 380 см (ойролцоогоор 149.6 инч)
- Тугалган кабелийн урт: 180 см (ойролцоогоор 70.9 инч)
- LED хоорондын зай: 20 см (ойролцоогоор 7.9 инч)
- Эрчим хүчний эх үүсвэр: Solar, battery-powered
- Ватtage: 1 ватт
- Барааны жин: 7.8 унц (ойролцоогоор 221 грамм)
- Бүтээгдэхүүний хэмжээ: 1.57 x 2.17 x 9.65 inches (solar panel unit)
9. Баталгаат хугацаа ба дэмжлэг
For warranty information or technical support, please refer to the retailer where the product was purchased or contact Näve customer service. Keep your proof of purchase for any warranty claims.
Нэмэлт тусламж авахыг хүсвэл үйлдвэрлэгчийн хаягаар зочилно уу webсайт эсвэл тэдний тусламжийн сувгаар холбогдоно уу.
