Танилцуулга
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Goodyear 77606 Flat Rain Master Wiper Blade, 510 mm. Please read these instructions carefully before proceeding with installation to ensure proper function and longevity of the product. This wiper blade is designed to provide clear visibility in various weather conditions.

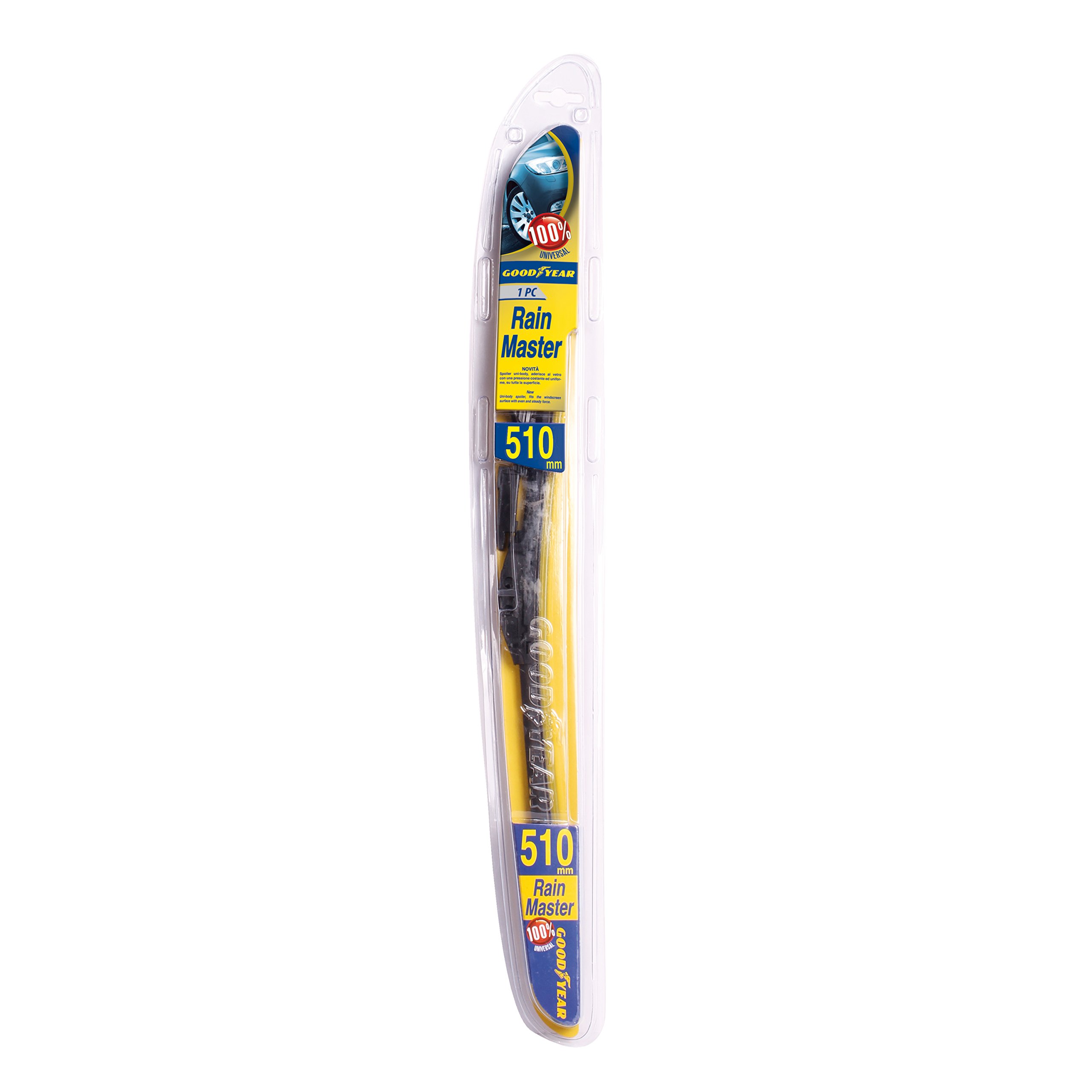

Image: Goodyear 77606 Flat Rain Master Wiper Blade, 510 mm, in its retail packaging.
Тохиргоо ба суурилуулалт
Proper installation is crucial for the performance of your new wiper blade. Follow these steps carefully.
1. Тохиромжтой байдлыг шалгана уу
Before installation, ensure the 510 mm wiper blade is compatible with your vehicle. Refer to the compatibility charts below for guidance. The charts list various car brands and models with their corresponding wiper blade sizes for the driver's side (Lato Guida) and passenger's side (Lato Passeggero).
Image: Compatibility chart for Abarth, Alfa Romeo, Audi, BMW, Cadillac, Chevrolet, Chrysler, Citroen.
Image: Compatibility chart for Citroen, Dacia, Daewoo, Daihatsu, Dodge, Fiat, Ford.
Image: Compatibility chart for Honda, Hummer, Hyundai, Isuzu, Jaguar, Jeep, Kia, Lada, Lancia, Land Rover, Lexus, Mazda.
Image: Compatibility chart for Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Opel.
Image: Compatibility chart for Opel, Peugeot, Porsche, Renault, Rover, Saab, Ssangyong, Seat, Skoda, Smart, Subaru, Suzuki.
Image: Compatibility chart for Suzuki, Toyota, Volkswagen, Volvo.
2. Remove Old Wiper Blade
- Lift the wiper arm away from the windshield until it locks into an upright position.
- Locate the release tab or button on the old wiper blade's connector. Press or lift it to detach the blade from the wiper arm.
- Carefully slide the old blade off the arm. Place a towel on the windshield to prevent the metal wiper arm from striking and damaging the glass.
3. Select and Attach Adapter
Your Goodyear Flat Rain Master wiper blade comes with various adapters to fit different wiper arm types. Identify the correct adapter for your vehicle's wiper arm. Refer to the included adapter guide (if available) or compare the adapters to your old wiper blade's connector.
Image: The Goodyear Flat Rain Master Wiper Blade shown with several interchangeable adapters for different vehicle types. Handle adapters with care during selection and attachment.
Once identified, carefully attach the chosen adapter to the new wiper blade. Ensure it clicks securely into place. Avoid excessive force, as adapters can be delicate.
4. Install New Wiper Blade
- Slide the new wiper blade, with the correct adapter attached, onto the wiper arm hook or pin.
- Push firmly until you hear a click, indicating it is securely locked in place. Gently tug on the blade to confirm it is properly seated.
- Арчигч гарыг салхины шил рүү болгоомжтой буулга.
5. Test Wiper Blades
Before driving, spray your windshield with washer fluid and activate the wipers to ensure they operate smoothly and clear the glass effectively. Check for any streaks or missed spots.
Ашиглалтын заавар
The Goodyear Flat Rain Master Wiper Blade operates automatically with your vehicle's wiper system. For optimal performance and longevity:
- Always use windshield washer fluid when operating wipers on a dry or dusty windshield to prevent damage to the blade and scratching the glass.
- Avoid using wipers to clear heavy ice or snow. Manually remove significant accumulations before operating the wipers.
- Ensure your windshield is clean from debris, as this can prematurely wear out the wiper blades.
Засвар үйлчилгээ
Regular maintenance helps extend the life of your wiper blades and ensures clear visibility.
- Хутгыг тогтмол цэвэрлэх: Use a soft cloth or sponge with windshield washer fluid or mild soap and water to wipe down the rubber edge of the wiper blades. This removes dirt, grime, and road film that can cause streaking.
- Гэмтлийг шалгах: Periodically check the rubber element for cracks, tears, or hardening. Also, inspect the blade frame for any bends or damage. Replace blades if any significant damage is observed.
- Химийн хорт бодисоос зайлсхий: Do not use petroleum-based cleaners or solvents on the rubber blades, as these can degrade the material.
- Салхины шилийг цэвэрлэх: Keep your windshield clean from heavy dirt, ice, and snow to reduce strain on the wiper blades.
Алдааг олж засварлах
If you experience issues with your wiper blades, try these common troubleshooting steps:
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Судал эсвэл түрхэх | Dirty blade, worn rubber, windshield contamination (wax, oil) | Clean the wiper blade rubber. Clean the windshield thoroughly. If streaks persist, the blade may be worn and require replacement. |
| Чатлах эсвэл алгасах | Blade angle incorrect, dirty blade, bent wiper arm, dry windshield | Ensure the blade is clean. Use plenty of washer fluid. Check if the wiper arm is bent or if the blade is installed correctly. |
| Ineffective Wiping (missed spots) | Worn rubber, insufficient pressure from wiper arm, incorrect blade size | Inspect the rubber for wear. Check the wiper arm spring tension. Verify the blade size is correct for your vehicle. |
| Noise (squeaking, grinding) | Dry windshield, dirty blade, worn blade, incorrect installation | Use washer fluid. Clean the blade. Ensure the blade is installed correctly and securely. Replace if worn. |
Үзүүлэлтүүд
- Брэнд: Сайн жил
- Загвар: 77606
- Төрөл: Flat Rain Master Wiper Blade
- Хэмжээ: 510 мм
- Барааны жин: 90 гр
- Багцын хэмжээ: 51 x 3 x 2 см
- Үйлдвэрлэгч: BOTTARI
Баталгаат хугацааны мэдээлэл
Goodyear wiper blades are manufactured to high-quality standards. This product is covered by a limited warranty against defects in materials and workmanship under normal use. Please retain your proof of purchase for any warranty claims. For specific warranty terms and conditions, refer to the packaging or contact customer support.
Хэрэглэгчийн дэмжлэг
If you have any questions, require assistance with installation, or encounter issues not covered in this manual, please contact Goodyear customer support. You can typically find contact information on the product packaging or the official Goodyear automotive accessories webсайт.
