1. Танилцуулга
Thank you for choosing the GRAEF Classic C20 Electric Food Slicer. This appliance is designed for precise and effortless slicing of various foods, including bread, cheese, and cold cuts. Manufactured in Germany, it combines robust construction with user-friendly features. Please read this manual thoroughly before first use to ensure safe operation and optimal performance of your appliance.
Image 1.1: The GRAEF Classic C20 Electric Food Slicer, a robust and elegant kitchen appliance.
2. Аюулгүй ажиллагааны заавар
АНХААРУУЛГА: Эдгээр аюулгүй байдлын зааврыг дагаж мөрдөхгүй байх нь цахилгаан цочрол, гал түймэр эсвэл ноцтой гэмтэл учруулж болзошгүй.
- Always disconnect the appliance from the power supply before cleaning, maintenance, or if it is left unattended.
- Keep hands and fingers away from the blade during operation. The blade is extremely sharp.
- Never operate the slicer without all parts correctly assembled.
- Ensure the appliance is placed on a stable, level, and dry surface.
- Do not allow children to operate or play with the appliance. Use the child lock feature when not in use.
- Avoid slicing frozen foods or items containing bones, as this can damage the blade and motor.
- Моторын нэгжийг ус болон бусад шингэнд дүрж болохгүй.
- Хэрэв цахилгааны утас гэмтсэн бол аюулаас зайлсхийхийн тулд түүнийг үйлдвэрлэгч, үйлчилгээний төлөөлөгч эсвэл ижил төстэй мэргэшсэн хүмүүс солих ёстой.

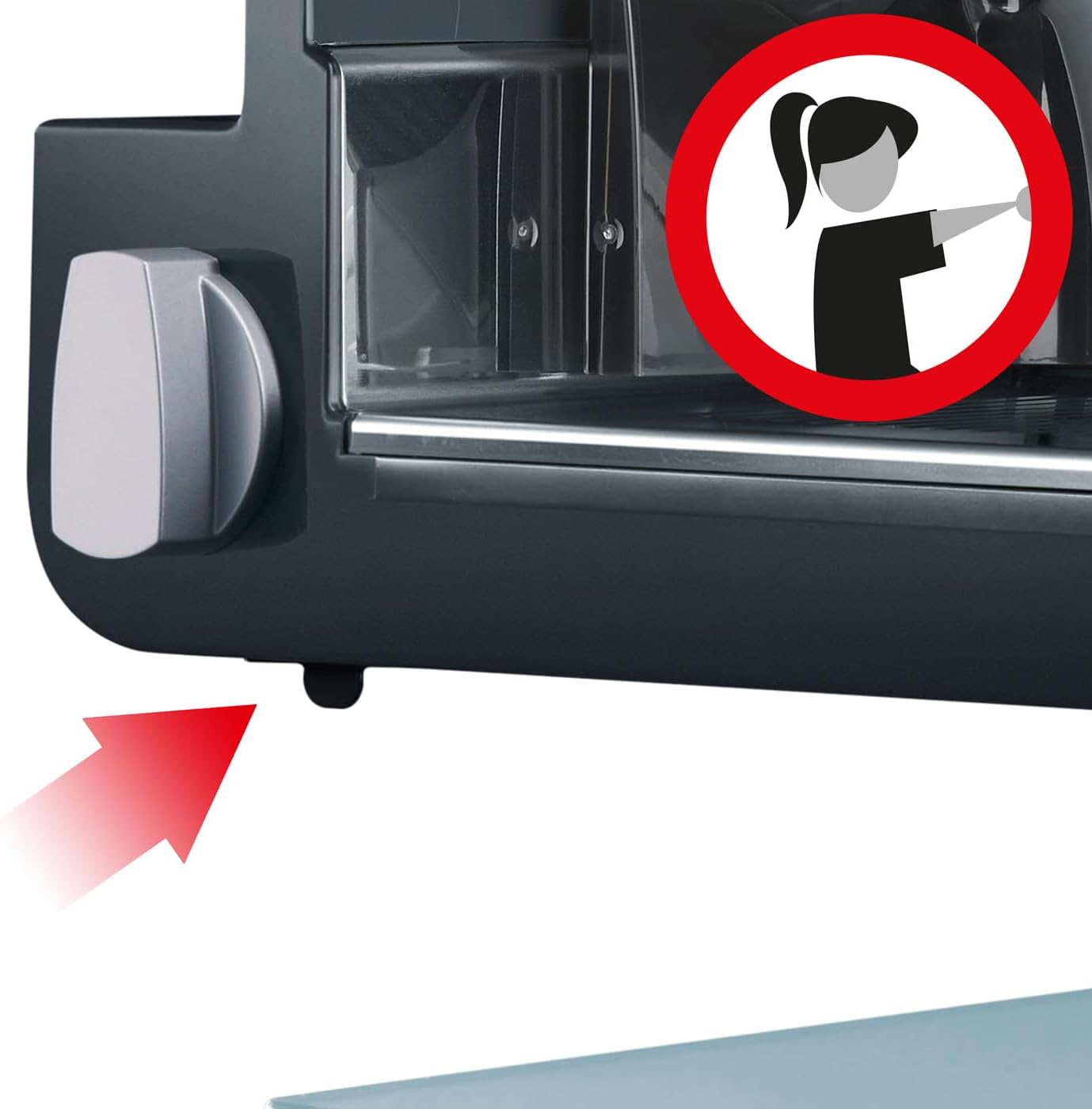

Image 2.1: Illustration of the child lock mechanism and a warning to keep hands clear of the blade area.
3. Бүтээгдэхүүн дууссанview
The GRAEF Classic C20 is constructed with high-quality materials, including a full metal housing and a glass base plate, ensuring durability and stability.
Гол бүрэлдэхүүн хэсгүүд:
- Serrated Stainless Steel Blade: A versatile Ø 170 mm blade designed for various food types.
- Зүсмэлийн зузаан тохируулга: Continuously adjustable from 0 to 20 mm for precise slicing.
- 170 Watt Condenser Motor: Powerful and quiet motor with a 5-year warranty.
- Smooth-running Carriage: Features a stainless steel food holder for secure and easy gliding.
- Хүүхдийн түгжээ: A safety mechanism to prevent accidental operation.
- Glass Base Plate: Provides stability and an elegant finish.
- Collection Tray: A plastic tray is included to collect sliced food.
Image 3.1: Detail of the Ø 170 mm serrated stainless steel blade.
Image 3.2: The included plastic collection tray.
4. Тохиргоо
- Савлах: Carefully remove the slicer and all accessories from the packaging. Retain packaging for future storage or transport.
- Байршил: Place the slicer on a clean, dry, and stable countertop. Ensure there is enough space around the appliance for safe operation and ventilation.
- Анхны цэвэрлэгээ: Before first use, wipe down all parts that will come into contact with food using a damp даавуу. Дэлгэрэнгүй зааврыг "Цэвэрлэгээ ба засвар үйлчилгээ" хэсгээс үзнэ үү.
- Эрчим хүчний холболт: Цахилгааны утсыг тохирох цахилгаан залгуурт (230 вольт) холбоно уу.
5. Ашиглалтын заавар
The GRAEF Classic C20 offers two operating modes: momentary and continuous.
- Зүсмэлийн зузааныг тохируулах: Use the rotary knob to set the desired slice thickness between 0 and 20 mm. Turn clockwise for thicker slices and counter-clockwise for thinner slices.
- Хоол хүнс байрлуулах: Place the food item firmly against the food holder on the carriage. Use the stainless steel food holder to secure the item.
- Operating the Slicer:
- Momentary Operation: Press and hold the switch to activate the blade. Release the switch to stop the blade.
- Тасралтгүй ажиллагаа: Engage the continuous switch for prolonged slicing. Press the switch again to stop the blade.
- Зүсэх: Gently push the carriage forward and backward, guiding the food item against the rotating blade. Collect the sliced food on the provided tray or directly onto a plate.
- Хэрэглэх хугацаа: For optimal motor longevity, it is recommended to operate the slicer for approximately 10 minutes, followed by a short pause of a few minutes, especially when slicing hard items.
- Хүүхдийн түгжээ: Always engage the child lock when the slicer is not in use to prevent accidental activation.
Video 5.1: A short demonstration of the GRAEF Classic C20 electric food slicer in operation, showcasing its slicing capabilities and ease of use.
6. Цэвэрлэгээ ба засвар үйлчилгээ
Regular cleaning ensures hygiene and extends the lifespan of your slicer. Always unplug the appliance before cleaning.
- Салгах: Carefully remove the food holder and the blade. The blade can be easily unscrewed for cleaning.
- Хутга цэвэрлэх: Wash the blade by hand using warm soapy water and a brush. Exercise extreme caution due to its sharpness. Rinse thoroughly and dry immediately to prevent rust.
- Төхөөрөмжийн бие: Wipe the main body of the slicer with a damp cloth. For stubborn residue, use a mild detergent. Do not use abrasive cleaners or immerse the motor unit in water.
- Carriage and Food Holder: These parts can be washed by hand with warm soapy water, rinsed, and dried.
- Дахин угсрах: Ensure all parts are completely dry before reassembling. Carefully reattach the blade and food holder.
- Хадгалах: Store the slicer in a clean, dry place. Engage the child lock.
7. Алдаа засах
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Зүсэгч асахгүй байна. | Not plugged in; power switch off; child lock engaged. | Check power connection; ensure switch is on; disengage child lock. |
| Blade gets stuck or slows down. | Slicing hard food (e.g., bread crusts); food item too large; motor overheating. | Reduce pressure; cut food into smaller pieces; allow motor to cool down for a few minutes. |
| Slices are uneven or wedge-shaped. | Food not held firmly; incorrect slice thickness setting; blade not clean. | Ensure food is pressed firmly against the food holder; adjust slice thickness; clean the blade and ensure no food residue is interfering. Rotate the food item if necessary. |
| Ашиглалтын явцад ер бусын дуу чимээ. | Сул хэсгүүд; гадаад объект; моторын асуудал. | Turn off and unplug the slicer. Check for any loose parts or obstructions. If the noise persists, contact customer support. |
8. Техникийн үзүүлэлтүүд
- Загвар: C20EU
- Эрчим хүч: 170 ватт
- Ботьtage: 230 вольт
- Хутганы диаметр: Ø 170 мм
- Зүсмэлийн зузаан: Continuously adjustable 0-20 mm
- Материал: Stainless steel, Metal, Glass
- Өнгө: Мөнгө
- Бүтээгдэхүүний хэмжээ: 40.5 см (L) x 31.3 см (W) x 26 см (H)
- Бүтээгдэхүүний жин: 7.3 кг
- Дуу чимээний түвшин: 20 децибел
- Recommended Operating Time: 60 minutes (continuous operation, with recommended pauses for hard items)
Image 8.1: The GRAEF Classic C20 slicer with its approximate dimensions.
9. Баталгаат хугацаа
The GRAEF Classic C20 Electric Food Slicer comes with a standard manufacturer's warranty. Additionally, the 170 Watt condenser motor is covered by a special 5 жилийн баталгаат хугацаа. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the warranty card included with your product or visit the official GRAEF webсайт.
10. Дэмжлэг
Should you encounter any issues or have questions regarding your GRAEF Classic C20 Electric Food Slicer that are not covered in this manual, please contact GRAEF customer support. You can find contact information on the official GRAEF webсайт эсвэл бүтээгдэхүүний сав баглаа боодол дээр.
For further information and product registration, please visit: www.graef.de
