KO Propo EX-1/Esprit IV 2.4GHz Antenna Support

1. Танилцуулга

This manual provides essential information for the proper installation, use, and maintenance of your KO Propo 2.4GHz Antenna Support, Model 16009. This component is designed to provide structural reinforcement for the 2.4GHz antenna on compatible KO Propo EX-1 and Esprit IV radio systems, helping to prevent damage and ensure reliable signal transmission during operation.

2. Багцын агуулга

Суулгацыг үргэлжлүүлэхийн өмнө багцад бүх зүйл байгаа эсэхийг шалгаарай.

• 1x KO Propo 2.4GHz Antenna Support (Model 16009)

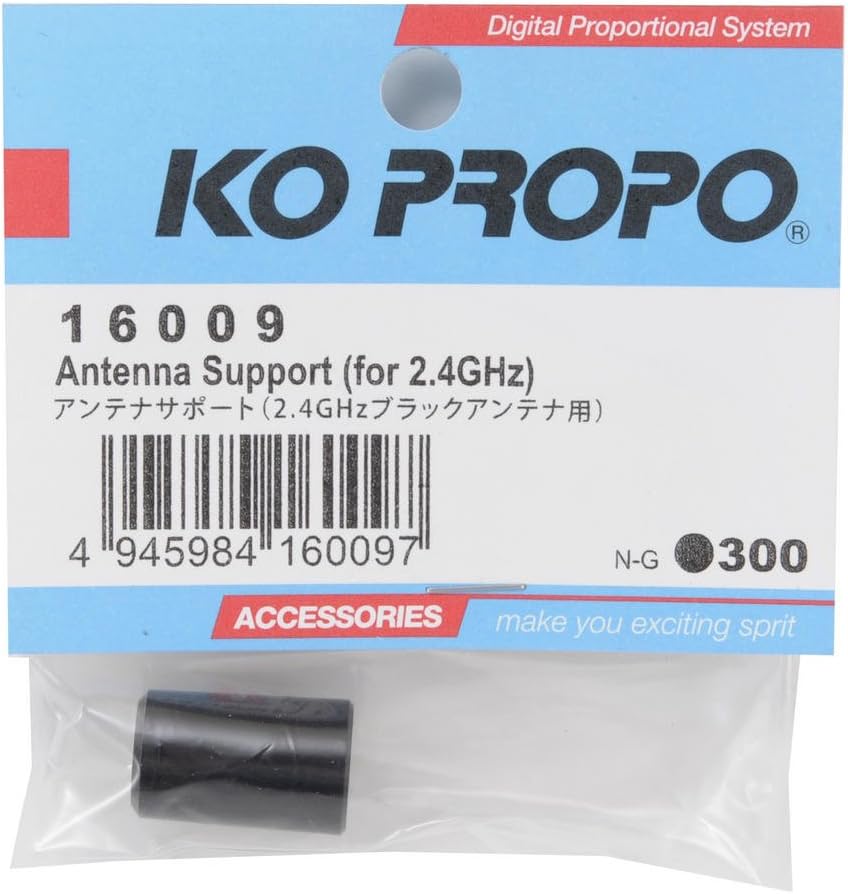

This image displays the KO Propo 16009 Antenna Support product as it appears in its retail packaging. The packaging clearly shows the brand 'KO PROPO', the model number '16009', and the product name 'Antenna Support (for 2.4GHz)'. The black cylindrical antenna support is visible through the clear plastic.

3. Тохиргоо ба суурилуулалт

Follow these steps to properly install the antenna support on your compatible KO Propo radio system.

1. Identify Antenna Location: Locate the 2.4GHz antenna on your KO Propo EX-1 or Esprit IV transmitter. The antenna support is designed to fit around the base or a specific section of this antenna.
2. Prepare Antenna: Ensure the antenna area is clean and free from debris.
3. Position Support: Carefully slide the antenna support over the designated section of the antenna. The support should fit snugly without excessive force. Refer to your transmitter's specific manual for exact placement if detailed diagrams are available.
4. Аюулгүй байршуулалт: Once positioned, ensure the support is firmly in place. It should not rotate freely or slide along the antenna without resistance. The purpose of this support is to add rigidity and protection.

Ойрын зураг view of the KO Propo 16009 Antenna Support. This black, cylindrical component is designed to provide structural reinforcement for 2.4GHz radio control antennas, preventing damage and ensuring stable signal transmission.

4. Ашиглалтын заавар

The KO Propo 2.4GHz Antenna Support is a passive component. Once correctly installed, it requires no further operational input. Its function is to provide continuous physical support and protection to the antenna during the normal operation of your radio control system. Ensure the support remains securely in place before each use of your transmitter.

5. Засвар үйлчилгээ

Regular maintenance helps ensure the longevity and effectiveness of the antenna support.

• Шалгалт: Periodically inspect the antenna support for any signs of wear, cracks, or damage. Ensure it remains firmly attached to the antenna.
• Цэвэрлэгээ: If necessary, gently wipe the support with a clean, dry, or slightly damp cloth. Avoid using harsh chemicals or solvents, as these may damage the material.
• Хадгалах: When not in use, store your transmitter in a clean, dry environment to protect all components, including the antenna support, from environmental damage.

6. Алдаа засах

If you encounter issues with the antenna support, consider the following:

• Сул тохируулга: If the antenna support feels loose, re-check its position. Ensure it is pushed fully onto the antenna. If it consistently remains loose, it may indicate wear or incompatibility.
• Хохирол: If the support is cracked or broken, it should be replaced immediately to ensure proper antenna protection. Continued use of a damaged support may compromise antenna integrity.
• Antenna Interference: The antenna support is designed not to interfere with signal transmission. If you experience unexpected signal issues after installation, verify the support is correctly installed and not obstructing any critical antenna elements.

7. Техникийн үзүүлэлтүүд

8. Баталгаат хугацаа ба дэмжлэг

For specific warranty information regarding the KO Propo 2.4GHz Antenna Support, please refer to the documentation provided with your original KO Propo radio system or contact KO Propo directly. If you require technical assistance or have questions about this product, please reach out to KO Propo customer support through their official webсайт эсвэл эрх бүхий дистрибьютерүүд.
