Танилцуулга
This manual provides instructions for the safe installation, operation, and maintenance of your Kichler 16120AZT27 LED Path Light. This outdoor lighting fixture is designed to illuminate pathways and landscape features, providing functional and aesthetic outdoor illumination.
Аюулгүй байдлын мэдээлэл
Read all instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Цахилгааныг салгах: Always disconnect the power supply at the circuit breaker or fuse box before installing, servicing, or cleaning the fixture.
- Мэргэшсэн цахилгаанчин: Хэрэв та цахилгааны утас эсвэл холболтын талаар эргэлзэж байвал мэргэшсэн цахилгаанчинтай зөвлөлдөөрэй.
- Гадна хэрэглээ: This fixture is rated for outdoor use. Ensure all connections are properly sealed and watertight to prevent water intrusion.
- Бага ботьtage Систем: This is a 12-volt fixture. Do not connect directly to 120-volt household current. Use with a compatible low-voltage ландшафтын трансформатор.
- Газардуулга: Ensure the fixture is properly grounded according to local electrical codes.
- Санал 65 Анхааруулга: Энэ бүтээгдэхүүн нь Калифорни мужид хорт хавдар, төрөлхийн гажиг эсвэл нөхөн үржихүйн бусад хор хөнөөл учруулдаг гэж мэдэгдэж буй химийн бодис агуулсан байж болзошгүй. Худалдан авахаасаа өмнө орон нутгийнхаа хуулийг шалгана ууasing болон энэ бүтээгдэхүүнийг суулгаж байна.
Багцын агуулга
Суулгацыг эхлүүлэхийн өмнө бүх бүрэлдэхүүн хэсгүүд байгаа эсэхийг шалгана уу.
- Kichler 16120AZT27 LED Path Light Fixture (1)
- Mounting Stake (1)
- Reflectors (White and Black, quantity may vary)
- Зааварчилгааны гарын авлага (1)
Тохиргоо ба суурилуулалт
The Kichler 16120AZT27 LED Path Light requires assembly and surface mount installation. Follow these steps for proper setup:
- Бүрэлдэхүүн хэсгүүдийг задлах: Савлагаанаас бүх эд ангийг болгоомжтой авч хаяна уу. Гэмтэл байгаа эсэхийг шалгана уу.
- Байршлыг сонгох: Select a suitable outdoor location for the path light, ensuring it is within reach of your low-voltage landscape wiring system.
- Утас бэлтгэх: Бага дууг баталгаажуулна ууtage transformer is disconnected from power. Strip approximately 1/2 inch of insulation from the ends of the fixture's wires.
- Install Mounting Stake: The fixture includes a plastic mounting stake. Drive the stake into the ground at the desired location. For hard ground, use a block of wood and a hammer to gently tap the stake into place. Avoid excessive force to prevent damage to the stake.
- Attach Fixture to Stake: Carefully screw the path light post onto the threaded connector of the installed stake. Ensure it is secure and upright.
- Цахилгаан хангамжид холбогдох: Connect the fixture's wires to the main low-voltage landscape cable using appropriate waterproof connectors (not included). Ensure a secure and watertight connection.
- Install Reflectors (Optional): If desired, install the provided white or black reflectors below the bulb to adjust light distribution. The white reflectors enhance visibility of the lamp талаас.
- Туршилт: Once all connections are made and secured, reconnect power to the low-voltage transformer and test the path light.

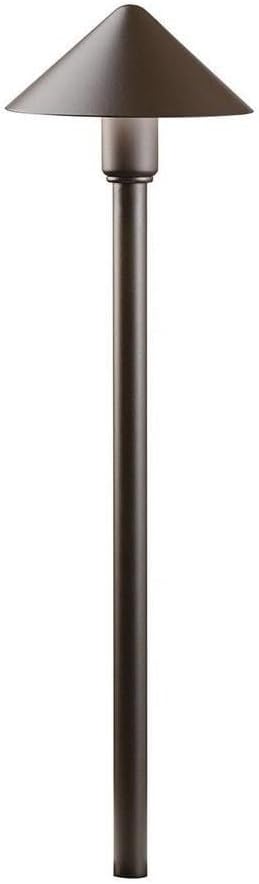

Зураг: Урд view of the Kichler 16120AZT27 LED Path Light in Textured Architectural Bronze finish.
Image: Diagram showing the dimensions of the Kichler 16120AZT27 LED Path Light, with a height of 21 inches and a shade width of 6 inches.
Ашиглалтын заавар
The Kichler 16120AZT27 LED Path Light is designed for simple operation within a low-voltage ландшафтын гэрэлтүүлгийн систем.
- Асаах/унтраах: The light is controlled by the power supply to your low-voltage landscape system. This can be a timer, a manual switch, or an app/remote control if your transformer supports it.
- Гэрлийн гаралт: The integrated LED provides warm white, down-lighting illumination. The light output is fixed and cannot be adjusted directly on the fixture.
- App/Remote Control: If your low-voltage transformer system is equipped with app or remote control capabilities, refer to your transformer's manual for instructions on how to integrate and control the path light.
Засвар үйлчилгээ
Regular maintenance ensures the longevity and optimal performance of your path light.
- Цэвэрлэгээ: Бэхэлгээг үе үе зөөлөн, damp даавуу. Зүлгүүрийн цэвэрлэгч, уусгагчийг бүү ашигла, учир нь эдгээр нь өнгөлгөөг гэмтээж болно.
- Шалгалт: Regularly inspect the wiring and connections for any signs of wear, damage, or loose connections. Ensure waterproof seals remain intact.
- LED солих: The LED light source in this fixture is non-removable and designed for long-term use. Do not attempt to replace the LED. If the LED fails, the entire fixture may need replacement.
- Stake Stability: Check the stability of the mounting stake periodically, especially after heavy winds or ground disturbance. Re-secure if necessary.
Алдааг олж засварлах
If your Kichler 16120AZT27 LED Path Light is not functioning as expected, refer to the following common issues and solutions:
| Асуудал | Боломжит шалтгаан | Шийдэл |
|---|---|---|
| Гэрэл асдаггүй. | No power to the low-voltage систем. Loose or faulty wiring connection. LED чийдэнгийн эвдрэл. | Check the transformer and ensure it is plugged in and receiving power. Verify circuit breaker. Inspect all wire connections for tightness and proper insulation. Re-secure if necessary. If other lights on the same circuit work, the fixture may be faulty. Contact Kichler support. |
| Гэрэл бүдэг эсвэл анивчдаг. | Ботьtage drop due to long wire runs or too many fixtures. Сул холболт. | Consult your low-voltage transformer manual for maximum load and wire gauge recommendations. Consider reducing the number of fixtures or using heavier gauge wire. Check all wire connections for tightness. |
| Тоног төхөөрөмжийн доторх ус. | Холболтуудыг буруу битүүмжилсэн. Damaged fixture. | Ensure all wire connectors are waterproof and properly sealed. Replace any damaged seals. If the fixture itself is damaged, it may need replacement. |
Үзүүлэлтүүд
| Онцлог | Дэлгэрэнгүй |
|---|---|
| Брэнд | Кихлер |
| Загварын нэр | 16120AZT27 |
| Бүтээгдэхүүний хэмжээс | 6"L x 6"W x 18.5"H (Note: Diagram shows 21" overall height, which may include the stake.) |
| Зүйлийн жин | 2 фунт |
| Материал | Металл |
| Төгсгөлийн төрөл | Textured Architectural Bronze |
| Өнгө | Bronze / Textured Architectural Bronze |
| Гэрлийн эх үүсвэрийн төрөл | LED |
| Цайвар өнгө | Халуун цагаан |
| Ватtage | 4.3 ватт |
| Ботьtage | 12 вольт |
| Дотор/гадаа ашиглах | Гадаа |
| Усны эсэргүүцлийн түвшин | Усны хамгаалалттай |
| Хяналтын арга | App / Remote Control (via compatible transformer) |
| Суурилуулалтын төрөл | Surface Mount (Protruding) |
| Угсрах шаардлагатай | Тиймээ |
| Бэхэлгээний төрөл | Non Removable (LED) |
Баталгаат болон дэмжлэг
Үйлдвэрлэгчийн баталгаа: This Kichler 16120AZT27 LED Path Light is covered by a 1-year manufacturer's limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
Нэхэмжлэлийн баталгаа: For warranty claims or technical support, please contact Kichler customer service directly. Retain your proof of purchase for warranty validation.
Холбоо барих мэдээлэл: Refer to the Kichler official webхамгийн сүүлийн үеийн хэрэглэгчийн дэмжлэгийн холбоо барих мэдээллийг авахын тулд сайт эсвэл бүтээгдэхүүний сав баглаа боодол.
