Maverick ET-851 Dual Sensor Oven Meat Thermometer User Manual

1. Оршил ба түүнээс дээшview

The Maverick ET-851 Dual Sensor Oven Meat Thermometer is designed to provide precise temperature monitoring for both your oven and the food you are cooking. Its intuitive touch screen interface and large blue backlit LCD display ensure clear visibility and ease of use in various lighting conditions. This thermometer helps you achieve perfectly cooked meals by simultaneously tracking two temperatures and alerting you when your target is reached.

Image 1.1: The Maverick ET-851 thermometer unit with its dual-sensor probe.

Гол онцлогууд:

• Dual Temperature Monitoring: Simultaneously track oven and meat temperatures for optimal cooking.
• Мэдрэгчтэй дэлгэцийн интерфейс: Easy and intuitive operation for setting temperatures and timers.
• Large Blue Backlit LCD Display: Provides clear visibility in any lighting condition.
• Температурын хүрээ: Monitors temperatures from -25°F to +572°F (-10°C to +300°C).
• Таймер функц: Features a 99-minute, 59-second timer.
• Дохиоллын сэрэмжлүүлэг: Notifies you when target meat temperature or timer duration is reached.
• Бат бөх датчик: High-quality, heat-resistant stainless steel probe with a 42-inch wire, rated to 572°F (300°C).
• Олон суурилуулах сонголтууд: Includes a kickstand, magnet, hang hole, and wall mount for versatile placement.
• Батерейнууд багтсан: 2 ширхэг AAA батерейтай.

2. Тохиргоо ба суурилуулалт

2.1 Батерей суурилуулах

1. Термометрийн ар талд батерейны тасалгааг олоорой.
2. Зайны тасалгааны тагийг нээ.
3. Зөв туйлшралыг (+/-) баталгаажуулж, 2 AAA батерейг оруулаарай.
4. Зайны тасалгааны тагийг сайтар хаа.

2.2 Сорьцын холболт

1. Carefully uncoil the stainless steel probe wire.
2. Insert the probe's jack firmly into the designated port on the side of the thermometer unit.

2.3 Байршуулах сонголтууд

The ET-851 offers several ways to position the unit for optimal viewing:

• Тулгуур: Pull out the integrated kickstand on the back of the unit to stand it upright on a flat surface.
• Соронзон: Use the strong magnets on the back to attach the unit to a metal surface, such as an oven door or refrigerator.
• Цооног: Utilize the hang hole for suspending the unit from a hook.
• Ханын бэхэлгээ: The unit can also be mounted on a wall using appropriate hardware (not included) through the designated mounting points.

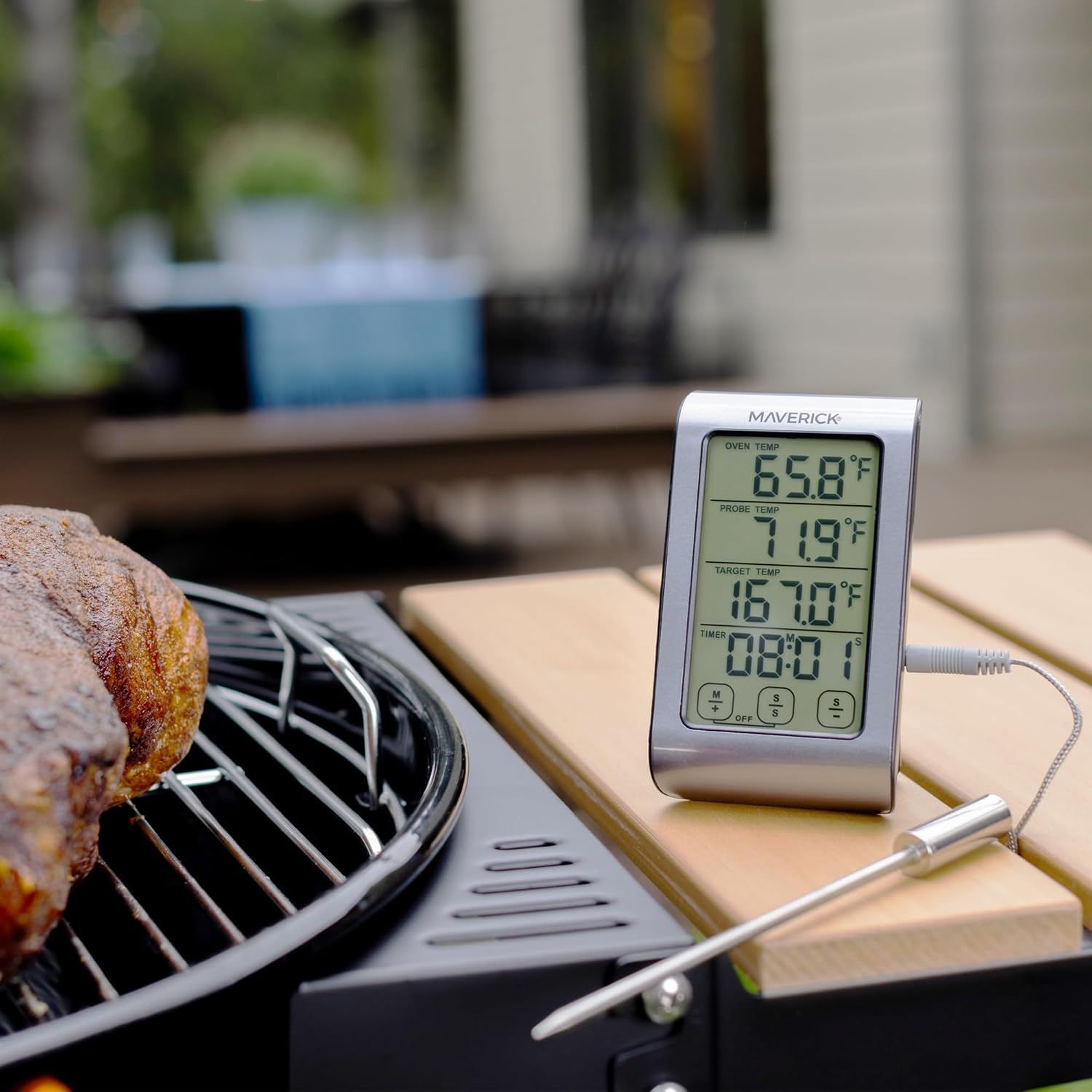

Image 2.1: The ET-851 thermometer positioned for outdoor grilling.

3. Ашиглалтын заавар

3.1 Асаах/унтраах

дээр дарна уу ON/OFF button located on the front of the unit to turn the thermometer on or off.

3.2 Selecting Temperature Units (°F/°C)

Төхөөрөмж асаалттай байгаа үед дарна уу °F/°C button to toggle between Fahrenheit and Celsius temperature displays.

3.3 Зорилтот температурыг тохируулах

1. On the touch screen, locate the 'TARGET TEMP' section.
2. -г ашиглана уу M+ болон S- buttons (or similar touch controls) to adjust the desired target temperature. The display will show the selected temperature.
3. Once the target temperature is set, the thermometer will continuously monitor the probe temperature and sound an alarm when it reaches the set target.

Зураг 3.1: Нарийвчилсан view of the ET-851's touch screen display.

3.4 Таймер ашиглах

The ET-851 includes a 99-minute, 59-second countdown timer.

1. Locate the 'TIMER' section on the display.
2. -г ашиглана уу M+ (minutes) and S- (seconds) buttons to set the desired countdown time.
3. дээр дарна уу START/STOP button to begin or pause the timer.
4. When the timer reaches zero, an alarm will sound. Press any button to silence the alarm.

3.5 Monitoring Temperatures

Insert the stainless steel probe into the thickest part of the meat, avoiding bone or gristle. Position the probe wire so it is not pinched by the oven door. The display will show:

• OVEN TEMP: The ambient temperature inside your oven or grill.
• ТЭМЦЭХ ТЭМ: The current internal temperature of your food.
• ЗОРИЛТ ТЭМЦЭЭН: Your desired final food temperature.

Image 3.2: Proper insertion of the probe into food.

4. Засвар үйлчилгээ

4.1 Цэвэрлэх заавар

The thermometer unit and probe should be cleaned after each use. The manufacturer recommends Зөвхөн гараар угаана for the probe. Do not immerse the main thermometer unit in water. Wipe the unit with a damp даавуу.

• Шинжилгээ: Wash the stainless steel probe with warm, soapy water. Rinse thoroughly and dry completely before storage. Avoid harsh abrasive cleaners.
• Нэгж: Wipe the thermometer unit with a soft, damp даавуу. Зүлгүүрийн цэвэрлэгч хэрэглэж болохгүй эсвэл төхөөрөмжийг усанд дүрж болохгүй.

4.2 Хадгалалт

Store the thermometer and probe in a clean, dry place when not in use. Ensure the probe wire is not kinked or damaged during storage.

5. Алдаа засах

• Дэлгэц байхгүй: Батерейг зөв суулгасан, дуусаагүй эсэхийг шалгана уу. Шаардлагатай бол зайгаа солино.
• Буруу уншилтууд: Ensure the probe is fully inserted into the food and not touching bone or gristle. Verify the probe connection to the main unit is secure.
• Шалгалтын алдааны мэдэгдэл: If an error message related to the probe appears, ensure the probe is correctly plugged in. If the issue persists, the probe may be damaged and require replacement.
• Сэрүүлэг дуугарахгүй байна: Check if the volume is set appropriately or if the alarm function is enabled.

6. Техникийн үзүүлэлтүүд

7. Баталгаат хугацаа ба дэмжлэг

7.1 Баталгаат хугацааны мэдээлэл

The Maverick ET-851 Dual Sensor Oven Meat Thermometer comes with a Хязгаарлагдмал НЭГ ЖИЛИЙН БАТАЛГАА. Maverick Industries will repair or replace the unit within 1 year from the date of purchase for defects in materials or workmanship.

7.2 Үйлдвэрлэгчийн дэмжлэг

For technical assistance, troubleshooting, or warranty claims, please contact Maverick Industries, the manufacturer of this product. Refer to the packaging or the official Maverick webхамгийн сүүлийн үеийн холбоо барих мэдээллийг авах сайт.

8. Нэмэлт мэдээлэл

8.1 Бүтээгдэхүүний албан ёсны видео
